Anyone got Pics of the AC Compressor for Small Block 73 RR or Satellite?

[idrivemopar]

Hi, does anyone have pictures of their AC Compressor on a 73 RR or Satellite? The AC has not been installed on my car for over 25 years, and its getting reconditioned. I have all the parts, just need to know the orientation of the compressor brackets and the lines that run to the front of the car to the condensor. If you have pictures, could you post?

Thanks



[idrivemopar]

Really, no response yet, I cant be the only one with a 73 Roadrunner that has air conditioning!!!! LOL Just need a couple of quick photos under the hood of your Ac compressor and where the lines run to the condenser!!!!!

Thanks



[73runner]

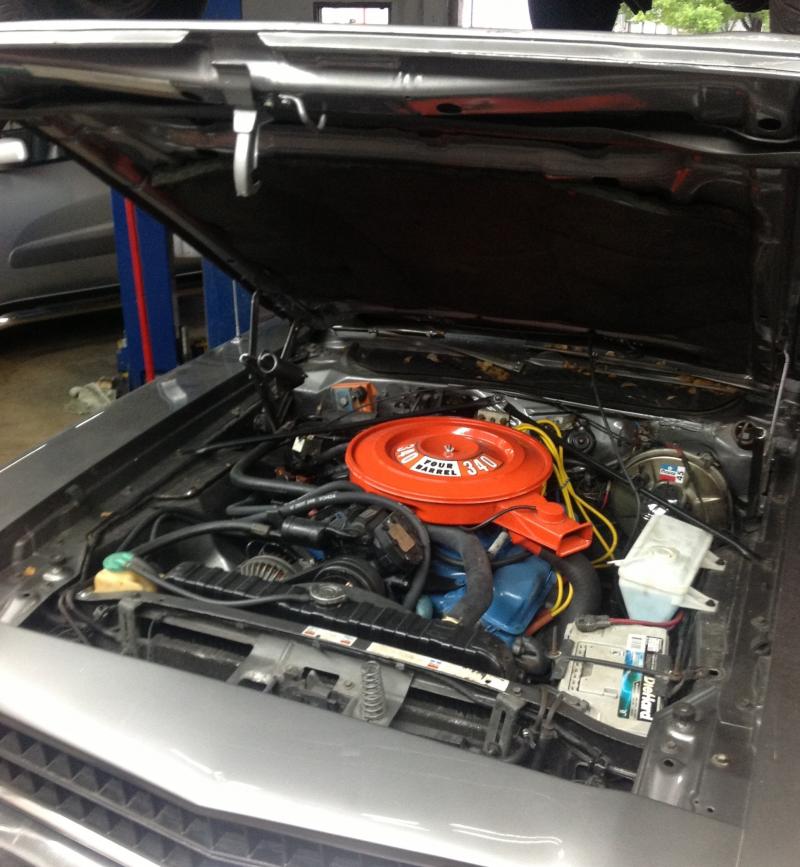

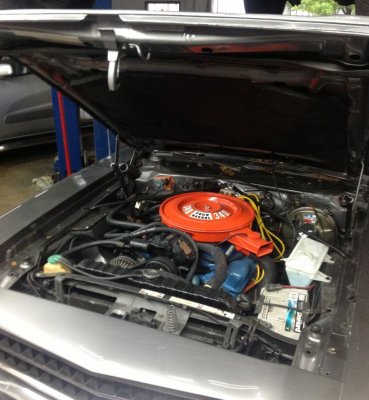

Here you go good buddy....



High side line off the front of the compressor goes around the coolant reserve then down to the condenser. The liquid line from the condenser goes to the dryer then up and over the yoke following the fender edge to the expansion valve.

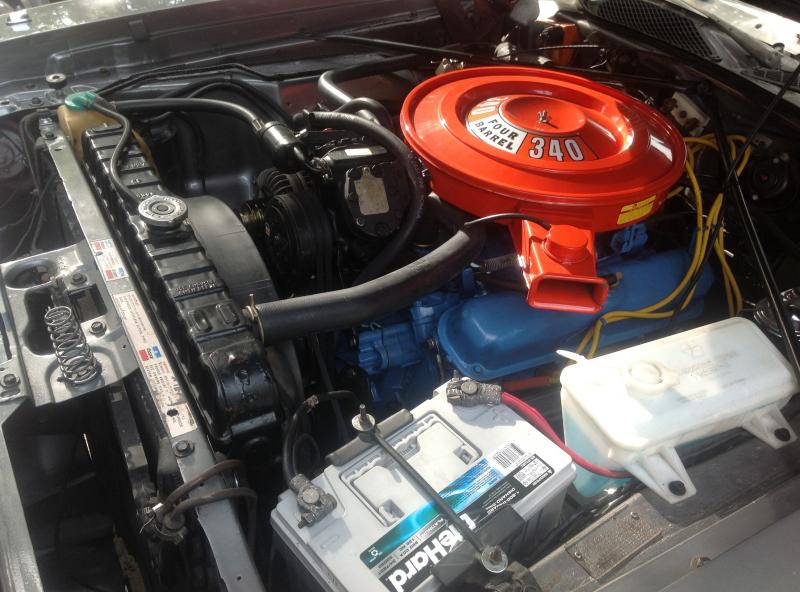

Here's another view of the lines....



Hope this helps. Let me know if you need more.



[idrivemopar]

Hey Thanks, those are great. Could you provide more of the area around the alternator, need to see how the alternator is attached, cant tell whether or not the alt goes to the AC compressor bracket other engine, and if it goes to the alt bracket, I might be missing something then.



[wahya]

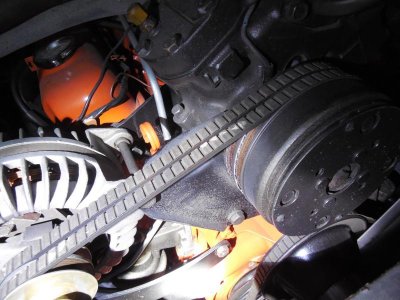

not 73, but close enough.



[bigblock]

So the comp bracket IS the alt bracket?



[wahya]

yes sir



[idrivemopar]

Hey Wahya, thanks for the photo, I was thinking I was crazy that the dip stick had such little clearance, but that's how mine is crammed in there as well. That helps a lot.
