Car is done but now it runs the battery down

Welcome Wagon

  1. Pa's Sat

    Pa's Sat Member

    Messages:
    24
    Likes Received:
    17
    Joined:
    Nov 20, 2018
    Location:
    Hickman
    Local Time:
    5:39 AM
    I have finished the rebuild on my 66 Sat. and added AC to it for comfort. Still have the original alternator in it (rebuilt) and at idle it will discharge the battery. Just wondering if I can get a bigger alternator (like 100 amp output) that will help? If I do that, do I need a different voltage regulator? It's running good otherwise and enjoy driving it. Any suggestions would be great as I am not up on the electrical part. Thanks


    • Like Like x 1
    • monaco66coupe

      monaco66coupe Well-Known Member

      Messages:
      2,572
      Likes Received:
      1705
      Joined:
      Jan 6, 2014
      Location:
      Omaha
      Local Time:
      5:39 AM
      so does the car charge with A/C off? if you have a stock non A/C alternator, then at Idle with air on you could see that. However, it is possible you just have a faulty regulator. also be sure the engine is grounded to the body, with that strap on passenger side rear of engine.

      • Like Like x 1
      • pnora

        pnora FBBO Gold Member FBBO Gold Member

        Messages:
        517
        Likes Received:
        441
        Joined:
        Apr 21, 2020
        Location:
        Ishpeming, Mi.
        Local Time:
        6:39 AM
        A/C will not be causing your problem. When you say discharge at idle does the battery go dead? Does it charge above idle?

        • Like Like x 1
        • qkcuda

          qkcuda Well-Known Member

          Messages:
          469
          Likes Received:
          529
          Joined:
          Aug 29, 2019
          Location:
          Jarvis, Ontario
          Local Time:
          6:39 AM
          I changed my car to a modern solid state voltage regulator and it solved that problem. It looks just like the original, but has solid state internals.

          • Agree Agree x 1
          • Pa's Sat

            Pa's Sat Member

            Messages:
            24
            Likes Received:
            17
            Joined:
            Nov 20, 2018
            Location:
            Hickman
            Local Time:
            5:39 AM
            The motor is grounded to the body. It looks like it is a slight discharge at idle with no fan or air on. It does charge with some higher rpm.

          • monaco66coupe

            monaco66coupe Well-Known Member

            Messages:
            2,572
            Likes Received:
            1705
            Joined:
            Jan 6, 2014
            Location:
            Omaha
            Local Time:
            5:39 AM
            which engine do you have? the non air could have a 30 amp alt, but the A/C versions had a 46 amp alternator. 30 amp is enough to operate properly as long as there is not a heavy load on it, so I still feel the Regulator is not doing it's job, if at Idle the needle is straight up or leaning left. how far does the gauge go when you Increase RPM? a little, or a lot?
            also, pull on the lights, and see if the gauge heads left big time, or does the gauge compensate, or at least try to?

          • monaco66coupe

            monaco66coupe Well-Known Member

            Messages:
            2,572
            Likes Received:
            1705
            Joined:
            Jan 6, 2014
            Location:
            Omaha
            Local Time:
            5:39 AM
            If you decide to buy another regulator, take the alternator with you, as most places will test it for free. Even though it may have been rebuilt, something could have gone bad.
            whatever you do ,don't go real big on the amps, the car is not wired for it.that year all current flows thru the ammeter, they can melt/burn up.Many a dash fire occured with the old cars because of that.

            Last edited: Apr 7, 2021 at 6:25 PM
          • Don Frelier

            Don Frelier FBBO Gold Member FBBO Gold Member

            Messages:
            3,729
            Likes Received:
            4175
            Joined:
            Oct 11, 2016
            Location:
            Ionia, NY
            Local Time:
            6:39 AM
            Welcome from NY.
            I wouldn't worry too much as about it.
            Your battery isn't going to go dead in five minutes with a slight discharge.
            There's likely nothing wrong with what you have.
            If I have the headlights on and hit the brake on my charger it discharges fairly good.
            It's done it for 30 years. As long as when you drive five or ten minutes steady it should show just a slight bit of charge above center.

            Last edited: Apr 8, 2021 at 11:09 AM
            • Agree Agree x 2
            • Like Like x 1
            • Pa's Sat

              Pa's Sat Member

              Messages:
              24
              Likes Received:
              17
              Joined:
              Nov 20, 2018
              Location:
              Hickman
              Local Time:
              5:39 AM
              It has a 318 now bored out .30 and came with only power steering. I added AC now. I will get the alternator tested and find out what its output is and maybe a new regulator.
              When idling the gage will go slightly left if anything is on but does go right with some increase of rpm.
              Don't want to have a dash fire now.
              Thanks for the help!

            • monaco66coupe

              monaco66coupe Well-Known Member

              Messages:
              2,572
              Likes Received:
              1705
              Joined:
              Jan 6, 2014
              Location:
              Omaha
              Local Time:
              5:39 AM
              yep, probably a tired unresponsive regulator, it happens allthe time. Don't lose your original alternator, all these stores are selling high output units, and a 66 Satellite don't like that!

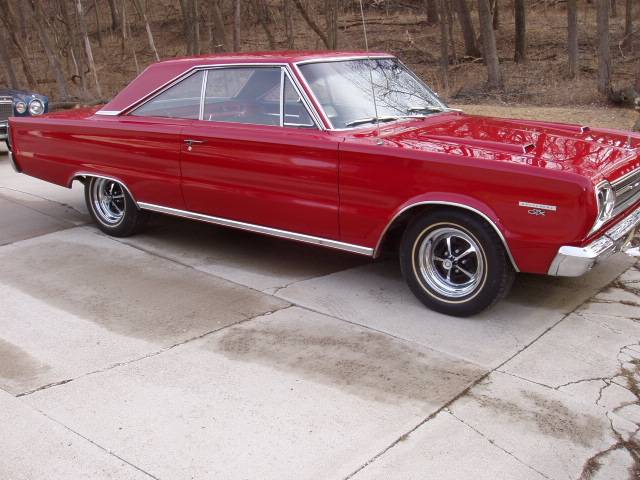

              I know, I have had belvederes since 1995. this one I restored in 2001. 440 HP original

              045 - Copy.JPG

            • moparedtn

              moparedtn Ed on the Ridge FBBO Gold Member

              Messages:
              9,623
              Likes Received:
              15487
              Joined:
              May 14, 2011
              Location:
              On the Ridge, TN
              Local Time:
              6:39 AM
              Pretty common actually and like others have said already, not necessarily a sign of something
              being "wrong".
              What RPM is your idle speed? Would bumping it 50-100RPM bring the charge up acceptably?
              Alternators need a certain minimum RPM to do their thing.
              I totally agree with replacing the voltage regulator with one of the electronic ones - and sure,
              use the one that looks identical to the one you have now if you like.

              • Agree Agree x 1
              • 440+6

                440+6 FBBO Gold Member FBBO Gold Member

                Messages:
                3,413
                Likes Received:
                3058
                Joined:
                Oct 2, 2012
                Location:
                Farmington, Michigan
                Local Time:
                6:39 AM
                I had the same problem years back, took my alternator to a local alternator rebuilding shop and just had them put a smaller pulley on it, been perfect ever since.

                • Agree Agree x 1
                • Hey-O

                  Hey-O FBBO Gold Member FBBO Gold Member

                  Messages:
                  9,018
                  Likes Received:
                  25750
                  Joined:
                  Nov 21, 2018
                  Location:
                  St Charles Mo
                  Local Time:
                  5:39 AM
                  Welcome from Missouri!!

                • HD539

                  HD539 FBBO Gold Member FBBO Gold Member

                  Messages:
                  892
                  Likes Received:
                  659
                  Joined:
                  Aug 17, 2018
                  Location:
                  Pacific Northwest
                  Local Time:
                  3:39 AM
                  Welcome from the Pacific Northwest

                • Budnicks

                  Budnicks You Can Just Thank Me Later FBBO Gold Member

                  Messages:
                  53,288
                  Likes Received:
                  57851
                  Joined:
                  Jan 16, 2011
                  Location:
                  NorCal Sierras
                  Local Time:
                  3:39 AM
                  welcome to FBBO

                • 440 Charger

                  440 Charger FBBO Gold Member FBBO Gold Member

                  Messages:
                  520
                  Likes Received:
                  245
                  Joined:
                  Aug 1, 2020
                  Location:
                  naples Fl
                  Local Time:
                  6:39 AM
                  Led is the new way.

                • polywideblock

                  polywideblock FBBO Gold Member FBBO Gold Member

                  Messages:
                  26,000
                  Likes Received:
                  58428
                  Joined:
                  Jul 31, 2014
                  Location:
                  Newcastle AU
                  Local Time:
                  8:39 PM
                  g'day from Australia :welcome:

                • Pa's Sat

                  Pa's Sat Member

                  Messages:
                  24
                  Likes Received:
                  17
                  Joined:
                  Nov 20, 2018
                  Location:
                  Hickman
                  Local Time:
                  5:39 AM
                  Had the alternator checked and was good. Replaced the voltage regulator and that took care of it. It will now show a straight up or leaning to the right at idle and stays there with the lights and fan on. Thanks for the ideas and help. This is a great place for help!

                  • Like Like x 2
                  • Agree Agree x 1
