Combination U-Joint 741 to 742 Swap

Engine, Trans & Driveline

  1. Belvedere13

    Belvedere13 Active Member

    Messages:
    26
    Likes Received:
    4
    Joined:
    Jan 13, 2019
    Location:
    Edmonton, AB
    Local Time:
    12:40 PM
    Getting close to having the 742 case completed with Sure-grip and 3.73 gears for the Wagon. Currently, there is a 741 case installed and the replacement 742 has the larger 10 spline yoke. My research so far suggests Moog 319 or Moog 347. What is the correct combination U-Joint to go from the OEM driveshaft yoke to the 742 Case? TIA

  2. Bill Monk

    Bill Monk FBBO Gold Member FBBO Gold Member

    Messages:
    2,234
    Likes Received:
    2597
    Joined:
    Feb 27, 2017
    Location:
    West Virginia
    Local Time:
    2:40 PM
    347

  3. Fran Blacker

    Fran Blacker FBBO Gold Member FBBO Gold Member

    Messages:
    8,385
    Likes Received:
    8025
    Joined:
    Sep 23, 2016
    Location:
    Connecticut
    Local Time:
    2:40 PM

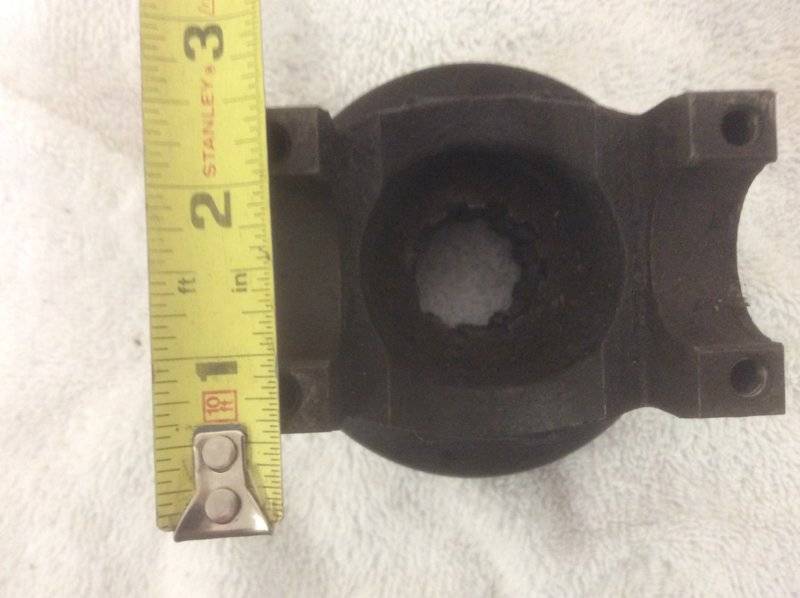

    Does your yoke have small tabs (1330) to center u-joint or is it machined for inside snap ring? Pic is of tabs, little hard to see. One with tape measure, u4.jpg picture is of a 7290 yoke machined inside. u1330 1.JPG

    Last edited: Feb 21, 2020
  4. 65wgn440

    65wgn440 Well-Known Member

    Messages:
    442
    Likes Received:
    371
    Joined:
    Aug 16, 2016
    Location:
    Toledo, Ohio
    Local Time:
    2:40 PM
    Mancini sells them.

  5. HEMI-ITIS

    HEMI-ITIS STREETER on LI FBBO Gold Member

    Messages:
    11,907
    Likes Received:
    14259
    Joined:
    Dec 14, 2008
    Location:
    Long Island,New York
    Local Time:
    2:40 PM

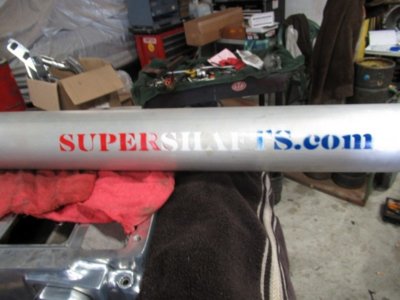

    Do the larger joints now front and rear.You can have your shaft modified or buy new CM or aluminum to save some weight.

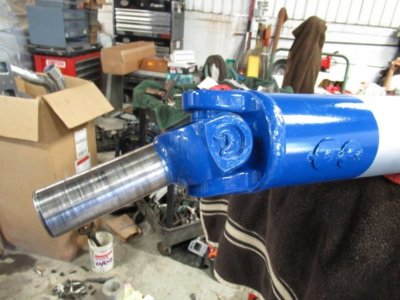

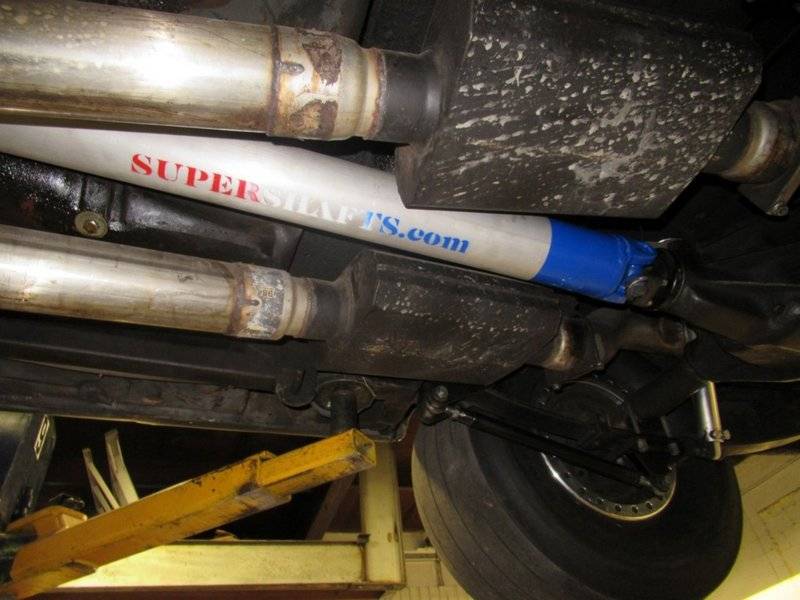

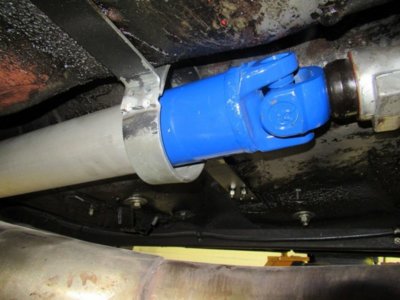

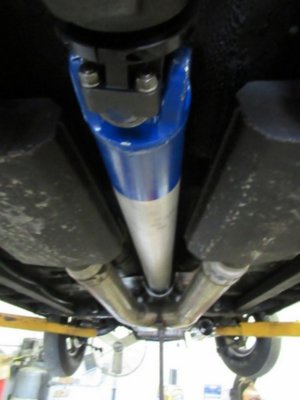

    7.31.17 004.jpg 7.31.17 017.jpg 7.31.17 018.jpg 7.31.17 019.jpg 7.31.17 020.jpg 8.23.17 021.jpg 9.19.17 038.jpg 9.19.17 040.jpg

  6. Belvedere13

    Belvedere13 Active Member

    Messages:
    26
    Likes Received:
    4
    Joined:
    Jan 13, 2019
    Location:
    Edmonton, AB
    Local Time:
    12:40 PM
    Thanks guys...I believe it has the tabs to center the U-Joint. It's in the process of being re-assembled so I will confirm before ordering a U-Joint. An aluminum driveshaft might be something in the future but for now I have other "priorities" for the Wagon and I'm trying to stay under the Wife's radar...Moog 347 or Spicer equivalent?
    :lol:.

    • Like Like x 1
    • BSB67

      BSB67 FBBO Gold Member FBBO Gold Member

      Messages:
      1,421
      Likes Received:
      1127
      Joined:
      Jan 18, 2018
      Location:
      PA
      Local Time:
      2:40 PM
      Does the case number actually tell us something about the u-joint size with certainty?

    • Fran Blacker

      Fran Blacker FBBO Gold Member FBBO Gold Member

      Messages:
      8,385
      Likes Received:
      8025
      Joined:
      Sep 23, 2016
      Location:
      Connecticut
      Local Time:
      2:40 PM
      Maybe that it has a larger u-joint unless a 741 yoke can be put in a 742 case? In post #3 742 caseyoke with tape measure 7290 u-joint 1968? other 742case with yoke with centering tabs 1330 u-joint 1966/67 cars

    • Belvedere13

      Belvedere13 Active Member

      Messages:
      26
      Likes Received:
      4
      Joined:
      Jan 13, 2019
      Location:
      Edmonton, AB
      Local Time:
      12:40 PM
      The original 741 2.93's came with the Wagon in a 5 gallon pail when I bought it as the previous owner upgraded to a new carrier with 3.55's but no Sure-grip. I was going to take the yoke off the spare 741 and use it but when I tried to put the 1 1/8" socket on the pinion nut it was a "No Go". I remembered reading on the Doc Diff website that if you have a 1 3/16" - 1 1/4" nut, you have a fine spline yoke...Scratch that idea. I contemplated using the pinion yoke from the 741 3.55's but that will negate the option of using it or selling it as a "ready to go" unit. With the 275/60 15" tires the 3.55's are like 3.23 gears accelerating and less than 2,900 rpm at highway speed. I'm hoping for a bit quicker "Launch" off the line :rofl:.
      Enough of my keyboard diarrhea for this morning...

    • Belvedere13

      Belvedere13 Active Member

      Messages:
      26
      Likes Received:
      4
      Joined:
      Jan 13, 2019
      Location:
      Edmonton, AB
      Local Time:
      12:40 PM
      Fran Blacker...When it warms up a bit more here in the Once Great White North (a dig at our buffoon Prime Minister), I'll have to get serious about seeing exactly what I have to do to get the Wagon "smokin" the tires". Of course, with the Grand Daughter safely buckled in her car seat.
      Natalie on Fender.PNG

      • Like Like x 2
      • Belvedere13

        Belvedere13 Active Member

        Messages:
        26
        Likes Received:
        4
        Joined:
        Jan 13, 2019
        Location:
        Edmonton, AB
        Local Time:
        12:40 PM

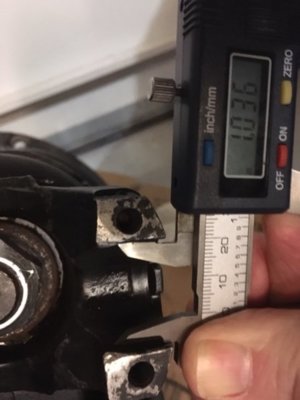

        The saga continues...I tried a 347 U-Joint only to find the caps are too large for the pinion yoke although it appears to be close in width. The other side seems to be correct as it fits the spare 741 yoke I have. The local supplier doesn't appear overly familiar with this yoke. The 742 yoke I have has the two "centering" tabs with a distance of 3.60" between them and an approximate opening for the cap of 1.04". Any assistance would be greatly appreciated.

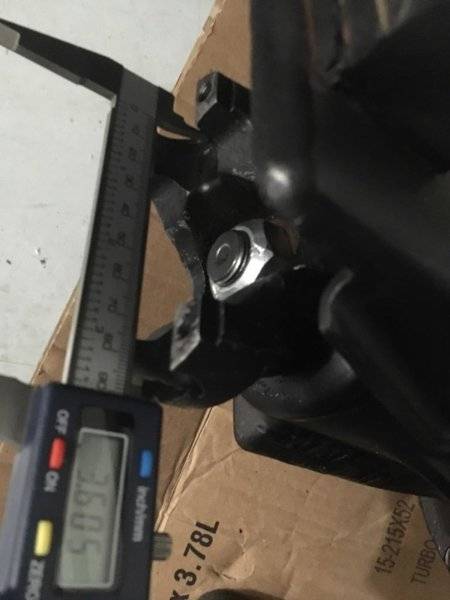

        742 Yoke wide 3.60 Inch.jpg 742 Pinion Yoke.jpeg

      • Fran Blacker

        Fran Blacker FBBO Gold Member FBBO Gold Member

        Messages:
        8,385
        Likes Received:
        8025
        Joined:
        Sep 23, 2016
        Location:
        Connecticut
        Local Time:
        2:40 PM
        That yoke takes outside clips the tabs are there to center u-joint. The u-joint with clips on cups are for 7260 or 7290 and others. If the tab to tab width of u-joint is 3.625" it takes a 1330 u-joint, cup size on that u-j is 1.0625". Does the driveshaft have outside snap rings? What is the width of u-joint on driveshaft, pictures.

      • Fran Blacker

        Fran Blacker FBBO Gold Member FBBO Gold Member

        Messages:
        8,385
        Likes Received:
        8025
        Joined:
        Sep 23, 2016
        Location:
        Connecticut
        Local Time:
        2:40 PM
      • Belvedere13

        Belvedere13 Active Member

        Messages:
        26
        Likes Received:
        4
        Joined:
        Jan 13, 2019
        Location:
        Edmonton, AB
        Local Time:
        12:40 PM
        Thanks Fran. Is the yoke OEM? The Parts guy said it was aftermarket because it has the tabs. Not sure about that. I'm not sure about the driveshaft yoke and it's still too cold to be laying underneath to check. I'm guessing it's the same as the spare 741 yoke I have which is OEM. So far my research suggests the Moog 457 may work for this application.
        https://www.moog-suspension-parts.com/universal-joints-ujoints.asp

      • Belvedere13

        Belvedere13 Active Member

        Messages:
        26
        Likes Received:
        4
        Joined:
        Jan 13, 2019
        Location:
        Edmonton, AB
        Local Time:
        12:40 PM
      • 1 Wild R/T

        1 Wild R/T Well-Known Member

        Messages:
        2,422
        Likes Received:
        4084
        Joined:
        Jul 9, 2019
        Location:
        California
        Local Time:
        11:40 AM
        First off, since 741 & 742 cases only use the 10 spline yokes & neither uses a crush sleeve yoke swaps shouldn't be an issue.... Second the standard way the measure joins is from cap to cap since there is significant variation in that dimension where as cap diameter variation is typically less than 1/8"...

        Changing from a 741 to a 742 doesn't automatically require a different U joint, there are 741's around with the big yoke... And a few 742's with the small yoke... Screen Shot 2020-03-20 at 10.13.50 AM.png

        • Like Like x 1
        • Belvedere13

          Belvedere13 Active Member

          Messages:
          26
          Likes Received:
          4
          Joined:
          Jan 13, 2019
          Location:
          Edmonton, AB
          Local Time:
          12:40 PM
          Fra...should have looked at your post before hitting "Post". Yes, I'm thinking the 457 is the one I need. What is the difference between the 457 and 454C? (Flush-type lube fitting in cross versus Regular Lube Fitting in Cross)

        • Fran Blacker

          Fran Blacker FBBO Gold Member FBBO Gold Member

          Messages:
          8,385
          Likes Received:
          8025
          Joined:
          Sep 23, 2016
          Location:
          Connecticut
          Local Time:
          2:40 PM

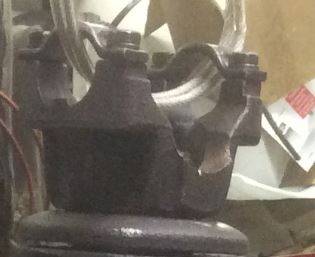

          OEM Picture of my 66 742, Those yokes were 66/67 only but not positive maybe earlier. Tabs are hard to see look below cable on the left.

        • Belvedere13

          Belvedere13 Active Member

          Messages:
          26
          Likes Received:
          4
          Joined:
          Jan 13, 2019
          Location:
          Edmonton, AB
          Local Time:
          12:40 PM
          The OEM 741 carrier I have has an 1 1/4" pinion nut versus the 1 1/8" nut on the 742. According to the Doc Diff the larger nut has the fine spline and the 742 that I have that is rebuilt and ready to install has the course spline pinion.

        • Belvedere13

          Belvedere13 Active Member

          Messages:
          26
          Likes Received:
          4
          Joined:
          Jan 13, 2019
          Location:
          Edmonton, AB
          Local Time:
          12:40 PM
          Fran....Yes that appears to be the same yoke I have. It came from a full size with 2.93? gears and sure-grip that I rebuilt and had Motive 3.73 gears installed.
