Hi everyone- I’m needing some measurements of the front and rear floor pan console brackets for a 1969 Charger or B-Body.
I have the center shifter bracket and would like to just fabricate the 2 smaller ones. They look like simple flat bar bent.
Even a good picture with a ruler would be great.
Unless someone’s got 2 they want to sell.

Thanks!


Bighouse

Well-Known Member
Local time
12:40 PM
Joined
Mar 28, 2020
Messages
837
Reaction score
1,361
Location
New York
Found what I needed the 2 are on the way! Thanks for the pic links- I’ll be using them


Kern Dog

Life is full of turns. Build your car to handle.
FBBO Gold Member
Local time
9:40 AM
Joined
Apr 13, 2012
Messages
26,427
Reaction score
77,397
Location
Granite Bay CA
Google is not your friend, man.

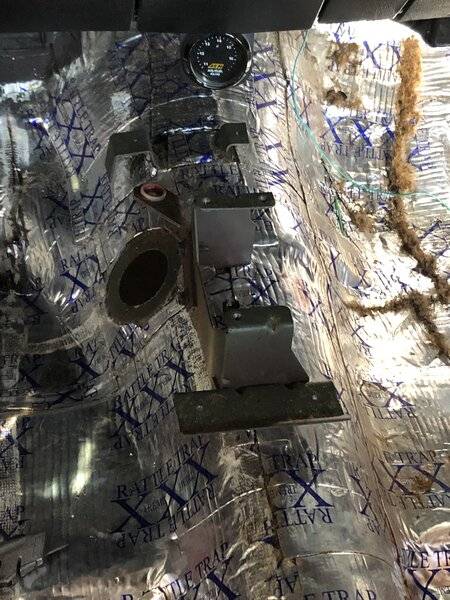

SST 225.JPG

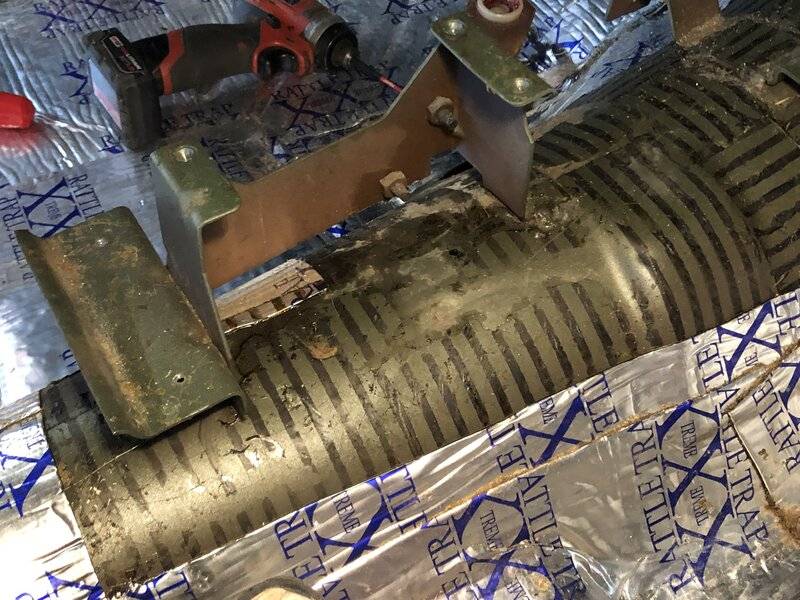

SST 231.JPG


SST 347-1.JPG


SST 354.JPG


Bighouse

Well-Known Member
Local time
12:40 PM
Joined
Mar 28, 2020
Messages
837
Reaction score
1,361
Location
New York
How does the console attach to the very front bracket?


Kern Dog

Life is full of turns. Build your car to handle.
FBBO Gold Member
Local time
9:40 AM
Joined
Apr 13, 2012
Messages
26,427
Reaction score
77,397
Location
Granite Bay CA

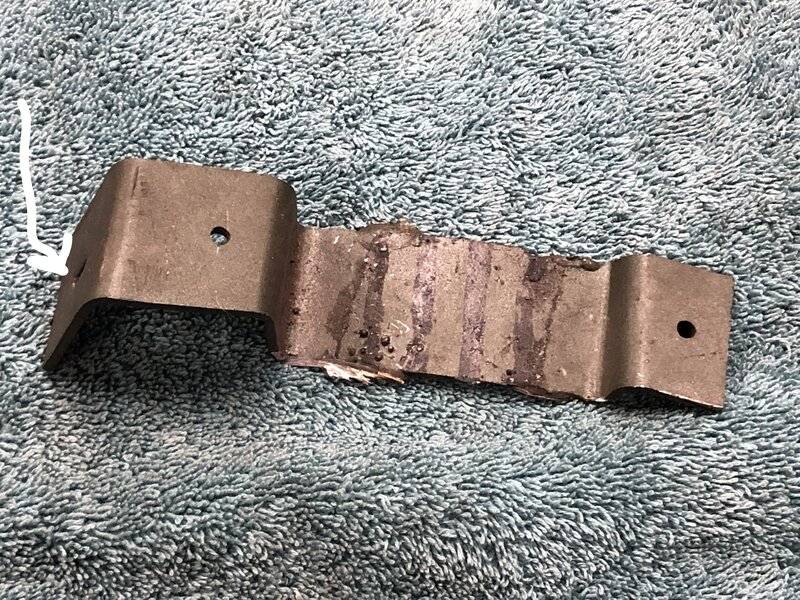

The console body attaches to this bracket on the left side to this screw hole:

SST 354_LI.jpg


davek

FBBO Gold Member
FBBO Gold Member
Local time
12:40 PM
Joined
Oct 14, 2017
Messages
6,568
Reaction score
6,403
Location
columbia SC
I am sorry thought he was welding them in,my bad.


Bighouse

Well-Known Member
Local time
12:40 PM
Joined
Mar 28, 2020
Messages
837
Reaction score
1,361
Location
New York
I am going to weld them in. Those pics are a help. I’m going to hook the shifter up and assemble the console to the brackets and set it all in place before I tack them.
I’m still not entirely understanding the front bracket and the mount on the left. All I have is a large oval hole in the console where it would screw to the bracket in Kerns pic above (post #7)
Am I missing something?


Kern Dog

Life is full of turns. Build your car to handle.
FBBO Gold Member
Local time
9:40 AM
Joined
Apr 13, 2012
Messages
26,427
Reaction score
77,397
Location
Granite Bay CA
The front of the console in my car only attached to the left side of that bracket.

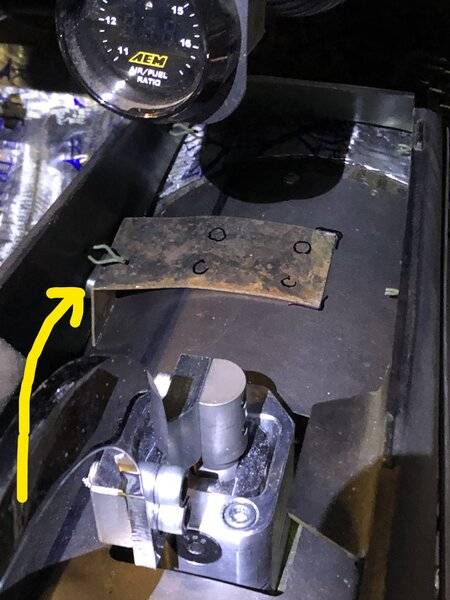

In the picture below, I'm pointing to the console where it attaches. This picture is after modifying my tunnel for the 5 speed but the console attaches in a similar manner even though I made a replacement bracket.

SST 357_LI.jpg


davek

FBBO Gold Member
FBBO Gold Member
Local time
12:40 PM
Joined
Oct 14, 2017
Messages
6,568
Reaction score
6,403
Location
columbia SC
It mount right in front of the door 2 screws and 2 in the very back. I believe 1 in the very front .
