Does mini starter need an external relay?

matthon

Well-Known Member
Local time
7:31 PM
Joined
Mar 3, 2018
Messages
1,184
Reaction score
967
Location
New York
62 Dart, American Auto Wire full harness/fusebox/mega fuse block/horn relay/dimmer switch/headlight switch.
Bought a mini starter and a Denso alternator.

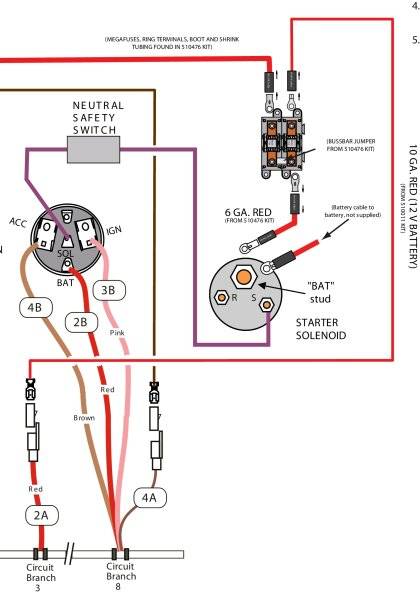

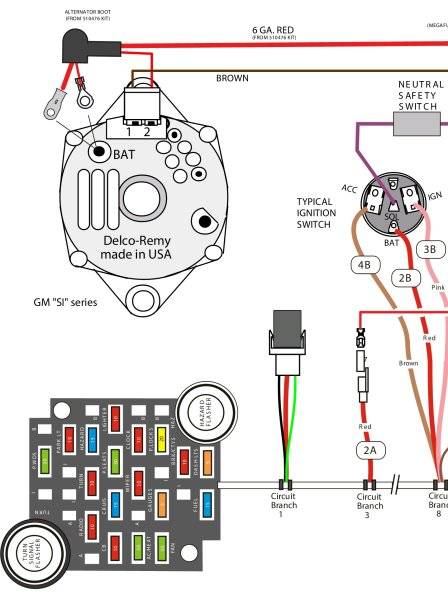

AAW wiring diagram below, everything mentioned is installed.

Stock ignition switch has BAT, ACC, SOL, IGN1, IGN2.

Pink IGN wire powers MSD and coil, and since IGN1 and IGN2 on the switch are start and run, I hooked both to the pink wire.

SOL shows a straight shot to the starter.
Before I got the AAW kit I bought a Mopar starter relay, but now it's no longer in the loop so to speak.

Do I need a separate starter relay?

If so, any suggestions would be appreciated, type, wiring it up, whatever.

The AAW harness is universal but incorporates some GM stuff, like the highbeam switch and column plug, but no mention of a GM starter.





dangina

Well-Known Member
Local time
5:31 PM
Joined
Aug 17, 2010
Messages
659
Reaction score
165
Location
lethbridge
I used a the standard ford relay for mine, I would say yes you should add one in.


Darter6

FBBO Gold Member
FBBO Gold Member
Local time
6:31 PM
Joined
Dec 29, 2009
Messages
6,165
Reaction score
7,245
Location
Nevada
Tho the factory starter relay is just fine.dangina shows something many builders do.
A friend of mine puts these on all the autos he works on.


gkent

Well-Known Member
Local time
7:31 PM
Joined
Aug 8, 2012
Messages
4,239
Reaction score
4,501
Location
Ontario, Canada
The GM starter in the schematic has three terminals. The Mopar starters only have two. Yes, you need a relay.

The age-old problem with Mopar starters is that the integral solenoid makes the high amp contact to engage the starter. Every time it makes contact it burns a bit of the contacts till eventually they're so burnt the starter no longer gets power. You can hear the click-click of the solenoid but there's no juice to the coils.

The solution would be to jumper those internal contacts and use an external solenoid like the Ford unit - that could be easily and quickly swapped if and when it fails. Although the mini starters are more easily swapped than the old ones, a new starter is still a lot more $$ than a solenoid.

And for what its worth, that relay in DANGINA's post is actually a solenoid - probably a relay/solenoid combo but definitely a solenoid.


snakeoil24

FBBO Gold Member
FBBO Gold Member
Local time
7:31 PM
Joined
Jan 23, 2009
Messages
5,772
Reaction score
4,699
Location
New Jersey The State of Tax Theives
Allowing me to add look at mad electric schematic consider a cole hersey relay which allows you to kill power to positive lead after engine starts

Last edited:

matthon

Well-Known Member
Local time
7:31 PM
Joined
Mar 3, 2018
Messages
1,184
Reaction score
967
Location
New York
Is it ok to mount the relay/solenoid on the inside of the firewall?


RemCharger

Well-Known Member
Local time
6:31 PM
Joined
Apr 5, 2014
Messages
3,085
Reaction score
2,694
Location
Sask

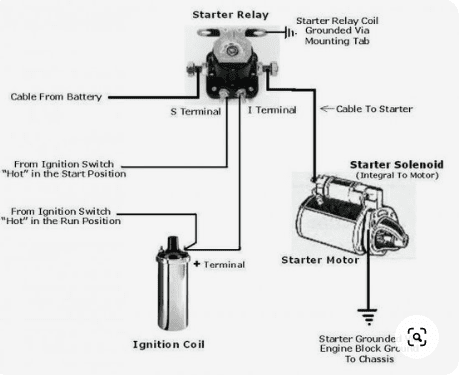

The I stud energizes the coil in start position.
This is ford wiring, that's why it's alien.


matthon

Well-Known Member
Local time
7:31 PM
Joined
Mar 3, 2018
Messages
1,184
Reaction score
967
Location
New York

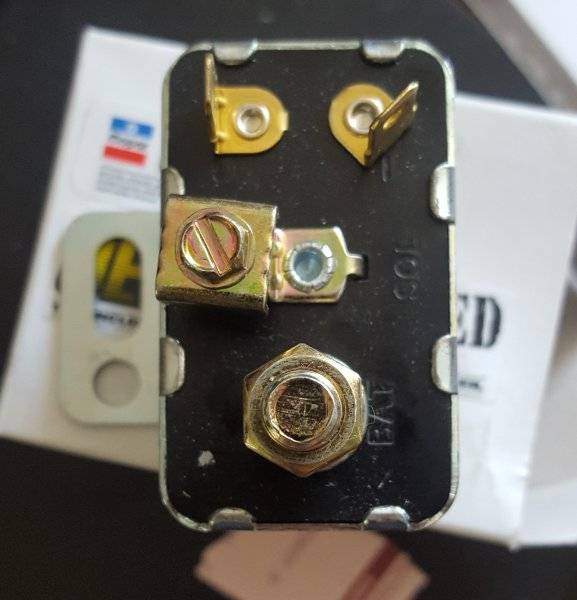

Ok, so I can use the Mopar solenoid I have, power from battery to BAT, SOL to starter, SOL from ignition to I, and the G is for the neutral safety, iirc.



matthon

Well-Known Member
Local time
7:31 PM
Joined
Mar 3, 2018
Messages
1,184
Reaction score
967
Location
New York
Why would you want that much unfused, unswitched live current in the passenger compartment ?
I don't, why I asked, just wondering if it was an option, for anti-theft I guess.


gkent

Well-Known Member
Local time
7:31 PM
Joined
Aug 8, 2012
Messages
4,239
Reaction score
4,501
Location
Ontario, Canada
Ok, so I can use the Mopar solenoid I have, power from battery to BAT, SOL to starter, SOL from ignition to I, and the G is for the neutral safety, iirc.

This is not a solenoid, this is a relay !!


Geoff 2

Well-Known Member
Local time
6:31 PM
Joined
Jul 21, 2014
Messages
726
Reaction score
412
Location
Australia
The problem with the Ferd sol in post #2 is:
- there is absolutely no need for it. More wires, more connections to fail
- but worse, you are adding resistance [ via the contacts ] to a cct that draws hundreds of amps & needs all the current it can get....
- that sol was used on a particular Ford starter, the Folo-Thru, which did NOT have a sol mounted on the starter. Hence the remote starter.


gkent

Well-Known Member
Local time
7:31 PM
Joined
Aug 8, 2012
Messages
4,239
Reaction score
4,501
Location
Ontario, Canada
The problem with the Ferd sol in post #2 is:
- there is absolutely no need for it. More wires, more connections to fail
- but worse, you are adding resistance [ via the contacts ] to a cct that draws hundreds of amps & needs all the current it can get....
- that sol was used on a particular Ford starter, the Folo-Thru, which did NOT have a sol mounted on the starter. Hence the remote starter.

Exactly ! Unless you can bypass the solenois in the Mopar starter, using an external solenoid is pointless.


RJRENTON

FBBO Gold Member
FBBO Gold Member
Local time
6:31 PM
Joined
Jul 1, 2015
Messages
3,014
Reaction score
3,023
Location
South Shores area of Decatur, Illinois
Exactly ! Unless you can bypass the solenois in the Mopar starter, using an external solenoid is pointless.
Since the solenoid on the Mopar starter also provides the engagement or shifting of the starter pinion to the fly wheel ring gear, it is necessary to operate plus it also has a secondary coil winding that acts as the holding circuit (magnetically) to keep the pinion engaged until the engine starts. The small red wire on the solenoid is the innitializing winding to pull in the solenoid armature to begin the START sequence.
BOB RENTON
