Does the column mounted gear selector light up?

1966-1967 Dodge Charger Forum

  1. onlyone

    onlyone Bird of Pray FBBO Gold Member

    Messages:
    2,483
    Likes Received:
    1872
    Joined:
    Jun 24, 2013
    Location:
    State of Denial
    Local Time:
    12:16 AM
    Just curious.
    I'm doing a major re-wire.
    I've found several errors in the factory prints from the 67 manual.
    (Now I'm installing a custom fabricated fuse block)

    I see no provision for lighting on a column mounted gear selector in the prints.
    I feel sure if it does light up it will be from the usual place through the turn signal switch connector with 12 volts.

    .

    For reference.
    Oscillator HV only goes to the following in the 67 factory prints:
    1.The gauge cluster
    (E2 which inexplicably changes to E3 before it gets to the gauge cluster plug connector).

    2. It also feeds the A/C and Heater control connector ( Wire E3B also changes to E3C for no reason)

    3. And lastly, it feeds the radio via an "18 white" wire
    That's all I see.

    Those three things are on the HV side of the oscillator circuit.

    Now, the orange 12 Volt feed circuit to the oscillator does initially goes to the turn signal switch plug ( E2A and E2B at pin "5" on the plug).
    And then it makes the connection there at pin 5 and goes on to feed the oscillator 12 volts (E2B).
    But there is no wire showing on the other plug side of pin 5 on the turn signal switch plug as though it would feed a 12 volt light on the gear selector.



    So the above question.....

    Last edited: Sep 11, 2018
  2. 493 Mike

    493 Mike FBBO Gold Member FBBO Gold Member

    Messages:
    3,234
    Likes Received:
    3551
    Joined:
    Dec 25, 2011
    Location:
    White Cloud, MI
    Local Time:
    1:16 AM
    I just finished my 65 column rebuild and it had a lamp attached to the screws that hold the turn signal switch to the column.
    Mike

    • Thanks! Thanks! x 1
    • ODZKing

      ODZKing Well-Known Member

      Messages:
      1,724
      Likes Received:
      599
      Joined:
      Sep 2, 2013
      Location:
      Liverpool, NY
      Local Time:
      1:16 AM
      The white wire would be for the radio illumination and is EL. That has something like 220 volts so you wouldn't want to use that for radio power (12 v) ... just sayin'

      • Like Like x 1
      • moparmarks

        moparmarks FBBO Gold Member FBBO Gold Member

        Messages:
        6,192
        Likes Received:
        2406
        Joined:
        Jul 31, 2011
        Location:
        Western Colorado
        Local Time:
        11:16 PM
        The orange wire is for the dash lights. Should be separate orange wire going up the column for the gear indicator.

        • Like Like x 1
        • onlyone

          onlyone Bird of Pray FBBO Gold Member

          Messages:
          2,483
          Likes Received:
          1872
          Joined:
          Jun 24, 2013
          Location:
          State of Denial
          Local Time:
          12:16 AM
          Mine doesn't have 220 on it.
          In fact the white wire is coming out of the car.
          Tried two power packs which were bad and just decided to modernize the whole car.

        • onlyone

          onlyone Bird of Pray FBBO Gold Member

          Messages:
          2,483
          Likes Received:
          1872
          Joined:
          Jun 24, 2013
          Location:
          State of Denial
          Local Time:
          12:16 AM
          I don' t doubt you.
          But it's not on the 67 factory manual prints.
          I think the prints were an afterthought on several fronts.
          This particular car would not have had an automatic column mounted shift in it anyway.
          And there are no "extra" orange wires on the harness.
          Hence, my ignorance and question.

          I found a hidden AGC fuse holder feeding the emergency flasher.
          The owner would have never found it.
          The power source for the flasher was not correct on the prints either.
          The prints show it coming off of the brake light switch.
          Instead, it came off of the always "hot" splice buried in the wiring harness in the dash.
          I've posted that on here before in case someone has a dead flasher.
          I'm sure as long as all the lights worked when the car left, the factory didn't care about accuracy.

          Last edited: Sep 11, 2018
        • moparmarks

          moparmarks FBBO Gold Member FBBO Gold Member

          Messages:
          6,192
          Likes Received:
          2406
          Joined:
          Jul 31, 2011
          Location:
          Western Colorado
          Local Time:
          11:16 PM
          The wiring diagrams in my 67 FSM shows the orange wires for the dash lights. Also shows the wire going to the gear indicator lamp on the column in the #5 terminal of the turn signal harness connector but does not indicate the color. So it is not a separate harness like the later cars.

          • Thanks! Thanks! x 1
          • onlyone

            onlyone Bird of Pray FBBO Gold Member

            Messages:
            2,483
            Likes Received:
            1872
            Joined:
            Jun 24, 2013
            Location:
            State of Denial
            Local Time:
            12:16 AM
            I found the missing light.
            Chrysler hid it on figure 3 in the body wiring.
            E2 appear to goes to the left kick panel plug and then through a 6 pin plug before finally arriving at the automatic transmission gear selector.
            Mystery solved.
            I don't think my car has the 6 pin plug in it.

          • 493 Mike

            493 Mike FBBO Gold Member FBBO Gold Member

            Messages:
            3,234
            Likes Received:
            3551
            Joined:
            Dec 25, 2011
            Location:
            White Cloud, MI
            Local Time:
            1:16 AM

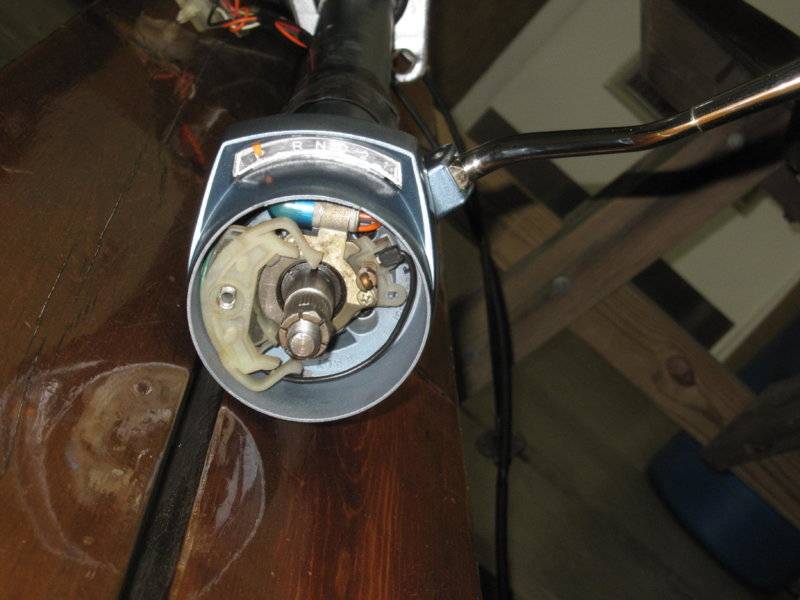

            My 65 Coronet.
            Mike IMG_1953.JPG
