    MOPARS with leaf springs do not squat when accelerating,they raise up as it pushes the tires to the ground.
    GM cars squat at the hit,maybe it's different when hitting the throttle at 50 or 60 MPH...................

    • Agree Agree x 2
    • pearljam724

      pearljam724 Well-Known Member

      Messages:
      875
      Likes Received:
      328
      Joined:
      Oct 14, 2018
      Location:
      Pennsylvania
      Local Time:
      5:45 AM
      Napa, etc sells them too ? I understand, I need to measure first to find out which ones I need.

    • pearljam724

      pearljam724 Well-Known Member

      Messages:
      875
      Likes Received:
      328
      Joined:
      Oct 14, 2018
      Location:
      Pennsylvania
      Local Time:
      5:45 AM
      I didn’t know that Mopars raise up compared to other makes squat. You taught me something, thank you

      Last edited: Sep 29, 2019
      • Like Like x 1
      • Don selleck

        Don selleck FBBO Gold Member FBBO Gold Member

        Messages:
        1,352
        Likes Received:
        1652
        Joined:
        Aug 6, 2014
        Location:
        michigan
        Local Time:
        5:45 AM
        they had 2 sizes i bought both, got lucky on the first try, as far as measuring, idk maybe someone else here can shed some light, a rule of thumb for distances possibly?

      • pearljam724

        pearljam724 Well-Known Member

        Messages:
        875
        Likes Received:
        328
        Joined:
        Oct 14, 2018
        Location:
        Pennsylvania
        Local Time:
        5:45 AM
        It’s best to measure. So you buy the right thickness wedges. You got lucky because you probably weren’t more than a couple degrees out. I haven’t measured yet. But, based on looking at mine. I think I’m not far out either. Just guessing, 2-4 degrees will probably get me there. If the front tail shaft is 3 degrees pointing up for example. You have to match that by pointing 3 degrees down in the rear. If I understand it correctly ? Or it has to be parallel to one another within 1-4 degrees. That’s the way I understand it.


        Last edited: Sep 29, 2019
      • pearljam724

        pearljam724 Well-Known Member

        Messages:
        875
        Likes Received:
        328
        Joined:
        Oct 14, 2018
        Location:
        Pennsylvania
        Local Time:
        5:45 AM

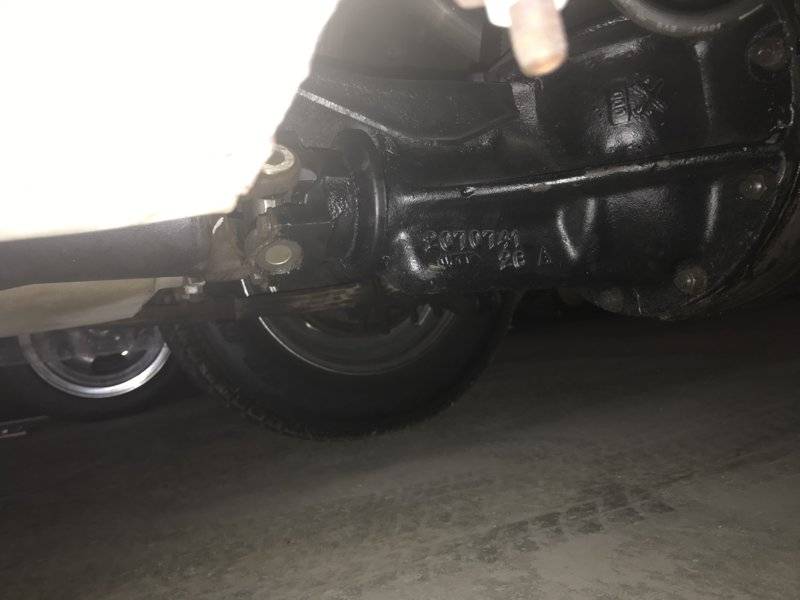

        I just now used that TREMEC app. I wont know my front and rear angles until I remove driveshaft and put the car in the air. But, I was able to measure driveshaft angle. It’s 3.4 degrees. What can someone tell me based on that, what’s original factory ?

      • pearljam724

        pearljam724 Well-Known Member

        Messages:
        875
        Likes Received:
        328
        Joined:
        Oct 14, 2018
        Location:
        Pennsylvania
        Local Time:
        5:45 AM

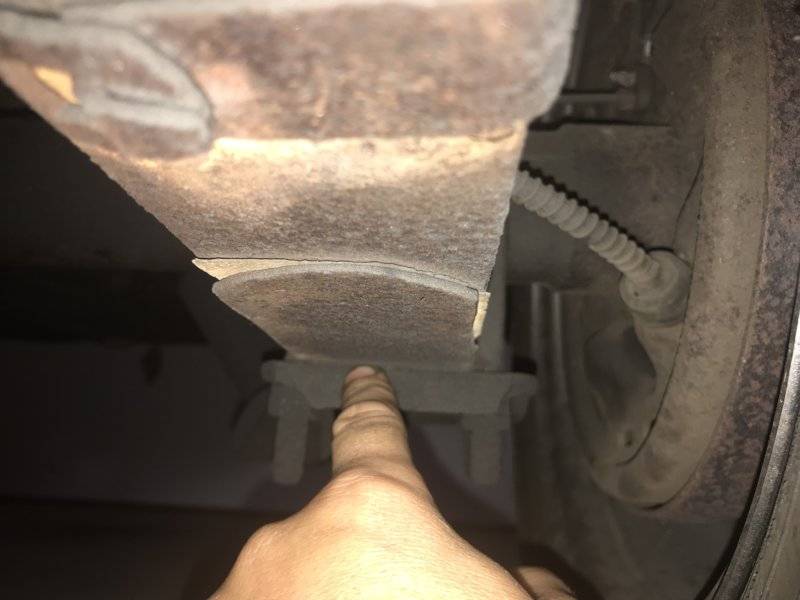

        When I install these wedges. Can I slip them under the spring as I’m pointing too or does it half to be on top of springs ? If my rear pinion needs to go down, wouldn’t I have to put the wide end of the wedge at the back end of car ? I see these leaf springs don’t have a bolt in the center to tie them all together as far as most wedges are made for that. These springs seem to have a rivet of some sort ?


      • Darter6

        Darter6 FBBO Gold Member FBBO Gold Member

        Messages:
        3,373
        Likes Received:
        3293
        Joined:
        Dec 29, 2009
        Location:
        Nevada
        Local Time:
        4:45 AM
        Yes that is where it goes. Pinion down= the wedge goes to the rear of the car.The center bolt has a round head on it so you may think it looks like a rivet. Once you loosen the U-bolts you will see what we mean.6 degrees is as big as you can go with a factory center bolt,the center bolt has to catch the shock plate. Most only need 2 to 4 degrees anyway.
        DISREGARD this post !!!! I screwed up:realcrazy:

        Last edited: Sep 29, 2019
      • pearljam724

        pearljam724 Well-Known Member

        Messages:
        875
        Likes Received:
        328
        Joined:
        Oct 14, 2018
        Location:
        Pennsylvania
        Local Time:
        5:45 AM
        I understand, much thanks.

      • Darter6

        Darter6 FBBO Gold Member FBBO Gold Member

        Messages:
        3,373
        Likes Received:
        3293
        Joined:
        Dec 29, 2009
        Location:
        Nevada
        Local Time:
        4:45 AM
        NOOOOO ! I screwed up!!! I looked to fast. The wedge goes between the welded perch on the housing and the top of the leaf spring as the center bolt head is on top and fits into the perch. Damn Dyslexia.......

        • Thanks! Thanks! x 1
        • HEMI-ITIS

          HEMI-ITIS STREETER on LI FBBO Gold Member

          Messages:
          10,636
          Likes Received:
          11957
          Joined:
          Dec 14, 2008
          Location:
          Long Island,New York
          Local Time:
          5:45 AM

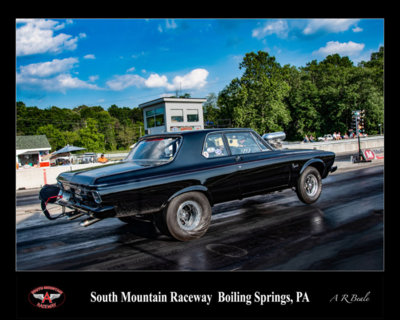

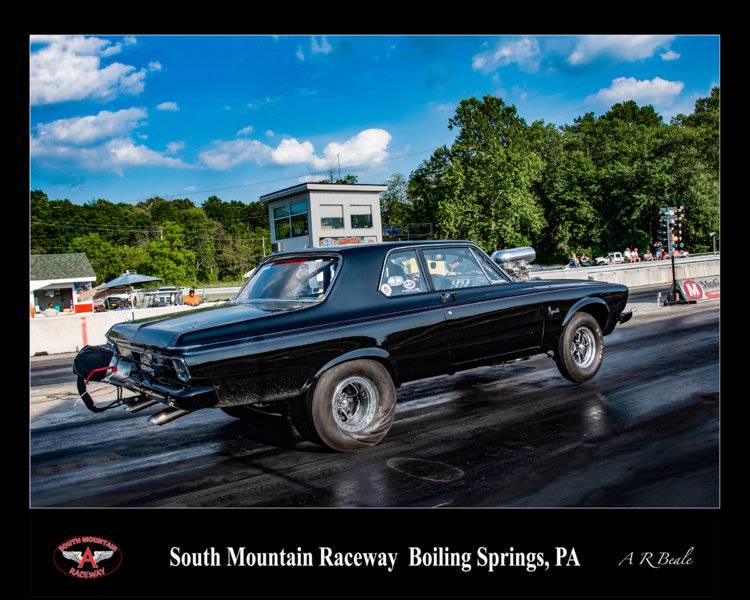

          For the visual here are 2 photos.1 at rest and one off the line.

          Carlisle 1018 294.jpg Order1076-8x10.jpg

          • Like Like x 1
          • Thanks! Thanks! x 1
          • pearljam724

            pearljam724 Well-Known Member

            Messages:
            875
            Likes Received:
            328
            Joined:
            Oct 14, 2018
            Location:
            Pennsylvania
            Local Time:
            5:45 AM
            Here’s a good video of a Mopar standing up. What makes a Mopar stand up, compared to other cars that squat when accelerating ? Looks a lot like my car, B7 blue. But, it’s not mine.

          • 66Satellite47

            66Satellite47 FBBO Gold Member FBBO Gold Member

            Messages:
            2,998
            Likes Received:
            1968
            Joined:
            Jan 15, 2015
            Location:
            St Paul MN
            Local Time:
            4:45 AM
            Leaf spring vs coil/control arm. torque application geometry.

          • pearljam724

            pearljam724 Well-Known Member

            Messages:
            875
            Likes Received:
            328
            Joined:
            Oct 14, 2018
            Location:
            Pennsylvania
            Local Time:
            5:45 AM
            That was the problem, put 2 degree shims in this evening. Hammered down from all speeds, climbed some steep hills. It used to hum pretty good at slower hammer downs at times. It’s completely gone up to 70 now. At that speed, I wouldn’t even call it a vibration. If I put my hand on tunnel, between seats. There’s a mild tickle in the driveline left. Probably, could use 1 more degree down at rear pinion or shaft balanced and it will be perfect. Up until now, I was always afraid to do 70 on 70 mph roads and I kept off of them for the most part and I did 60 to 65 when I would go on them. Because it would hum pretty good at times at 65 on occasions. Like a new car now.

            Last edited: Sep 30, 2019
            • Like Like x 1
            • 69L48Z27

              69L48Z27 FBBO Gold Member FBBO Gold Member

              Messages:
              2,334
              Likes Received:
              2291
              Joined:
              Nov 19, 2015
              Location:
              York, Pa
              Local Time:
              5:45 AM
              It stands up because the leaf spring is trying to turn into an S and the pinion is rotating up. Add in that it might have a pinion snubber, that will pick the car up.

            • Richard Cranium

              Richard Cranium FBBO Gold Member FBBO Gold Member

              Messages:
              25,163
              Likes Received:
              55518
              Joined:
              Feb 20, 2012
              Local Time:
              4:45 AM
              • Thanks! Thanks! x 1
              • moparsaver

                moparsaver FBBO Gold Member FBBO Gold Member

                Messages:
                1,043
                Likes Received:
                2129
                Joined:
                Mar 8, 2018
                Location:
                Framingham Massachusetts
                Local Time:
                5:45 AM

                • Like Like x 3
