    Well, I thought I had my record book with me and realized I left it in Detroit.
    Here's what I can add or subtract based on my memory banks. Some items may not have any or much weight loss compared to their steel counterparts such as water pump and balancer belt pulleys.
    * Iron heads replaced with Indy SR Aluminum units. 49 Lbs loss.
    * Iron water pump housing and water pump replaced with Aluminum units. 11 Lbs loss.
    * Edelbrock Victor 440 Aluminum intake manifold saves about 20 Lbs.
    * Fuel pump removal all together gets rid of about 3 Lbs.
    * Aluminum brackets for Alternator gets rid of about 1 Lb.
    * Distributor hold down bracket is aluminum. Loss of only about 1/4- maybe 1/2 lb at most.
    * Headers will lose about 10-20 Lbs or so over iron manifolds and gain some horses.
    * Bolts, nuts, washers and screws holding up low stress and light components were almost all replaced with Titanium and or 2024 T aluminum.
    * Headers, water pump housing, water pump, timing cover, valve covers, intake manifold, Alternator, oil pan, oil pump, carburetor, Distributor, starter and motor plate are all held on with Grade T6 titanium bolts.
    $$$ doesn't make sense, but then again neither does this car. LOL.
    * Forgot the weight differences, but the fuel lines from the tank to the engine are aluminum. The lines by the carb are teflon super lightweight by Russell.
    Valve covers are super lightweight stamped anodized aluminum units with the MOROSO logos shaved off and finished and painted Chrysler 426 orange to look like regular factory steel covers. About 2 lbs or so removed with that alone.
    So at the end, perhaps 90 or so pounds removed.
    One item I have not done as of yet is an all aluminum oil pan by Steffs to replicate a stock deep sump Moroso pan. Just have not gotten to it like many other things.

    • Like Like x 3
    • Thanks! Thanks! x 1
    • dvw

      dvw Well-Known Member

      Messages:
      5,606
      Likes Received:
      8074
      Joined:
      Feb 16, 2010
      Location:
      waterford mi
      Local Time:
      6:31 AM
      My strut rods, steering shaft, fender braces, and vertical center support K frame steering box gussets are all moly tubing. Bumper brackets, hood, and scoop are carbon fiber. K frame has been trimmed. Aluminum motor plate, radiator, and hood pins. Willwood brakes with aluminum hubs.
      Doug

      • Like Like x 1
      • 6PKRTSE

        6PKRTSE Well-Known Member

        Messages:
        1,917
        Likes Received:
        2722
        Joined:
        Nov 15, 2010
        Location:
        Motor City
        Local Time:
        5:31 AM
        I have done what I with my car but still not taken the street car out of it. While I am not a fan of one piece lift off front ends and plastic windows, tin interiors. I hole sawed the dash and all interior panels but cannot be seen now after reassembled. I have custom made and lightened aluminum brackets everywhere, alum rad, alum w.p. & housing, alum heads, alum intake, tubular K Frame with manual rack with tubularupper and lowers with coil overs.
        However, still has steel body parts, factory glass with roll up windows, full interior and it still weighs 3760 with a full cell, both bottles and me in it. So, no light weight.

      • Badvert65

        Badvert65 Well-Known Member

        Messages:
        954
        Likes Received:
        660
        Joined:
        Oct 11, 2013
        Location:
        Brightwood, Virginia
        Local Time:
        6:31 AM

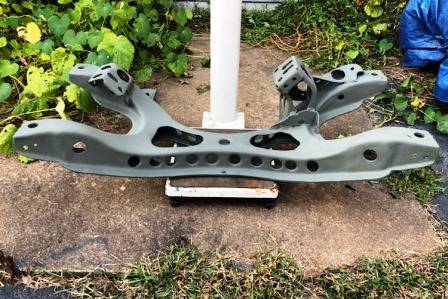

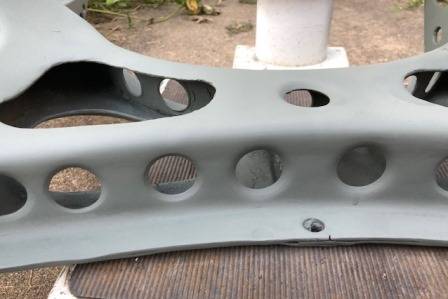

        I worked over my stock K frame (65 Belvedere I). Went from 43 pounds down to 34 pounds. I dimpled as many holes as I could to increase stiffness. It's a lot of work for 9 pounds.
        IMG_0508w.jpg IMG_0511w.jpg

        • Like Like x 3
        • 6PKRTSE

          6PKRTSE Well-Known Member

          Messages:
          1,917
          Likes Received:
          2722
          Joined:
          Nov 15, 2010
          Location:
          Motor City
          Local Time:
          5:31 AM

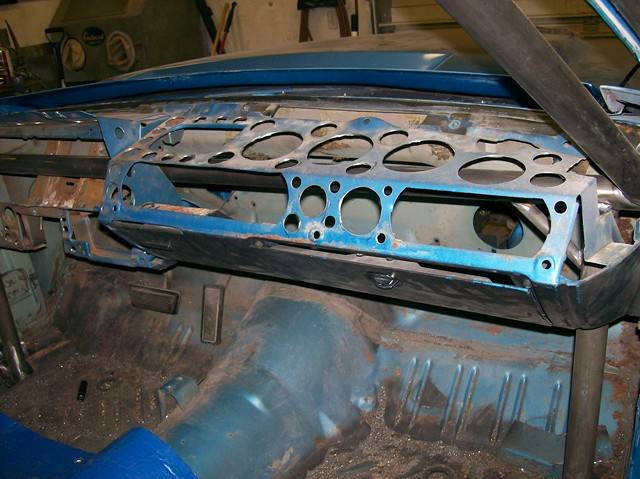

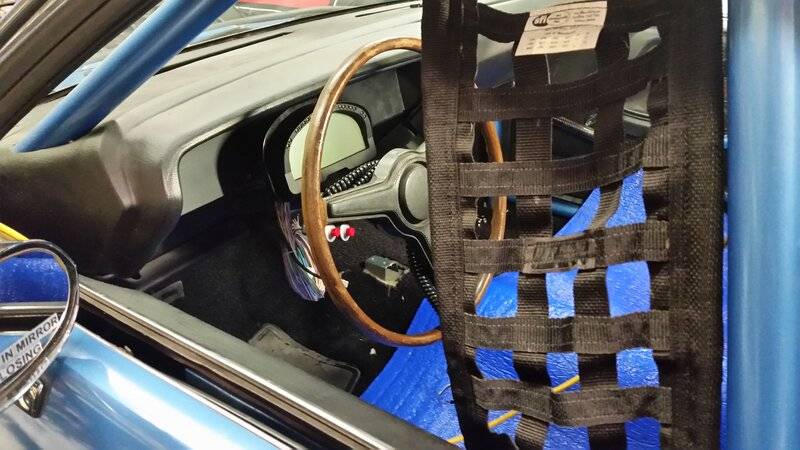

          I get it. After hole sawing and drilling out my dash for like 2 hours. It was only 2.8 lbs. Lol. Can't even tell now back together.

          100_1508 [640x480].jpgView attachment 1098669 20191127_221528 (003).jpg

          • Like Like x 2
          • Dodge 330

            Dodge 330 Well-Known Member

            Messages:
            1,192
            Likes Received:
            883
            Joined:
            Nov 3, 2010
            Location:
            Wichita, KS
            Local Time:
            5:31 AM
            Wow, that's badass!

            • Thanks! Thanks! x 1
            • Agree Agree x 1
            • Cranky

              Cranky Banned Staff Member FBBO Gold Member

              Messages:
              22,888
              Likes Received:
              20878
              Joined:
              Dec 4, 2009
              Location:
              Pasa-getdown-dena Texas
              Local Time:
              5:31 AM
              Get rid of the pinch weld flange and solid weld it.....lose a couple more pounds and gain a bit more strength. The one on my car is 32 but have another K frame that's 26 but it doesn't have the stock engine mount stands anymore. Was planning on using block plates at one time. I didn't do the holes like you did but used a plasma cutter for all the trimming on them. Over all, my car went from 3370 to 2950 and I've since removed more weight.

            • dvw

              dvw Well-Known Member

              Messages:
              5,606
              Likes Received:
              8074
              Joined:
              Feb 16, 2010
              Location:
              waterford mi
              Local Time:
              6:31 AM

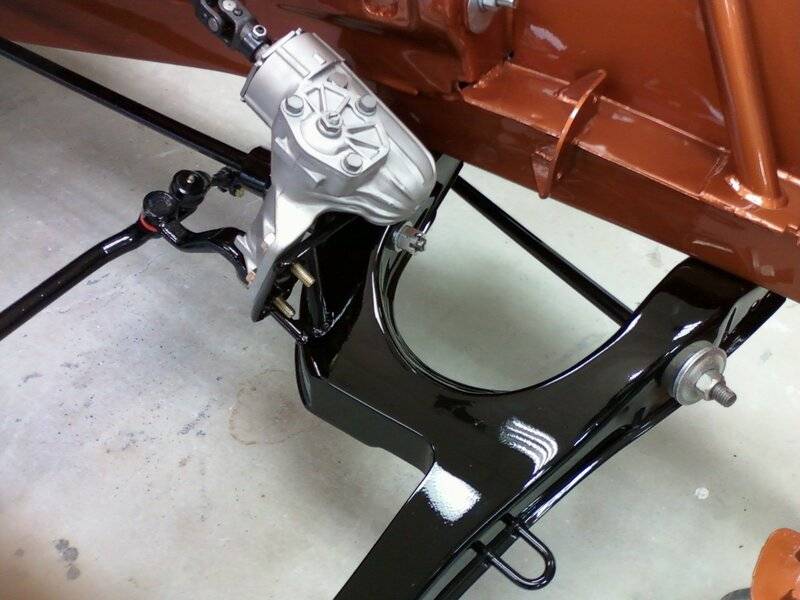

              My K frame. No flanges and plenty of pan clearance. The pan comes off super easy. Weighs just over 30lbs. No steering pot joint. and as i said earlier strut rods and steering shaft are Chrome Moly tube.
              Doug

              S29.jpg S40.jpg

              • Like Like x 3
              • 66Satellite47

                66Satellite47 FBBO Gold Member FBBO Gold Member

                Messages:
                4,684
                Likes Received:
                3623
                Joined:
                Jan 15, 2015
                Location:
                St Paul MN
                Local Time:
                4:31 AM
                On my '65 Coronet, I took off one of the front bumper braces, fender braces, as many bolts as I could get away with, gutted most of the steel underhood bracing ribs, aluminum water pump housing, no alternator just a 8D battery in the trunk, Moroso electric motor for the water pump, plastic fan. Of course had already stripped the undercoating off of everything.
                Edit: this was mid '70's. Got the Coronet down to 3350# w/o me but with the iron heads and a very heavy roll bar & a Dana, gutted doors, plastic side windows. Steel hood, stock bumpers.

                Last edited: Apr 18, 2021
              • glassman

                glassman Well-Known Member

                Messages:
                997
                Likes Received:
                377
                Joined:
                Jan 6, 2010
                Location:
                U.S.A.
                Local Time:
                6:31 AM
                That hood is $350 at Sled City Fiberglass

                • Like Like x 1
                • biomedtechguy

                  biomedtechguy Accelerati Rapidus Maximus FBBO Gold Member

                  Messages:
                  24,595
                  Likes Received:
                  35509
                  Joined:
                  Mar 28, 2014
                  Location:
                  South Louisiana
                  Local Time:
                  5:31 AM
                  And you are a great person to deal with!

                • Budnicks

                  Budnicks You Can Just Thank Me Later FBBO Gold Member

                  Messages:
                  53,902
                  Likes Received:
                  59301
                  Joined:
                  Jan 16, 2011
                  Location:
                  NorCal Sierras
                  Local Time:
                  3:31 AM
                  Hey @biomedtechguy
                  did you do a before & after weight when you had the
                  QA1 & SPC stuff or other parts & front/rear Assasin Bar suspension installed

                  have you scaled the car ?

                  just curious

                • biomedtechguy

                  biomedtechguy Accelerati Rapidus Maximus FBBO Gold Member

                  Messages:
                  24,595
                  Likes Received:
                  35509
                  Joined:
                  Mar 28, 2014
                  Location:
                  South Louisiana
                  Local Time:
                  5:31 AM
                  No
                  Before and after?
                  It weighed more before....
                  ...it weighs.....less now.....
                  :thumbsup: :bananadance: :poke: :thankyou:
