Electric choke

Fuel and Air Systems

  1. Huicho417

    Huicho417 Well-Known Member

    Messages:
    65
    Likes Received:
    30
    Joined:
    Sep 15, 2020
    Location:
    San Antonio , Texas
    Local Time:
    6:02 PM
    I am getting ready to convert my original 318 to a four bbl carburetor. After doing some research I decided on the Edelbrock 21763 intake manifold in black. As well as the Edelbrock 14063 carburetor also powder coated black. Where is the best place to connect the positive wire for the electric choke?

  2. pnora

    pnora FBBO Gold Member FBBO Gold Member

    Messages:
    574
    Likes Received:
    482
    Joined:
    Apr 21, 2020
    Location:
    Ishpeming, Mi.
    Local Time:
    7:02 PM
    It depends on the year. What year do you have?

  3. Huicho417

    Huicho417 Well-Known Member

    Messages:
    65
    Likes Received:
    30
    Joined:
    Sep 15, 2020
    Location:
    San Antonio , Texas
    Local Time:
    6:02 PM
    1967 Coronet.

  4. Don Frelier

    Don Frelier FBBO Gold Member FBBO Gold Member

    Messages:
    3,787
    Likes Received:
    4234
    Joined:
    Oct 11, 2016
    Location:
    Ionia, NY
    Local Time:
    7:02 PM
    I just used the ignition side of the ballast resistor.

    • Agree Agree x 2
    • MTBRider

      MTBRider Well-Known Member

      Messages:
      67
      Likes Received:
      72
      Joined:
      Dec 16, 2020
      Location:
      Kenosha WI
      Local Time:
      6:02 PM
      I connected to the same as Don and it seems to work great. Just needs to be a place where it’s hot when the key is in the “on” position.

    • pnora

      pnora FBBO Gold Member FBBO Gold Member

      Messages:
      574
      Likes Received:
      482
      Joined:
      Apr 21, 2020
      Location:
      Ishpeming, Mi.
      Local Time:
      7:02 PM
      You can tap on to the 12 volt feed side of the regulator. It is convenient and all you need is a screw terminal end on the wire.

    • Huicho417

      Huicho417 Well-Known Member

      Messages:
      65
      Likes Received:
      30
      Joined:
      Sep 15, 2020
      Location:
      San Antonio , Texas
      Local Time:
      6:02 PM
      So the correct side to connect the choke wire would be to the driver side of the ballast resistor? The side that connects to the voltage regulator.

    • pnora

      pnora FBBO Gold Member FBBO Gold Member

      Messages:
      574
      Likes Received:
      482
      Joined:
      Apr 21, 2020
      Location:
      Ishpeming, Mi.
      Local Time:
      7:02 PM
      Yes same circuit. Verify 12 volts with the key on.

    • g413

      g413 Well-Known Member

      Messages:
      56
      Likes Received:
      14
      Joined:
      Apr 29, 2014
      Location:
      Fresno
      Local Time:
      7:02 PM

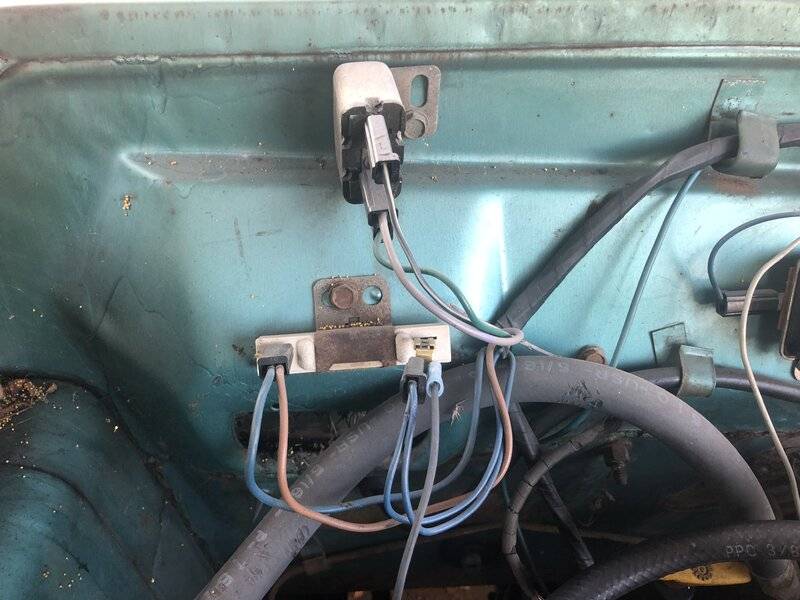

      I agree with the above comments, on the ignition key side of the ballast resistor. There is a nice connector that plugs onto the ballast resistor, and then splits into two outputs, like shown in the picture. This way, you don't need to splice any wires. It may be a little hard to find, and unfortunately I can't find the part number.


    • Huicho417

      Huicho417 Well-Known Member

      Messages:
      65
      Likes Received:
      30
      Joined:
      Sep 15, 2020
      Location:
      San Antonio , Texas
      Local Time:
      6:02 PM
      Thanks a lot everyone, exactly what I needed.
