It looks like I will be RErebuilding my 440/493. The flat tappet MP 528 solid cam lost at least 3 lobes and I just can't risk further damage by putting in another cam without first pulling the engine and cleaning it all out. This situation would be a real pisser but it gives me the opportunity to make a few changes for power and reliability.
Last year, I swapped in a Tremec 5 speed. I have never done an engine R & R with a manual trans. I am thinking that I'll pull them together and reinstall them together.
Because of this, I am going to do a "body drop" installation and maybe even a removal.
I plan to make some sort of cart or stand with casters. I will fab and weld something together so that I can wheel it under the car, lower the car with a car lift and bolt it all up. I might make the transmission section "bolt together" to make this thing easier to stow or transport.
I would really appreciate some input and pictures if possible. I don't know how tall to make this thing. I'd probably need to make it adjustable so I can use it with other arrangements, I.E. B body B/RB with A/T, A body LA with 904 or 727.
Show me what you did!
Thanks!


Kern Dog

Life is full of turns. Build your car to handle.
FBBO Gold Member
Local time
7:06 PM
Joined
Apr 13, 2012
Messages
28,852
Reaction score
92,097
Location
Granite Bay CA

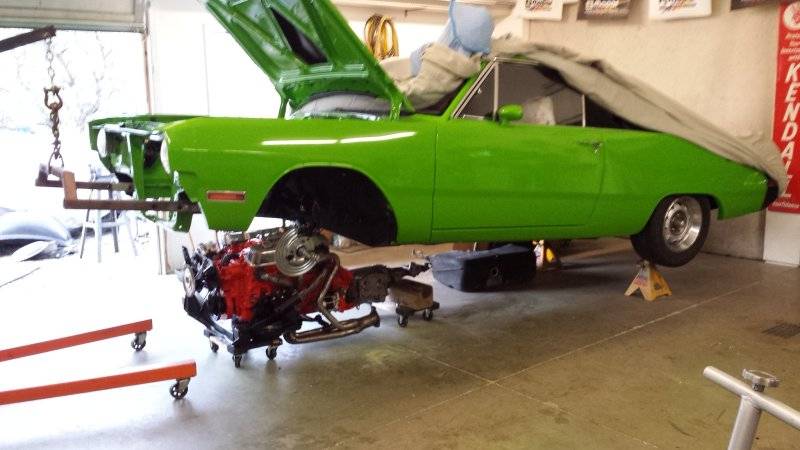

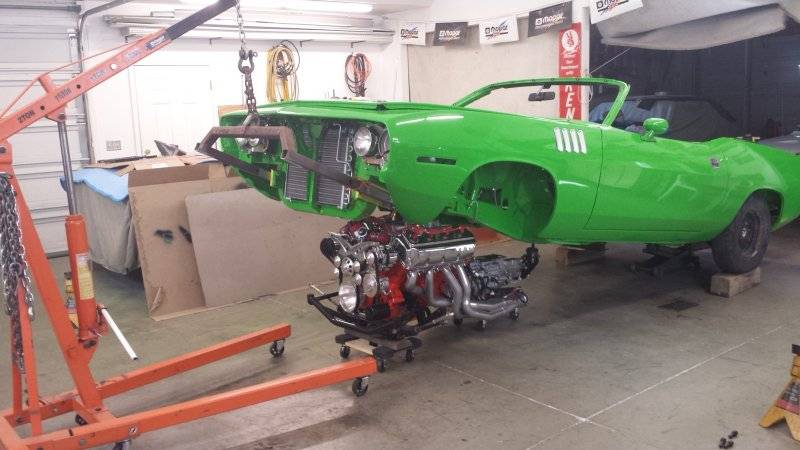

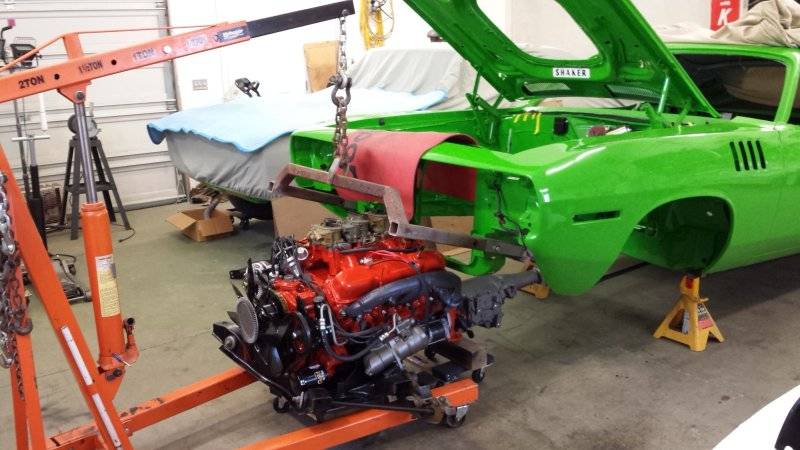

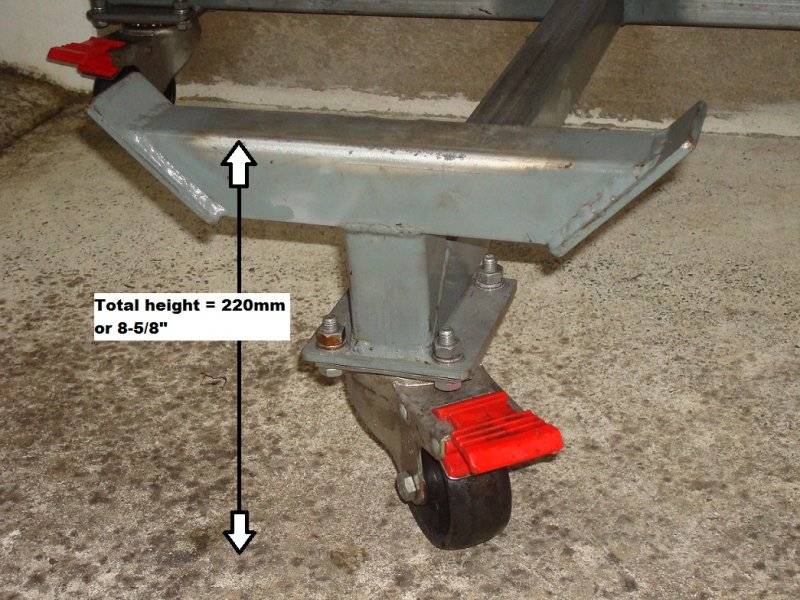

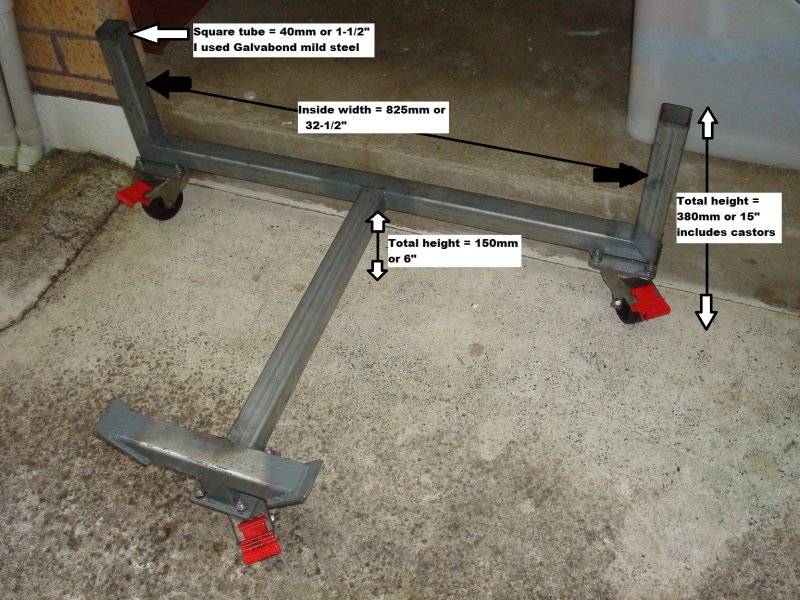

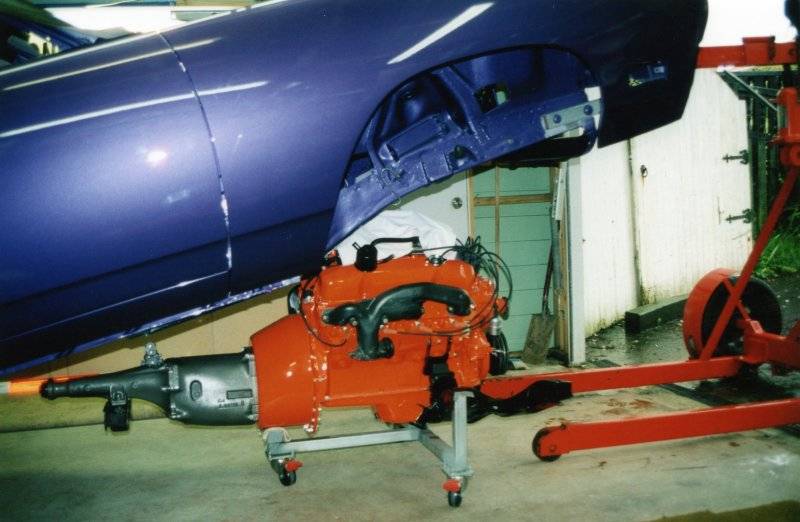

I saw these pictures....



Body drop 1.jpg
Body drop 2.jpg


Body drop 3.jpeg


I will need to support the K member in a manner that allows access to install the mounting bolts.


eldubb440

more miracles than Jesus
FBBO Gold Member
Local time
10:06 PM
Joined
Jul 17, 2008
Messages
13,238
Reaction score
33,121
Location
South Jersey USA

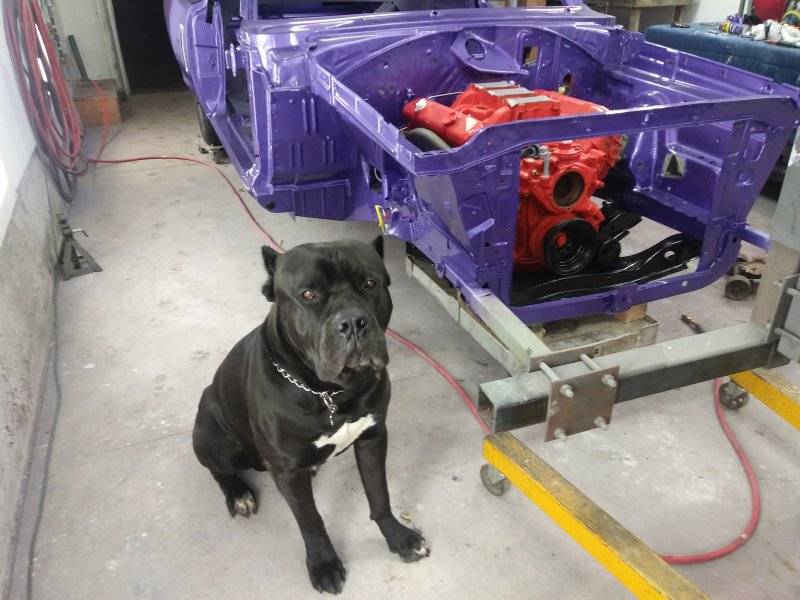

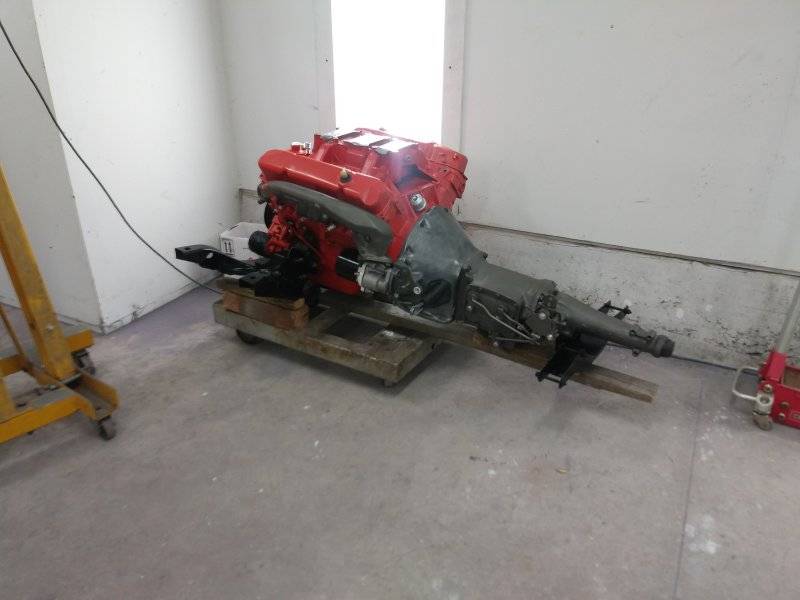

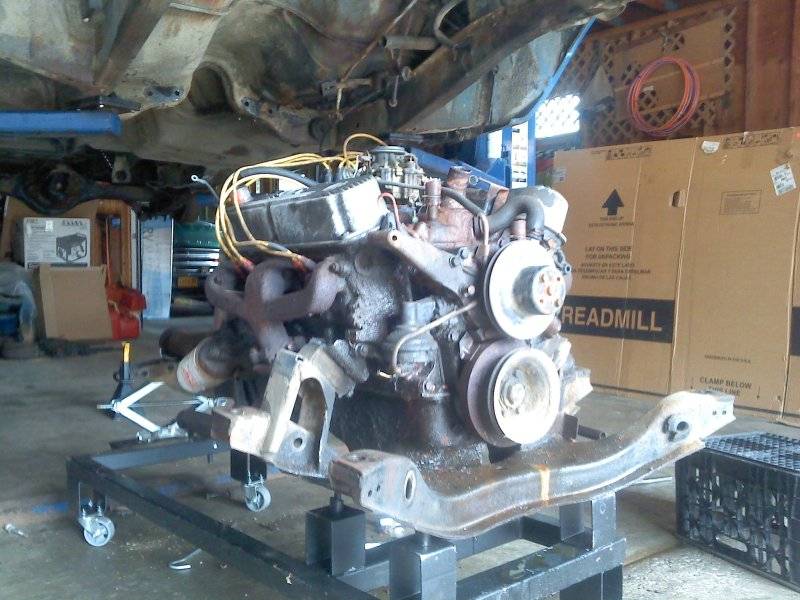

I modified an aluminum dolly I had in the shop......I drilled some holes and screwed some lumber to it where necessary, probably took an hour




R413

Well-Known Member
Local time
7:06 PM
Joined
Feb 4, 2019
Messages
3,567
Reaction score
7,224
Location
NW USA
Sorry to hear the cam fail. Can’t help on the fixture, but many here have done it and will have ideas.

Back to the cam. How many miles did it have? What oil did you use? Any ideas on the failure? Any idea when the cam was produced?


dadsbee

FBBO Gold Member
FBBO Gold Member
Local time
10:06 PM
Joined
Jan 29, 2018
Messages
14,270
Reaction score
39,796
Location
Midland Ontario, Canada
You're a carpenter... go look at my Bee resto thread over on DC and see what I threw together with scrap silent beams (tgi"s).


hunt2elk

FBBO Gold Member
FBBO Gold Member
Local time
9:06 PM
Joined
Jul 15, 2009
Messages
9,483
Reaction score
9,565
Location
WI

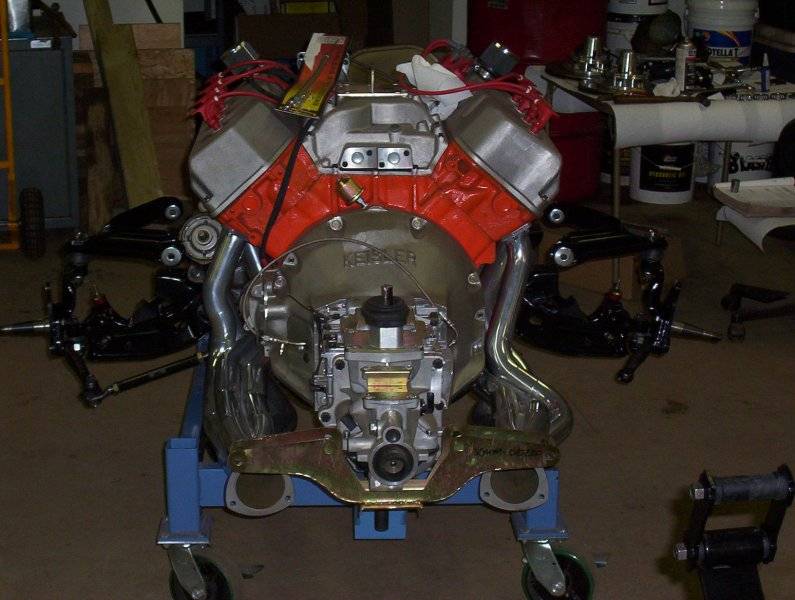

I made mine so the back end is adjustable, it works on both my A and B bodies.





VANDAN

FBBO Gold Member
FBBO Gold Member
Local time
10:06 PM
Joined
May 27, 2011
Messages
4,225
Reaction score
7,834
Location
Western NY
KD, I got this one through Year One, many years ago. Seems to work well, ins & outs. Not sure if they still offer them ? You could borrow mine, if you'd like to pick it up ???


ckessel

Well-Known Member
Local time
7:06 PM
Joined
Apr 23, 2015
Messages
3,356
Reaction score
3,550
Location
Los Osos Ca.

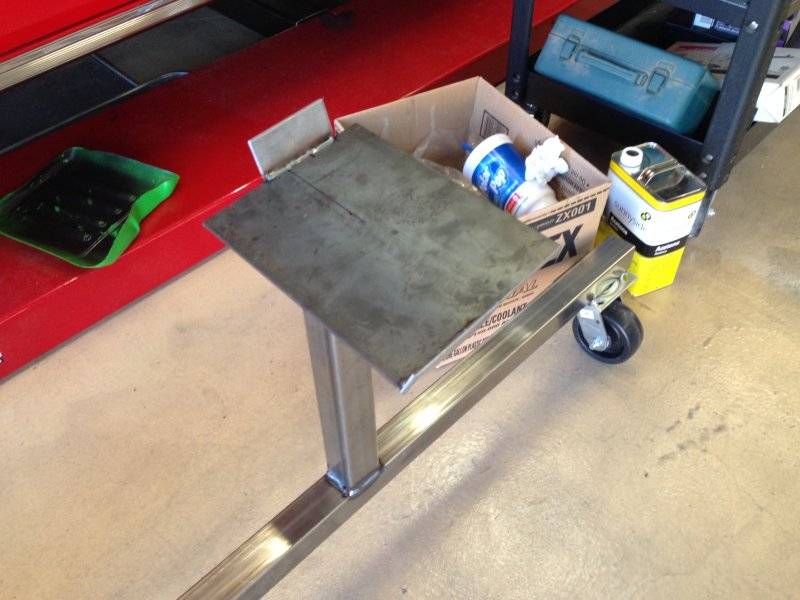

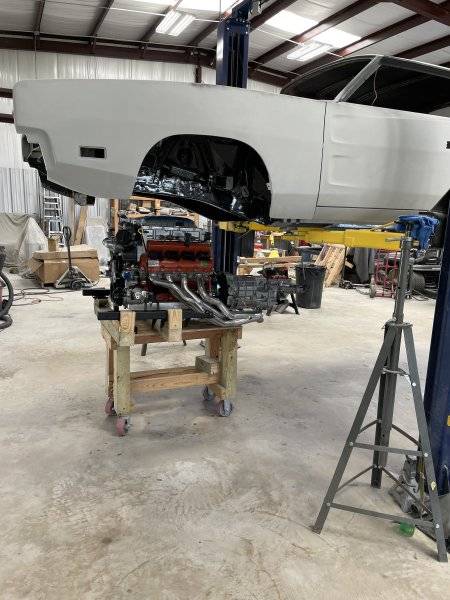

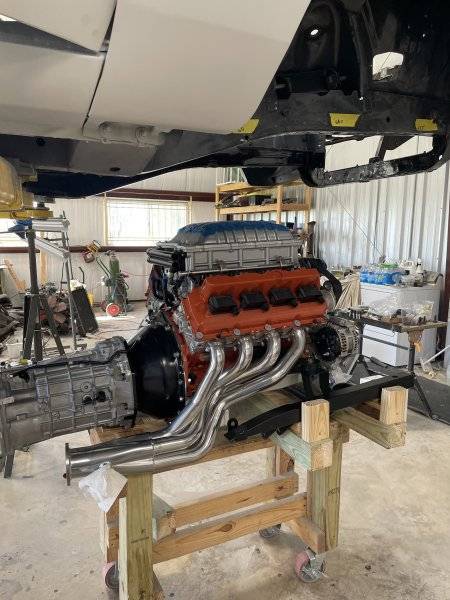

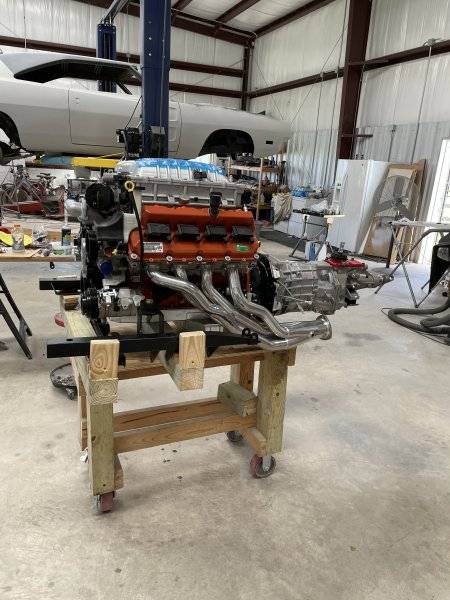

Here is my cart. Bought some 400lb rated swivel casters, the rest was just scrap steel I had. The two front vertical posts fit into the openings on the k, back portion matches up with the trans pan. I got some 5/8x12" bolts to use as guides up front when mating up, cut the heads off. Works great. I can leave the headers on too.













eldubb440

more miracles than Jesus
FBBO Gold Member
Local time
10:06 PM
Joined
Jul 17, 2008
Messages
13,238
Reaction score
33,121
Location
South Jersey USA
^^^^^^^^^^ yup, fast cheap and uncomplicated, for something you almost never use


Bighouse

Well-Known Member
Local time
10:06 PM
Joined
Mar 28, 2020
Messages
1,055
Reaction score
1,699
Location
New York
I’ll be watching- my engine compartment and detailing is next!

I enjoyed the detailed write up on the trans swap!


Kern Dog

Life is full of turns. Build your car to handle.
FBBO Gold Member
Local time
7:06 PM
Joined
Apr 13, 2012
Messages
28,852
Reaction score
92,097
Location
Granite Bay CA
Sorry to hear the cam fail. Can’t help on the fixture, but many here have done it and will have ideas.

Back to the cam. How many miles did it have? What oil did you use? Any ideas on the failure? Any idea when the cam was produced?
I ran good oil. I have been using Redline 10W30 with added Zinc for over a year. I always added Comp Cams break in supplement at oil changes. Maybe the valve springs were too stiff? I kept the same ones I had with my last cam, a Lunati solid with more lift.


Kern Dog

Life is full of turns. Build your car to handle.
FBBO Gold Member
Local time
7:06 PM
Joined
Apr 13, 2012
Messages
28,852
Reaction score
92,097
Location
Granite Bay CA
^^^^^^^^^^ yup, fast cheap and uncomplicated, for something you almost never use
That looks like I could build something out of 6 x 6s, casters and lag bolts. I'd almost feel like I'm taking the easy way out.
I have a few cars here and I love projects. I want something that can be disassembled for transport or stowed out of sight.
LOTS of great suggestions here and some great work. Thank you.
