Fusible link

dodgedream

Well-Known Member
Local time
3:02 PM
Joined
Sep 24, 2021
Messages
52
Reaction score
59
Location
bald knob arkansas
Does anybody have the info on the fusible link load limits? It is on a 1967 coronet big block with a/c and manual.just wondered where it blew at and why wasn’t a regular slo blo fuse used instead?


Jerry Hall

FBBO Gold Member
FBBO Gold Member
Local time
3:02 PM
Joined
Mar 26, 2018
Messages
7,969
Reaction score
13,709
Location
Alabama
67 has a blue fusible link at the bulkhead under the hood. The color represents the load, but I don't remember that. There is also a under dash fusible link that I don't remember the color of. Your FSM should have this information.


Rusty 72

Well-Known Member
Local time
3:02 PM
Joined
Jun 16, 2019
Messages
262
Reaction score
99
Location
Minneapolis, MN

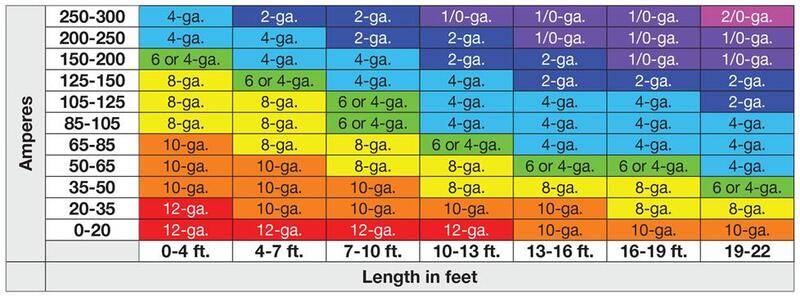

I'm not an electrician but I think the wire size correlates to the Amperage it'll take. That's why you run a smaller gauge wire for a fusible link.



70chall440

Well-Known Member
Local time
1:02 PM
Joined
Feb 11, 2018
Messages
3,499
Reaction score
4,988
Location
Yelm, Washington
Does anybody have the info on the fusible link load limits? It is on a 1967 coronet big block with a/c and manual.just wondered where it blew at and why wasn’t a regular slo blo fuse used instead?

Fusible links (aka fusible link wire) is/was used specifically due to the design characteristics of the wiring system meaning that the electrical engineers wanted something that when stressed enough would fail in a way that would make the technician (mechanic) take a hard look at why it occurred as it indicates something is very wrong (significant short). IMO they didn't use a fuse because it can be easy replaced without further investigation thus putting the vehicle at further risk. Additionally a fusible link acts/operates differently than a fuse in that it is designed to "flex" a bit with load until it overheats and ultimately fails whereas a fuse will "pop" as soon as the load surpasses its limits.

On my cars I generally build a small replicable section of fusible link of which I make a couple of spares but I admit that I have also used a resettable circuit breaker in some builds. Obviously when the fusible link fails the car is dead in the water, however if the electrical system is designed right and not abused (hacked up) the fusible link should and does live for a very long time (think decades).

Last edited:

Robbins

Member
Local time
3:02 PM
Joined
Oct 10, 2021
Messages
21
Reaction score
7
Location
Joplin, MO
fusible links...you need four wire size smaller than you load wire. So 8 gauge needs 12 gauge fusible link....no shorter than 5.5 inches and no longer than 6.5 so shoot for 6 in. long. When I make these up I set it up with an extra spare...but if you blow threw one....you need to fix the issue before hooking up the spare.


black64

FBBO Gold Member
FBBO Gold Member
Local time
3:02 PM
Joined
Mar 31, 2009
Messages
886
Reaction score
970
Location
michigan
Fusible links are made to protect wire size specific ie 12awg wire would have 16 gage fusible link and these have hypolan insulation to withstand the higher amp temps with smaller gage wire. Hypolan insulation is used because it usually does not melt when there is a short and contains the copper under the insulation so it can't touch sheet metal when it shorts out. Do not use vinyl insulated wire for a fusible link. You can usually buy link wire from after market suppiers.
