Ground strap

1971 - 1974 Mopars

  1. Daves69

    Daves69 Well-Known Member

    Messages:
    1,880
    Likes Received:
    1654
    Joined:
    Jan 24, 2014
    Location:
    ChiWest
    Local Time:
    4:08 AM
  2. rrTor-Red

    rrTor-Red FBBO Gold Member FBBO Gold Member

    Messages:
    2,041
    Likes Received:
    714
    Joined:
    Sep 1, 2010
    Location:
    USA
    Local Time:
    4:08 AM
    Same one here that idrivemopar and Daves69 posted. Mine was broken and went from one of the bolts from the back of the block(somewhere in that area), to firewall but I don't have a picture.

  3. Nacho-RT74

    Nacho-RT74 FBBO Gold Member FBBO Gold Member

    Messages:
    4,579
    Likes Received:
    1553
    Joined:
    Oct 8, 2012
    Location:
    Valencia, España
    Local Time:
    11:08 AM
    bolts to head provision, after the intake manifold on BB at least

    • Like Like x 1
    • 72RoadrunnerGTX

      72RoadrunnerGTX FBBO Gold Member FBBO Gold Member

      Messages:
      1,345
      Likes Received:
      893
      Joined:
      Jan 14, 2009
      Location:
      Shoreline, Washington
      Local Time:
      2:08 AM
      To address the OP’s original question, the charging systems output ground return path is through the alternator case-block-main battery cable. Adding additional block to body connections, to systems where original block to body paths are intact, will not improve charging performance. Block to body connections are the return path for all other original loads grounded to the body. The later braided straps were originally added in various locations primarily for radio noise suppression purposes.
      BTW, Chrysler Parts had noise suppression kits back then to address radio noise warranty complaints. Meant to be dealer installed, containing various braided straps and condensers, with instructions on where to install based on model. I’ve personally added many braided straps to vehicles where they were not factory original, back in the day while working at dealers.

      Last edited: Mar 27, 2018
      • Agree Agree x 2
      • Thanks! Thanks! x 1
      • rlem1977

        rlem1977 Well-Known Member

        Messages:
        794
        Likes Received:
        796
        Joined:
        Feb 12, 2018
        Location:
        Arkansas
        Local Time:
        4:08 AM
        From Summit Racing $19.00
        Shafer's Classic Reproductions Ground Strap Kits GSK001

      • Nacho-RT74

        Nacho-RT74 FBBO Gold Member FBBO Gold Member

        Messages:
        4,579
        Likes Received:
        1553
        Joined:
        Oct 8, 2012
        Location:
        Valencia, España
        Local Time:
        11:08 AM

        • Agree Agree x 2
        • pjm8047

          pjm8047 Well-Known Member

          Messages:
          547
          Likes Received:
          70
          Joined:
          Jun 1, 2011
          Location:
          Syracuse,NY
          Local Time:
          5:08 AM

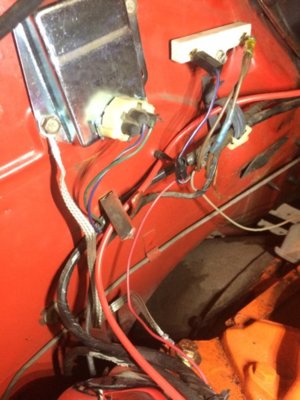

          Just installed this. Will this work?


        • Nacho-RT74

          Nacho-RT74 FBBO Gold Member FBBO Gold Member

          Messages:
          4,579
          Likes Received:
          1553
          Joined:
          Oct 8, 2012
          Location:
          Valencia, España
          Local Time:
          11:08 AM

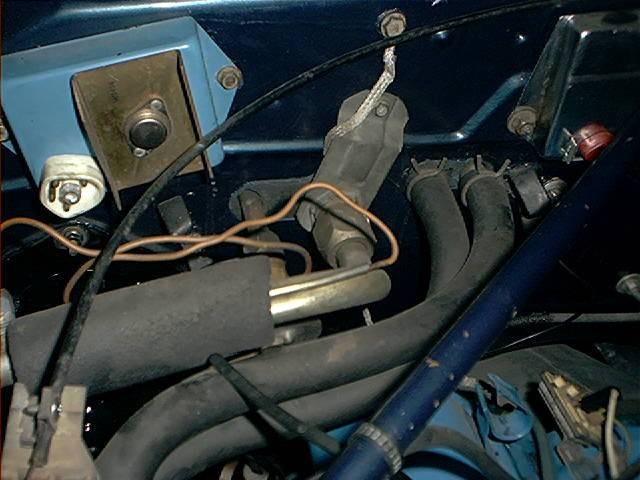

          this is the location on my 74 firewall

          hoses to firewall1.jpg

          Last edited: Mar 27, 2018
        • pjm8047

          pjm8047 Well-Known Member

          Messages:
          547
          Likes Received:
          70
          Joined:
          Jun 1, 2011
          Location:
          Syracuse,NY
          Local Time:
          5:08 AM
          I see these videos on YouTube about a big 3 upgrade and how they improve charging system performance. So there just doing to waste time by doing that?

        • Rick62

          Rick62 Well-Known Member

          Messages:
          637
          Likes Received:
          829
          Joined:
          May 20, 2010
          Location:
          Greer, SC
          Local Time:
          4:08 AM
          Mopar stopped using the block to firewall ground strap when they added the wire to the battery cable from the negative terminal on the battery to the core support. One way or the other you need a ground between the battery and the body. Motor mounts and transmission mounts are usually not good conductors.

          Last edited: Mar 27, 2018
          • Agree Agree x 1
          • Nacho-RT74

            Nacho-RT74 FBBO Gold Member FBBO Gold Member

            Messages:
            4,579
            Likes Received:
            1553
            Joined:
            Oct 8, 2012
            Location:
            Valencia, España
            Local Time:
            11:08 AM

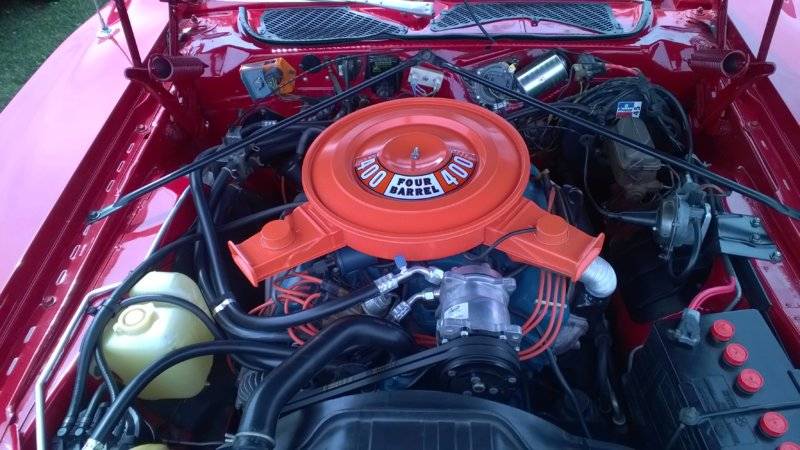

            Once again, my car got ground strap AND battery to radiator core support wire... 74.

            Last edited: Mar 27, 2018
            • Like Like x 2
            • munger77

              munger77 FBBO Gold Member FBBO Gold Member

              Messages:
              332
              Likes Received:
              255
              Joined:
              Apr 25, 2015
              Location:
              Atlanta, GA
              Local Time:
              5:08 AM
              I have/use the same set up as Nacho on my 68. alternator gauge remains just about right in the middle with small variance.

            • rrTor-Red

              rrTor-Red FBBO Gold Member FBBO Gold Member

              Messages:
              2,041
              Likes Received:
              714
              Joined:
              Sep 1, 2010
              Location:
              USA
              Local Time:
              4:08 AM
              Mine has the same...'71

            • idrivemopar

              idrivemopar Well-Known Member

              Messages:
              3,653
              Likes Received:
              2591
              Joined:
              Apr 30, 2012
              Location:
              Colorado
              Local Time:
              3:08 AM
              Its interesting you mention the Big 3, when I upgraded the sound system in my 06 GTO, yes, I know you can shoot me later but its a damn fun car, I did the big 3 because they said it would help the charging system and deal with the pull down from the sound system. It didn't really make a damn bit of difference, when I play anything that has heavy bass and play it loud, it still dims my headlights a little bit, not real noticeable, but it didn't make a difference.

            • Bb70charger500

              Bb70charger500 FBBO Gold Member FBBO Gold Member

              Messages:
              9,469
              Likes Received:
              9412
              Joined:
              May 2, 2014
              Location:
              fl.
              Local Time:
              5:08 AM
              This is very good info .. can we get this saved somewhere for future use!

              By the way that new mopar ground strap for the ram isn't very long at all if it's the one I'm thinking of . I've never had a ground strap on my cars never caused an issue . I grounded out threw the rad support as stated above but that was really it. Maybe if you have a huge stereo system but the way I see it as long as the batt is grounded to the motor and the rad support there's nothing more that will help the cars are all solid metal it's all connected.....

            • ODZKing

              ODZKing Well-Known Member

              Messages:
              1,724
              Likes Received:
              597
              Joined:
              Sep 2, 2013
              Location:
              Liverpool, NY
              Local Time:
              5:08 AM
              Yep, same as mine

            • 451Mopar

              451Mopar Well-Known Member

              Messages:
              2,437
              Likes Received:
              1748
              Joined:
              Oct 25, 2011
              Location:
              Aurora, CO
              Local Time:
              3:08 AM
              Short answer, YES!
              Although the alternator is grounding through the engine block, the Voltage Regulator is grounded through its case contact with the firewall.

              • Agree Agree x 2
              • 72RoadrunnerGTX

                72RoadrunnerGTX FBBO Gold Member FBBO Gold Member

                Messages:
                1,345
                Likes Received:
                893
                Joined:
                Jan 14, 2009
                Location:
                Shoreline, Washington
                Local Time:
                2:08 AM
                Again, if the original 10-gauge negative battery terminal to core support connection is intact, and VR is properly grounded to the firewall, adding another block to firewall strap will NOT change or improve anything relating to the charging system.

                • Like Like x 1
                • oldbee

                  oldbee FBBO Gold Member FBBO Gold Member

                  Messages:
                  9,128
                  Likes Received:
                  9082
                  Joined:
                  Oct 15, 2011
                  Location:
                  NE Ohio
                  Local Time:
                  5:08 AM
                  As all the above state, it won’t improve anything; BUT you will have an extra ground for years to come. ( I once saw a Camaro locked in park because when started(with a bad grd) the eng/starter looked for a grd thru the shifter cable)

                • Nacho-RT74

                  Nacho-RT74 FBBO Gold Member FBBO Gold Member

                  Messages:
                  4,579
                  Likes Received:
                  1553
                  Joined:
                  Oct 8, 2012
                  Location:
                  Valencia, España
                  Local Time:
                  11:08 AM
                  if doesn't improve, doesn't hurt either :)

                  once I fixed a hard starting and ocassional starting failure deal with just a ground strap :D on an old buddy's 72 Charger ( have no idea about the radiator core support wire conditions thought just went straight to add the strap )

                  • Agree Agree x 1
