    I'm routing the battery cable from the trunk to the starter on my 68 Road Runner 383 four speed. I ran it from the trunk along the driver's side following the wiring harness for the tail lights.

    Everything was going well until I got to the firewall. Hmmm, not sure where to run it through. I could use the speed-o-meter cable hole but then what to do with that cable. Things look pretty tight in that area and I’m not thrilled with the idea of drilling another hole somewhere but I don’t see any way around it. It’s not a numbers matching car so drilling another hole wouldn’t be the end of the world.

    My question is for those who have done this before and what did you guys do and what did you find worked best. Also what should I avoid or be aware of (other than making sure the battery cable is protected and can’t rub or short out anywhere).
    Front Correct.jpg

    Any advice and info would be most appreciated. Thanks guys. RR Don

    • Like Like x 2
    • RRDon

      RRDon Well-Known Member

      Messages:
      453
      Likes Received:
      1640
      Joined:
      Jan 13, 2017
      Location:
      Hurricane, Utah
      Local Time:
      2:52 PM

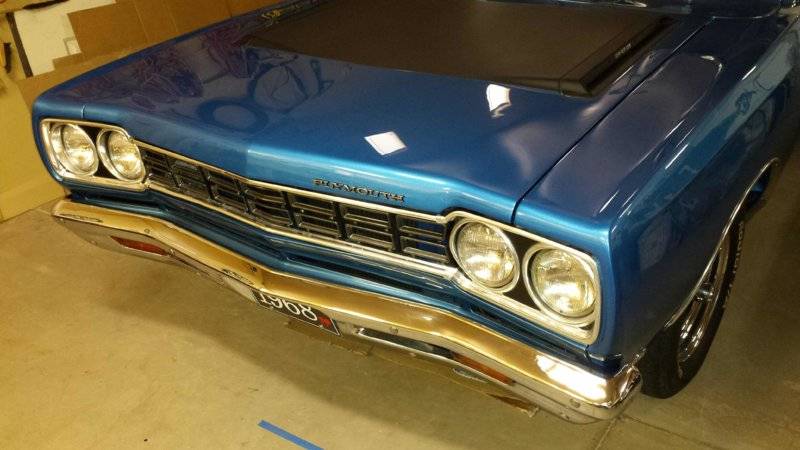

      Front top.jpg

      • Like Like x 2
      • RRDon

        RRDon Well-Known Member

        Messages:
        453
        Likes Received:
        1640
        Joined:
        Jan 13, 2017
        Location:
        Hurricane, Utah
        Local Time:
        2:52 PM
        RR in garage rear view.jpg

        • Like Like x 6
        • RRDon

          RRDon Well-Known Member

          Messages:
          453
          Likes Received:
          1640
          Joined:
          Jan 13, 2017
          Location:
          Hurricane, Utah
          Local Time:
          2:52 PM
          I added a couple extra photos for you guys. I know I always enjoy seeing your actual cars when I read your posts. :)

          • Thanks! Thanks! x 3
          • Like Like x 1
          • HEMI-ITIS

            HEMI-ITIS STREETER on LI FBBO Gold Member

            Messages:
            12,292
            Likes Received:
            15064
            Joined:
            Dec 14, 2008
            Location:
            Long Island,New York
            Local Time:
            4:52 PM
            IMO you should run the cable UNDER the car to the starter.The route of the cable is done with the law of common sense!

            BTW,,,that car is GORGEOUS!!!!

            • Agree Agree x 4
            • Like Like x 1
            • RRDon

              RRDon Well-Known Member

              Messages:
              453
              Likes Received:
              1640
              Joined:
              Jan 13, 2017
              Location:
              Hurricane, Utah
              Local Time:
              2:52 PM
              68 RR Feb17.jpg

              • Like Like x 5
              • Thanks! Thanks! x 1
              • RRDon

                RRDon Well-Known Member

                Messages:
                453
                Likes Received:
                1640
                Joined:
                Jan 13, 2017
                Location:
                Hurricane, Utah
                Local Time:
                2:52 PM
                Yeah, I thought about running it under (I did that on my 70RR race car) but I wanted to protect the cable as much as possible from heat an the elements. I will have to drill through somewhere regardless.
                Thanks for your kind words about the car ;))

                • Like Like x 2
                • HEMI-ITIS

                  HEMI-ITIS STREETER on LI FBBO Gold Member

                  Messages:
                  12,292
                  Likes Received:
                  15064
                  Joined:
                  Dec 14, 2008
                  Location:
                  Long Island,New York
                  Local Time:
                  4:52 PM
                  My rare factory experiMENTAL 63 Plymouth HEMI car,UNdocumented,,,,,,but they should have:lol:

                  6.22.14 010.jpg

                  • Like Like x 1
                  • Thanks! Thanks! x 1
                  • Stanton

                    Stanton Well-Known Member

                    Messages:
                    3,090
                    Likes Received:
                    3100
                    Joined:
                    Aug 8, 2012
                    Location:
                    Ontario, Canada
                    Local Time:
                    4:52 PM
                    You don't want that big + cable inside the car more than it needs to be. I ran mine under the back seat and out one of the floor plus then tied it to the brake line. In to the front frame rail inside a length of rubber/plastic tubing for protection the out the frame rail close to the starter.

                    • Agree Agree x 1
                    • oldbee

                      oldbee FBBO Gold Member FBBO Gold Member

                      Messages:
                      9,525
                      Likes Received:
                      9548
                      Joined:
                      Oct 15, 2011
                      Location:
                      NE Ohio
                      Local Time:
                      4:52 PM
                      Like the above I went thru body plug in trunk by the shocks, no drilling required.

                      • Like Like x 1
                      • fratzog lover

                        fratzog lover Well-Known Member

                        Messages:
                        3,726
                        Likes Received:
                        5345
                        Joined:
                        Apr 10, 2014
                        Location:
                        Northeast Alabama
                        Local Time:
                        3:52 PM
                        Those cables survive plenty of heat and elements under the hood. You'll be fine routing under the car.

                        • Agree Agree x 3
                        • 493 Mike

                          493 Mike FBBO Gold Member FBBO Gold Member

                          Messages:
                          3,615
                          Likes Received:
                          4049
                          Joined:
                          Dec 25, 2011
                          Location:
                          White Cloud, MI
                          Local Time:
                          4:52 PM
                          • Like Like x 1
                          • Thanks! Thanks! x 1
                          • snakeoil24

                            snakeoil24 FBBO Gold Member FBBO Gold Member

                            Messages:
                            5,007
                            Likes Received:
                            4028
                            Joined:
                            Jan 23, 2009
                            Location:
                            New Jersey The State of Tax Theives
                            Local Time:
                            4:52 PM
                            Run the cable under the car. You can encase it in braided tubing. Then get a Cole Hersey 300 amp solenoid. Run the wire to a post in the engine compartment then direct to the hi amp pole on starter. The Cole Hersey is located in the trunk. Then you only have power going thru the cable when your operating the starter. Run the key start and run to the trunk and operate the solenoid for starting only. You will need a 10 gauge wire going to the trunk inside the car from the alternator to the Battery. The Negative pole on your battery goers thru a 300 amp battery disconnect. Install a fusible link 10 gauge between ten gauge and positive on battery.

                            We are trying to help you. 40 years of Knowledge being given to you without the 500.00 fee for knowledge. Make good use of this.

                            Last edited: Jun 9, 2018
                            • Like Like x 2
                            • Larrry B.

                              Larrry B. Well-Known Member

                              Messages:
                              439
                              Likes Received:
                              914
                              Joined:
                              Feb 20, 2011
                              Location:
                              California
                              Local Time:
                              1:52 PM
                              • Like Like x 3
                              • Thanks! Thanks! x 1
                              • Crackedback

                                Crackedback Well-Known Member

                                Messages:
                                383
                                Likes Received:
                                351
                                Joined:
                                Aug 12, 2008
                                Location:
                                Southern California
                                Local Time:
                                1:52 PM
                                I run that cable along the driver side sill plate and out the clutch hole/grommet in firewall. Only time the cable is hot is when starter is running via solenoid at rear. No need to be concerned with that being hot all the time and under the car.

                                Routing depends on how the cable is used. I know of cars that have it hot all the time and running same route as I mentioned.

                                • Agree Agree x 1
                                • RRDon

                                  RRDon Well-Known Member

                                  Messages:
                                  453
                                  Likes Received:
                                  1640
                                  Joined:
                                  Jan 13, 2017
                                  Location:
                                  Hurricane, Utah
                                  Local Time:
                                  2:52 PM
                                  Just wanted to say "Thanks" to you guys for the helpful advice and comments.
                                  I found a way to run using a thru body plug. Did not need to drill any holes. :)

                                  • Like Like x 1
                                  • Thanks! Thanks! x 1
                                  • Aron Gleason

                                    Aron Gleason Well-Known Member

                                    Messages:
                                    325
                                    Likes Received:
                                    180
                                    Joined:
                                    Aug 5, 2020
                                    Location:
                                    Washington
                                    Local Time:
                                    1:52 PM
                                    Where under the car did you run the battery cable? Inside the bumper and along the frame? If you have pictures that would be great?

                                  • 383man

                                    383man Well-Known Member

                                    Messages:
                                    4,690
                                    Likes Received:
                                    3514
                                    Joined:
                                    Jul 19, 2008
                                    Location:
                                    Md
                                    Local Time:
                                    3:52 PM
                                    Here is what I did. I ran the cable through the car and up out the firewall as I drilled a hole in the firewall for it. But I also mounted a Ford style starter solenoid in my trunk so that cable is only hot while the eng is cranking as I did not want a hot battery cable under my carpet all the time. Now my battery cable ends have a post on them so I can run more then one battery cable so I ran another pos and neg cable under the car up to post on the firewall and thats my hot that feeds the car as I used a 70 amp fuse at the battery plus it still has the factory fuse link at the firewall to protect that circuit. I also ran a ground from the post on the firewall to the eng and the body. And a new alt output wire with a 100 amp alt. But if you run it under the carpet I would not leave it hot all the time and since you cant run a fuse or fuse link on the starter cable wire thats why I use the solenoid in the trunk so its only hot when cranking. Then run another circuit like I did to feed the car. Also at the starter I just put a small 14 gauge jumper wire from the solenoid terminal on the starter to the starter hot post so it cranks as soon as the solenoid in the trunk sends volts to it. Good luck , Ron

                                  • Nacho-RT74

                                    Nacho-RT74 Well-Known Member

                                    Messages:
                                    4,842
                                    Likes Received:
                                    1667
                                    Joined:
                                    Oct 8, 2012
                                    Location:
                                    Valencia, España
                                    Local Time:
                                    10:52 PM
                                    Recently somebody post pics about what MaMopar made on WO23 ams RO23 66/67 Hemi cars, and they run the wire inside the cab. IMHO, that's what I would made.

                                  • RJRENTON

                                    RJRENTON FBBO Gold Member FBBO Gold Member

                                    Messages:
                                    1,924
                                    Likes Received:
                                    1762
                                    Joined:
                                    Jul 1, 2015
                                    Location:
                                    South Shores area of Decatur, Illinois
                                    Local Time:
                                    3:52 PM
                                    THIS IS AN EXCELLENT SUGGESTION.... By energizing the starter feed only while cranking eliminates the possibility of short circuits during normal operation. The Ford style solenoid has adequate ampacity to handle the chore. It is my suggestion to use # 1/0 AWG (minimum) stranded copper wire, similar to welding cable for both the feed to the solenoid, from the solenoid to the starter and the battery ground to the frame. Because the starter draws 400+ amps during cranking (even more when the engine is cold or with high compression ratios), the # 1/0 (or # 2/0 AWG) will minimize the voltage drop from battery to the starter. Remember, the starter needs BOTH an adequate supply of both voltage and current during cranking to maximize the torque produced. Use the largest size wire you can afford. Just my opinion of course.
                                    BOB RENTON

                                    • Thanks! Thanks! x 1
                                    • Agree Agree x 1
