I’d love to have a working gas gauge. Any help please!

General Mopar Tech Discussions

  1. Herk

    Herk Member

    Messages:
    15
    Likes Received:
    30
    Joined:
    Jun 23, 2019
    Location:
    Johnstown PA
    Local Time:
    11:45 AM
    i have a 67 Belvedere. When I got the car the tank was out and there was no fuel sending unit. I installed a new one from summit.
    No gauge though. So we ran a new ground. Still no gauge. Any ideas?
    Thanks!


  2. Jerry Hall

    Jerry Hall Well-Known Member

    Messages:
    1,238
    Likes Received:
    1583
    Joined:
    Mar 26, 2018
    Location:
    Alabama
    Local Time:
    10:45 AM
    Have you tested your gauge?

  3. BeepBeepRR

    BeepBeepRR Well-Known Member

    Messages:
    3,115
    Likes Received:
    3003
    Joined:
    Oct 16, 2016
    Location:
    Atlanta,Ga
    Local Time:
    11:45 AM

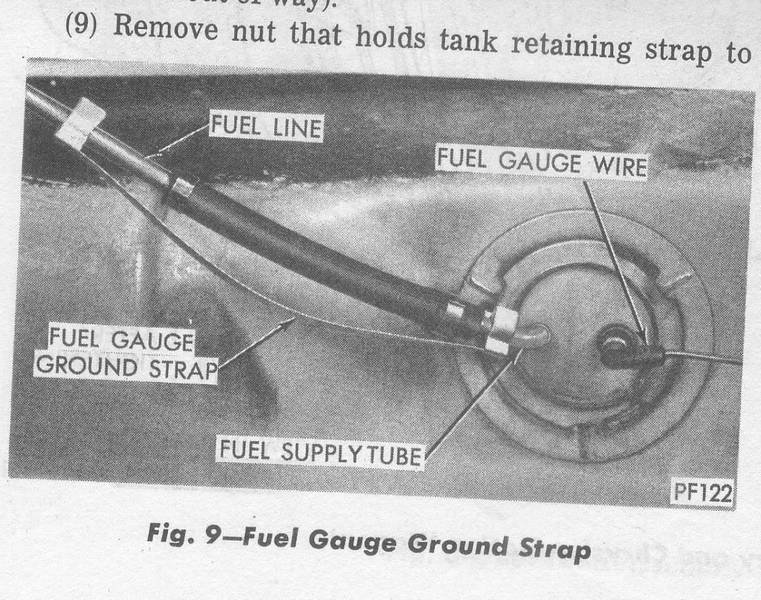

    Ground strap from hard line to hardline at the sender. It jumps the rubber hose. Also like Jerry said.. Have you checked the gas gauge?
    You can test it with a couple aa batteries and a couple leads..


    Last edited: Jun 25, 2019
    • Thanks! Thanks! x 1
    • JimCoronette

      JimCoronette Well-Known Member

      Messages:
      253
      Likes Received:
      286
      Joined:
      Oct 30, 2018
      Location:
      Cold Spring, NY
      Local Time:
      11:45 AM
      Does the temperature gauge work?

    • Badvert65

      Badvert65 Well-Known Member

      Messages:
      787
      Likes Received:
      422
      Joined:
      Oct 11, 2013
      Location:
      Brightwood, Virginia
      Local Time:
      11:45 AM
      Take the wire that attaches to the sender at the tank. Use a screw or paperclip or something and ground that wire. At the dash, turn on key and gas gauge should peg 'full'. If it does, your wire to gauge, and gauge are fine, the problem is at the sender. When you say you ran a new ground, did you run the ground from the sender itself or just from the tank? As stated above, the senders get their ground via a short metal strap that clips to the sender fuel line and the fuel line on the chassis. Anyway, if grounding the sense wire does not cause the gauge to peg full, then your issue is likely the wire going from the tank forward. They usually go up through the trunk and then forward to the dash, so check the wire in the trunk area first, the rest is trial and error. Also, if none of your gauges work, check fuses first, then check things on the gauge cluster itself, like the dash voltage regulator. Basically, with a properly grounded, new sender you will just need to check everything else. Unfortunately, at 50+/- years old, the usual suspects are everything.

      • Agree Agree x 2
      • Thanks! Thanks! x 1
      • Ron H

        Ron H FBBO Gold Member FBBO Gold Member

        Messages:
        1,891
        Likes Received:
        1588
        Joined:
        Feb 29, 2016
        Location:
        WI
        Local Time:
        10:45 AM
        Good question as when I encountered my loss of fuel and temp gauges the circuit board was partly fried (my F-up) so repaired it with a conductive paint from a rear window de-fog repair kit...advice of a fellow member and it worked..

        • Thanks! Thanks! x 1
        • Herk

          Herk Member

          Messages:
          15
          Likes Received:
          30
          Joined:
          Jun 23, 2019
          Location:
          Johnstown PA
          Local Time:
          11:45 AM
          Yep!

        • Herk

          Herk Member

          Messages:
          15
          Likes Received:
          30
          Joined:
          Jun 23, 2019
          Location:
          Johnstown PA
          Local Time:
          11:45 AM
          Awesome, I’ll give that a try. Thanks!

        • Herk

          Herk Member

          Messages:
          15
          Likes Received:
          30
          Joined:
          Jun 23, 2019
          Location:
          Johnstown PA
          Local Time:
          11:45 AM
          Thanks fellas. I’ll check it out and report back later.

        • JimCoronette

          JimCoronette Well-Known Member

          Messages:
          253
          Likes Received:
          286
          Joined:
          Oct 30, 2018
          Location:
          Cold Spring, NY
          Local Time:
          11:45 AM
          That means your voltage limiter in the dash is working, so you should be getting 5 volts at the gauge.

          As mentioned above, make sure the ground strap at the sending unit is making good contact.

        • Alan Fiandaca

          Alan Fiandaca Member

          Messages:
          21
          Likes Received:
          47
          Joined:
          Apr 9, 2019
          Location:
          Tucson, AZ
          Local Time:
          8:45 AM
          When I put a new gas tank in, I looked at the ground strap that jumps the rubber fuel line and figured I could do better. I snipped the strap in half and then pushed on a 14 ga. female wire connector attached to a black 14ga. wire that I grounded to a stainless screw into the body.The idea that the sender needs to ground thru the 50yr. old clips that attach the fuel lines to the body was odd at best. Never had an issue yet with the fuel gauge not working, just sayin.

          • Agree Agree x 1
          • 66383

            66383 FBBO Gold Member FBBO Gold Member

            Messages:
            1,285
            Likes Received:
            941
            Joined:
            Jan 19, 2018
            Location:
            calvert city, ky
            Local Time:
            10:45 AM
            Same here.:thumbsup:

          • Dennis H

            Dennis H FBBO Gold Member FBBO Gold Member

            Messages:
            12,644
            Likes Received:
            14159
            Joined:
            Jul 11, 2010
            Location:
            San Jose
            Local Time:
            10:45 AM

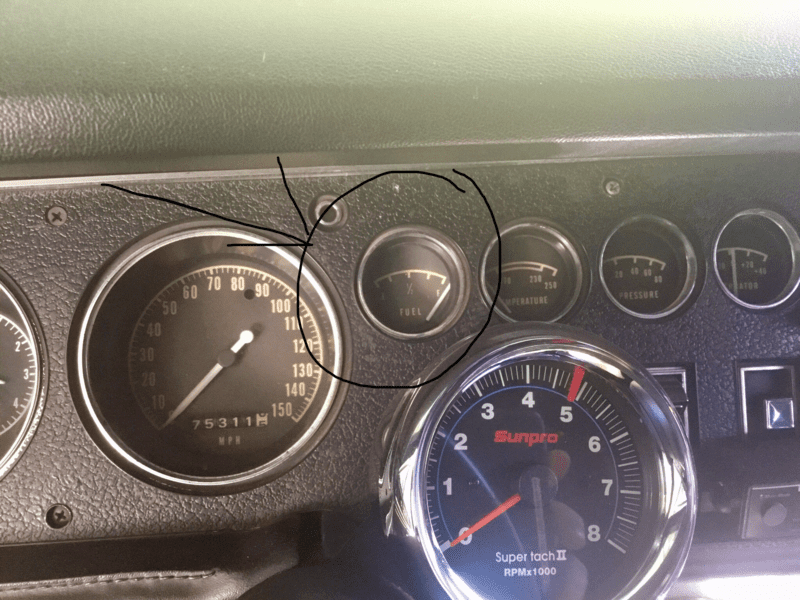

            F71BE3EA-B091-4618-A7EC-C52852FD51B9.png I didn’t have a working gauge for 29 years. It was the ground all along. Sure feels good to see this.

            • Thanks! Thanks! x 1
            • BeepBeepRR

              BeepBeepRR Well-Known Member

              Messages:
              3,115
              Likes Received:
              3003
              Joined:
              Oct 16, 2016
              Location:
              Atlanta,Ga
              Local Time:
              11:45 AM
              Last edited: Jun 25, 2019
              • Thanks! Thanks! x 2
              • Ron H

                Ron H FBBO Gold Member FBBO Gold Member

                Messages:
                1,891
                Likes Received:
                1588
                Joined:
                Feb 29, 2016
                Location:
                WI
                Local Time:
                10:45 AM
                In all my years chasing electrical demons (won't admit how many unless ya gimme a beer) friggin GROUNDING has been the most common culprit! If in doubt ground it out...

                • Like Like x 1
                • Thanks! Thanks! x 1
                • miller

                  miller Well-Known Member

                  Messages:
                  4,005
                  Likes Received:
                  1949
                  Joined:
                  Jan 5, 2014
                  Location:
                  Tom Bean,Texas
                  Local Time:
                  10:45 AM
                  Keep in mind, a few things have to work together, reading right, for the gas gauge to work. Besides a good ground...

                  1) The gauge itself needs to work. Test it! On the bench, I use 3 D batteries, that add up to 4.5 volts. (Close enough) Arm moves slow, so give it time to move completely.
                  2) Sending wire in good shape. Check with an ohm meter.
                  3) Sending unit, at and inside the tank, needs correct readings, from full to empty.

                  • Thanks! Thanks! x 1
                  • Herk

                    Herk Member

                    Messages:
                    15
                    Likes Received:
                    30
                    Joined:
                    Jun 23, 2019
                    Location:
                    Johnstown PA
                    Local Time:
                    11:45 AM
