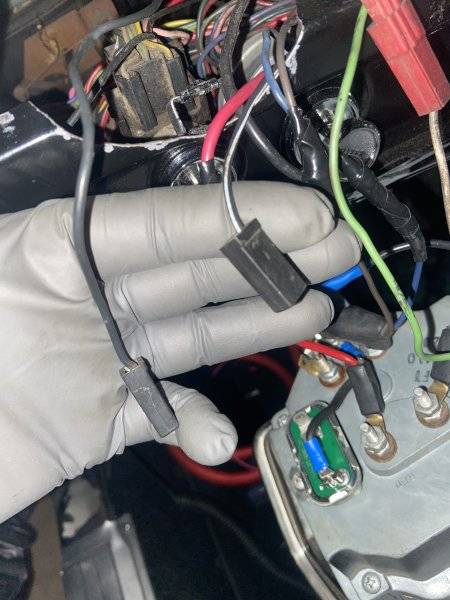

Can some one tell me we’re this black wire and black/white wire hook up PLEASE thanks in advance. I do have the one spot to plug-in but there is two wires And I don’t know which one goes there


I think I might’ve figured it out black and white wire goes to instrument cluster and the two black wires go to the headlights

The black and white should be the 12v to the inst voltage reg.
But behind your hand.. is the red to the amp gauge spliced??!

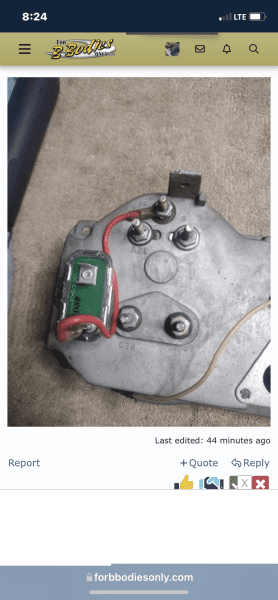

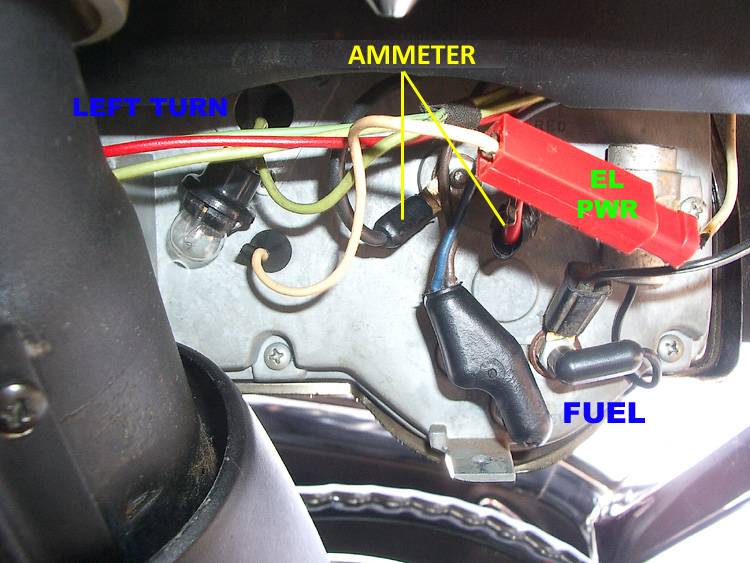

On a 67 the B/W wire goes right here... bottom right terminal in the images below.
