    Yeah...that lil metal canister that plugs in to the back of the IP and cuts the 12V supply voltage down to 5V (I think that's right)

    I understand there is a electronic replacement available for this lil monster.

    Anyone know the part number and manufacturer???????

    by the way. for those who don't know, this lil box is the cause of your gauges periodically "pegging" then returning to normal

  2. 69hemibeep

    69hemibeep Well-Known Member

    Messages:
    415
    Likes Received:
    265
    Joined:
    Jul 31, 2008
    Location:
    AZ Desert
    Local Time:
    4:00 AM
    Greg Garner on moparts, Real Time Engineering. WOW I hit 50 posts

  3. 69 Runner

    69 Runner ADMIN wif a corner office (Deceased - RIP)

    Messages:
    6,913
    Likes Received:
    64
    Joined:
    Jun 16, 2008
    Location:
    In Absentia Texas
    Local Time:
    6:00 AM
    Bout damned time:grin:

    Thanks much!

  4. 69hemibeep

    69hemibeep Well-Known Member

    Messages:
    415
    Likes Received:
    265
    Joined:
    Jul 31, 2008
    Location:
    AZ Desert
    Local Time:
    4:00 AM
    51 don't get me started

  5. 69 Runner

    69 Runner ADMIN wif a corner office (Deceased - RIP)

    Messages:
    6,913
    Likes Received:
    64
    Joined:
    Jun 16, 2008
    Location:
    In Absentia Texas
    Local Time:
    6:00 AM
    lol

  6. A383Wing

    A383Wing Well-Known Member

    Messages:
    2,353
    Likes Received:
    679
    Joined:
    Dec 27, 2008
    Location:
    Somewhere
    Local Time:
    4:00 AM
    I have built them out of my house for about 3 years....I can't compete with the big guys....so I quit making them

    I have the ones I built on all my Mopars .....works great, not more wandering needles or pegging needles.

  7. 69 Runner

    69 Runner ADMIN wif a corner office (Deceased - RIP)

    Messages:
    6,913
    Likes Received:
    64
    Joined:
    Jun 16, 2008
    Location:
    In Absentia Texas
    Local Time:
    6:00 AM
    Well I am in need of one for a F*RD I own. It is essentially the same piece as for our MOPARS EXCEPT that it connects like a 9V battery. (really. no shit)

  8. Meep-Meep

    Meep-Meep дворянин

    Messages:
    10,188
    Likes Received:
    4267
    Joined:
    Aug 4, 2008
    Location:
    NorCal
    Local Time:
    6:00 AM
    I built one years ago for my Mustang out of an LM 317. What do you think about using this one?
    http://search.digikey.com/scripts/DkSearch/dksus.dll?Detail&name=LM123K-ND

  9. A383Wing

    A383Wing Well-Known Member

    Messages:
    2,353
    Likes Received:
    679
    Joined:
    Dec 27, 2008
    Location:
    Somewhere
    Local Time:
    4:00 AM
    Never used that one....I got mine from Radio Shack...part number is 9605 I think....it's a little black square with 3 small prongs coming out of it....will take up to 20 volts and still only put out 5v to the gauges.

    I also used a 100mf capacitor......parts cost me about $5....I installed them into the original Mopar voltage regulator cans.....

  10. mac

    mac Well-Known Member

    Messages:
    271
    Likes Received:
    158
    Joined:
    Aug 2, 2008
    Location:
    lancaster, new york
    Local Time:
    7:00 AM
  11. 69 Runner

    69 Runner ADMIN wif a corner office (Deceased - RIP)

    Messages:
    6,913
    Likes Received:
    64
    Joined:
    Jun 16, 2008
    Location:
    In Absentia Texas
    Local Time:
    6:00 AM
  12. A383Wing

    A383Wing Well-Known Member

    Messages:
    2,353
    Likes Received:
    679
    Joined:
    Dec 27, 2008
    Location:
    Somewhere
    Local Time:
    4:00 AM

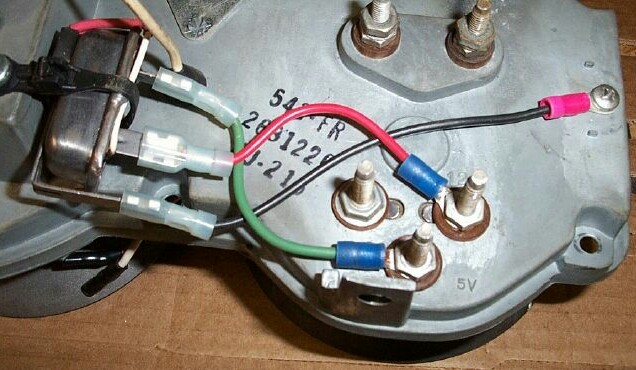

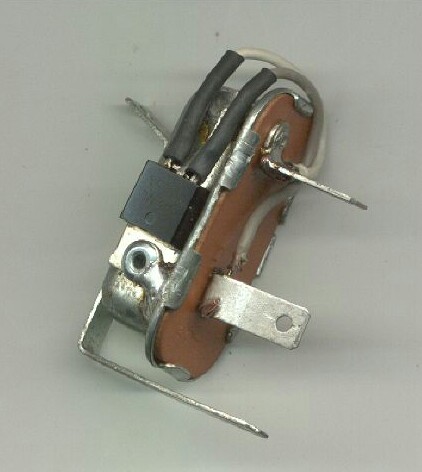

    This is what I put together here...I sold them for $35 each.....crude build...but it works
