Let's see what you've got

[1STMP]

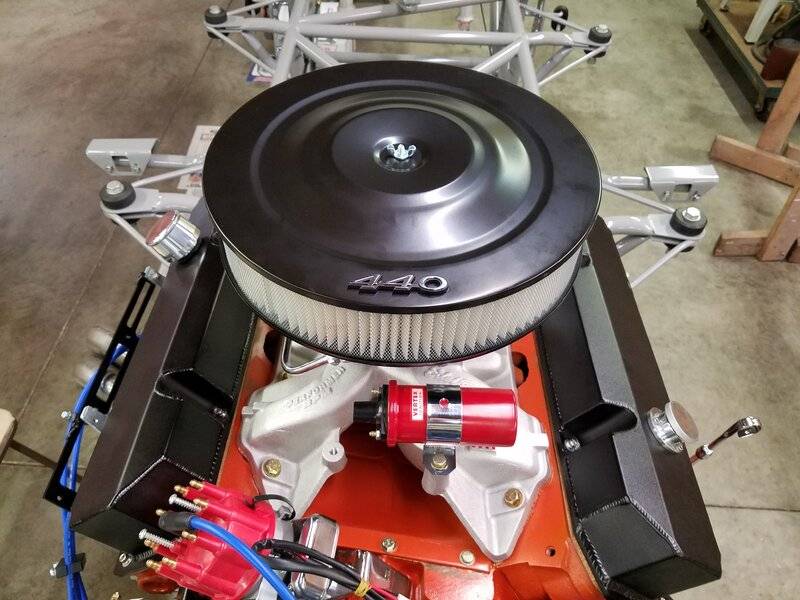

I'm one for detail. I like clean engine bays,
with even the wiring and hoses planned out
and placed athletically. Of course, beauty
is in the eye of the beholder. Now's your
chance to show them off. Mine is in it's
infancy. But she's looking good!
P.S. Whatever you post, I may copy!
And a special recognition to who may
to may be able to identify the year and
make of the fender badge on the air cleaner.



[BeepBeepRR]

Looks nice and neat.



[66 Sat]

This is mine. Engine coming out next year for stroker crank to go in. The bay will be painted body color (Citron Gold) while it's out. The wiring from the starter is much neater now than in this photo. No heater hoses (no heater) helps keep things neat.



[hunt2elk]

I'm one for detail. I like clean engine bays,
with even the wiring and hoses planned out
and placed athletically. Of course, beauty
is in the eye of the beholder. Now's your
chance to show them off. Mine is in it's
infancy. But she's looking good!
P.S. Whatever you post, I may copy!
And a special recognition to who may
to may be able to identify the year and
make of the fender badge on the air cleaner.
View attachment 1186229

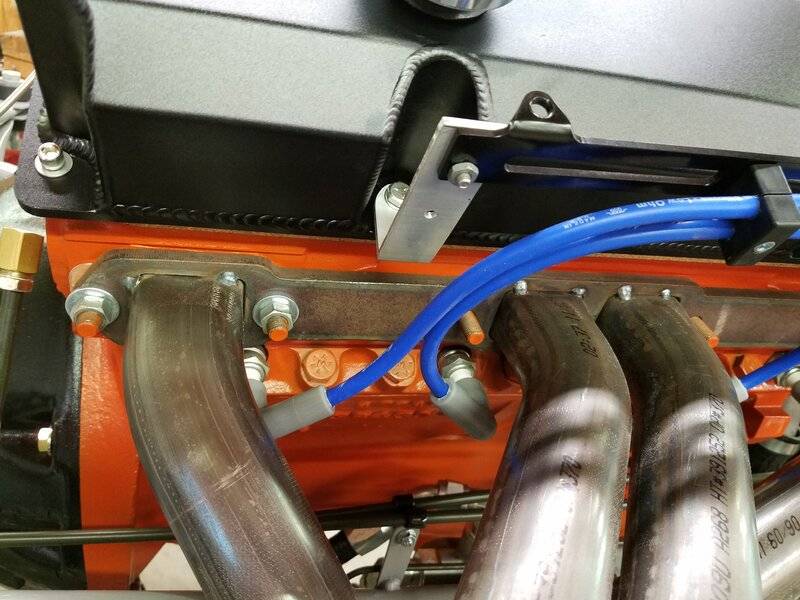

View attachment 1186233 View attachment 1186234

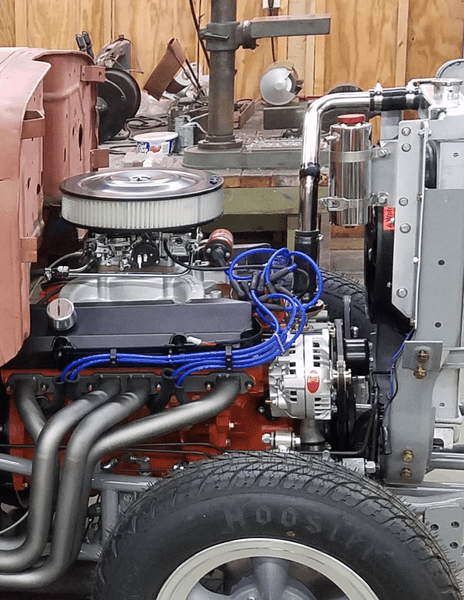

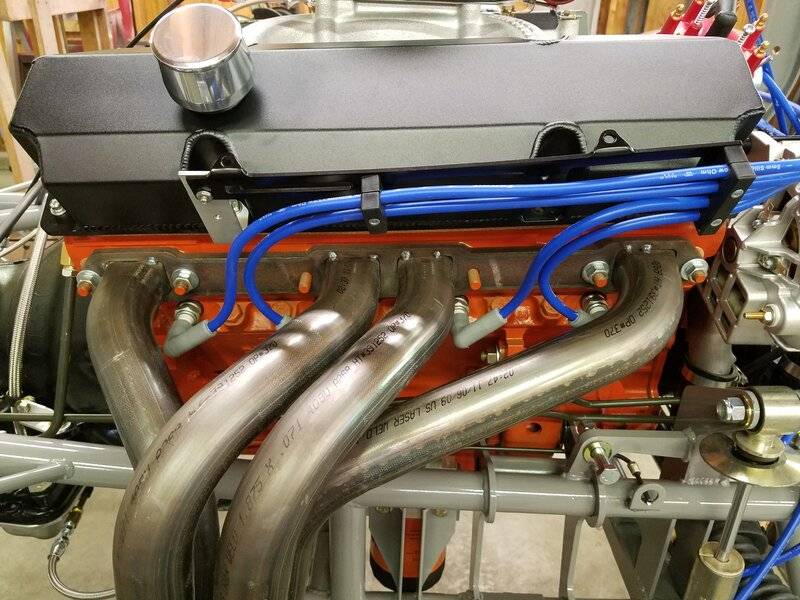

View attachment 1186236

Are you running the fuel line under the headers in steel? Got any better pics of that?



[69 GeeTeeX]

Still finishing this one after a few years of work, mainly due to parts availability / Covid.
505ci Stroker with EFI painted to look like a somewhat stock 440 with a whole lot more HP/TQ!



[6PKRTSE]

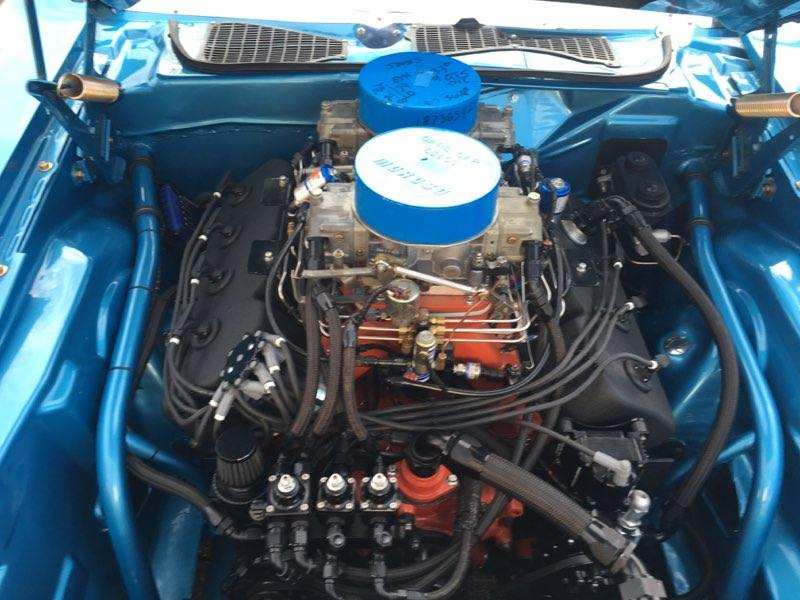

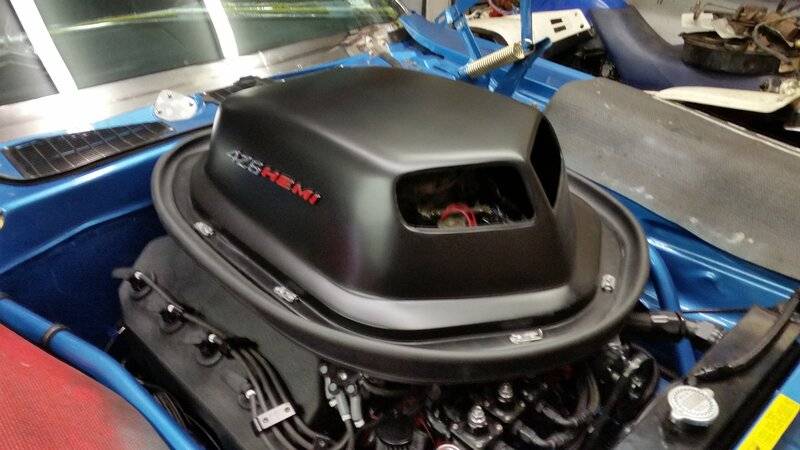

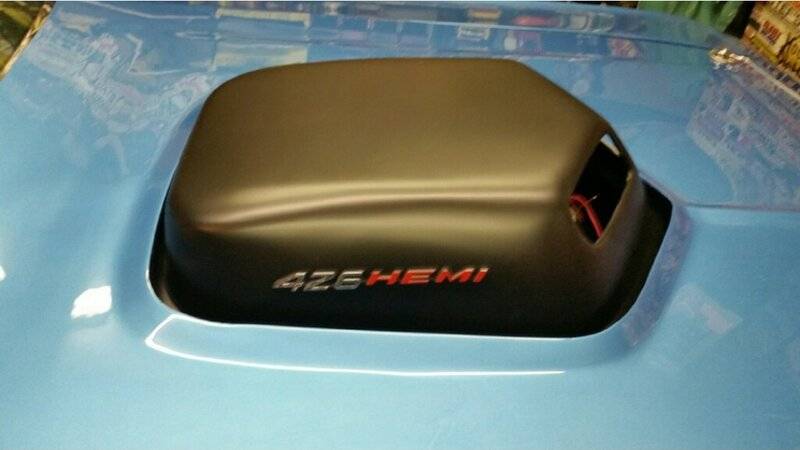

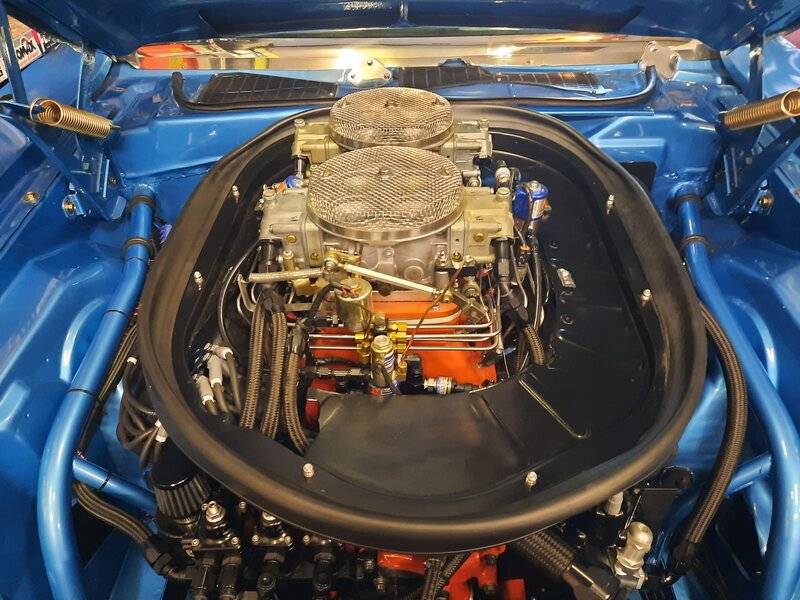

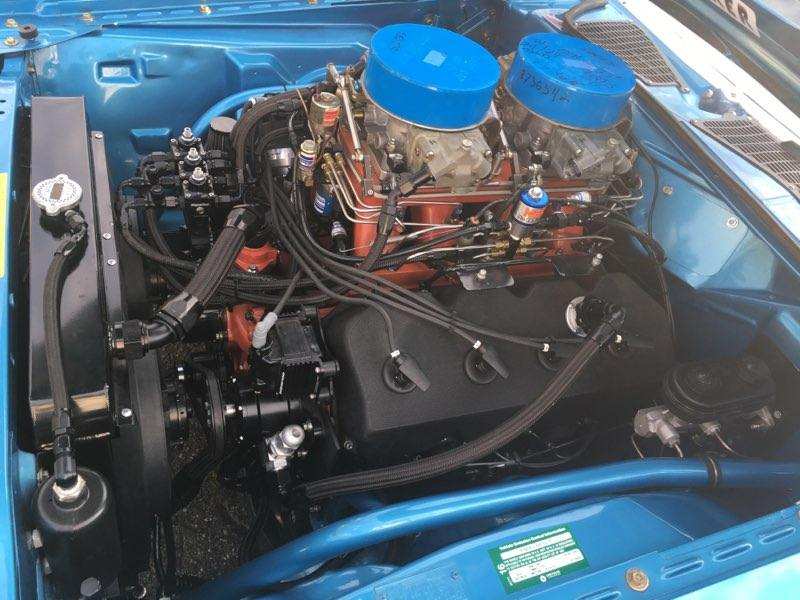

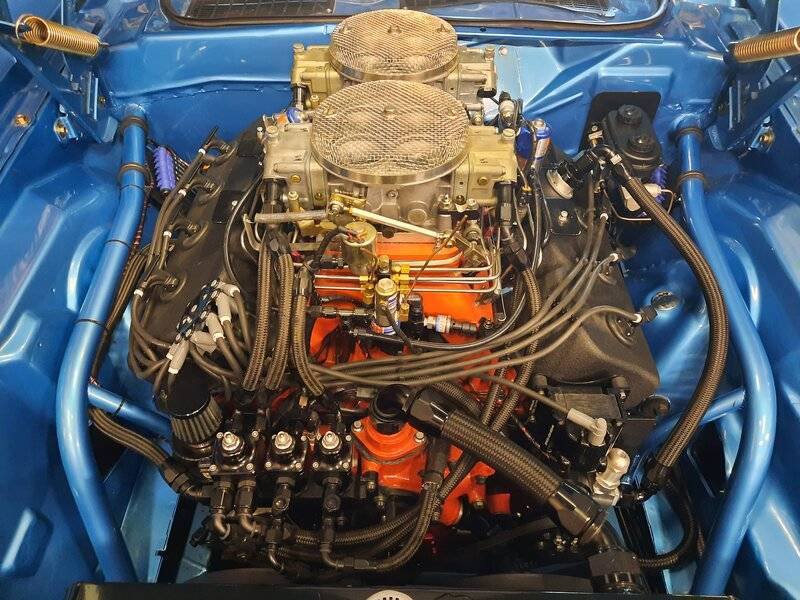

I went for a somewhat stock look even though more of a racing type engine. Wiring is mostly hidden. 17 Racepak data logging sensors all in there also somewhere. Black -20 radiator hoses to look similar to stock rubber hoses.



[6PKRTSE]

Not sure why a couple double posted?



[black64]

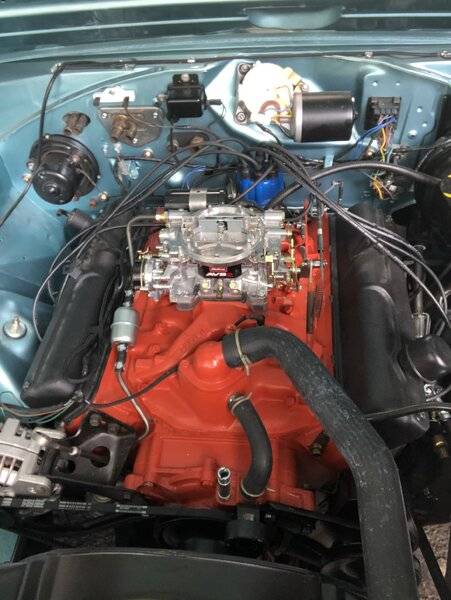

my 64 Plymouth engine bay



[PeteyDaMan]

It's a work in progress but I'm trying to keep the hoses and wires to a minimum. Personally I hate the PCV and brake booster hoses. Need to find something cleaner.



[69 Sleeper Bee]

Fender Badge on the air cleaner looks to be a 1969 Coronet 440.



[440 4 speed]

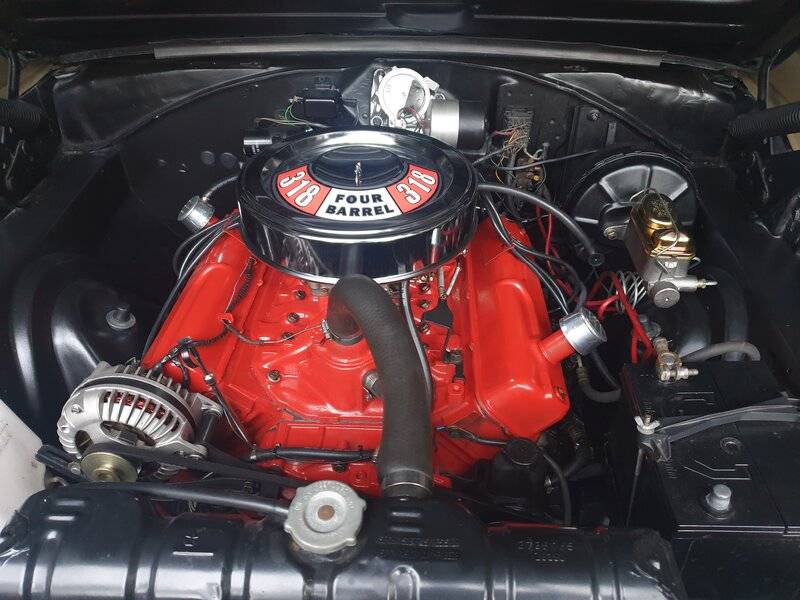

This is mine. Engine coming out next year for stroker crank to go in. The bay will be painted body color (Citron Gold) while it's out. The wiring from the starter is much neater now than in this photo. No heater hoses (no heater) helps keep things neat.
View attachment 1186244

That 440 emblem sure looks like it could have come off a 440 Artic Cat sled, or possibly from a 64
Dodge. Can’t really tell the size.



[MelroseMopar]

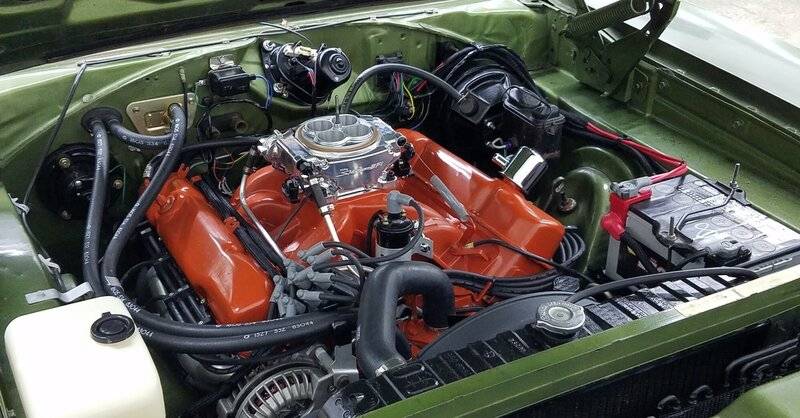

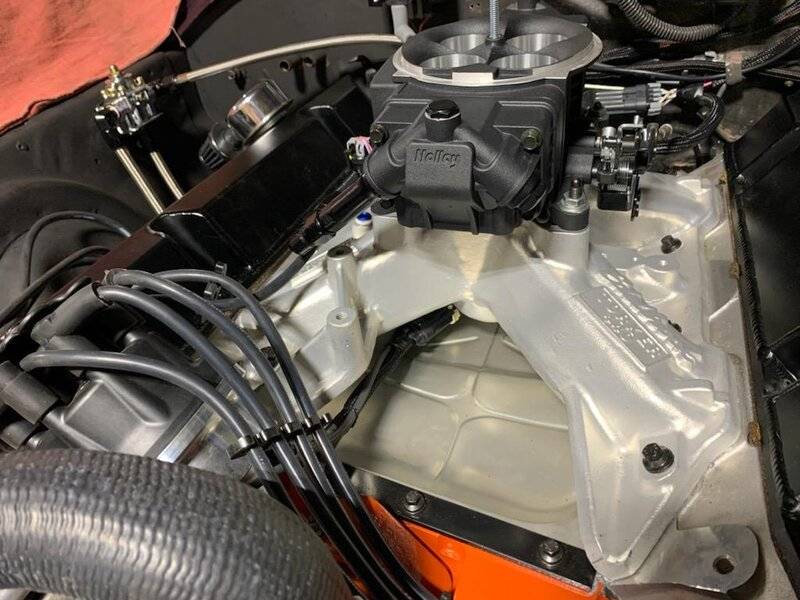

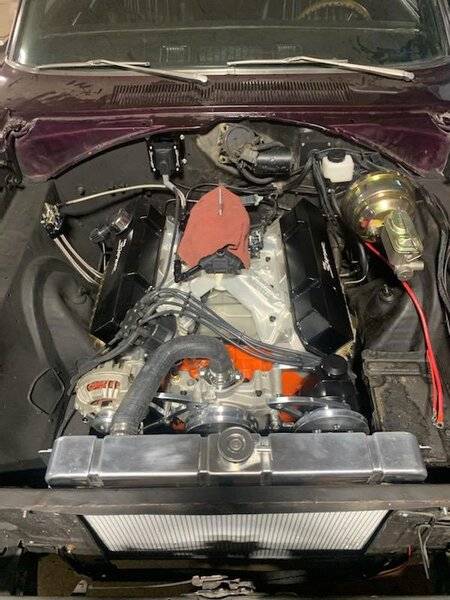

Was able to hide most of the EFI wiring.



[68Moparmaniac]



[gtx6970]

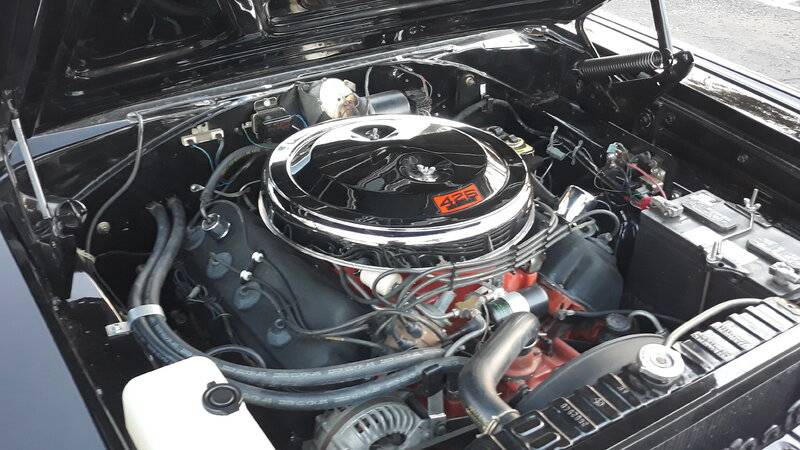

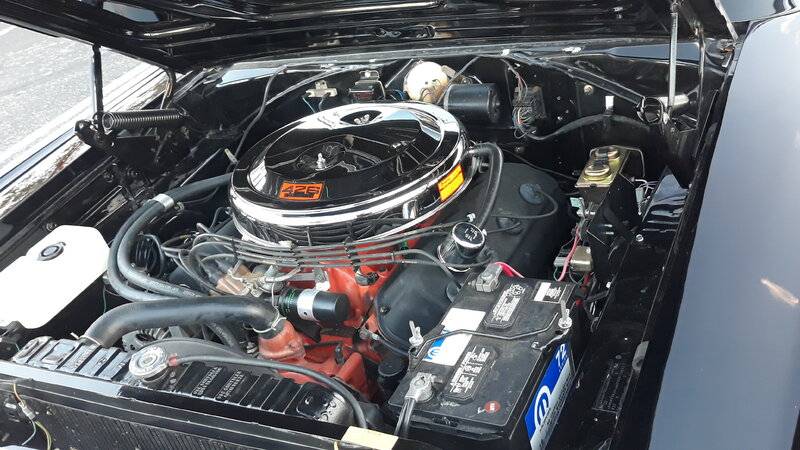

Pretty much all factory stock .



[VFilms]

Poly Stroker. Not done but getting there.



[1STMP]

hunt2elk
Those are transmission oil cooler lines. The fuel
line transitions from steel @ pump RR of the frame
to 3/8" rubber at the top of the trans.



[1STMP]

It's a work in progress but I'm trying to keep the hoses and wires to a minimum. Personally I hate the PCV and brake booster hoses. Need to find something cleaner.

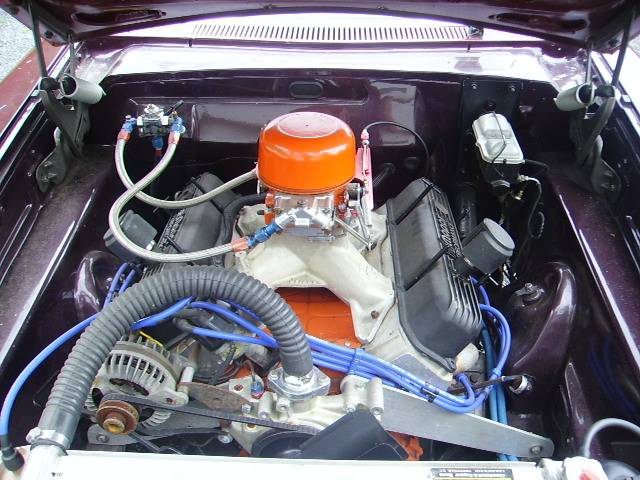

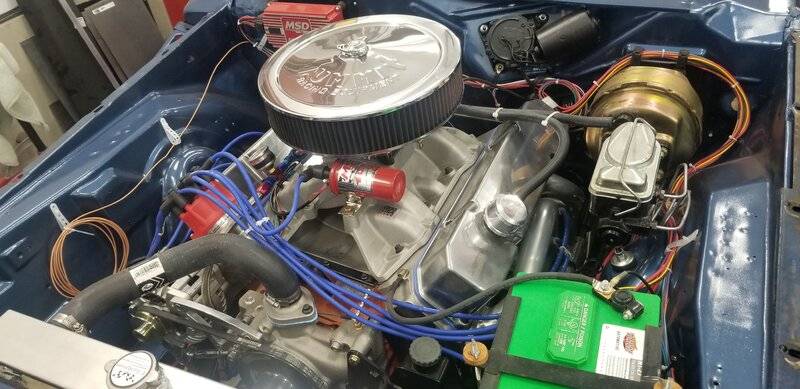

View attachment 1186320

Looks like you're using the same coil as I am.



[1STMP]

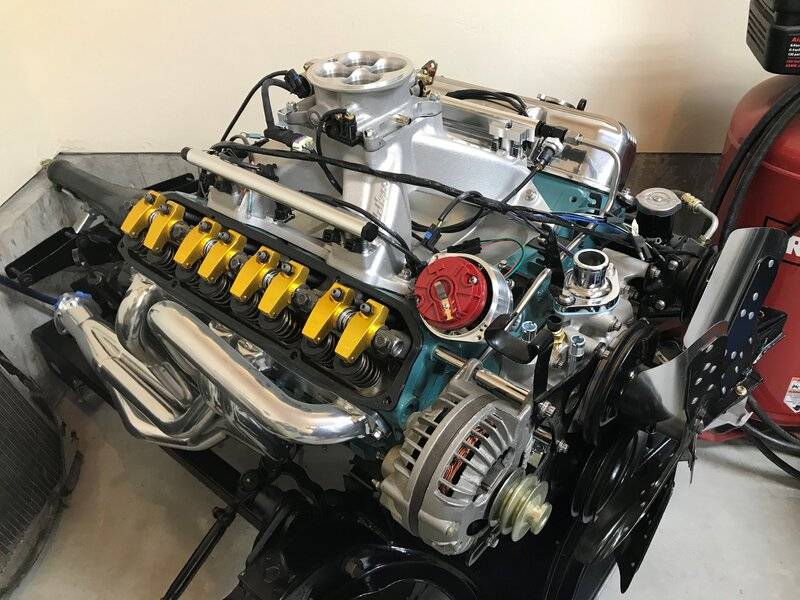

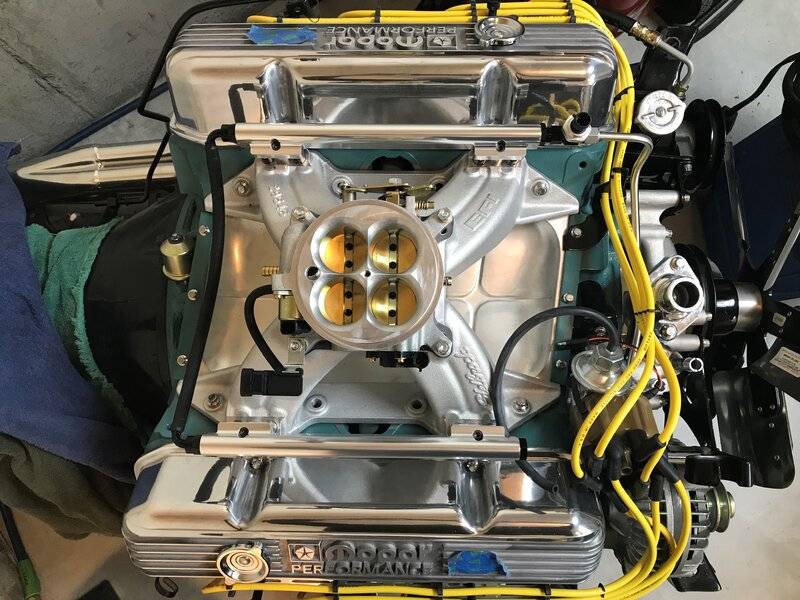

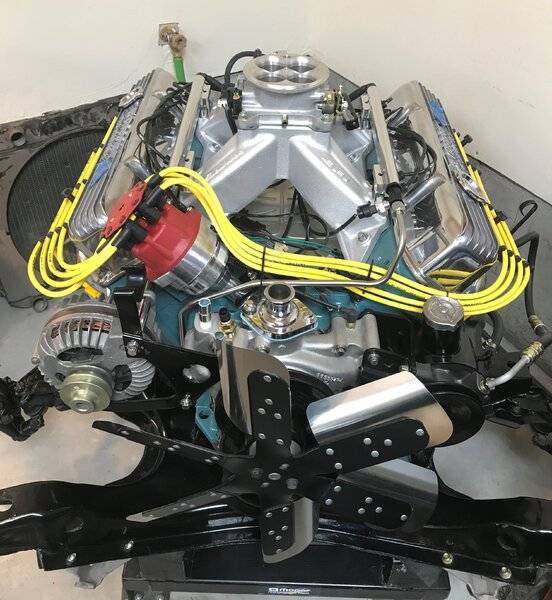

View attachment 1186377 View attachment 1186378 View attachment 1186379

I like the plug wires at the cap. Think I'll copy
this one.



[1STMP]

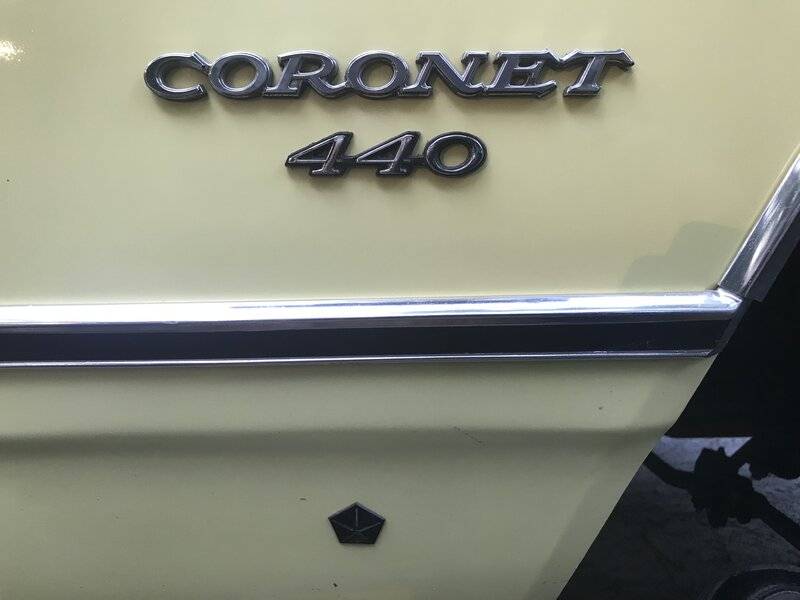

Fender Badge on the air cleaner looks to be a 1969 Coronet 440.
View attachment 1186327

Nailed it! Had a friend (veteran) who drove a
'69. The badge is in honor of him, as he recently
passed away.



[69 Sleeper Bee]

Not sure why a couple double posted?

Double posting of pictures has been happening to me as well. Or they say there was an error loading and when I post they show up.
