Long Boring intro to me and my first request for help.

Robert Bart

Active Member
Local time
11:54 AM
Joined
Sep 21, 2021
Messages
30
Reaction score
11
Location
Cooper City, FL
Hi,
My name is Robert. I am an old time mopar fanantic. In the 80's as a teenager, I owned numeorus mopars including a 1970 Dodge Charger SE with an auto and every option including A/C, power windows, locks, brakes, leather and I paid $1,000.00 for it. It was 12 years old and already had rust but......that 383 Magnum which was bone stock would take those 1970 454 Chevelles and eat them for lunch. You know how some engines came out of the factory with some extra time put into them and tight clearances. That was mine. I kept that car at age 16 and then bought a 1970 Plymouth Satellite with a factory 383, 4 speed and DANA rear. This car I paid $2500.00 for and was considered expensive in the day but it had a rebuilt engine that I could wind to 6500-7000 RPM's and easily turn 12's at Moroso in the 1980's and honestly, probably was faster but I couldn't get off the line without spinning the tires and lost time. I wasn't experienced enough but ask me if I cared. I have been working on cars since in was 13. While in High School at 17, I obtained at least 5 ASE certifications in front end (biggest profit maker), A/c which I hated and 3 others which I don't remember but it was enough to get me hired at Massey Dodge when they were located on Federal Highway in the 1980s as their primary front end mechanic. Back then, there were still old school mechanics from the 50's, 60's and 70's and those guys taught me mopars and after hours or on the weekends, they taught me every secret ( the hardest being replacing control arm bushings) but I became proficient. Since I was the youngest mechanic making an honest $500 plus a week back then they made me (paid me an hourly wage for a month or two) and another service assistant ( unfortunately he passed from sickle cell in his 20's ( I didn't find out for over 10 years later and I cried) move us to a closed down Plymouth Dealership in Plantation, FL and we were the first one to opens that tomb that closed in the early 1970's. When we opened those huge bay doors.....it was like opening an ancient Egyptian tomb. There was this huge open massive building and dust was slowly dropping down. The smell sticks to me to this day from around 1983ish. We walked around and the parts department was completely filled with parts. Obviously we didn't know any better and the GM told us to clean it out. I took a couple of old radios, a few sets of shock absorbers but if I could have predicted the future, I could have had Ten Million plus dollars now. No one knew and I am no Elon Musk. We spent over a month cleaning that mechanics bay. I was ordered to remove all of the paint booths top windows and reseal them. We worked on those old fashion hydraulic lifts and fixed air compressors. I learn so much and honestly, It was the best time of my life. Old man Yardley was not nice and fired me one day after hours visiting some friends at a used car dealership across the street on Federal. I cried to my mom and was called in by the GM the next day and said Yardley overreacted but I was not some wimp. I turned the offer down and got hired by a tire and front end shop and started making over $700.00 a week. A nice sum for an 18 year old in the 80s. To this day, that new dealership that I helped open is still going under the name of Massey Yardley Chrysler, Ram, Jeep and my neighbor is a friend and is the General Manager in sales. I have bought several new cars from him. They are great dealership with honest nice employees.
I'm retired Law Enforcement (from a city of 115 officers in Broward County, FL) from 1987-2014 (27 years) with my last 6 as a SGT. I help raise 3 great kids, now 13 (girl), 18, athlete boy who plays baseball who has a cheerleader girlfriends for over 15 months) funny because my wife was a cheerleader and a 24 year old son who just got hired by a Miami based Police Department making $66,000 to start in the academy!). I am proud but have my own issues due to long-term PTSD and I not a victim). I am finally at the point where I can engulf myself in the mopar world again. About a year ago, I bought a 1966 Plymouth Satellite which started out as a 383 4 Speed and ended up with a transplanted 1971ish Fury 440 that had some work done to it. I bought it because it is rust free and has no bondo and rust issues (rare). a semi decent paint job and enough power to scare me a tiny bit!!! It has manual drum brakes, no power steering and rips my shoulder sockets out at low speeds and couldn't stop if a bull dozer was attached to it but it can only be driven hard and fast. It needs brakes, transmission, electrical work etc. I drove it 250 miles from the place I bought it from. The seller thought I was nuts but, hell!!!!! How do you figure out what a car needs unless you drive it. I drove it home in Florida in the horrible Florida rain, no wipers, 90 degrees, no brakes etc, fogged windshield and by the time I got home ( a 3 hour normal drive with a good friend following) took us 5 hours, I knew everything that it needed. The seller told me I was crazy. I told him are you hiding anything???? He had nothing to say but I wanted and love that explosively fast mopar home that couldn't stop .
Now, my first request for anyone willing to help.... I noticed that the car did not have a windshield washer tank or pump. It did have the nozzles. I bought a new kit from Atlas Obsolete for around $200.00. I also bought all of the cars electrically, body and mechanical reproduction manuals from ebay. ****!!!! It shows where the pump goes but it has three holes and there is only one in the left side of the engine compartment. I also can't find which wire from the firewall works from the wiper switch inside so, can someone please guide me.
. Help me please figure this out because I have checked the internet and books but there isn't much.
Gracious
Robert

Last edited by a moderator:

toolmanmike

Henchman #2
Staff member
FBBO Gold Member
Local time
10:54 AM
Joined
Aug 11, 2010
Messages
9,126
Reaction score
15,859
Location
Iowa
Welcome to FBBO. I removed your phone number and e mail address. It's for your internet security.


Don Frelier

FBBO Gold Member
FBBO Gold Member
Local time
11:54 AM
Joined
Oct 11, 2016
Messages
6,417
Reaction score
8,657
Location
Ionia, NY
Welcome from NY.

To help answer some of your questions:
Not sure which side you are referring to when you say left.
The washer pump goes on the passenger fender.

The wiper motor is powered by a breaker which is behind the kickpanel on the drivers side.
Sorry I thought you were having a problem with the wiper motor.
The pump wire should be brown near the horn wire which is dark green.

Last edited:

Ghostrider 67

Power corrupts.....lol.....
FBBO Gold Member
Local time
11:54 AM
Joined
Oct 16, 2014
Messages
27,614
Reaction score
59,075
Location
Salisbury, Vermont
Welcome to FBBO from Vermont. Agree that MYMOPAR is the place to download the wiring diagram.


Nxcoupe

FBBO Gold Member
FBBO Gold Member
Local time
11:54 AM
Joined
Jul 4, 2021
Messages
1,626
Reaction score
1,479
Location
Red Lion, OH
Hi,
My name is Robert. I am an old time mopar fanantic. In the 80's as a teenager, I owned numeorus mopars including a 1970 Dodge Charger SE with an auto and every option including A/C, power windows, locks, brakes, leather and I paid $1,000.00 for it. It was 12 years old and already had rust but......that 383 Magnum which was bone stock would take those 1970 454 Chevelles and eat them for lunch. You know how some engines came out of the factory with some extra time put into them and tight clearances. That was mine. I kept that car at age 16 and then bought a 1970 Plymouth Satellite with a factory 383, 4 speed and DANA rear. This car I paid $2500.00 for and was considered expensive in the day but it had a rebuilt engine that I could wind to 6500-7000 RPM's and easily turn 12's at Moroso in the 1980's and honestly, probably was faster but I couldn't get off the line without spinning the tires and lost time. I wasn't experienced enough but ask me if I cared. I have been working on cars since in was 13. While in High School at 17, I obtained at least 5 ASE certifications in front end (biggest profit maker), A/c which I hated and 3 others which I don't remember but it was enough to get me hired at Massey Dodge when they were located on Federal Highway in the 1980s as their primary front end mechanic. Back then, there were still old school mechanics from the 50's, 60's and 70's and those guys taught me mopars and after hours or on the weekends, they taught me every secret ( the hardest being replacing control arm bushings) but I became proficient. Since I was the youngest mechanic making an honest $500 plus a week back then they made me (paid me an hourly wage for a month or two) and another service assistant ( unfortunately he passed from sickle cell in his 20's ( I didn't find out for over 10 years later and I cried) move us to a closed down Plymouth Dealership in Plantation, FL and we were the first one to opens that tomb that closed in the early 1970's. When we opened those huge bay doors.....it was like opening an ancient Egyptian tomb. There was this huge open massive building and dust was slowly dropping down. The smell sticks to me to this day from around 1983ish. We walked around and the parts department was completely filled with parts. Obviously we didn't know any better and the GM told us to clean it out. I took a couple of old radios, a few sets of shock absorbers but if I could have predicted the future, I could have had Ten Million plus dollars now. No one knew and I am no Elon Musk. We spent over a month cleaning that mechanics bay. I was ordered to remove all of the paint booths top windows and reseal them. We worked on those old fashion hydraulic lifts and fixed air compressors. I learn so much and honestly, It was the best time of my life. Old man Yardley was not nice and fired me one day after hours visiting some friends at a used car dealership across the street on Federal. I cried to my mom and was called in by the GM the next day and said Yardley overreacted but I was not some wimp. I turned the offer down and got hired by a tire and front end shop and started making over $700.00 a week. A nice sum for an 18 year old in the 80s. To this day, that new dealership that I helped open is still going under the name of Massey Yardley Chrysler, Ram, Jeep and my neighbor is a friend and is the General Manager in sales. I have bought several new cars from him. They are great dealership with honest nice employees.
I'm retired Law Enforcement (from a city of 115 officers in Broward County, FL) from 1987-2014 (27 years) with my last 6 as a SGT. I help raise 3 great kids, now 13 (girl), 18, athlete boy who plays baseball who has a cheerleader girlfriends for over 15 months) funny because my wife was a cheerleader and a 24 year old son who just got hired by a Miami based Police Department making $66,000 to start in the academy!). I am proud but have my own issues due to long-term PTSD and I not a victim). I am finally at the point where I can engulf myself in the mopar world again. About a year ago, I bought a 1966 Plymouth Satellite which started out as a 383 4 Speed and ended up with a transplanted 1971ish Fury 440 that had some work done to it. I bought it because it is rust free and has no bondo and rust issues (rare). a semi decent paint job and enough power to scare me a tiny bit!!! It has manual drum brakes, no power steering and rips my shoulder sockets out at low speeds and couldn't stop if a bull dozer was attached to it but it can only be driven hard and fast. It needs brakes, transmission, electrical work etc. I drove it 250 miles from the place I bought it from. The seller thought I was nuts but, hell!!!!! How do you figure out what a car needs unless you drive it. I drove it home in Florida in the horrible Florida rain, no wipers, 90 degrees, no brakes etc, fogged windshield and by the time I got home ( a 3 hour normal drive with a good friend following) took us 5 hours, I knew everything that it needed. The seller told me I was crazy. I told him are you hiding anything???? He had nothing to say but I wanted and love that explosively fast mopar home that couldn't stop .
Now, my first request for anyone willing to help.... I noticed that the car did not have a windshield washer tank or pump. It did have the nozzles. I bought a new kit from Atlas Obsolete for around $200.00. I also bought all of the cars electrically, body and mechanical reproduction manuals from ebay. ****!!!! It shows where the pump goes but it has three holes and there is only one in the left side of the engine compartment. I also can't find which wire from the firewall works from the wiper switch inside so, can someone please guide me.
. Help me please figure this out because I have checked the internet and books but there isn't much.
Gracious
Robert
Welcome! I have 2 66s. I have a Belvedere II and a Coronet 500. I love them and I get it when you say you're diggin yours.
Brakes, does it have a dual master cylinder(2 lines coming out) or is it a single(one line coming out)?

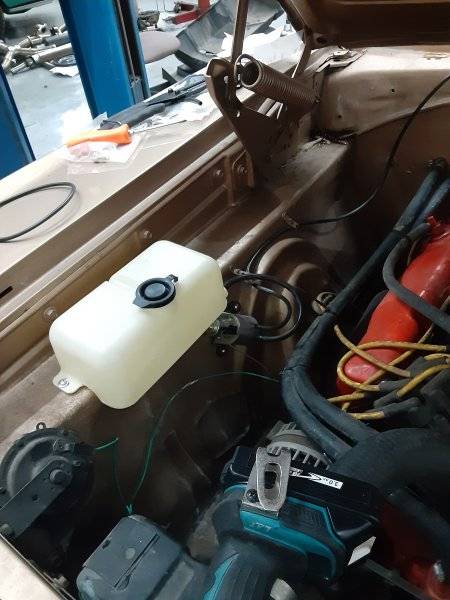

Washer and reservoir are on the passenger side inner fender, like this:


Nxcoupe

FBBO Gold Member
FBBO Gold Member
Local time
11:54 AM
Joined
Jul 4, 2021
Messages
1,626
Reaction score
1,479
Location
Red Lion, OH
The wire for the washer is in the same bundle as the horn wires.


davek

FBBO Gold Member
FBBO Gold Member
Local time
11:54 AM
Joined
Oct 14, 2017
Messages
7,084
Reaction score
7,296
Location
columbia SC
Robert and did I miss the pics?


Jerry Hall

FBBO Gold Member
FBBO Gold Member
Local time
10:54 AM
Joined
Mar 26, 2018
Messages
8,331
Reaction score
14,388
Location
Alabama
Welcome from Alabama, 66-67's are my thing too.


Robert Bart

Active Member
Local time
11:54 AM
Joined
Sep 21, 2021
Messages
30
Reaction score
11
Location
Cooper City, FL
Welcome from NY.

To help answer some of your questions:
Not sure which side you are referring to when you say left.
The washer pump goes on the passenger fender.

The wiper motor is powered by a breaker which is behind the kickpanel on the drivers side.
Yeah, stupid for sure to me to say left! Left from looking at the engine from the front. Should have said passenger side!!! The problem is the holes for the reservoir are there but I can only find one hole punched in the area where the pump is supposed to go and the pump has three holes to mount it. Doesn't make sense to me since the car came factory with a windshield washer pump evident by the spray nozzles on the cowling. I will try to figure out out how to upload some photos to see if anyone can tell me where it belongs. It appears to be under the reservoir and just behind (closer to the firewall) but there aren't three screw holes. The car does not have any bondo nor does it look like the mounting area has been filled in though I could be wrong! If I can manage to attached some photos, maybe you nice folk can help and old timer out (Is going to be 58 old!!!!) BTW, my wife saw this page opened up on the my PC in the morning and thought I was on some ****-site!!!!! B-Bodies!!!! I almost fell over from laughing. :) :) :)!!!!!

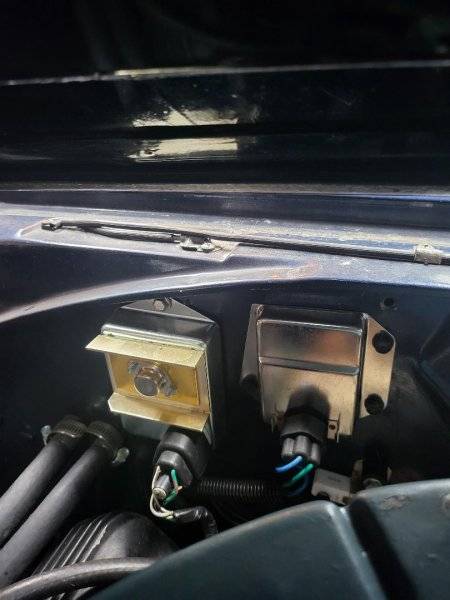

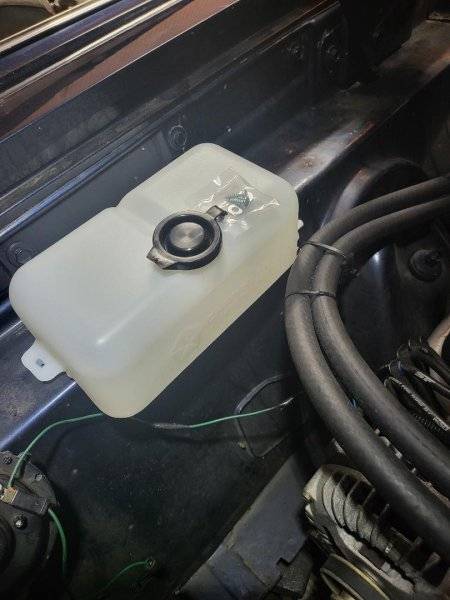

OK, hopefully this worked though not in the order I intended. You can see the photo of the inner fender well and the two holes that line up perfectly with the reservoir. I then rested the reservoir on its aligned holes. Where my finger is pointed is the only screw hold I could find. You can also see the nozzles on the cowl and both sides of the pump which has two connections, one which might be a ground and the other possibly power but definitely three mounting holes with rubber dampeners. I don't mind drilling the extra holes but why aren't they there? I even b ought all of the body and mechanical repro books on ebay but they really dont help much at all. Yeah, someone rigged this car for race only but I need some of the luxuries back!!! Yes, the wiper switch works and moves a tad when pressed but it will take hours to figure out which wire will go to the pump and where does the extra ground? wire go? I will check out that mopar site.
Thanks for any help!!!!
Robert-retired and a tad mopar crazy!!!!

pump 2.jpg


pump 3.jpg


pump 4.jpg


pump 5.jpg


pump 6.jpg




Robert Bart

Active Member
Local time
11:54 AM
Joined
Sep 21, 2021
Messages
30
Reaction score
11
Location
Cooper City, FL
Welcome from NY.

To help answer some of your questions:
Not sure which side you are referring to when you say left.
The washer pump goes on the passenger fender.

The wiper motor is powered by a breaker which is behind the kickpanel on the drivers side.


Robert Bart

Active Member
Local time
11:54 AM
Joined
Sep 21, 2021
Messages
30
Reaction score
11
Location
Cooper City, FL
Yeah, stupid for me to say left! Passenger side! How do I know which wire comes outt into the engine compartment?
