MSD 6AL location?

Racers Hangout

  1. Moparlike

    Moparlike Active Member

    Messages:
    30
    Likes Received:
    6
    Joined:
    Mar 19, 2010
    Location:
    Baldwinsville NY
    Local Time:
    9:09 AM

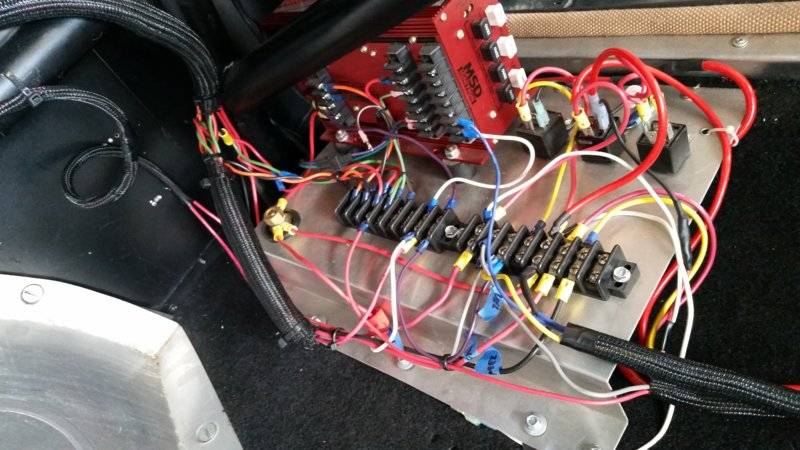

    1E21AC2C-F40D-47A4-8C3B-C0892F405403.jpeg Hey.
    The previous owner of my 69 Road Runner 440-6 mounted the MSD behind the rear seat. The battery location is in the trunk.
    It seems too far back.... should I move the 6AL forward, and what is the ideal location?
    Stay safe!
    Thanks!!!

  2. RPMagoo

    RPMagoo Well-Known Member

    Messages:
    126
    Likes Received:
    201
    Joined:
    Sep 26, 2019
    Location:
    N.E. Pa.
    Local Time:
    9:09 AM
    Hmmm ! --- :popcorn: ---

  3. Jessejames

    Jessejames Well-Known Member

    Messages:
    171
    Likes Received:
    183
    Joined:
    Mar 9, 2013
    Location:
    South Milwaukee Wi
    Local Time:
    8:09 AM
    Yikes. interested to see how the coil wire was routed. I know the big thing is the box gets hot and needs ventilation.
    I always mount mine on the passenger side inner fender well. And mount my coil near by. Just has a clean look with minimal wires.

    • Thanks! Thanks! x 1
    • coloradodave

      coloradodave Well-Known Member

      Messages:
      3,661
      Likes Received:
      3030
      Joined:
      Jun 1, 2011
      Location:
      Lincoln, CA
      Local Time:
      6:09 AM
      I mounted mine inside my car, high on the right side kick panel. Stays cool, dry and it's easy to change the rev limit. Don't even notice it's there.

      • Like Like x 2
      • Thanks! Thanks! x 2
      • Agree Agree x 2
      • ruffcut

        ruffcut FBBO Gold Member FBBO Gold Member

        Messages:
        516
        Likes Received:
        700
        Joined:
        Dec 26, 2016
        Location:
        northwestern pa
        Local Time:
        9:09 AM
        Yea. most of us would mount it inside the car on the right side somewhere. Mine is mounted on the firewall just below the glove box. Out of sight but easy to get to.

        • Agree Agree x 3
        • Thanks! Thanks! x 2
        • Like Like x 1
        • 33 IMP

          33 IMP Well-Known Member

          Messages:
          5,298
          Likes Received:
          7128
          Joined:
          Dec 21, 2017
          Location:
          taxifornia,soon 2b Arizona.
          Local Time:
          6:09 AM
          I've got two msd 6al's, and an ancient mallory box that still works great. All three are mounted high on the toeboard on the passenger side, inside the pass compartment. For exactly the reasons Colorado Dave and Ruffcut mentioned.

          • Thanks! Thanks! x 3
          • Like Like x 1
          • Agree Agree x 1
          • Mike Gaines

            Mike Gaines Well-Known Member

            Messages:
            2,086
            Likes Received:
            4210
            Joined:
            Apr 17, 2014
            Location:
            Ahwahnee, (Fresno) California
            Local Time:
            6:09 AM
            My placement on my 64 Belvedere Hemi Car is at the passenger side. It's a 7AL-3 but placement is same as 6AL


            • Thanks! Thanks! x 1
            • 66Satellite47

              66Satellite47 FBBO Gold Member FBBO Gold Member

              Messages:
              4,847
              Likes Received:
              3860
              Joined:
              Jan 15, 2015
              Location:
              St Paul MN
              Local Time:
              7:09 AM
              With that placement, I'd be worried about the voltage drop on the trigger wires and coil power wires. I'm happy with my setup on inside of the firewall.

              • Like Like x 1
              • Thanks! Thanks! x 1
              • Agree Agree x 1
              • Dodge 330

                Dodge 330 Well-Known Member

                Messages:
                1,206
                Likes Received:
                900
                Joined:
                Nov 3, 2010
                Location:
                Wichita, KS
                Local Time:
                8:09 AM
                Mine is hidden under the battery tray in the engine compartment. Very close to all the connections to be made, stays cool, accessible and fits very well there. Best of all? No one notices.

                • Like Like x 1
                • Thanks! Thanks! x 1
                • 383man

                  383man Well-Known Member

                  Messages:
                  4,648
                  Likes Received:
                  3482
                  Joined:
                  Jul 19, 2008
                  Location:
                  Md
                  Local Time:
                  8:09 AM

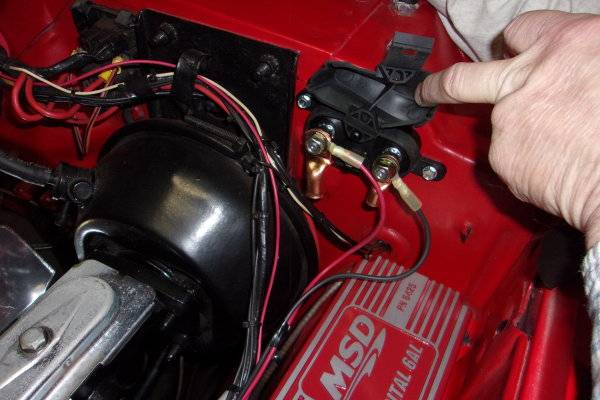

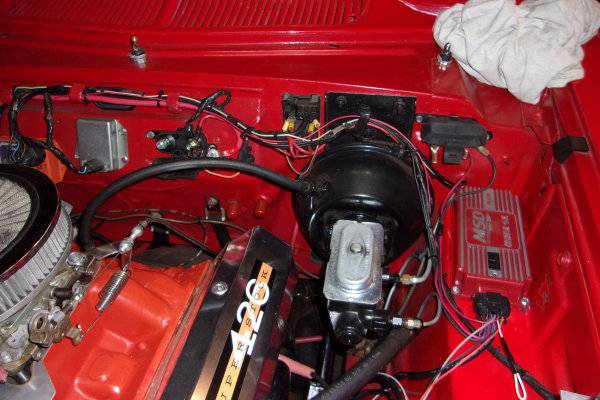

                  I just got a digital MSD6AL unit and I am mounting it here under the hood. What I am doing is running a ground and pos battery cable from my trunk mounted battery to these two stud post I mounted on my firewall. That way I can pick up my hot and ground for the MSD right under the hood. And I will also use the hot to feed the car and ground the ground stud to the block and body. Ron




                  • Like Like x 1
                  • dvw

                    dvw Well-Known Member

                    Messages:
                    5,672
                    Likes Received:
                    8206
                    Joined:
                    Feb 16, 2010
                    Location:
                    waterford mi
                    Local Time:
                    9:09 AM
                    I see no reason it wouldn't work. The most important factors are A; good power feed and ground to the box. B; good shielded wiring to the distributor/crank trigger and the coil. C cool location. Whats not to like? I've mounted them under the front battery tray, glove box area. Never had an issue in those locations either. At a bare minimum the harness to the coil and trigger device should be twisted. I personally like wire with shielding grounded to the box itself (one end only). You'll seethe top harness has a 3rd wire going down the right side of the box to the ground nut at the lower front corner. This is the shield for thecrank trigger harness. It acts as a antenna. any stray signal goes right to ground.
                    Doug


                    Last edited: Apr 23, 2020
                    • Like Like x 4
                    • mrhemi

                      mrhemi Well-Known Member

                      Messages:
                      199
                      Likes Received:
                      237
                      Joined:
                      Jan 9, 2019
                      Location:
                      Ontario
                      Local Time:
                      9:09 AM
                      I have mine hidden inside, behind the radio delete plate. Gets convection cooling up through the empty speaker grille.

                    • coloradodave

                      coloradodave Well-Known Member

                      Messages:
                      3,661
                      Likes Received:
                      3030
                      Joined:
                      Jun 1, 2011
                      Location:
                      Lincoln, CA
                      Local Time:
                      6:09 AM
                      No hinges are a plus, Ron...lol.

                      • Thanks! Thanks! x 1
                      • Agree Agree x 1
                      • Brewzer67

                        Brewzer67 Well-Known Member

                        Messages:
                        365
                        Likes Received:
                        325
                        Joined:
                        Dec 20, 2015
                        Location:
                        Menomonee Falls, WI
                        Local Time:
                        8:09 AM
                        I put mine where the battery used to be. Easy to get at all the dials and it's up out of the high heat areas. It also stays dry when I get caught in the rain.


                        • Like Like x 1
                        • LemonWedge

                          LemonWedge Well-Known Member

                          Messages:
                          682
                          Likes Received:
                          1417
                          Joined:
                          Dec 27, 2009
                          Location:
                          Puyallup, WA
                          Local Time:
                          6:09 AM
                          Mine is exactly opposite of where Brewzers’ is (passenger side). I have read from MSD that they recommend “somewhere the box will get airflow; NOT in the glove box because they get no airflow there for cooling”. It’s the only place they mention specifically, so I’m guessing they’ve seen multiple failures with them there (??).

                          • Agree Agree x 1
                          • 383man

                            383man Well-Known Member

                            Messages:
                            4,648
                            Likes Received:
                            3482
                            Joined:
                            Jul 19, 2008
                            Location:
                            Md
                            Local Time:
                            8:09 AM
                            Yea your right as it would not fit there with hood hindges. That's one plus for a glass hood. Ron

                            • Agree Agree x 1
                            • 66Satellite47

                              66Satellite47 FBBO Gold Member FBBO Gold Member

                              Messages:
                              4,847
                              Likes Received:
                              3860
                              Joined:
                              Jan 15, 2015
                              Location:
                              St Paul MN
                              Local Time:
                              7:09 AM
                              If it's mounted in the passenger compartment it's not exposed the higher heat of the engine compartment. I believe that engine compartment heat is what MSD is concerned about.

                            • beanhead

                              beanhead Well-Known Member

                              Messages:
                              5,919
                              Likes Received:
                              9828
                              Joined:
                              May 18, 2014
                              Location:
                              Wackyfornia
                              Local Time:
                              6:09 AM
                              Not an MSD but my FBO box is mounted on the inside on the firewall. It's up far enough it's outta sight but I don't have a heater box..
                              What I did do though, is used some standoffs to space it away from the firewall. I also cut a piece of thick industrial piping gasket material (Gylon) the same size as the box and put that under the standoffs, right against the firewall because even the inside surface gets a little hot to the touch after driving. The cooler the better...

                            • dvw

                              dvw Well-Known Member

                              Messages:
                              5,672
                              Likes Received:
                              8206
                              Joined:
                              Feb 16, 2010
                              Location:
                              waterford mi
                              Local Time:
                              9:09 AM
                              Think about voltage drop when the battery is in the trunk? Same distance.
                              Doug

                            • 6PKRTSE

                              6PKRTSE Well-Known Member

                              Messages:
                              1,930
                              Likes Received:
                              2757
                              Joined:
                              Nov 15, 2010
                              Location:
                              Motor City
                              Local Time:
                              8:09 AM

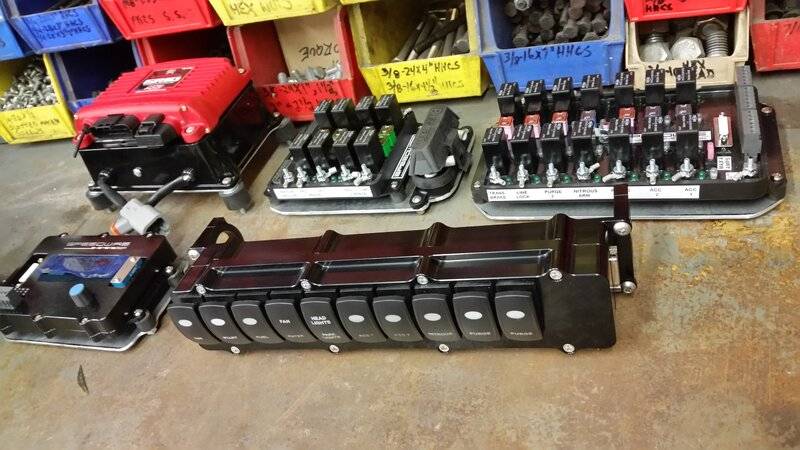

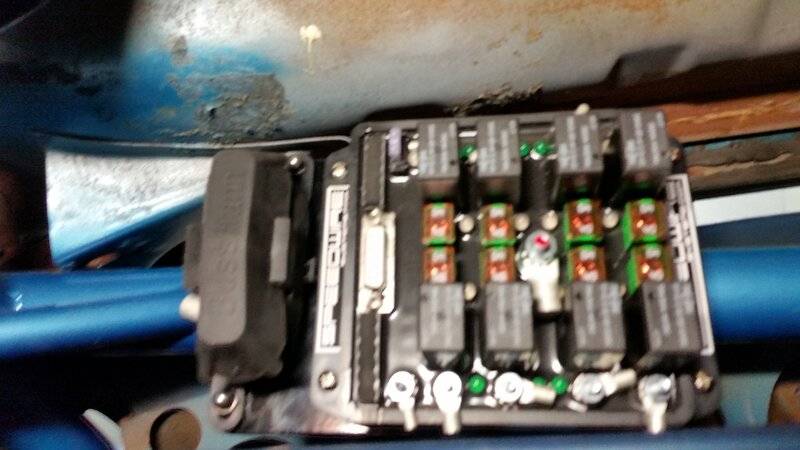

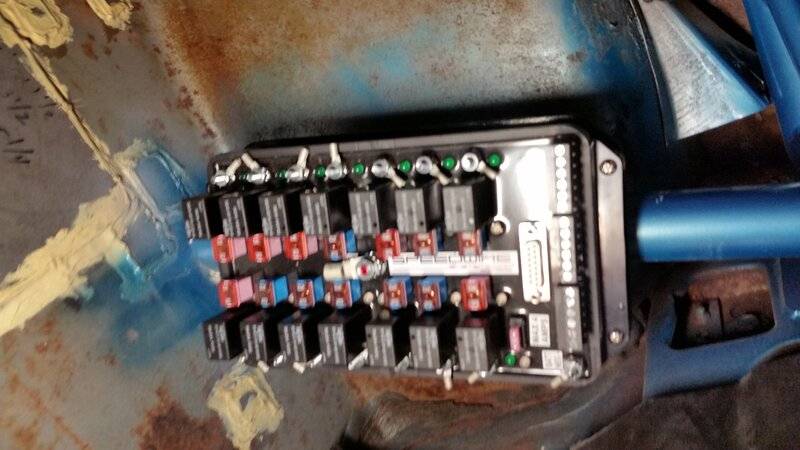

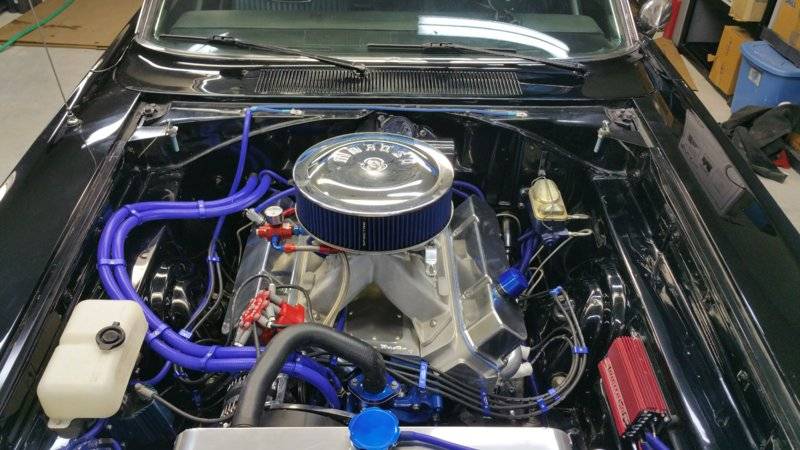

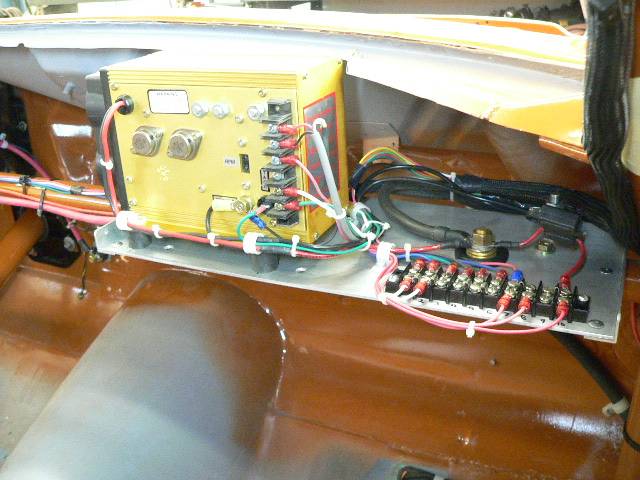

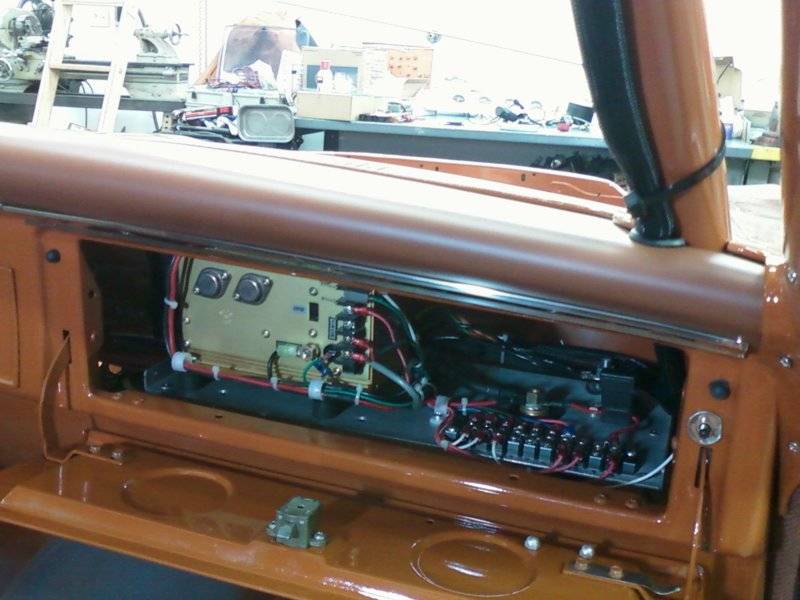

                              I have always mounted them under the battery tray in the engine compartment. My current set up, MSD Grid, RacePak data logger, fuse/relay panel, 4 stage nitrous controller are all mounted under the dash on the knee bar.

                              20190828_220401.jpg 20190926_222421.jpg 20190926_222358.jpg

                              Last edited: Apr 29, 2020
