My seat restoration (72 Charger Rallye)

Interior

  1. fatecaptured

    fatecaptured FBBO Gold Member FBBO Gold Member

    Messages:
    949
    Likes Received:
    176
    Joined:
    Apr 25, 2010
    Location:
    Illinois
    Local Time:
    1:59 PM
    Oh man. Nice car. Was it a Lynch Road car?

  2. T2R9

    T2R9 FBBO Gold Member FBBO Gold Member

    Messages:
    619
    Likes Received:
    806
    Joined:
    Jul 18, 2008
    Location:
    South Carolina
    Local Time:
    2:59 PM
    Yes it is.

  3. TrackPack

    TrackPack Well-Known Member

    Messages:
    124
    Likes Received:
    73
    Joined:
    Jun 6, 2018
    Location:
    Minnesota
    Local Time:
    1:59 PM
    Nice work, seats look like quite a challenge.

  4. fatecaptured

    fatecaptured FBBO Gold Member FBBO Gold Member

    Messages:
    949
    Likes Received:
    176
    Joined:
    Apr 25, 2010
    Location:
    Illinois
    Local Time:
    1:59 PM
    Thank you sir. The job isn't difficult. I am probably going a little overboard with powder coat. But I figured that when the seat needs redone in 10 years(hopefully longer), that it won't need painted ever again.

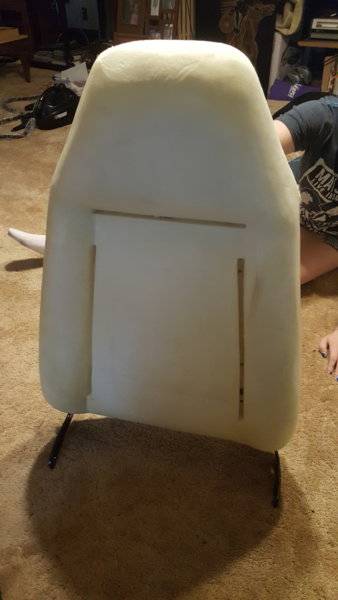

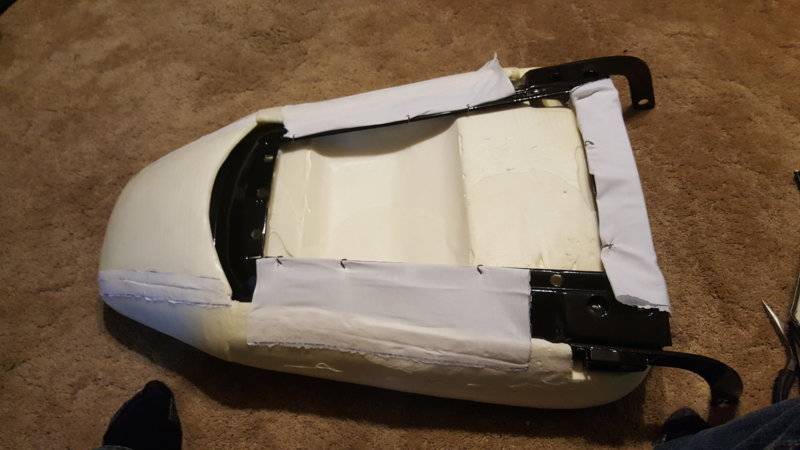

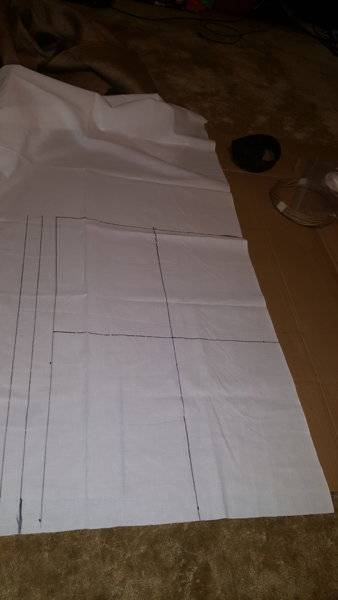

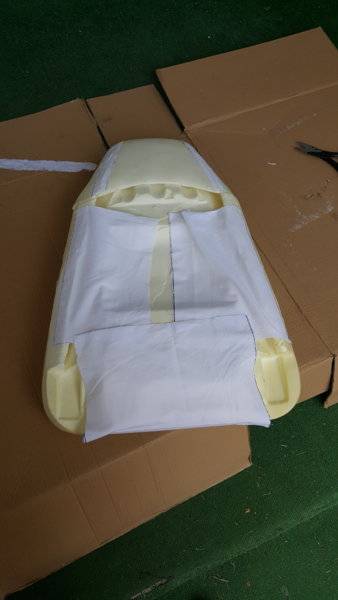

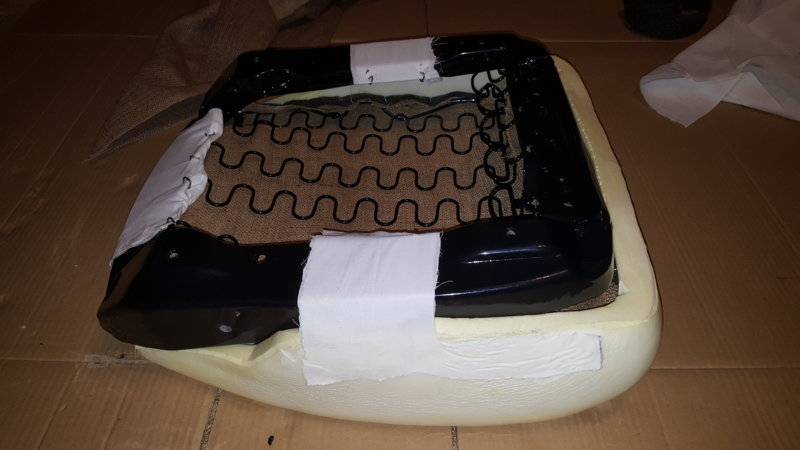

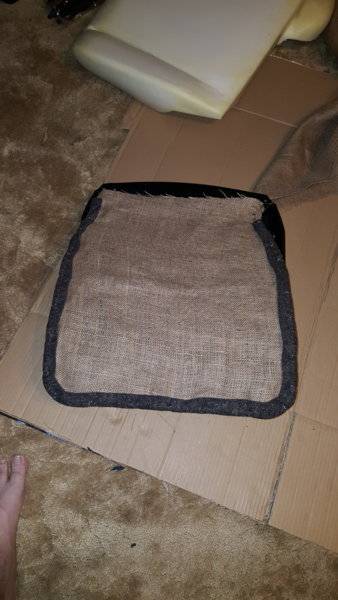

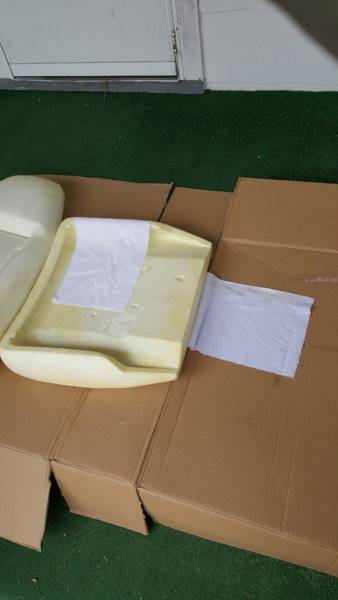

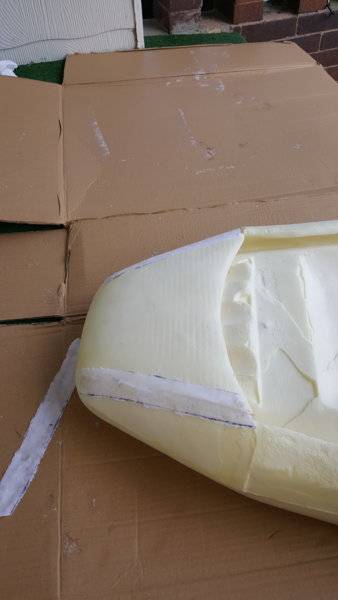

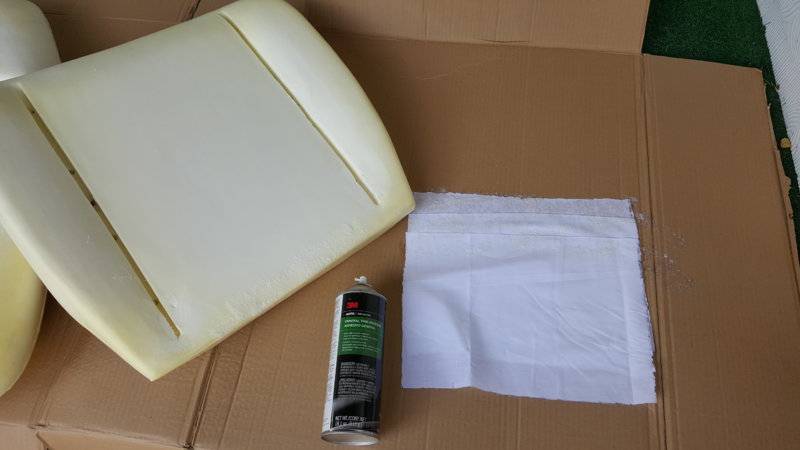

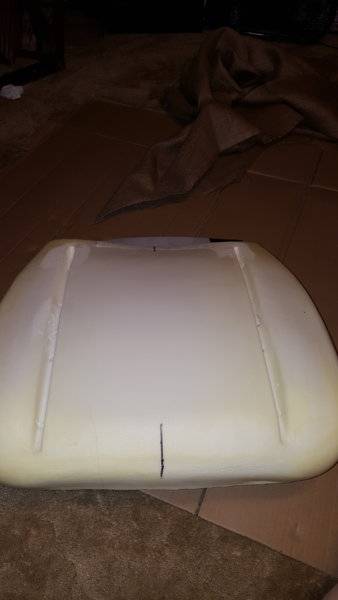

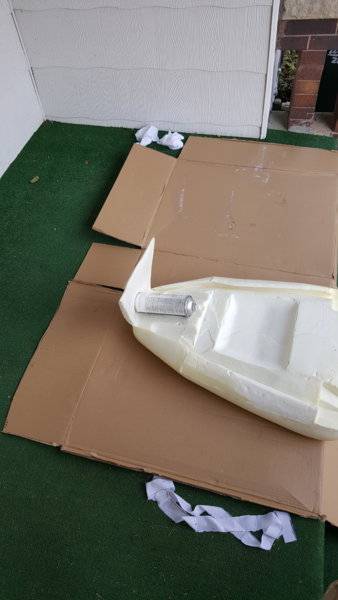

    Originally the seat foam was hog ringed to the seat springs, but I decided to use the muslin to hold the foam in place. It seamed to work quite well. Although you can seen in one of the pictures that I glued the sides of the bottom in the wrong place. So instead of risking damage to the foam, I just trimmed tge muslin with a razor blade. There was still enough material to attach to the frame.

    I will be out of town for the next week. So when I get back, I'll finish up the seat top and do a side by side shot of the finished driver's seat and the unfinished passenger's seat.

    The feeling of accomplishment is creeping up on me, hopefully I don't screw anything up.

  5. SureGrip

    SureGrip FBBO Gold Member FBBO Gold Member

    Messages:
    613
    Likes Received:
    171
    Joined:
    Mar 20, 2011
    Location:
    Central Maryland
    Local Time:
    2:59 PM
  6. fatecaptured

    fatecaptured FBBO Gold Member FBBO Gold Member

    Messages:
    949
    Likes Received:
    176
    Joined:
    Apr 25, 2010
    Location:
    Illinois
    Local Time:
    1:59 PM
    Hello Suregrip, I sourced the foam kit from classic industry's.

    • Thanks! Thanks! x 1
    • fatecaptured

      fatecaptured FBBO Gold Member FBBO Gold Member

      Messages:
      949
      Likes Received:
      176
      Joined:
      Apr 25, 2010
      Location:
      Illinois
      Local Time:
      1:59 PM

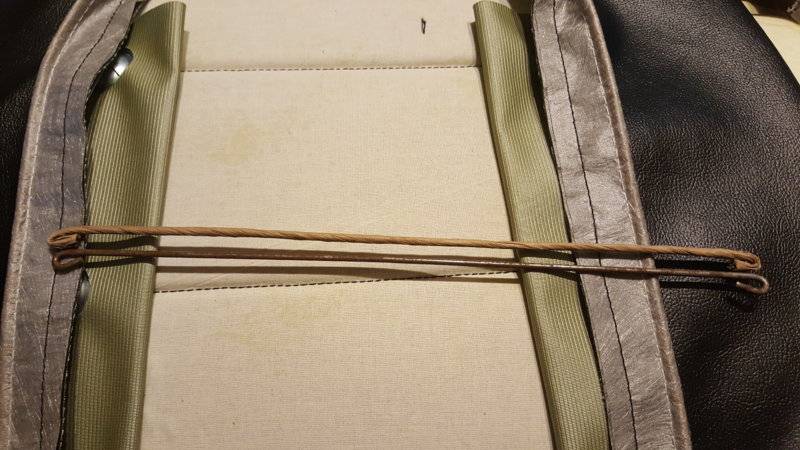

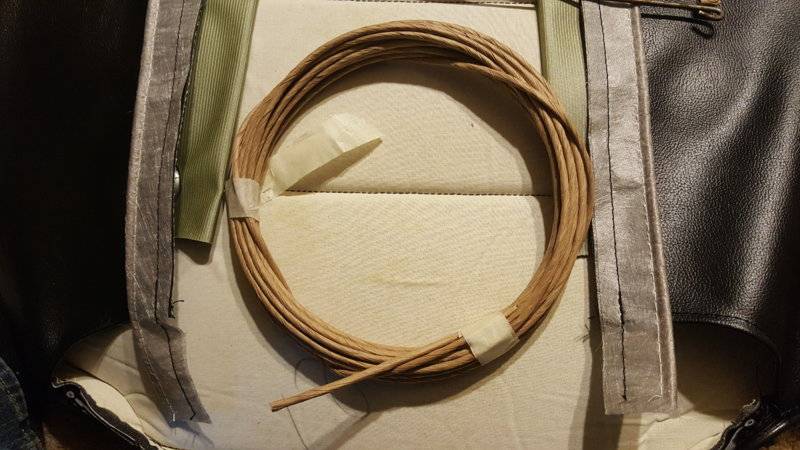

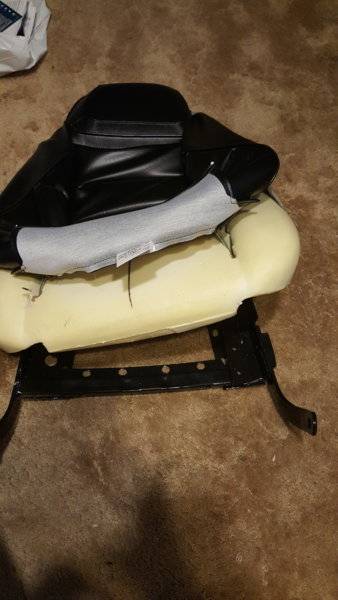

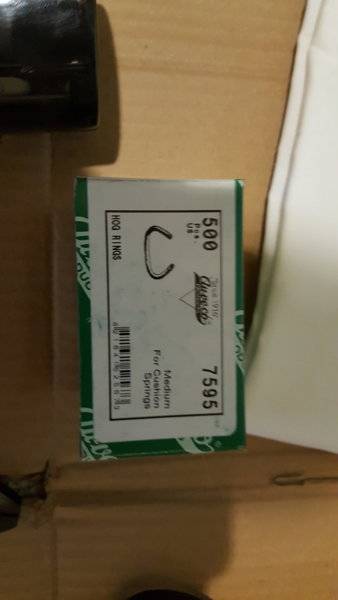

      Update on the seat top. It was quite a chore. On and off 4 times . Thats hog rings off and on 4 times.... But after 3 hours of wresting with the cover, im satisfied with the results . I may use some steam to finish it off before cutting the holes to assemble the seat. Here are some picture's of the process. I made new listing wires for all (3) listing pockets. I ended up cutting the listing pocket groove further down so that the cover wouldn't be sloppy under the head rest. It helped out allot, as the listing groove milded into the foam didn't seem to be long enough. Or the cover was off. Either way it worked well to fix the problem. 20180616_172746.jpg 20180616_172759.jpg 20180616_172731.jpg 20180616_172723.jpg 20180616_173031.jpg 20180617_143853.jpg 20180617_143959.jpg 20180617_150952.jpg 20180617_150956.jpg 20180617_153014.jpg Here you can see the groove is cut longer ^^

    • fatecaptured

      fatecaptured FBBO Gold Member FBBO Gold Member

      Messages:
      949
      Likes Received:
      176
      Joined:
      Apr 25, 2010
      Location:
      Illinois
      Local Time:
      1:59 PM

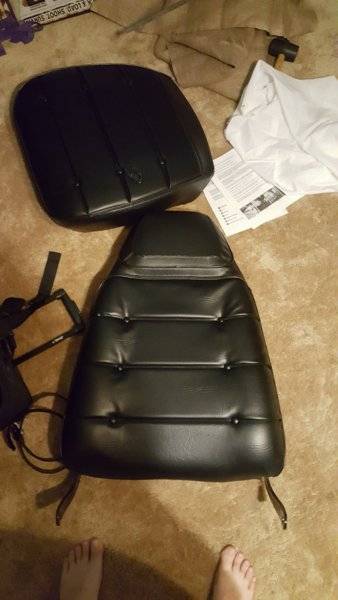

      20180617_153658.jpg 20180617_154020.jpg 20180617_154843.jpg 20180617_173554.jpg

    • YY1

      YY1 Well-Known Member

      Messages:
      13,661
      Likes Received:
      6036
      Joined:
      Jun 26, 2010
      Location:
      FL
      Local Time:
      2:59 PM
      You are a far more patient man than I sir.

      Looks great!

      • Thanks! Thanks! x 1
      • Agree Agree x 1
      • fatecaptured

        fatecaptured FBBO Gold Member FBBO Gold Member

        Messages:
        949
        Likes Received:
        176
        Joined:
        Apr 25, 2010
        Location:
        Illinois
        Local Time:
        1:59 PM

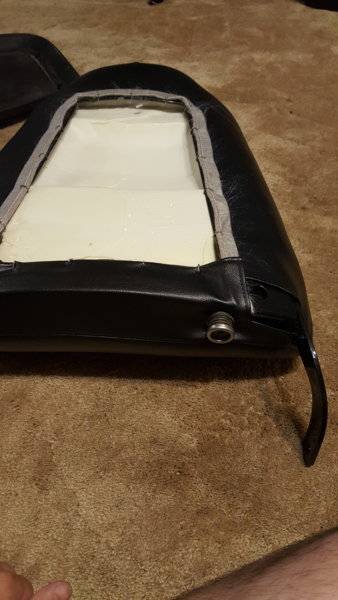

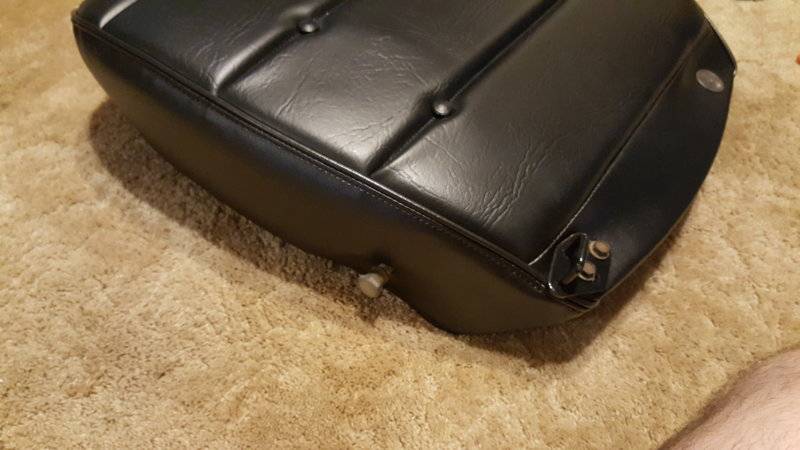

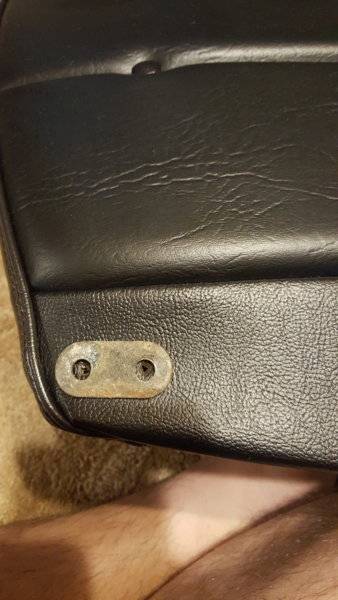

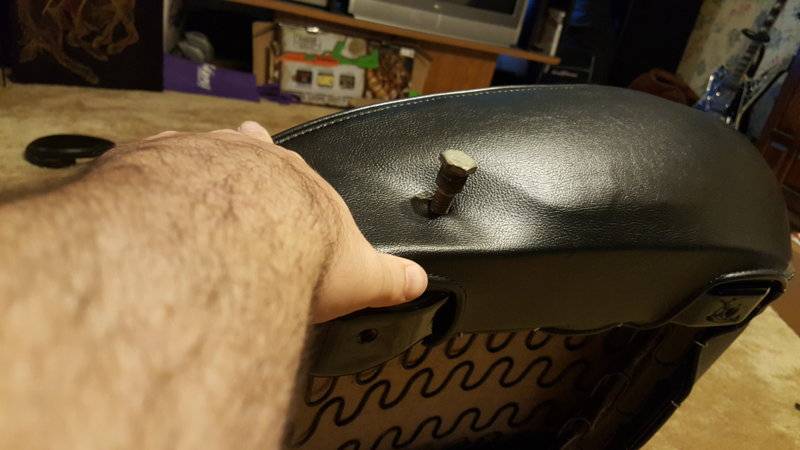

        After a few weeks off. I finished up the driver's seat. The car didn't have seat back screws or even seat back covers. I am using oem used seat back (plastic) covers that I got from the nats in 2012. I have yet to buy any screws yet. So the picture is just to show what it would look like all reassembled. I did purchase and install the oil board washers between the upper and lower seat assembly's. When dismantling this seat there was only one spacer for the catch on the bottom seat. As I reassembled the seat, I found that I need 2 spacers to get the latch to contact the catch and lock the two together. I have access to steel and will make another spacer as it won't be seen after its all togther.

        Final thoughts. The seat bottom went together very well. Extremely happy with the fit of the bottom. The top however was very difficult. I wished I would've cut the grooves in the foam further toward the bottom and attach it even further down as there is a noticible pucker on the driver's side edge. My advice is set aside plenty of time and make sure you are happy with the fit before you do any cutting. Also if you remove the latch mechanism to paint, remember to install it before hog ringing your cover on the frame. Yes I learned the hard way. I will post the passenger seat with maybe some highlights of things I will do different.

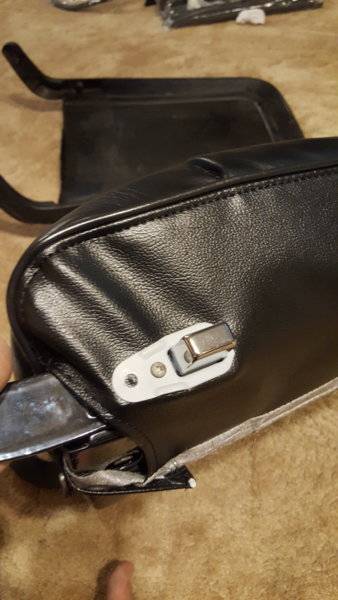

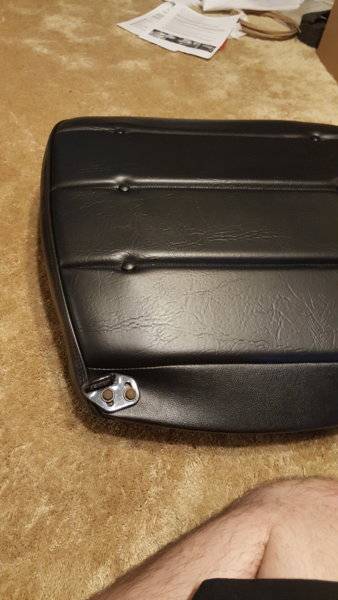

        I hope this helps someone out there. And if you know a better way of doing it, please share and help all our fellow men and women out. 20180706_175427.jpg 20180706_175447.jpg 20180706_180126.jpg 20180706_180139.jpg 20180706_180519.jpg 20180706_181809.jpg 20180706_181820.jpg 20180706_181815.jpg 20180706_183127.jpg 20180706_183155.jpg

      • SureGrip

        SureGrip FBBO Gold Member FBBO Gold Member

        Messages:
        613
        Likes Received:
        171
        Joined:
        Mar 20, 2011
        Location:
        Central Maryland
        Local Time:
        2:59 PM
        They look fantastic!

        Should start a new side business. ;)

        • Thanks! Thanks! x 1
        • gus318

          gus318 Member

          Messages:
          16
          Likes Received:
          16
          Joined:
          Nov 13, 2019
          Location:
          WASAGA BEACH ONTARIO,CANADA
          Local Time:
          2:59 PM
          Question I can't get a straight answer to. On 72 Charger on roof insignia does the arrow badge point forward or back . Seen it every way. If you look at a 73 with the long side stripe, it points to the front. Can't find a factory pic anywhere.

          • Like Like x 1
          • fatecaptured

            fatecaptured FBBO Gold Member FBBO Gold Member

            Messages:
            949
            Likes Received:
            176
            Joined:
            Apr 25, 2010
            Location:
            Illinois
            Local Time:
            1:59 PM

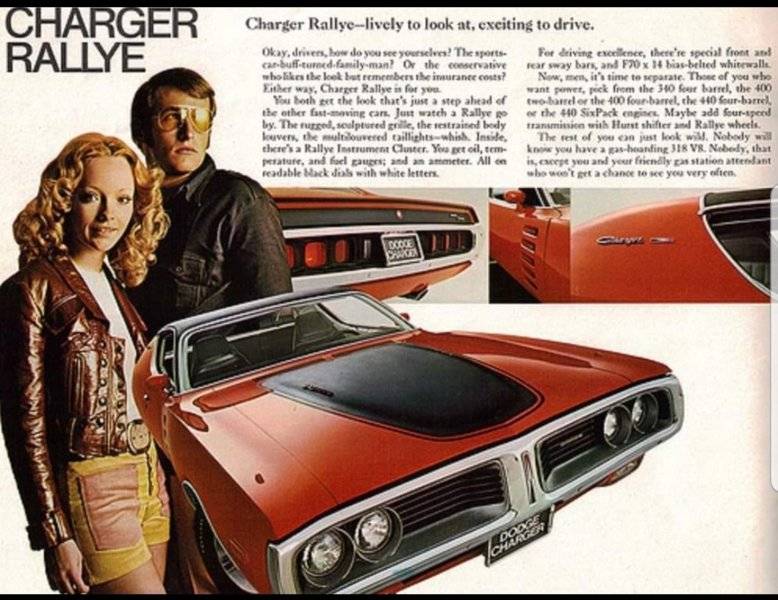

            The brochure shows pointing towards the front. Screenshot_20191115-122642_Facebook.jpg

          • gus318

            gus318 Member

            Messages:
            16
            Likes Received:
            16
            Joined:
            Nov 13, 2019
            Location:
            WASAGA BEACH ONTARIO,CANADA
            Local Time:
            2:59 PM
            That's the passengers side, It's the drivers that's in question.

          • fatecaptured

            fatecaptured FBBO Gold Member FBBO Gold Member

            Messages:
            949
            Likes Received:
            176
            Joined:
            Apr 25, 2010
            Location:
            Illinois
            Local Time:
            1:59 PM
            I can check MMC Detroit reference book when I get home.

            • Like Like x 1
            • fatecaptured

              fatecaptured FBBO Gold Member FBBO Gold Member

              Messages:
              949
              Likes Received:
              176
              Joined:
              Apr 25, 2010
              Location:
              Illinois
              Local Time:
              1:59 PM
              The Reference Guide wasn't much help.
              So I went out to the garage to look at mine.

              I took some pictures. Idk if you have the original ones or not. Mine are. I have the holes in the sail panels still.

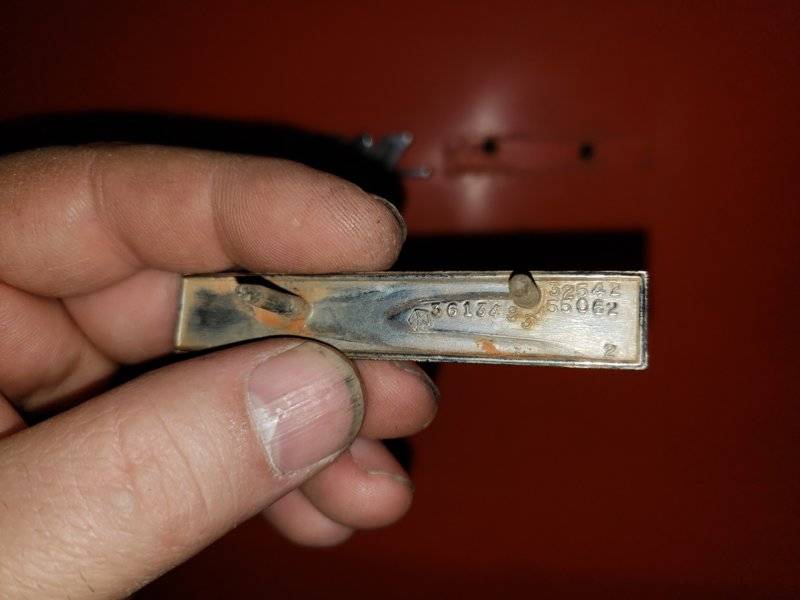

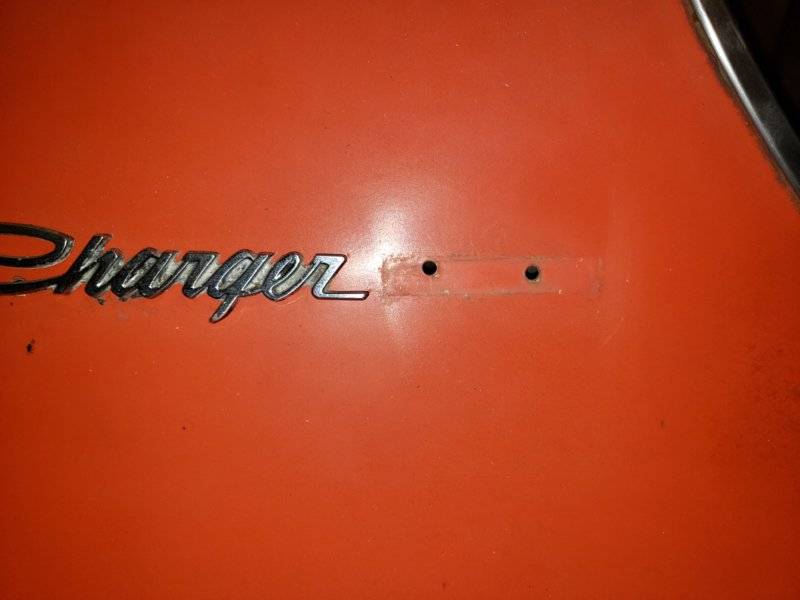

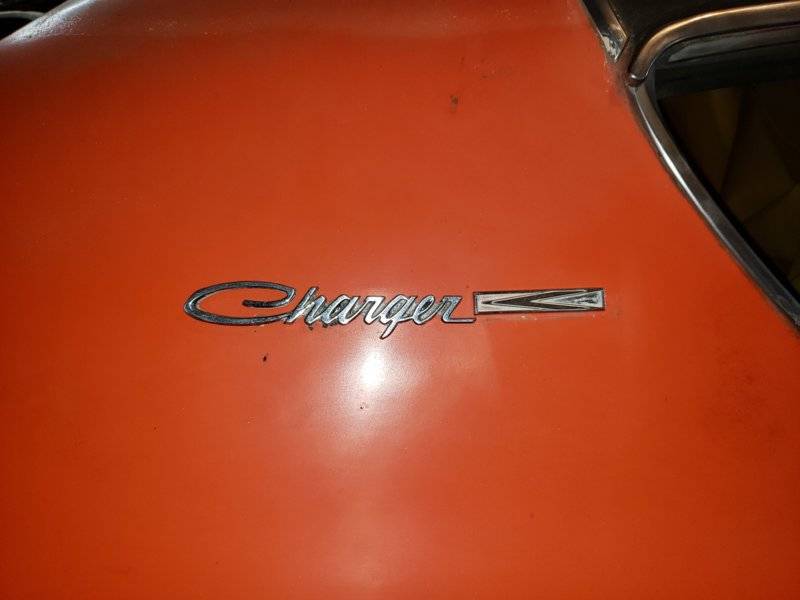

              With that being said, I think the arrow points to the rear on the passenger side. I say this because the pins are offset on the arrow emblems. If you flipp the arrow over it touches the Charger badge. Since I think there should be a gap between the 2 badges and they both line up , I think the pass side faces forward and drivers faces to the rear.

              Driver's side:

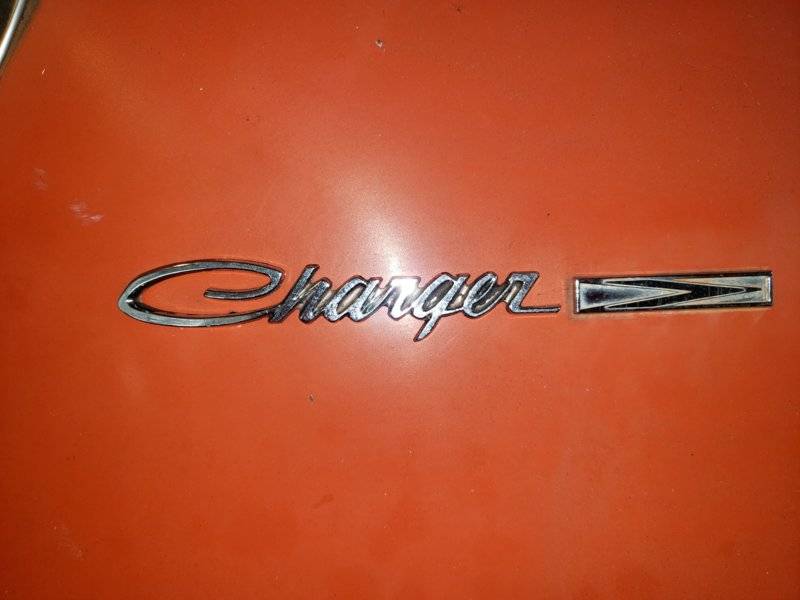

              20191115_151611.jpg 20191115_151513.jpg

              Passenger side:

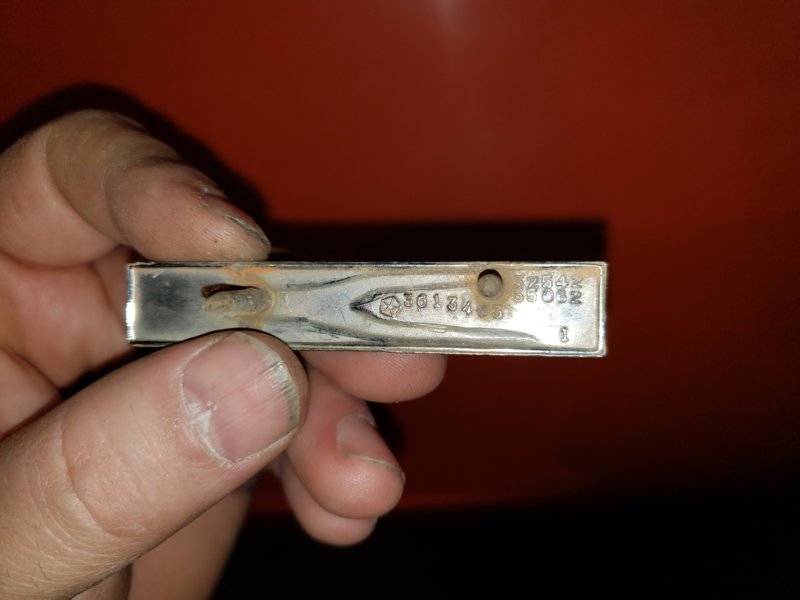

              20191115_151531.jpg 20191115_151535.jpg

              Driver's side:
              Passenger side:

              Last edited: Nov 15, 2019
              • Like Like x 1
              • fatecaptured

                fatecaptured FBBO Gold Member FBBO Gold Member

                Messages:
                949
                Likes Received:
                176
                Joined:
                Apr 25, 2010
                Location:
                Illinois
                Local Time:
                1:59 PM
                Hope that helps.

                • Agree Agree x 1
                • gus318

                  gus318 Member

                  Messages:
                  16
                  Likes Received:
                  16
                  Joined:
                  Nov 13, 2019
                  Location:
                  WASAGA BEACH ONTARIO,CANADA
                  Local Time:
                  2:59 PM
                  Thanks.
