Mystery Box - I'm in over my head!

70LemonTwst

Well-Known Member
Local time
12:42 AM
Joined
Oct 21, 2020
Messages
47
Reaction score
70
Location
USA

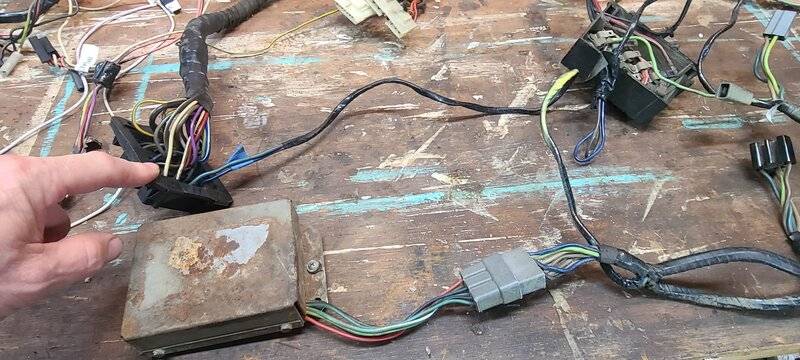

Hi All - I'm attempting to replace my dash harness on the '70 Satellite convertible. I've got the new reproduction harness and I've been going through the connections to see how much matches up. I have the service manual, the wiring the diagram and my label maker...things were going pretty well I thought. I have a metal box with (6) wires coming out that was mounted on top of the glovebox
Blue & green wires go to the firewall connector.
Light green wire goes to the ACC panel on the fuse block.

Obviously this is some abomination that was created to work around something...

Anybody have a clue what this box is?
Expect I'll need to figure out the blue & green wires connecting thru the firewall to the engine bay are for...I'm sure that's in my diagram. The new harness does not accommodate this connection and it appears to be some shade-tree style work around.

Appreciate any help you guys can throw my way.



T2R9

FBBO Gold Member
FBBO Gold Member
Local time
12:42 AM
Joined
Jul 18, 2008
Messages
2,326
Reaction score
4,032
Location
Conway, SC
Looks like a speaker cross over. Do you have a rear or duel front speakers?


R413

Well-Known Member
Local time
9:42 PM
Joined
Feb 4, 2019
Messages
3,181
Reaction score
6,393
Location
NW USA
R22 AM 8 track with 3 speakers on top of the dash. Does your car have this? It doesn’t come with the new wiring,


70LemonTwst

Well-Known Member
Local time
12:42 AM
Joined
Oct 21, 2020
Messages
47
Reaction score
70
Location
USA
R22 AM 8 track with 3 speakers on top of the dash. Does your car have this? It doesn’t come with the new wiring,
No radio in this car when I got it..
There was a crap ton of speaker wire & harness wired direct to the battery with inline fuse for aftermarket Amp.

When I look at the wiring diagram it looks like maybe the blue & green wires go to the starter relay.


70LemonTwst

Well-Known Member
Local time
12:42 AM
Joined
Oct 21, 2020
Messages
47
Reaction score
70
Location
USA
Looks like a speaker cross over. Do you have a rear or duel front speakers?
Let me go look again. You guys are both down the radio path. Hope it's that easy.


moes

Well-Known Member
Local time
12:42 AM
Joined
Dec 18, 2015
Messages
1,106
Reaction score
1,576
Location
CANADA
if you have your fender tag, check and see if you have the R22 option on your car. 10 Watt Radio AM w/ Stereo 8 Track


70LemonTwst

Well-Known Member
Local time
12:42 AM
Joined
Oct 21, 2020
Messages
47
Reaction score
70
Location
USA
Definitely is what it is. Thanks guys! As there is no longer 8 track or speakers expect this can be eliminated?

Why would it goto the firewall connector...seems odd.



70LemonTwst

Well-Known Member
Local time
12:42 AM
Joined
Oct 21, 2020
Messages
47
Reaction score
70
Location
USA

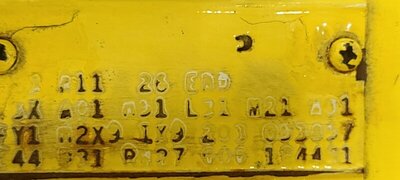

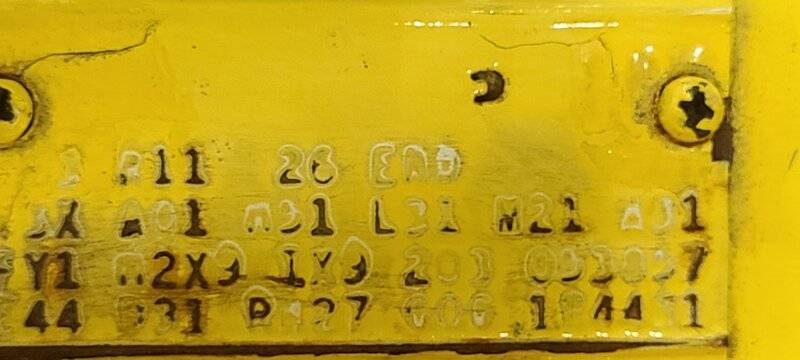

Tag is not in great shape. No R22 that I can see


moes

Well-Known Member
Local time
12:42 AM
Joined
Dec 18, 2015
Messages
1,106
Reaction score
1,576
Location
CANADA
is that R11 up in the top left, R11 2 Watt AM Radio (Music Master)


pnora

FBBO Gold Member
FBBO Gold Member
Local time
12:42 AM
Joined
Apr 21, 2020
Messages
2,447
Reaction score
2,608
Location
Ishpeming, Mi.

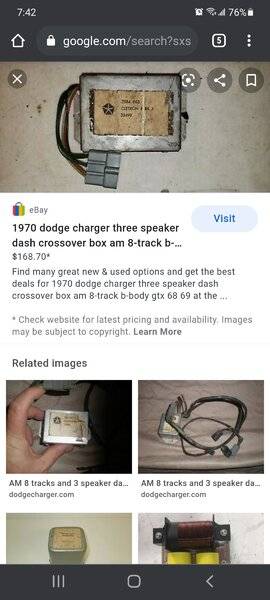

Take a better look. The box that was in the car has a eight wire connector. The crossover you pictured has a six wire connector.


moes

Well-Known Member
Local time
12:42 AM
Joined
Dec 18, 2015
Messages
1,106
Reaction score
1,576
Location
CANADA
Take a better look. The box that was in the car has a eight wire connector. The crossover you pictured has a six wire connector.

the one in his picture is a 6 wire connection


70LemonTwst

Well-Known Member
Local time
12:42 AM
Joined
Oct 21, 2020
Messages
47
Reaction score
70
Location
USA
You guys are both right...6 wires coming out of the box going to the connector with 8 wires into the harness. I'm going to pretend like it doesn't matter & see what doesn't work on the other side of installation. Appreciate all the insight.


pnora

FBBO Gold Member
FBBO Gold Member
Local time
12:42 AM
Joined
Apr 21, 2020
Messages
2,447
Reaction score
2,608
Location
Ishpeming, Mi.
You guys are both right...6 wires coming out of the box going to the connector with 8 wires into the harness. I'm going to pretend like it doesn't matter & see what doesn't work on the other side of installation. Appreciate all the insight.
The main harness is all on its own. It does not care what radio. It just has the red and orange wires in the radio plug for a base radio. Any other radio options had its own special harness that linked the radio, speakers, fader switch, and amplifier.


pnora

FBBO Gold Member
FBBO Gold Member
Local time
12:42 AM
Joined
Apr 21, 2020
Messages
2,447
Reaction score
2,608
Location
Ishpeming, Mi.
Just thinking about the extra wires going into the bulkhead and I came up with this idea. The guy could of had speakers that he plugged into it for music outside the car. Let the good times roll.


70LemonTwst

Well-Known Member
Local time
12:42 AM
Joined
Oct 21, 2020
Messages
47
Reaction score
70
Location
USA
Just thinking about the extra wires going into the bulkhead and I came up with this idea. The guy could of had speakers that he plugged into it for music outside the car. Let the good times roll.
HA! i'm not going to put it past him, he basically had all the stereo hooked directly to the battery, as well as the horn. If I get this thing back to factory I'm going to be a very happy boy.
