Need help decoding my Fender Tag.

1971 - 1974 Mopars

  1. LandonE

    LandonE Well-Known Member

    Messages:
    51
    Likes Received:
    0
    Joined:
    Jul 24, 2010
    Location:
    Abbotsford
    Local Time:
    2:13 PM
    Ive got a 74' Roadrunner and these are the number and letters on my fender tag. Need some help decoding it. Thanks!

    N41 END G54 H41 J52 L31 KG8 C 22 C16 C56 F11 KG8 06G6 000 820 C04 716 E44 034 RM21 GR4 103684

  2. 71 GTX

    71 GTX Well-Known Member

    Messages:
    51
    Likes Received:
    8
    Joined:
    Aug 30, 2011
    Location:
    Florida
    Local Time:
    3:13 PM
  3. LandonE

    LandonE Well-Known Member

    Messages:
    51
    Likes Received:
    0
    Joined:
    Jul 24, 2010
    Location:
    Abbotsford
    Local Time:
    2:13 PM
    Tried that and it didn't work for me.

  4. 69Coronetrt

    69Coronetrt Well-Known Member

    Messages:
    3,195
    Likes Received:
    2181
    Joined:
    Jul 17, 2008
    Location:
    Harlan, IA
    Local Time:
    2:13 PM
    G54 = left hand, outside chrome racing mirror; remote
    H41 = heater with vent
    J52 = instrument panel hood release
    L31 = turn signal lights on the hood/fender
    N41 = dual exhaust

    KG8 = upper body color = deep sherwood metallic
    C = build for sale in Canada
    22= 22" radiator
    C16 = console
    C56 = bucket seats
    F11 = unknown. Windsor plant had some codes that do not match up with American plant codes. Possibly 50 amp alternator but doubtful

    KG8 = lower body color = deep sherwood matallic (the car was one color)
    D6G6 = interior trim = vinyl bucket seats; green
    000 = full door panels
    820 = scheduled production date of August 20, 1973
    C04716 = vehicle order number; C indicating built for sale in Canada

    E44 = 318 2bbl engine
    D34 = automatic transmission
    RM21 = Road Runner coupe
    G = 318 engine
    4 = model year = 1974
    R = assembly plant = Windsor
    103684 = remainder of vin number

  5. YY1

    YY1 Well-Known Member

    Messages:
    19,272
    Likes Received:
    11616
    Joined:
    Jun 26, 2010
    Location:
    FL
    Local Time:
    3:13 PM
    Start at the bottom left with the bottom row of the tag. Mind the spaces and rows.

  6. 71gtx

    71gtx Well-Known Member

    Messages:
    158
    Likes Received:
    82
    Joined:
    Jul 24, 2008
    Location:
    Ottawa
    Local Time:
    2:13 PM
    F11 50 Amp Alternator:wav::3gears:

  7. LandonE

    LandonE Well-Known Member

    Messages:
    51
    Likes Received:
    0
    Joined:
    Jul 24, 2010
    Location:
    Abbotsford
    Local Time:
    2:13 PM
    What kind of color is a deep sherwood metallic? The cars red at the moment with a bad paintjob, and I can see yellow in spots where the red has flaked or chipped off. And also, the automatic trans, would that be a 904 or 727? And thanks alot for the help with it

  8. YY1

    YY1 Well-Known Member

    Messages:
    19,272
    Likes Received:
    11616
    Joined:
    Jun 26, 2010
    Location:
    FL
    Local Time:
    3:13 PM

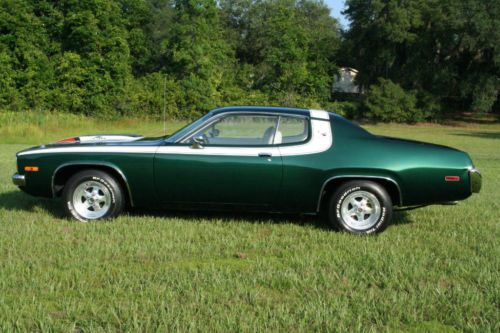

    dark mettalic green

    Actually a pretty cool color.

    Looks great with white int, top, or stripes.

  9. detmatt1

    detmatt1 Well-Known Member

    Messages:
    4,624
    Likes Received:
    613
    Joined:
    Dec 8, 2008
    Location:
    Detroit Metro Area
    Local Time:
    2:13 PM
  10. 69Coronetrt

    69Coronetrt Well-Known Member

    Messages:
    3,195
    Likes Received:
    2181
    Joined:
    Jul 17, 2008
    Location:
    Harlan, IA
    Local Time:
    2:13 PM
    the 318 got the 904

  11. LandonE

    LandonE Well-Known Member

    Messages:
    51
    Likes Received:
    0
    Joined:
    Jul 24, 2010
    Location:
    Abbotsford
    Local Time:
    2:13 PM
    Alright thanks.. The yellow I see must be from a previous paint job then.

  12. YY1

    YY1 Well-Known Member

    Messages:
    19,272
    Likes Received:
    11616
    Joined:
    Jun 26, 2010
    Location:
    FL
    Local Time:
    3:13 PM

    Attached Files:

  13. detmatt1

    detmatt1 Well-Known Member

    Messages:
    4,624
    Likes Received:
    613
    Joined:
    Dec 8, 2008
    Location:
    Detroit Metro Area
    Local Time:
    2:13 PM
    Very nice!

  14. Robert Toavs

    Robert Toavs New Member

    Messages:
    2
    Likes Received:
    0
    Joined:
    Dec 4, 2021
    Location:
    colorado
    Local Time:
    1:13 PM
    can you please tell me where you got this information... I have a 73 roadrunner and would like to get this info... thank you

  15. 69Coronetrt

    69Coronetrt Well-Known Member

    Messages:
    3,195
    Likes Received:
    2181
    Joined:
    Jul 17, 2008
    Location:
    Harlan, IA
    Local Time:
    2:13 PM
    Hi. If you start a new thread with your info, or post a picture of the tag, someone will be happy to help.

  16. Nacho-RT74

    Nacho-RT74 FBBO Gold Member FBBO Gold Member

    Messages:
    5,075
    Likes Received:
    1795
    Joined:
    Oct 8, 2012
    Location:
    Valencia, EspaƱa
    Local Time:
    9:13 PM
    I guess this guy must know!

    laughing-robin-hood-wondering-robin-hood-medieval-legends-heroes-of-vector-id923229396.jpg

    ( lol, just a joke )
