Photos of front lighting harness install? 1969 Charger

[INTMD8]

Hello,

I've been searching with no luck so far, does anyone have pics or link to installing the front lighting harness? Not sure of correct routing/placement.

Thanks!

-Jim



[Mopars & Missiles]

FSM is full of diagrams



[beanhead]

Unless it's different than '68....should run over the brake booster (through the big bendable hook) then along the driver side fenderwell(secured with plastic snap-in ties) and go behind the battery and through a hole in the core support, where it branches off to the driver side running/parking/headlamps. There is usually a ground in this area; look for the wire with the ring terminal on the end. Then the harness runs along the frontside of the core support upper crossmember(look for the metal tabs that fold over the harness to support it)



[chtampa]

Unless it's different than '68....should run over the brake booster (through the big bendable hook) then along the driver side fenderwell(secured with plastic snap-in ties) and go behind the battery and through a hole in the core support, where it branches off to the driver side running/parking/headlamps. There is usually a ground in this area; look for the wire with the ring terminal on the end. Then the harness runs along the frontside of the core support upper crossmember(look for the metal tabs that fold over the harness to support it)

Clean the paint off before you fasten the ground.



[BLK 68 R/T]

A charger's front harness doesn't follow the core support, it goes out to lower grille support and across to the right side. There is also an engine bay side and a front end side of the harness, it connects behind the battery.

Edit: saw the topic mentioned 69 charger edited text.



[INTMD8]

Thanks for the info guys. Figured the fsm would have diagrams but I always do better with photos.



[MJOEPFAFR]

A charger's front harness doesn't follow the core support, it goes out to lower grille support and across to the right side. There is also an engine bay side and a front end side of the harness, it connects behind the battery.

Edit: saw the topic mentioned 69 charger edited text.

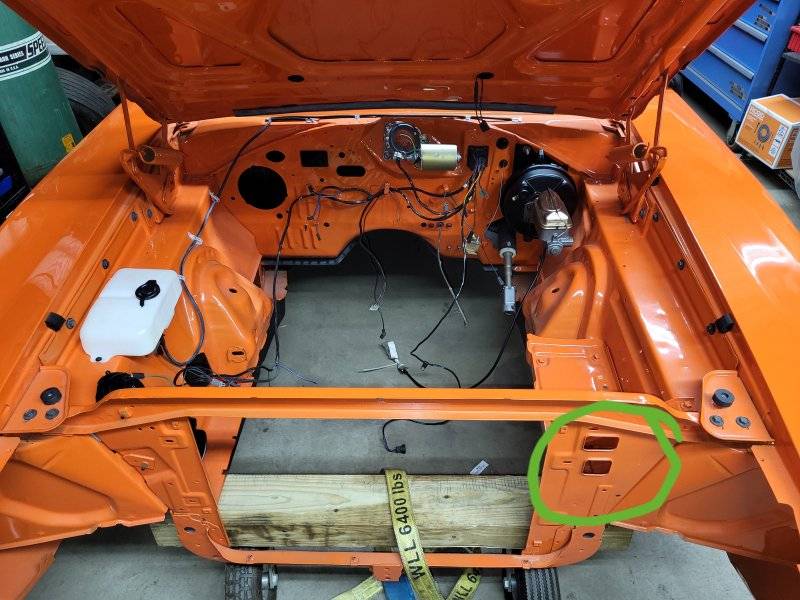

Ant chance you could share some photos? Of the routing? And fastening? I am also curious which holes on the right side of the core do they pass thru? Thanks in advance!
