Seeking complete wiring diagram 1968 charger

[Davis Lewis]

Hi, I am looking for complete wiring diagram for 1968 charger with power windows.



[davek]

Wiring – MyMopar

mymopar.com



[radical rob]

Get the laminated color diagram. Those things are the best resource.



[Davis Lewis]

Hi, yes something easy to read, do you by chance have a link that can be shared? Thanks!

Get the laminated color diagram. Those things are the best resource.



[radical rob]

Jegs and Amazon both have them for @ $18.00



[72RoadrunnerGTX]

If you want a complete and accurate wiring diagram, get a copy of the factory service manual. The third-party diagrams are a waste of money. Frequent errors and omitted circuit details.



[1968rt]

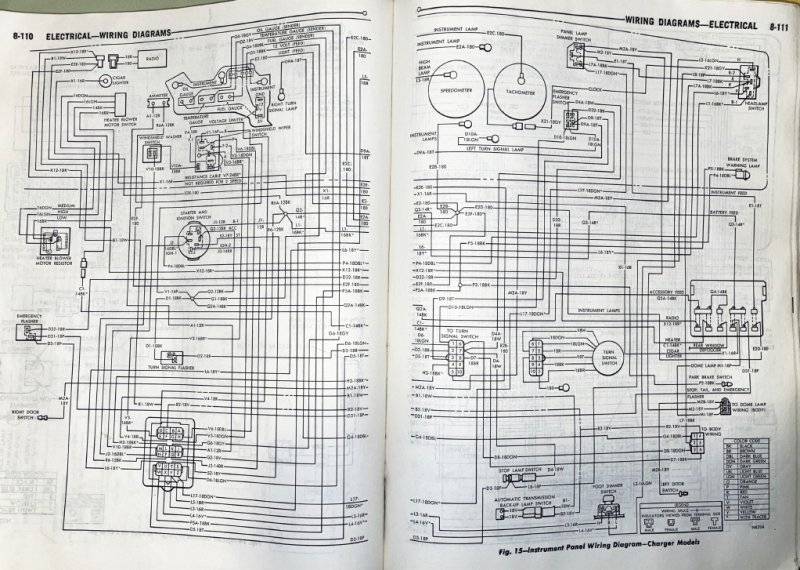

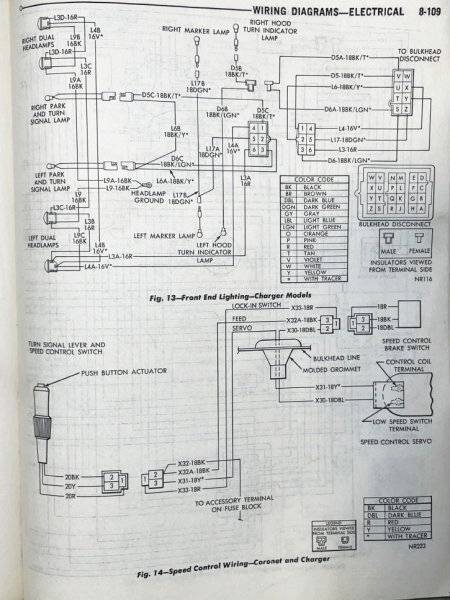

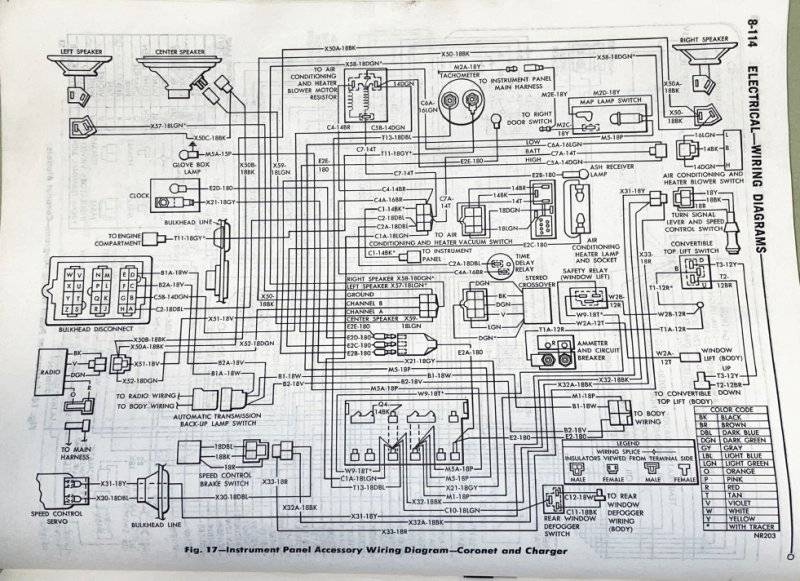

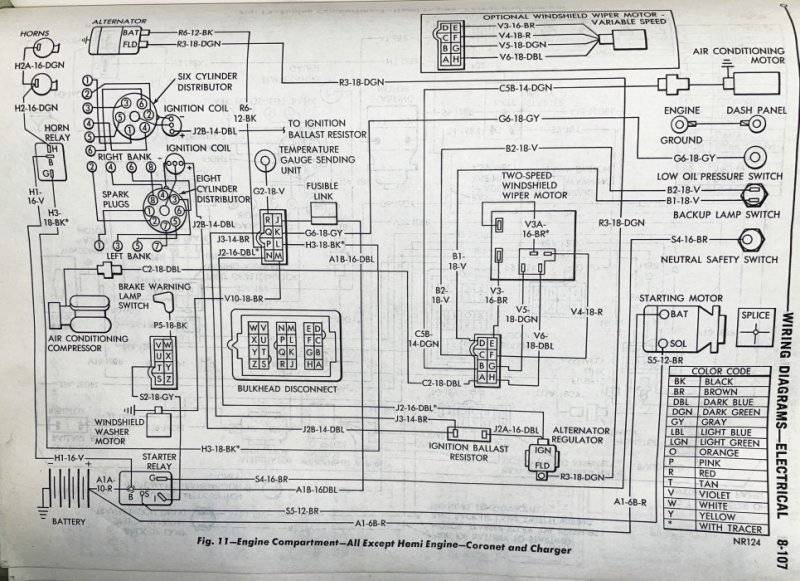

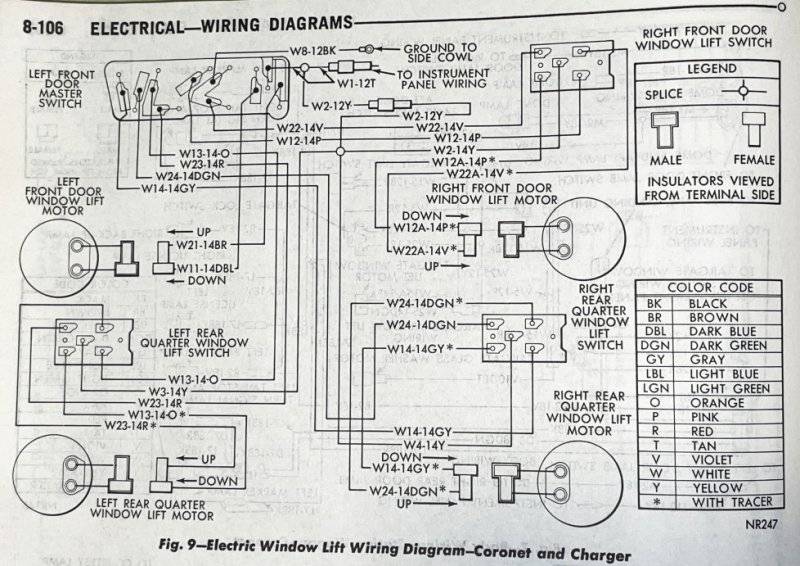

from the service manual



[Bird 426]

I agree with post #6.



[hunt2elk]

Get the laminated color diagram. Those things are the best resource.

I have them as well because the color coding makes it a lot easier to track things. Only problem with them is they don't show all the accessory circuits.
