    My Brother in Law's 72 Duster has been at my place since 2007.
    He recently said he wants to use it as a fair weather Daily Driver at his place in Phoenix AZ.
    He likes these cars but has always had me around to guide everything and advise him. Once he takes the car, he will be on his own.
    I'm trying to periodically when time permits, work on this car to ensure that it will be safe and reliable. Today I decided to check the charging system. The gauges are not working, that is on the list of things to do. I suspected that the alternator might not be charging so with the engine running, I removed the negative battery cable. The engine shut down. I should have checked the voltage with my meter but I did not, I just grabbed another alternator from the shed, a nice clean one with a rebuilders tag on it. It showed a 13.9 volt reading at the alternator and the battery was at 12.8. I pulled the negative cable and it shut down again. There is a ground cable from the block to the firewall. Why would the engine still stall if the alternator was putting out the right voltage?

  2. 1972GY8SE

    1972GY8SE Well-Known Member

    Messages:
    455
    Likes Received:
    606
    Joined:
    Jun 25, 2016
    Location:
    Rancho Cucamonga, CA.
    Local Time:
    1:09 AM
    1.1v drop between the alternator and the battery.
    Maybe high resistance in the amp gauge?

    Last edited: Jul 3, 2019
  3. Glenwood

    Glenwood Well-Known Member

    Messages:
    2,952
    Likes Received:
    2666
    Joined:
    Jun 19, 2015
    Location:
    Kawartha Lakes, Ontario
    Local Time:
    4:09 AM
    The regulator is probably shot and there may be short or some other load on the system which may explain the variance.

    • Agree Agree x 2
    • dvw

      dvw Well-Known Member

      Messages:
      4,407
      Likes Received:
      5950
      Joined:
      Feb 16, 2010
      Location:
      waterford mi
      Local Time:
      4:09 AM
      That is not how you check. A voltmeter reading of approx 14.0-14.5v is in the ball park. Actual output needs a load applied and a amp reading.
      Doug

      • Agree Agree x 3
      • Derwud

        Derwud Well-Known Member

        Messages:
        1,094
        Likes Received:
        872
        Joined:
        Aug 18, 2014
        Location:
        Pasadena, CA
        Local Time:
        1:09 AM
        That is a good test for a Generator, not so good for an Alternator, since the take juice to make juice..
        I would throw a new Regulator at it, clean the mount, firewall and regulator for a good ground and move on to the gauges..

        • Thanks! Thanks! x 1
        • Crackedback

          Crackedback Well-Known Member

          Messages:
          284
          Likes Received:
          240
          Joined:
          Aug 12, 2008
          Location:
          Southern California
          Local Time:
          1:09 AM
          The alternator is charging as it's putting out 13.9 volts.

          Sounds like a bulkhead/wiring to the battery issue unless there is a huge amp load in the car itself.

          • Agree Agree x 2
          • Thanks! Thanks! x 1
          • Pops1967GTX

            Pops1967GTX FBBO Gold Member FBBO Gold Member

            Messages:
            20,306
            Likes Received:
            57660
            Joined:
            Oct 25, 2010
            Location:
            Monroe, New York
            Local Time:
            4:09 AM

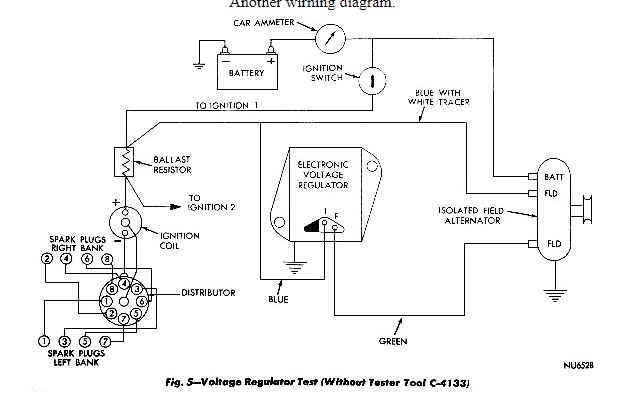

            • Like Like x 1
            • Agree Agree x 1
            • Dennis H

              Dennis H FBBO Gold Member FBBO Gold Member

              Messages:
              13,409
              Likes Received:
              15970
              Joined:
              Jul 11, 2010
              Location:
              San Jose
              Local Time:
              3:09 AM
              Put ac in it for him so they don’t find him somewhere cooked. Who is going to deliver it?

              • Like Like x 1
              • Kern Dog

                Kern Dog FBBO Gold Member FBBO Gold Member

                Messages:
                13,957
                Likes Received:
                29622
                Joined:
                Apr 13, 2012
                Location:
                Granite Bay CA
                Local Time:
                1:09 AM
                HA!
                I'll probably have to tow it out there!

              • moobster

                moobster Well-Known Member

                Messages:
                255
                Likes Received:
                278
                Joined:
                Aug 15, 2018
                Location:
                Ontario, Canada
                Local Time:
                4:09 AM
                Do the same test you tried earlier but this time lift the positive cable off the battery, it should stay running.

              • 1972GY8SE

                1972GY8SE Well-Known Member

                Messages:
                455
                Likes Received:
                606
                Joined:
                Jun 25, 2016
                Location:
                Rancho Cucamonga, CA.
                Local Time:
                1:09 AM
                Your transmission is shot and you need news tires.

                • Thanks! Thanks! x 1
                • 1972GY8SE

                  1972GY8SE Well-Known Member

                  Messages:
                  455
                  Likes Received:
                  606
                  Joined:
                  Jun 25, 2016
                  Location:
                  Rancho Cucamonga, CA.
                  Local Time:
                  1:09 AM
                  But I only brought it to you for a oil change.

                  • Like Like x 2
                  • 1972GY8SE

                    1972GY8SE Well-Known Member

                    Messages:
                    455
                    Likes Received:
                    606
                    Joined:
                    Jun 25, 2016
                    Location:
                    Rancho Cucamonga, CA.
                    Local Time:
                    1:09 AM
                    You're welcome!

                  • Glenwood

                    Glenwood Well-Known Member

                    Messages:
                    2,952
                    Likes Received:
                    2666
                    Joined:
                    Jun 19, 2015
                    Location:
                    Kawartha Lakes, Ontario
                    Local Time:
                    4:09 AM
                    Nice catch! I missed that...of course it will shut down when you remove the negative or ground reference. Duh!
                    Even so, the unregulated voltage from the alternator should be higher depending on the rpms.
