Using audio jack to connect Ipod

[philcollins]

From China ... if you're lucky they'll show up by summer ! Around here I find that stuff in surplus stores.

Exactly the kind of negative remark not needed in a post...



[68gtxman]

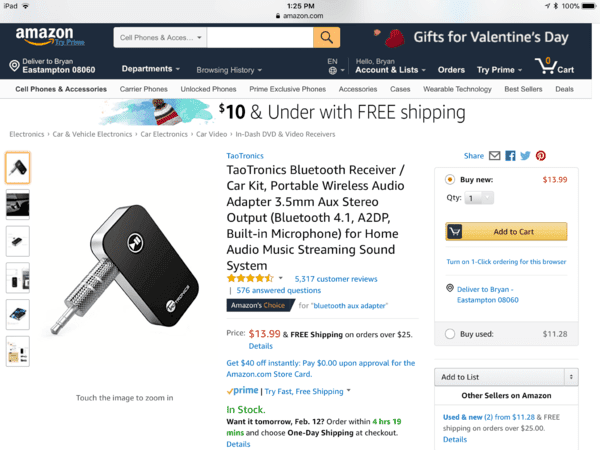

Plug one of these into the 3.5mm jack and you’ll never have to connect your smart phone with a plug again. Use Bluetooth!

https://www.amazon.com/TaoTronics-B...coding=UTF8&psc=1&refRID=7T1MZRPPEWSSDKR3B731



[gkent]

Exactly the kind of negative remark not needed in a post...

You need to grow thicker skin.



[Nacho-RT74]

From China ... if you're lucky they'll show up by summer ! Around here I find that stuff in surplus stores.

actually it takes around a month to get it delivered to Venezuela... ( when the local postal service WORKS, but not China postal service fault ). When I have stuff storaged in Miami to be sent to Venezuela I use to preffer ship to Miami than straight to Vzla... trusting better on China Post and USPS association, then my private courier service takes care of that to deliver to me. When I use that way, it takes around 15 days to get it delivered to Miami.

Anyway I think that jack should be available on Radio Shack or similar stores

1: My electrical background is limited so i did what i can...

2: Use what i had in hand, double-pole, double-throw switch would have been nice. 30 amps relays were the only relays i had so...

3: Always open minded so positive posts are welcome.

4: The others posts, well, it's why i don't like to post here...

5: Now, i need to find "normalized 1/8" jack"

I hope you didn't get offended by my post. I was just wondering and posting what I made what I think is easier and cleaner Not saying you made it wrong , just didn't get initially the relays use... we can allways ask. Normally somebody has some clues or usefull ideas that can be helpfull for lot of ppl



[Nacho-RT74]

here is one option in USA, BUT is to be mounted on PCB without nut to chassis/housing

https://www.ebay.com/itm/5x-3-5mm-P...826935?hash=item23364c52b7:g:GwIAAOSwn51UYn-Y



[philcollins]

[QUOTE="Nacho-RT74,

Anyway I think that jack should be available on Radio Shack or similar stores



I hope you didn't get offended by my post. I was just wondering and posting what I made what I think is easier and cleaner Not saying you made it wrong , just didn't get initially the relays use... we can allways ask. Normally somebody has some clues or usefull ideas that can be helpfull for lot of ppl[/QUOTE]

I live in a Rural area, so no Radio Shack or surplus store. But, it's great for snowmobiling.

No, i was not offended by your post. It show me an simplier way to go. Thanks



[Nacho-RT74]

would need to figure out how to mount the non nut jack. Maybe can be attached to a backelite/plastic bracket, opening holes to the prongs and weld



[Nacho-RT74]

here is another USA option... with longer prongs and body extrusion, which could be easier to attach to a plastick bracket not using a nut assembly

https://www.ebay.com/itm/KYCON-ST-3...053671?hash=item20ce5b74e7:g:384AAMXQya1Q6ADX

but, damn! 10 pieces to use just one!



[Nacho-RT74]

another one, from USA, threated to be nut attached, but... missing nuts ?

https://www.ebay.com/itm/15pcs-Pane...609777?hash=item4674ff7671:g:SvkAAOSwHb9Zc~0I



[philcollins]

I ordered those from China, free shipping. Should have them in 2 or 3 weeks. Thanks



[Nacho-RT74]

You guys are onto what I was getting at in my earlier posts. I didn't think either a switch or relays were needed with the radio having that input connector. I didn't know it was a DIN connector but nevertheless ...

Actually somekind of switch or selector is needed to set the Radio signal or the external signal to feed the amplifier. When the cassette player is present, it gets a round selector to set the Radio or Cassette function what will source the amplifier section built into the Radio unit.

When there is not a Cassette player, the Male din plug on pigtail gets a female cap plug what it gets jumpers between the radio out signal ( which would feed the selector knob ) and the amplifier input to keep linked the Radio signal like the pigtail was unexistant and feeded internally



[philcollins]

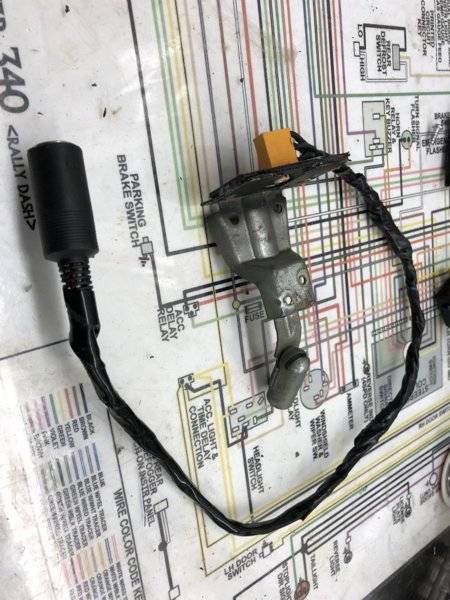

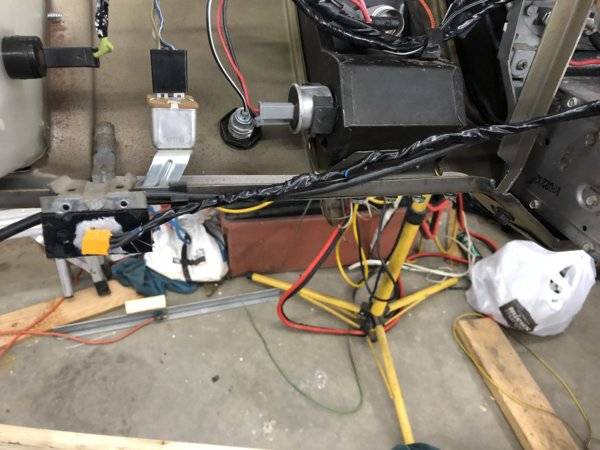

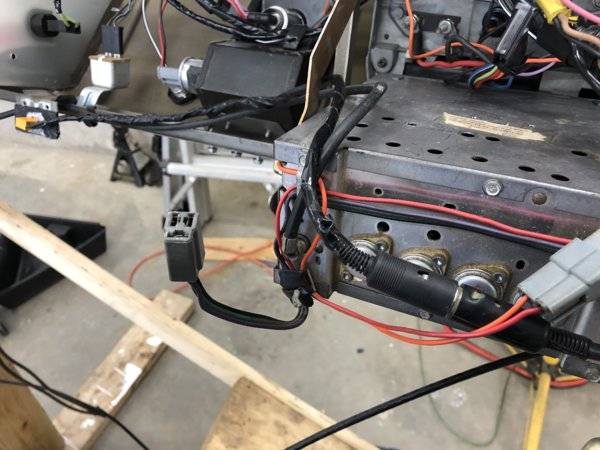

Done, work as a charm. No more relays. Use a leftover defogger switch bracket to hold audio jack. Thanks Nacho-RT74 for your suggestions.
