Year one engine harness

Electrical & Ignition

  1. madmopar

    madmopar Well-Known Member

    Messages:
    85
    Likes Received:
    5
    Joined:
    Jan 7, 2014
    Location:
    So Cal
    Local Time:
    12:18 PM

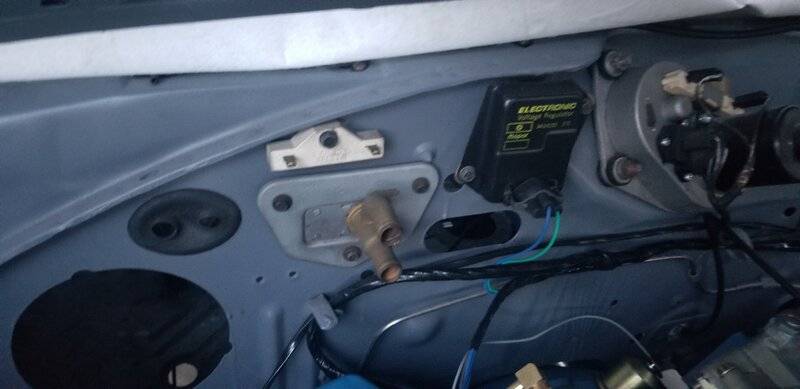

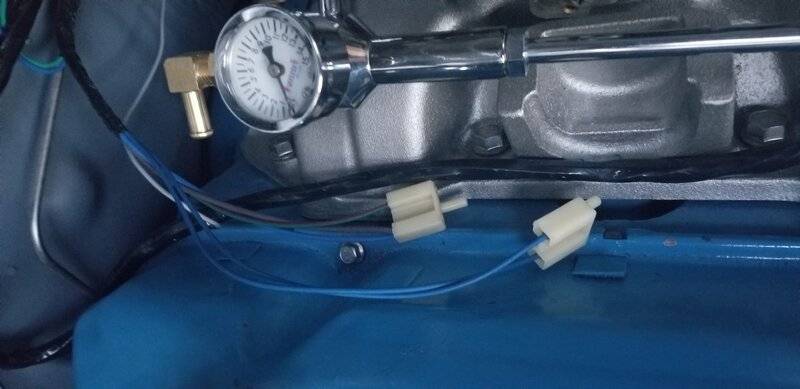

    Not sure if I received the correct harness from Year one. My 68 Charger originally had a small block and auto and points ignition. Purchased what should be a 68 to 70 b body big block harness with electronic ignition. Question is the 2 plugs I circled, aren't these for the ballast? They will not reach back to the firewall. Its got me thinking I have the wrong harness, plus what are these 2 white plugs for?(second pic) Any input would be appreciated.:thumbsup:

    20210223_174333.jpg 20210223_174340.jpg 20210223_174344.jpg

  2. 1 Wild R/T

    1 Wild R/T FBBO Gold Member FBBO Gold Member

    Messages:
    3,671
    Likes Received:
    7110
    Joined:
    Jul 9, 2019
    Location:
    California
    Local Time:
    12:18 PM

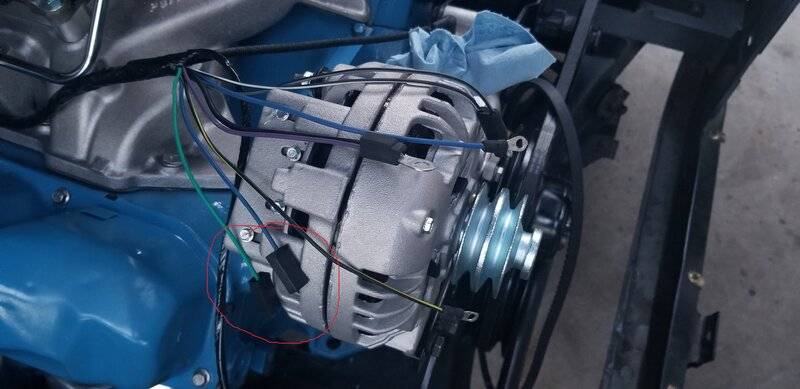

    The two plugs circled are field wires for the alternator... The two white plugs are for a dual ballast...

    Screen Shot 2021-02-23 at 7.16.51 PM.png

    • Agree Agree x 7
    • madmopar

      madmopar Well-Known Member

      Messages:
      85
      Likes Received:
      5
      Joined:
      Jan 7, 2014
      Location:
      So Cal
      Local Time:
      12:18 PM
      Hmm...lol never seen one of those(dual ballast). Where /how can I source one? Thanks

    • 1 Wild R/T

      1 Wild R/T FBBO Gold Member FBBO Gold Member

      Messages:
      3,671
      Likes Received:
      7110
      Joined:
      Jul 9, 2019
      Location:
      California
      Local Time:
      12:18 PM
      • Thanks! Thanks! x 1
      • madmopar

        madmopar Well-Known Member

        Messages:
        85
        Likes Received:
        5
        Joined:
        Jan 7, 2014
        Location:
        So Cal
        Local Time:
        12:18 PM
        :thumbsup: Thank you Wild!
        Have more questions about the relay too but will save those for another day.

      • 1 Wild R/T

        1 Wild R/T FBBO Gold Member FBBO Gold Member

        Messages:
        3,671
        Likes Received:
        7110
        Joined:
        Jul 9, 2019
        Location:
        California
        Local Time:
        12:18 PM
        Your welcome. happy to help.. Relays are fun.... LOL

      • WM23M9

        WM23M9 FBBO Gold Member FBBO Gold Member

        Messages:
        299
        Likes Received:
        176
        Joined:
        Feb 28, 2020
        Location:
        Kansas City, MO
        Local Time:
        2:18 PM
        What "Relay"? If I might axe?
        Are you going all Dakota digital, E.F.I. etc?

        • Thanks! Thanks! x 1
        • onlyone

          onlyone Bird of Pray FBBO Gold Member

          Messages:
          2,477
          Likes Received:
          1857
          Joined:
          Jun 24, 2013
          Location:
          State of Denial
          Local Time:
          2:18 PM
          The duel resistor is only for the obsolete 5 pin ECU.
          Replacement ECUs will be 4 pin and use the single ballast resistor.
          However all new replacement ECUs that I have found are "junk".
          Auto parts store ones even have "fake" transistors on them so they will look "correct"
          There is only one that I will use
          No resistor necessary
          http://www.4secondsflat.com/Ig



          Last edited: Feb 24, 2021
          • Agree Agree x 1
          • madmopar

            madmopar Well-Known Member

            Messages:
            85
            Likes Received:
            5
            Joined:
            Jan 7, 2014
            Location:
            So Cal
            Local Time:
            12:18 PM
            OE I guess. The relay I was referring to is the starter. I know the wiring is slightly different between automatics and 4 speeds.

          • madmopar

            madmopar Well-Known Member

            Messages:
            85
            Likes Received:
            5
            Joined:
            Jan 7, 2014
            Location:
            So Cal
            Local Time:
            12:18 PM
            Did look into that one but it's a bit pricy. And since I might go MSD in the near future didn't want to invest so much. I did get one from Ehrenberg's ebay store which I heard are good units.

          • onlyone

            onlyone Bird of Pray FBBO Gold Member

            Messages:
            2,477
            Likes Received:
            1857
            Joined:
            Jun 24, 2013
            Location:
            State of Denial
            Local Time:
            2:18 PM
            [
            Yes, pricey compared to junk.
            And EBooger sells generally good stuff.
            I had an MSD in an E body.
            It stranded me one time.
            Running a stock distributor.
            What do you do when your are far , far from home and and gremlins happen in an aftermarket system?
            After that I ran that car with auxiliary wiring to a orange box for back up.
            But that was over 20 years ago.
            Have things improved?
            IDK

          • 64fury74charger

            64fury74charger Well-Known Member

            Messages:
            221
            Likes Received:
            199
            Joined:
            Feb 7, 2021
            Location:
            Lynnwood WA
            Local Time:
            12:18 PM
            Just my opinion and experience and that’s all. I have MSD on both of my cars and so far over 8 years there has not been any problems at all. Starting is easy, engines run better and plugs last longer etc....just my experience and that’s all.
            :thumbsup::popcorn:

          • onlyone

            onlyone Bird of Pray FBBO Gold Member

            Messages:
            2,477
            Likes Received:
            1857
            Joined:
            Jun 24, 2013
            Location:
            State of Denial
            Local Time:
            2:18 PM
          • madmopar

            madmopar Well-Known Member

            Messages:
            85
            Likes Received:
            5
            Joined:
            Jan 7, 2014
            Location:
            So Cal
            Local Time:
            12:18 PM

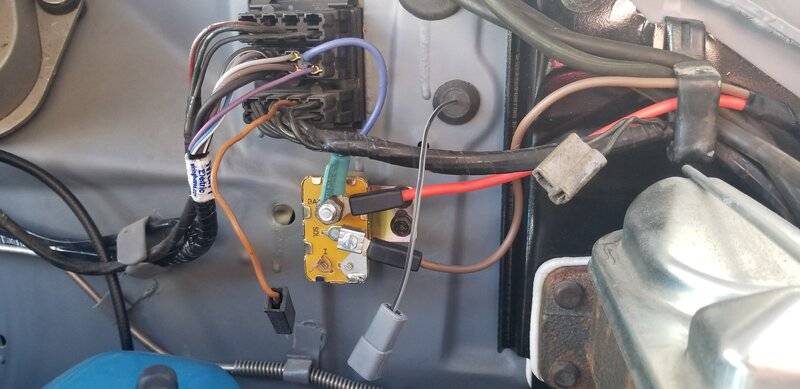

            Is my ignition wire missing or is this brown one it? I thought they were supposed to be yellow?


          • MoparDanMan

            MoparDanMan FBBO Gold Member FBBO Gold Member

            Messages:
            572
            Likes Received:
            657
            Joined:
            Jan 22, 2020
            Location:
            Outa Here
            Local Time:
            3:18 PM
            The white connectors in the 2nd pic look like they are for the ballast resistor that mounts on the firewall. Year One sells the harness made by American Autowire. The instructions say that they use the high energy single wire alternator and their harness does not support the stock alternator gage. I ordered one last week but they are on perpetual backorder.

          • Don Frelier

            Don Frelier FBBO Gold Member FBBO Gold Member

            Messages:
            3,783
            Likes Received:
            4218
            Joined:
            Oct 11, 2016
            Location:
            Ionia, NY
            Local Time:
            3:18 PM
            I think your yellow wire has turned brown.
            Looks to be the right length for the starter relay.
            You can find a schematic and cavity assignment to be sure or just try it see if the relay clicks.

            • Agree Agree x 1
            • madmopar

              madmopar Well-Known Member

              Messages:
              85
              Likes Received:
              5
              Joined:
              Jan 7, 2014
              Location:
              So Cal
              Local Time:
              12:18 PM
              I could of sworn the package for my harness said m&h or something like that but it's been a few years since it was purchased. Plan on doing a "fleet bypass "(I think that's what it's called) so just need it fire up for now.

            • madmopar

              madmopar Well-Known Member

              Messages:
              85
              Likes Received:
              5
              Joined:
              Jan 7, 2014
              Location:
              So Cal
              Local Time:
              12:18 PM
              That's what I was thinking but wasn't sure. Been so long since I took it apart lol.

            • wish4hemi

              wish4hemi Well-Known Member

              Messages:
              251
              Likes Received:
              111
              Joined:
              May 30, 2016
              Location:
              62428
              Local Time:
              2:18 PM

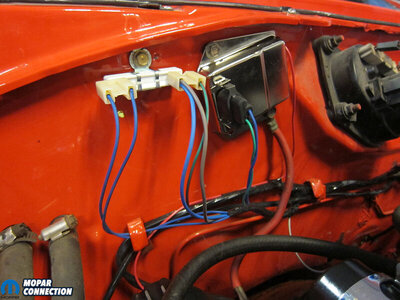

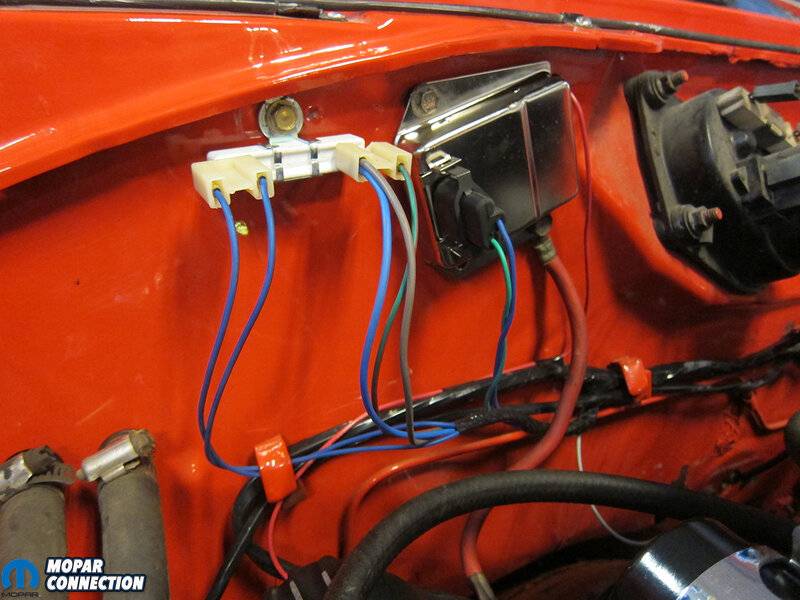

            • madmopar

              madmopar Well-Known Member

              Messages:
              85
              Likes Received:
              5
              Joined:
              Jan 7, 2014
              Location:
              So Cal
              Local Time:
              12:18 PM
              That was a great article! Good info. Thank you. I was able to find and install a a dual ballast anyway and trace the ignition wire and it cranks! My next step is plug wires and hopefully spark
