Yellow wire help

Electrical & Ignition

  1. RobsRR

    RobsRR Well-Known Member

    Messages:
    101
    Likes Received:
    15
    Joined:
    Dec 15, 2017
    Location:
    NC
    Local Time:
    4:49 PM
    I just replaced my ignition switch on my 71 Plymouth Roadrunner to correct a voltage drop issue. I can't remember where the yellow wire plugs into. The one for the ignition lock light. I searched the wiring diagram and don't see it. Thanks ahead.

  2. Demonic

    Demonic Well-Known Member

    Messages:
    1,132
    Likes Received:
    953
    Joined:
    Jun 5, 2017
    Location:
    Maryland
    Local Time:
    4:49 PM
    I believe it goes to the time delay relay. Small metal "can" shaped object.

  3. Nacho-RT74

    Nacho-RT74 Well-Known Member

    Messages:
    3,598
    Likes Received:
    1140
    Joined:
    Oct 8, 2012
    Location:
    Caracas, Venezuela
    Local Time:
    4:49 PM

  4. RobsRR

    RobsRR Well-Known Member

    Messages:
    101
    Likes Received:
    15
    Joined:
    Dec 15, 2017
    Location:
    NC
    Local Time:
    4:49 PM
    Thank you. I will look for that. I don't have the low fuel relay but maybe the time delay relay is there.

  5. Nacho-RT74

    Nacho-RT74 Well-Known Member

    Messages:
    3,598
    Likes Received:
    1140
    Joined:
    Oct 8, 2012
    Location:
    Caracas, Venezuela
    Local Time:
    4:49 PM

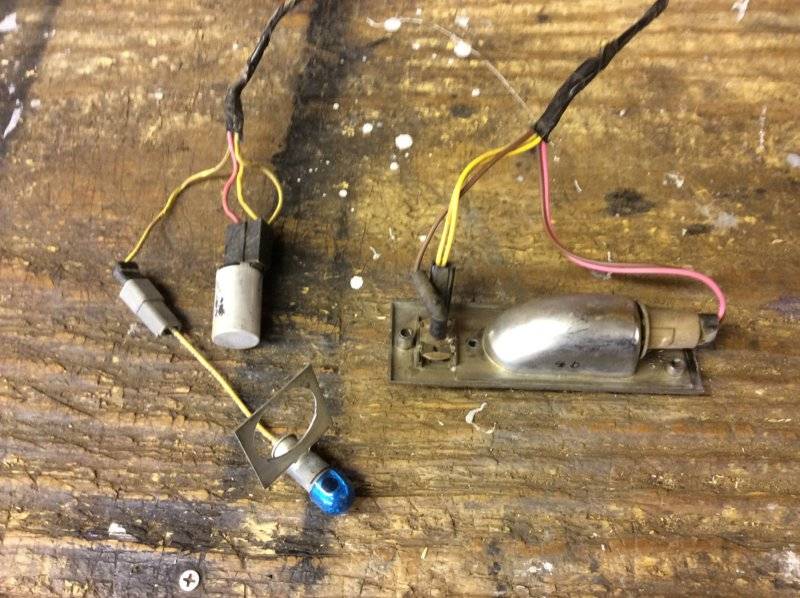

    the fuel relay was an option ( not common ) but the rest is there. I have a pic of the full assembly with the low fuel warning light, where is shown the delay can... was searching a pic of just the seatbelt/ignition light but couldn't find it but however searching around found the 68/69 setup ( which includes the map light ), which will give you the idea on how it looks the time delay flasher and how is wired down the dash You should find something similar


  6. RobsRR

    RobsRR Well-Known Member

    Messages:
    101
    Likes Received:
    15
    Joined:
    Dec 15, 2017
    Location:
    NC
    Local Time:
    4:49 PM
    Thank you this form is the best. Helpful people.
