69 charger build with a donor of a 07 cop car charger hemi 5.7

[Darius]

Shouldn't this be in the projects Forum?

When I started my build thread I did not notice a projects forum, that was in 07 so maybe it wasn't there yet???
Anyway, how do you move a 16 page thread from one forum to another?



[MT_Mopar]

Hi Rimspec, that is one ambitious project you have there, from the picture it looks like you have some good help too.

It amazes me to think about how much computers have integrated into our cars now days compared to going through a late 60's model car, heck, my 67 only has a half a dozen fuses and thats it! I looked everywhere but I could not find the ECU on that baby, LOL!

Good luck on your build and keep us updated.



[tallhair]

When I started my build thread I did not notice a projects forum, that was in 07 so maybe it wasn't there yet???
Anyway, how do you move a 16 page thread from one forum to another?

I moved it to members projects Darius.



[Darius]

I moved it to members projects Darius.

Thank you!



[Photon440]

I just read an article in the Oct issue of Mopar Action about a 65 Dodge Coronet with a 5.7 /Nag1 out of a 2005 300. The article says this guy worked out a solution with Hot Wire???????? Don't know when exactly this build was completed OR what KEY bit of info the author conveniently left out of the article! All I know is I have been trying to solve this since February and the end result is two separate stand alone computers and I have had conversation with Chris at Hot Wire. The ECM is from an 05 RAM 1500. I also read a post somewhere the other day saying 05 is when Chrysler went from VSS to CANBUS programming. CANBUS is where you get screwed!

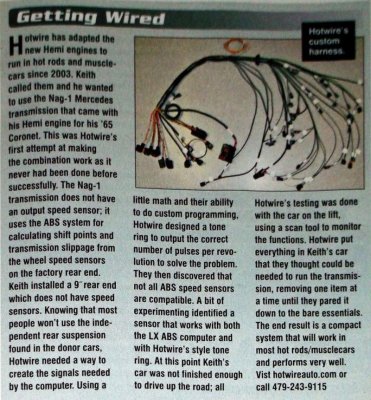

Here's a bit from that article:



[hemijoe]

HI I am starting a build with a 69 charger. I got a 2007 charger donor car with a 5.7 hemi. I will be posting progress of my build and any comments, help and suggestion would greatly help.

Here is the 69 charger begging for restoration at my shop.

View attachment 185917


pics of when I picked it up a couple months ago form the tow truck. it in rough shape need new floor plans and so on. Ground up Build.

View attachment 185918



Here is the donor car a 2007 dodge challenger hemi 5.7 cop car. Kinda rough lol but the engine is good with no bullets holes.

View attachment 185919

- - - Updated - - -

I had my guys pull the engine out and get all the wiring and gas tanks, ecu and so on. I figure this will be like the 69 camaro rs build that I dropped a ls1 in and built from the ground up you can check out that build at http://www.camaros.net/forums/showthread.php?t=219839 or just google rim spec 69 camaro. We do body work | paint and rim repair.

Here some pics took us about 6 hrs to pull the engine out and electronics

View attachment 185920


Starting to pull out the harness and electrical
View attachment 185921



This car had a roll cage so we had to take it out to get access to the wires.
View attachment 185922

- - - Updated - - -

So now that the engine out and electrical I am researching on parts like a oils pan and motor mounts anyone have any preference or suggestion? I been looking at darius build and i am using that as a guide line.

- - - Updated - - -

I also heard that you can use Diablo Trinity to program your own ecu to bypass the security features and sensor that would stop it from working for the 69 charger?

with all respect I wish you guys would learn the difference between a HEMI engine and a POLY the 5.7 6.1 and 6.4 chrysler engines are not HEMI engines because they have a polyspherical combustion chamber to be a HEMI it needs to have a hemyspherical combustion chamber just because the plugs are in the middle and it has 2 rocker shafts does not make it a HEMI period ..



[Photon440]

Technically, the first and second gen. engines weren't a true 'hemi' either, but the company called them by that name, and it makes it easy for the rest of us to know which family of engine is being talked about. Sounds cool, too.

None of those engines had a truly half-hemisphere for a head shape, to do so would mean that the spherical radius would be one-half its cylinder bore. In reality, they're flatter than that.

It doesn't really bother me...



[MT_Mopar]

with all respect I wish you guys would learn the difference between a HEMI engine and a POLY the 5.7 6.1 and 6.4 chrysler engines are not HEMI engines because they have a polyspherical combustion chamber to be a HEMI it needs to have a hemyspherical combustion chamber just because the plugs are in the middle and it has 2 rocker shafts does not make it a HEMI period ..

I just painted my 440 Hemi Orange, I like the Hemi Orange look. I hope everyone doesn't think I have a Hemi, because its Orange?

I just learned that all Orange engines are not Hemis... Live and learn I guess.

:hello2:



[747mopar]

Another Charger in the mix!!!! Boy there's getting to be quite a few of them now, Congrats.



[tallhair]

Thank you!

Welcome.

That's one of the things we do



[kb67mopar]

with all respect I wish you guys would learn the difference between a HEMI engine and a POLY the 5.7 6.1 and 6.4 chrysler engines are not HEMI engines because they have a polyspherical combustion chamber to be a HEMI it needs to have a hemyspherical combustion chamber just because the plugs are in the middle and it has 2 rocker shafts does not make it a HEMI period ..

And we should care about this why?



[GearAddict]

I just painted my 440 Hemi Orange, I like the Hemi Orange look. I hope everyone doesn't think I have a Hemi, because its Orange?

I just learned that all Orange engines are not Hemis... Live and learn I guess.

:hello2:

John... I feel cheated. Here I've been following your Hemi 67 Coronet rebuild thread for a year and now I learn that it's just a regular old 440?

You should be ashamed of yourself

rotest:



[rimspec]

I have a complete electrical setup from Chris. My 6.4 and Nag1 will be running in a couple months.


http://www.forebodiesonly.com/forum/showthread.php?7651-Ma-s-cuda-A-long-time-coming

nice build

- - - Updated - - -

Hi Rimspec, that is one ambitious project you have there, from the picture it looks like you have some good help too.

It amazes me to think about how much computers have integrated into our cars now days compared to going through a late 60's model car, heck, my 67 only has a half a dozen fuses and thats it! I looked everywhere but I could not find the ECU on that baby, LOL!

Good luck on your build and keep us updated.

I will keep you updated just got side track with a 70 challenger project also



[rimspec]

Have posted awhile but been busy.... here a pic of a 70 challenger project I been working on.



[rimspec]

Here some pics of the status of the charger so far.

Meet Joel one of my employees help me remove the rusted out trunk floor pan in the middle of removing the floor pan we foun d out the frame rail where rotted out also.





So I replaced the rotted out frame rails with new ones and also decide to to replace the quarter panels



[rimspec]

While the rear quarter panels where off I decided to minitub the rear since the quarter panels where off and the tubs where kinda rusted and old.



[rimspec]

So currently the charger trunk floor pan are on and the quarter panels are on will get more pictures.



[Dreamcatcher]

with all respect I wish you guys would learn the difference between a HEMI engine and a POLY the 5.7 6.1 and 6.4 chrysler engines are not HEMI engines because they have a polyspherical combustion chamber to be a HEMI it needs to have a hemyspherical combustion chamber just because the plugs are in the middle and it has 2 rocker shafts does not make it a HEMI period ..

With all due respect Ma Mopar must consider it a Hemi or she put the wrong badge on a whole lot of cars. lol



[camtra]

Good luck. I'll be following also as I am restoring a 69 Charger.
