1966 Dodge Coronet/Charger with factory four way emergency flasher?

1966 -1967 Mopars

  1. Jeremiah

    Jeremiah FBBO Gold Member FBBO Gold Member

    Messages:
    1,288
    Likes Received:
    444
    Joined:
    Feb 7, 2012
    Location:
    Rogue River, OR
    Local Time:
    8:01 AM
    Does anyone have a car equipped with the optional four way emergency flasher? I need to know what color the wires are coming from the switch and (if you have one) where the black wire goes (I am guessing straight to the hot side of the fuse box).

    Thank you,

    Jeremiah

  2. SwedCharger67

    SwedCharger67 Well-Known Member

    Messages:
    237
    Likes Received:
    51
    Joined:
    Dec 11, 2010
    Location:
    Norrland, Sweden
    Local Time:
    5:01 PM
    Jeremiah, I have the 4-way flasher in my 67 Charger, actually about to try it with a new heavy duty flasher relay.

    I'll take a photo of the stuff and let you know.

    Martin

    • Like Like x 1
    • SwedCharger67

      SwedCharger67 Well-Known Member

      Messages:
      237
      Likes Received:
      51
      Joined:
      Dec 11, 2010
      Location:
      Norrland, Sweden
      Local Time:
      5:01 PM

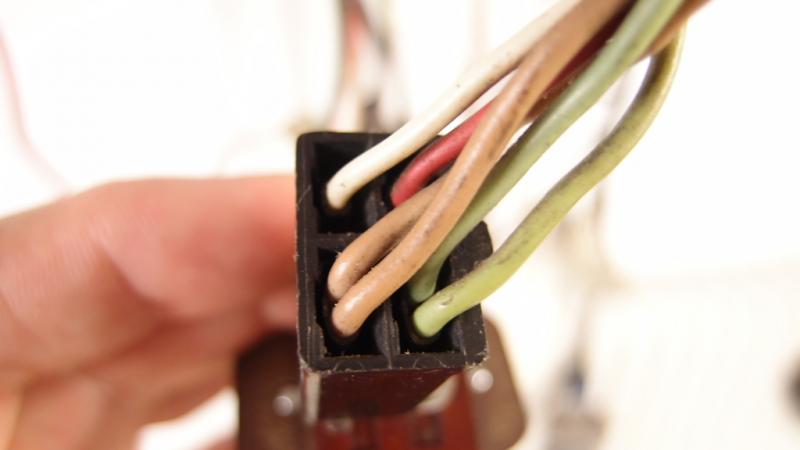

      Charger 4-way flasher

      Jeremiah,
      I will try to attach a photo of the 4-flasher switch. I don't have any black wire in mine.
      - Pink from light switch-> flasher relay
      - Red from flasher relay -> flasher switch
      - the 3 other -> the flasher switch you can see in the photo.

      Let me know if you have more questions.
      Martin


      Attached Files:

      • Like Like x 1
      • Jeremiah

        Jeremiah FBBO Gold Member FBBO Gold Member

        Messages:
        1,288
        Likes Received:
        444
        Joined:
        Feb 7, 2012
        Location:
        Rogue River, OR
        Local Time:
        8:01 AM
        Thank you very, very, very much. I will take another look and compare what I have.

        Again, I really appreciate the picture and the info!

      • A383Wing

        A383Wing Well-Known Member

        Messages:
        2,356
        Likes Received:
        679
        Joined:
        Dec 27, 2008
        Location:
        Somewhere
        Local Time:
        8:01 AM
        66 flasher assemblies were different than the 67 versions....wire colors are not the same

        I have a 66 complete unit out in the garage..but by the time the weekend comes, I will ferget to look at it

        Bryan

        • Like Like x 1
        • 696pack

          696pack Well-Known Member

          Messages:
          2,843
          Likes Received:
          203
          Joined:
          Jul 20, 2008
          Location:
          Sedona, AZ.
          Local Time:
          10:01 AM
          See about moving this info to our new 66-67 Charger forum and start posting your Charger info there.

        • Jeremiah

          Jeremiah FBBO Gold Member FBBO Gold Member

          Messages:
          1,288
          Likes Received:
          444
          Joined:
          Feb 7, 2012
          Location:
          Rogue River, OR
          Local Time:
          8:01 AM
          The car I am working on is a Coronet 500!

        • Gpuller

          Gpuller Well-Known Member

          Messages:
          2,589
          Likes Received:
          1433
          Joined:
          Jun 16, 2010
          Location:
          Minnesota
          Local Time:
          10:01 AM
          There is a 66-67 sections here now?

          UPDATE: Well I'll be dipped...we do have our own forum! Sorry haven't been around in a while.

        • Jeremiah

          Jeremiah FBBO Gold Member FBBO Gold Member

          Messages:
          1,288
          Likes Received:
          444
          Joined:
          Feb 7, 2012
          Location:
          Rogue River, OR
          Local Time:
          8:01 AM
          This is what I have...I think.

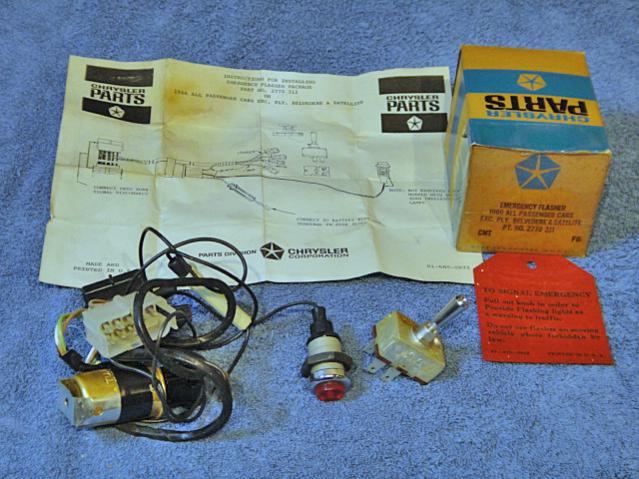

          1966 Mopar Acc Emergency Flasher.jpg

        • A383Wing

          A383Wing Well-Known Member

          Messages:
          2,356
          Likes Received:
          679
          Joined:
          Dec 27, 2008
          Location:
          Somewhere
          Local Time:
          8:01 AM
          well, kinda...you have the 4 way flasher system with toggle switch, but the little red round thingy is the e-brake light socket...which was also optional

          Bryan

        • Jeremiah

          Jeremiah FBBO Gold Member FBBO Gold Member

          Messages:
          1,288
          Likes Received:
          444
          Joined:
          Feb 7, 2012
          Location:
          Rogue River, OR
          Local Time:
          8:01 AM
          Bryan if you look at the diagram the light in the picture is wired to turn on with the flasher switch. It does appear to be the same as an e-brake light. I now realize that I am missing the flasher portion of the circuit. I will get the appropriate connector and get this thing back together!

          Mystery solved.....:icon_thumright:

          I will take some pictures when I get the wiring harness re-wrapped.

        • A383Wing

          A383Wing Well-Known Member

          Messages:
          2,356
          Likes Received:
          679
          Joined:
          Dec 27, 2008
          Location:
          Somewhere
          Local Time:
          8:01 AM
          then what you have pictured is not for a 66 Charger. When you turn on the four way flashers in the Chargers, there is no red light to tell you it's on. The four way flasher system is no way connected to the e-brake light. You have the flasher in that picture

          Bryan

        • SwedCharger67

          SwedCharger67 Well-Known Member

          Messages:
          237
          Likes Received:
          51
          Joined:
          Dec 11, 2010
          Location:
          Norrland, Sweden
          Local Time:
          5:01 PM
          According to the 67 wiring diagram the left & right turn indicators will flash in the dash when the 4-way flasher is activated (I haven't myself tested this function yet).
          The pink from the light switch is connected to the stop light switch, and continuing to the flasher relay (black in the wiring diagram, pink wire in my car). The other wire (red) from the flasher relay goes to the flasher switch.

        • Jeremiah

          Jeremiah FBBO Gold Member FBBO Gold Member

          Messages:
          1,288
          Likes Received:
          444
          Joined:
          Feb 7, 2012
          Location:
          Rogue River, OR
          Local Time:
          8:01 AM
          You are wrong. It clearly functions as I described per the picture, at least for that particular kit.

          As far as factory/dealer installed stuff that may be different. And for the last time (lol) I am working on a CORONET.

          Are you feeling ok?

          - - - Updated - - -

          You are correct for 67 and 66. The add-on four way flashers piggy back to the light green, tan, and white wire. The light green wire is the front left turn signal, which also has the in-dash turn signal indicator connected to it. The left front turn signal is the tan wire with the in-dash directional connected to it. The white wire is hooked to the output side of the brake lamp switch to activate both rear lamps. The last wire is black and goes to a flasher and then fusible link and then to the fuse box.

          In the kit I posted the RED LIGHT is connected to the back of the flasher housing thing. I am not sure if it would flash or not based on the diagram. It has nothing to do with the ebrake. That is a different wiring harness.

        • A383Wing

          A383Wing Well-Known Member

          Messages:
          2,356
          Likes Received:
          679
          Joined:
          Dec 27, 2008
          Location:
          Somewhere
          Local Time:
          8:01 AM
          well, OK...but the title of your thread asked for " 66 Coronet/Charger" flashers...

          and no 66 Charger or Coronet had 4 way flashers installed at the "factory"...all were dealer installed,

          the unit you have posted is not for a 66 Charger, maybe for a Coronet

          Bryan

        • 696pack

          696pack Well-Known Member

          Messages:
          2,843
          Likes Received:
          203
          Joined:
          Jul 20, 2008
          Location:
          Sedona, AZ.
          Local Time:
          10:01 AM
        • Jeremiah

          Jeremiah FBBO Gold Member FBBO Gold Member

          Messages:
          1,288
          Likes Received:
          444
          Joined:
          Feb 7, 2012
          Location:
          Rogue River, OR
          Local Time:
          8:01 AM
          Brian, I really value you insight on these posts and appreciate you taking the time to help shed light on my various questions. You have been very helpful over the years. Please try to keep an open mind on this stuff and try not to be so grumpy. : )

          - - - Updated - - -

          Would you be so kind to look under the dash and see if you have a) a wiring harness that plugs in between the main dash wiring harness and the steering column harness and b) a wire with an inline fuse coming from the fuse marked ACC in the fuse box?
