64 Dodge Backup Light Wiring & Info

[HitIt]

Hello, for a 64 Dodge 330 with manual transmission- I’m looking for a backup lamp harness from the transmission to the bulkhead (or wherever it goes, I am not familiar with this part). I have the transmission backup switch.

Or if you have any info on this piece, please let me know. Thanks!



[Joe Mopar]

Would it even be more than one wire?



[HitIt]

The switch on the tranny has two connections, and from that point I have no idea.

Brewers Performance sells them for later 68-74's and there are definitely a few wires involved. Worst case I just figure it out and make it I guess.



[Joe Mopar]

Well I'll be keeping my eye on this thread fir shir. :yes:



[Joe Mopar]

Seems like you'd have to go with power to one and then to back up lights from the other terminal. I have a service manual but I'll be darn if I can find anything on this. :edgy:



[HitIt]

Yeah my manual only has the auto trans diagram using a neutral safety switch and the starter relay... manual tranny models seem to just go into the bulkhead and activate the reverse lights which is totally different.



[DavidElmore]

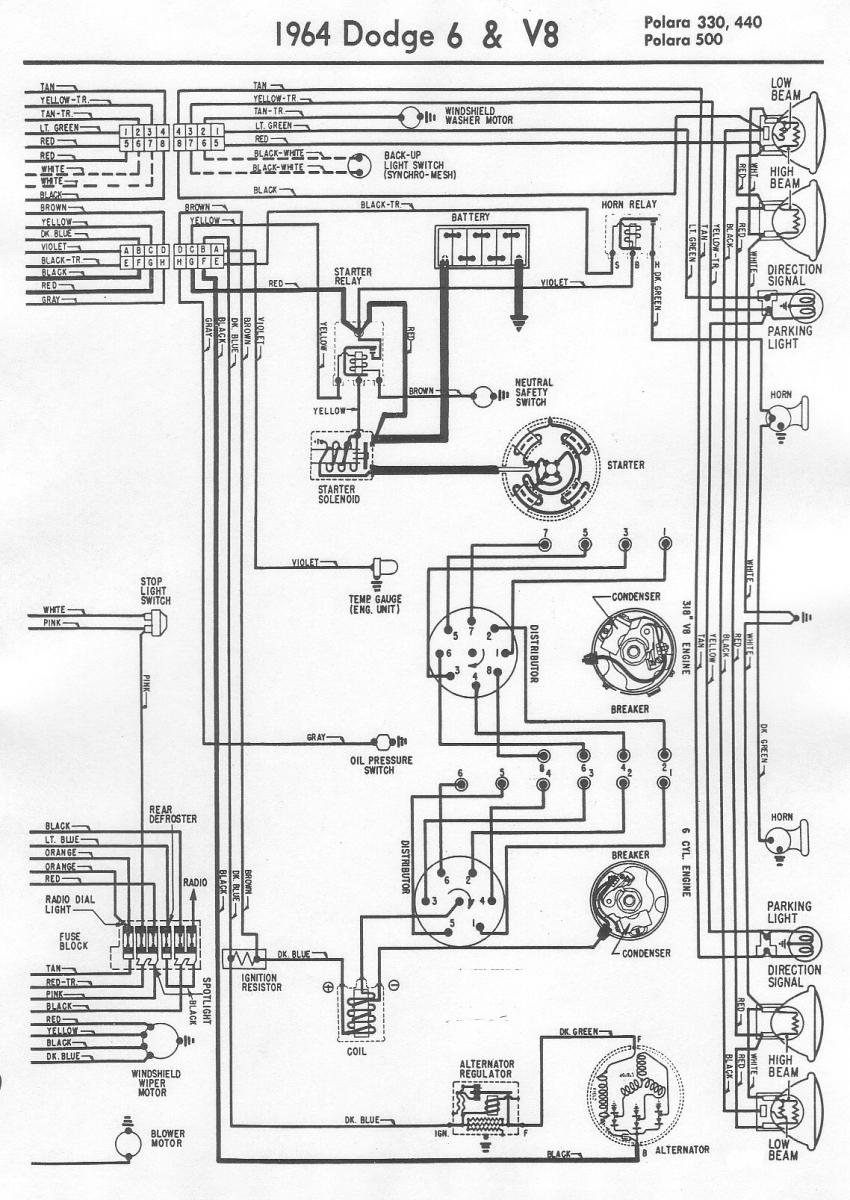

Here is wiring diagram for the 64



[Histoy]

I had a '64 Belvedere 4 speed. I just ran the 2 wires from the bulkhead connector, shown in the previous diagram, to the switch at the transmission. I taped them with black electrical tape. It looked stock, and worked fine.



[Joe Mopar]

I just found it on my manual. For a manual transmission you should run an 18 gauge black w/ white tracer wire from each terminal on switch to # 6 & 7 terminal on the bulkhead connector.



[lxmodguy]

Anyone have a high resolution scan of the wiring diagrams?
