67 GTX Fender Emblem Placement

1966 -1967 Mopars

  1. 67gtx

    67gtx Member

    Messages:
    5
    Likes Received:
    0
    Joined:
    Mar 1, 2021
    Location:
    Kevil Kentucky
    Local Time:
    12:01 PM
    Does anyone have measurements for drilling the fender emblem holes on a 67 GTX?

  2. 67gtx

    67gtx Member

    Messages:
    5
    Likes Received:
    0
    Joined:
    Mar 1, 2021
    Location:
    Kevil Kentucky
    Local Time:
    12:01 PM
    Surely someone can provide some measurements? Car had sheet metal replaced years back and the emblems were in the glovebox when I bought the car.

  3. AR67GTX

    AR67GTX Well-Known Member

    Messages:
    1,575
    Likes Received:
    771
    Joined:
    Jan 28, 2012
    Location:
    Arkansas
    Local Time:
    12:01 PM
    I will have to remove an emblem to expose the mounting holes for measurement from some reference but I’ll try to do so this morning.

  4. AR67GTX

    AR67GTX Well-Known Member

    Messages:
    1,575
    Likes Received:
    771
    Joined:
    Jan 28, 2012
    Location:
    Arkansas
    Local Time:
    12:01 PM
    Here are mine but a word of caution as I know the right fender on mine was replaced by a prior owner with a Belvedere fender. It appears the GTX emblem might be a little too far back compared to the Left side which is original as far as I know. We probably need someone to measure their right fender or at least post a close up picture to compare it to. Last photo has measurements.

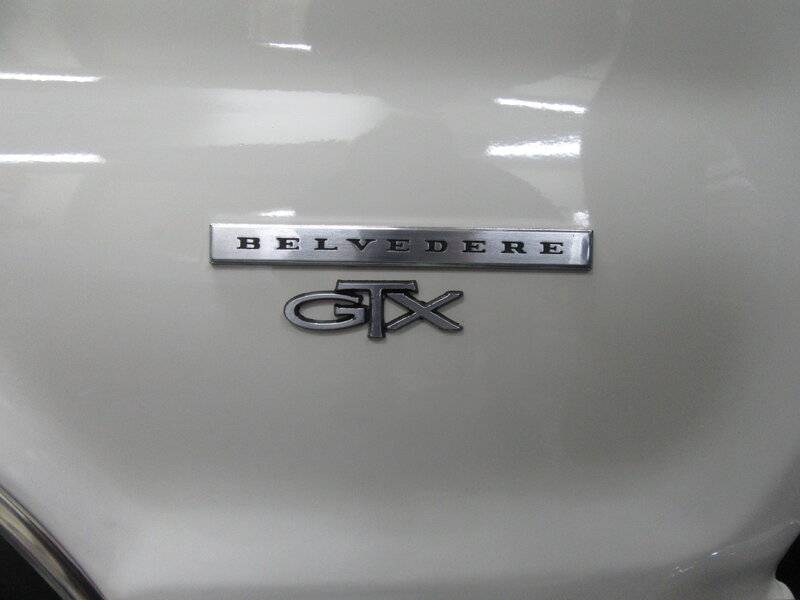

    Right side - Note the G lines up with the second letter under Belvedere. I suspect it should line up with the left side of the "L" to center it a little better. Hopefully someone can verify on an original car.

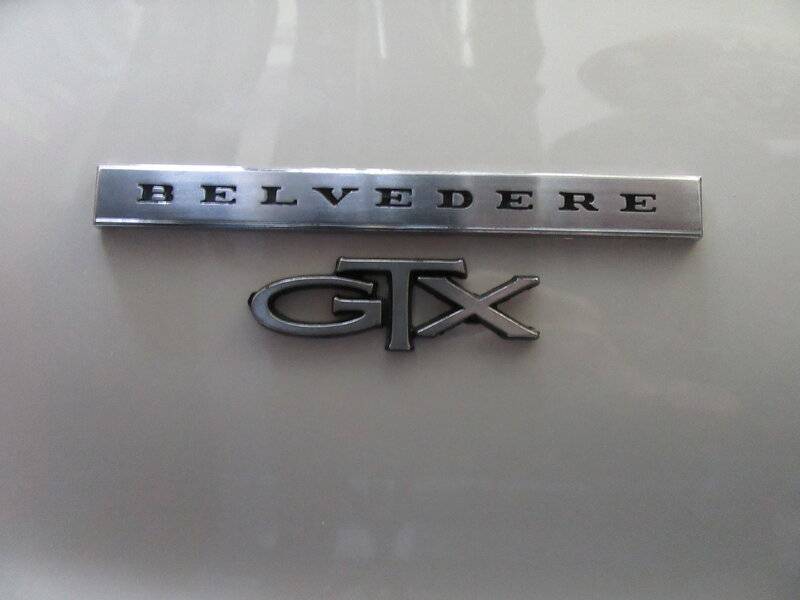

    Left side which to best of my knowledge is the original fender. Note the X lines up on the back side with the start of the 3rd letter which appears to center it a little better with the Belvedere name plate.

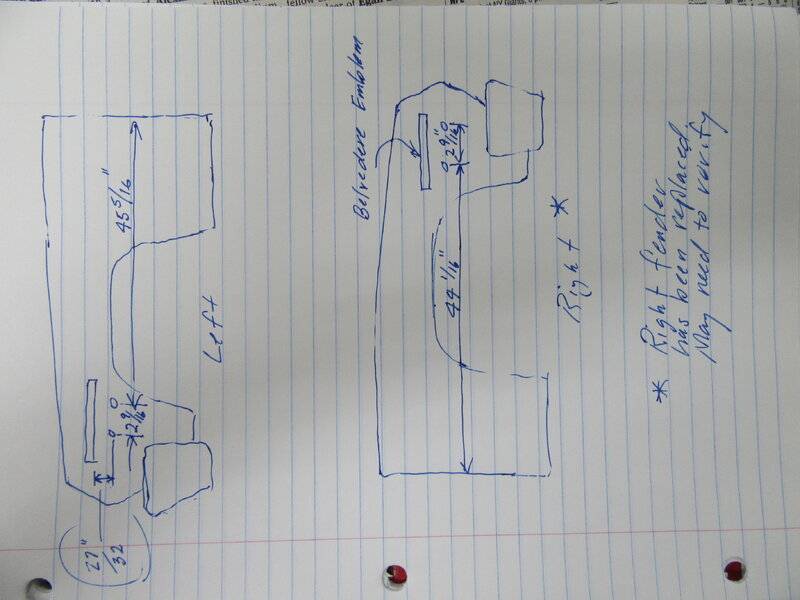

    Dimensions - measured from rear end of fender with a tape. Also the dimension from the bottom of the Belvedere emblem is shown.


  5. 67gtx

    67gtx Member

    Messages:
    5
    Likes Received:
    0
    Joined:
    Mar 1, 2021
    Location:
    Kevil Kentucky
    Local Time:
    12:01 PM
    Thanks AR67GTX!
