67 Satellite ride height specifications

[copper67sat]

Does anyone know what the factory specs are for front/rear ride height for a 67 Satellite 383 auto? I am getting ready to re-do the front suspension on mine and am considering replacing the original t-bars (778/779) and the rear leafs, but would like to compare its current height to the spec before I start.

My car has always sat rather low in my opinion. It rode low in the rear with the original heavy duty leaf springs, like many of these I have seen so I replaced them with the MP XHD leafs (P4452982 and P4452983) maybe 10 yrs ago That raised the rear up a bit for a while, but it seems to have sagged to where the car sits about level now. That doesn't bother me. Only real issue is driving in/out of the track at Daytona with a car load when we go up there for car shows - exhaust pipes scrape going over the edge into and out of the turn 4 tunnel. Not bad enough to cause damage, but it sounds bad and is annoying.

I also get a lot of nose movement up and down going over bridge transitions at highway speeds so I am thinking the t-bars are probably worn. Shocks are fairly new and damp it out quickly so I think they are ok, but still a lot of jounce.

I am considering going to ESPO +1" leafs and 1.03" t-bars to raise the car up, but don't want to go too far.



[Don67Satellite]

I installed the Hotchkis 1.03 T-Bars, very happy with them. Front end wallows far less in turns or curves, nose movement is less. Overall, a much more stable, firm ride that corners well. I am still on my original leafs however.



[Jerry Hall]

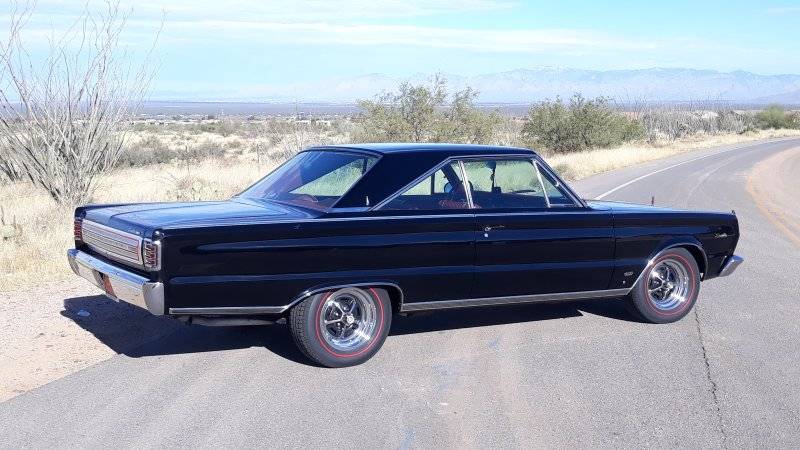

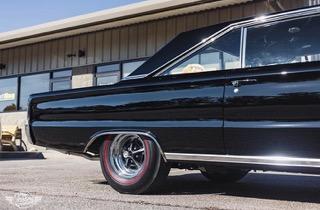

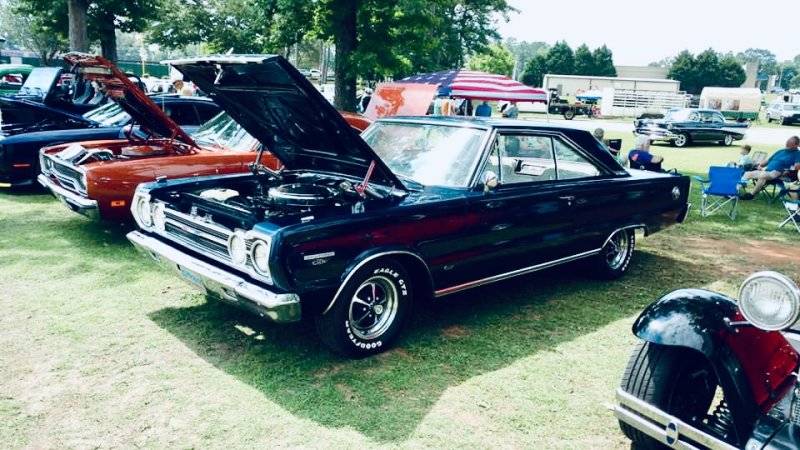

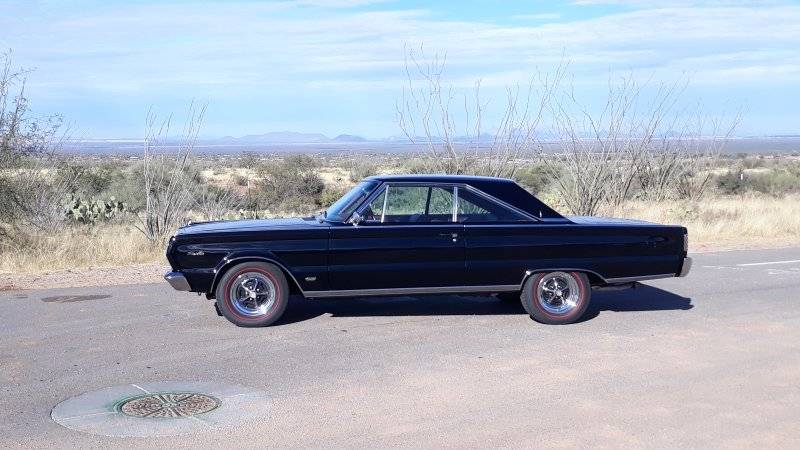

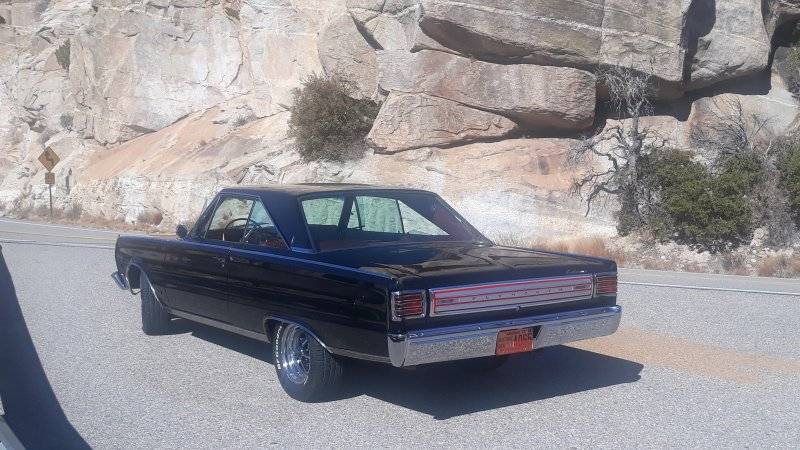

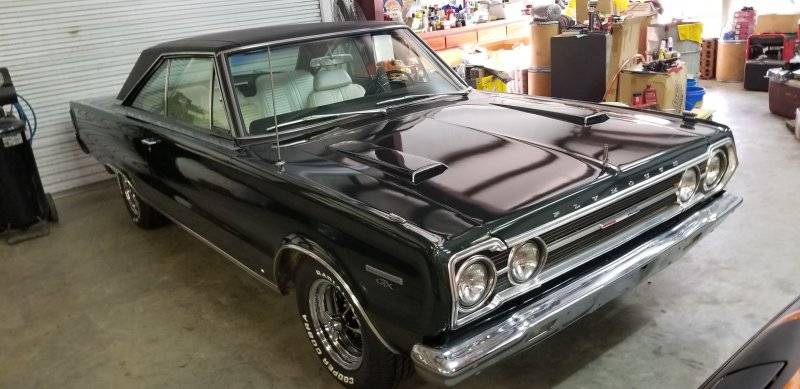

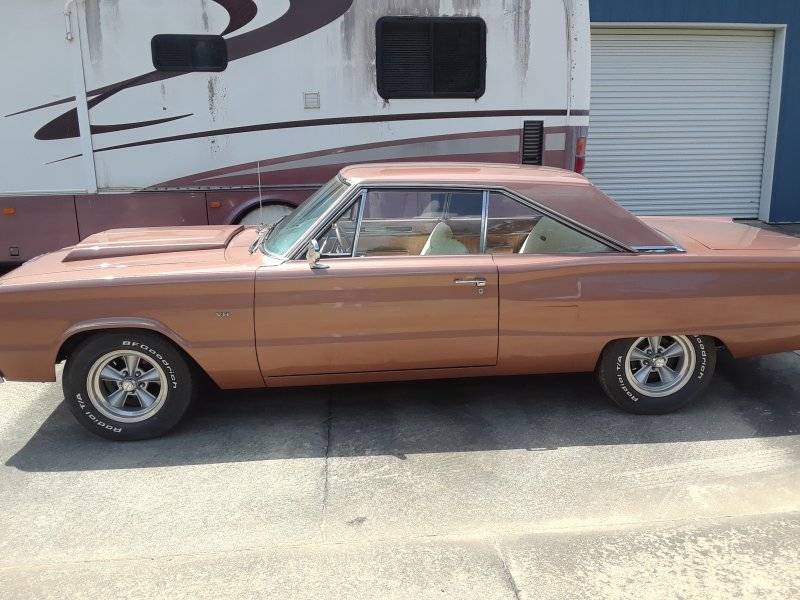

Here are pictures of 67 B bodies. With 14" rims, the top of the rear wheelwell sits within a 1/2" to level with the top of the rim. I usually set the front ride height for the car to be level front to rear. I have never measured the height per say, I just go by looks.



[1MYTGTX]

The specs are in the FSM. If no one else replies, I can get them later tonight....



[copper67sat]

The specs are in the FSM. If no one else replies, I can get them later tonight....

I looked in the FSM. Found the frame specs, but didn't see ride height. Might have missed them or didn't look in the right place. I appreciate the help.



[copper67sat]

Here are pictures of 67 B bodies. With 14" rims, the top of the rear wheelwell sits within a 1/2" to level with the top of the rim. I usually set the front ride height for the car to be level front to rear. I have never measured the height per say, I just go by looks.

Mine definitely sits lower thsn your examples Jerry. Top of the 14" rim is 1.5 - 2" above the WOM.



[copper67sat]

The specs are in the FSM. If no one else replies, I can get them later tonight....

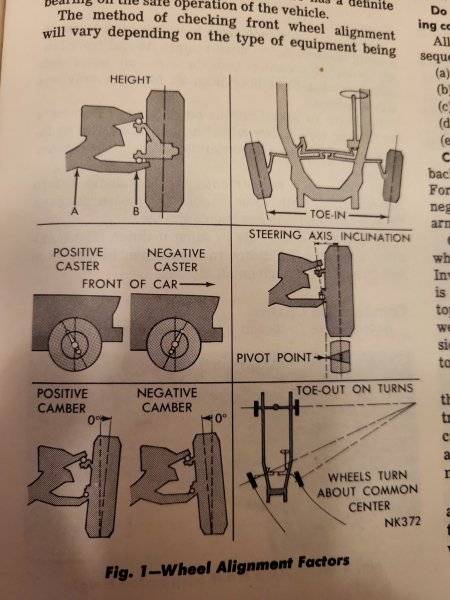

I found the reference for front suspension height in the FSM in the section on alignment. Haven't found anything about rear height.



[1MYTGTX]

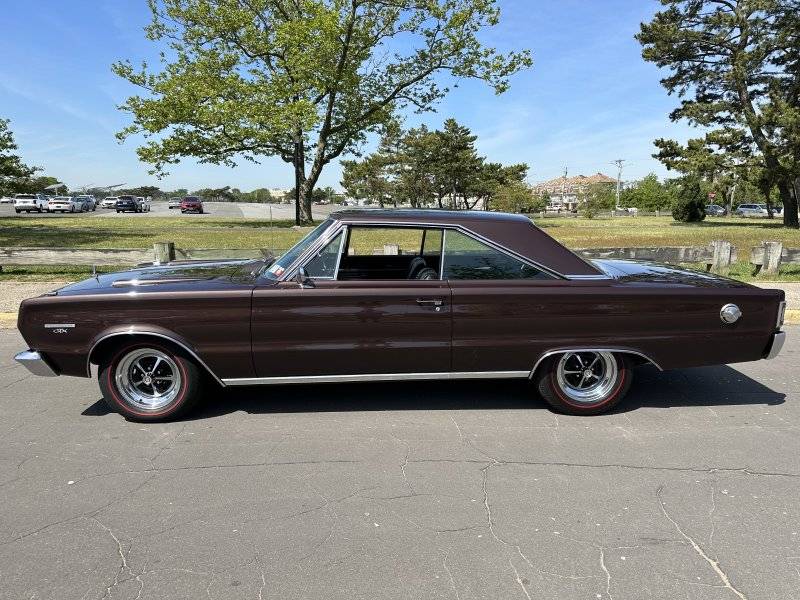

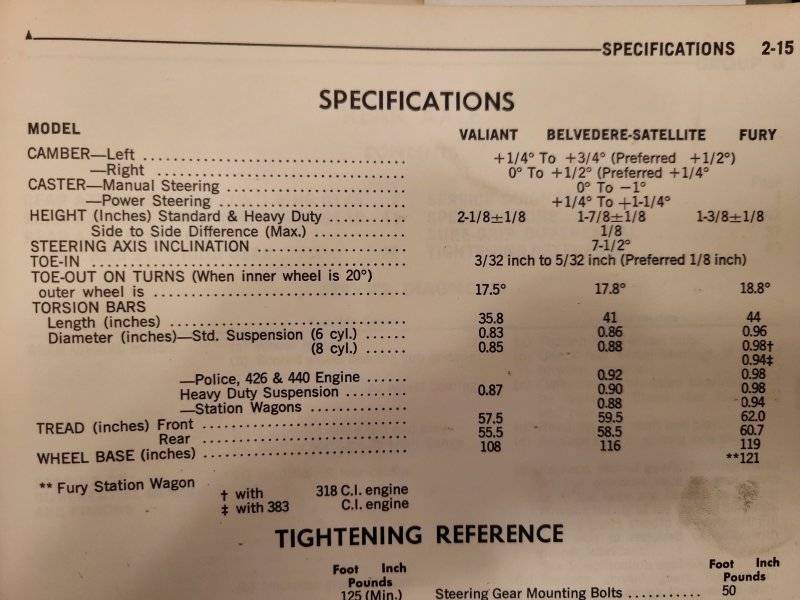

Yes that’s the refrence I was talking about. It lists the front height specs. I would assume the rear is dictated by the spring rate and there is no measurement per se? Factory photos show the car pretty much level from what I have seen. This is how mine sits with 12 year old Mopar XHD springs



[gtx6970]

Mine still rides on its OEM rear springs ( at least as far as I know they are the OEM ) and still sits up just a tad
