70 RR Pedals. Spring?

[A70Runner]

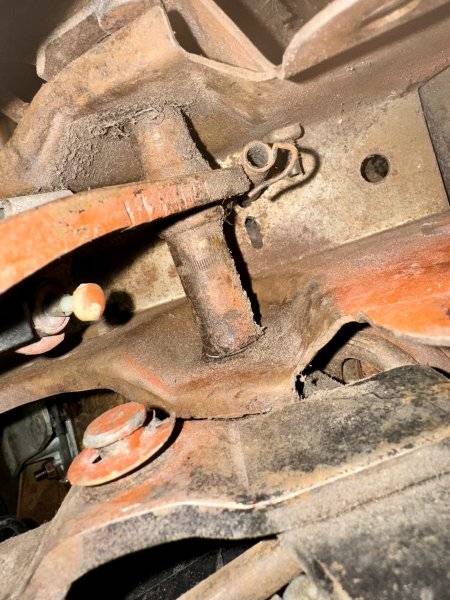

I’m changing my 70 Road Runner to manual brakes. What is this spring for? It doesn’t show up in any pictures or diagrams that I’ve found. Car is originally a 4-speed Power Disc car. Thanks!



[pnora]

I believe thats someone elses idea not factory.



[A70Runner]

I believe thats someone elses idea not factory.

That’s kinda what I’m hoping for. But I’ve owned it since 1988. And it’s nothing I’ve done. lol



[dadsbee]

Well 18 years prior someone had "an idea' !



[Paul_B]

Looks like a bandaid for a clutch issue the car might have had at some point.



[1 Wild R/T]

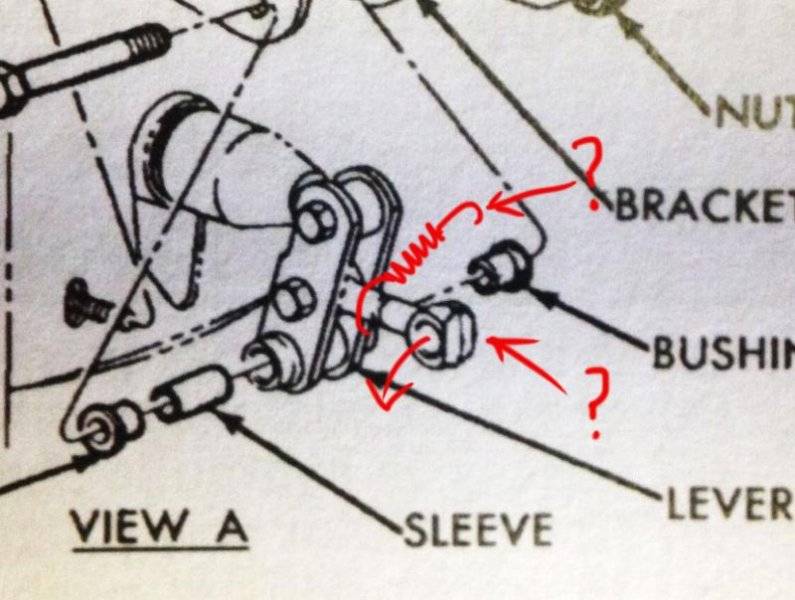

I'm really surprised by people not knowing about that spring.... It's factory.... It hangs from the pedal box and attaches to the dog bone of the power brake linkage....

I couldn't find decent picture... I did find a picture where someone drew it in...



[davek]

My 70 pd brake charger has a spring on top that hooks on b pedal . All original



[davek]

I'm really surprised by people not knowing about that spring.... It's factory.... It hangs from the pedal box and attaches to the dog bone of the power brake linkage....

I couldn't find decent picture... I did find a picture where someone drew it in...

View attachment 1615349

yep what he says



[dadsbee]

Nope, never see one. Why would it need to be drawn into the factory assembly diagram?



[1 Wild R/T]

Nope, never see one.

I'm surprised... Seems like you've worked on some pretty un-molested cars.. It's only used on Power brake cars, but I would think the Superbird is power discs?



[dadsbee]

I'm surprised... Seems like you've worked on some pretty un-molested cars.. It's only used on Power brake cars, but I would think the Superbird is power discs?

Well when I get it back from cut and polish I'll stick my head up there, but I still state "why is it not in an assembly diagram" ?



[1 Wild R/T]

Well when I get it back from cut and polish I'll stick my head up there, but I still state "why is it not in an assembly diagram" ?

I have no idea, but I have it on both my E bodies, I've seen them on probably twenty plus B bodies... They are original... They cut a groove in the dog bone for it & there's a double slot in the pedal box for the other end...

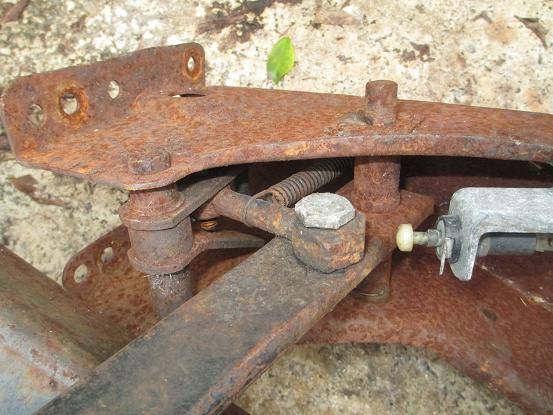

[davek]



[1 Wild R/T]

There ya go... Perfect...



[dadsbee]

Thanks Dave, looking at that I've got to question what it would even do.. .other than an anti-rattle that I'd never hear over the engine.



[1 Wild R/T]

Thanks Dave, looking at that I've got to question what it would even do.. .other than an anti-rattle that I'd never hear over the engine.

Yeah, it's just supposed to prevent rattling that I've never noticed being a problem... But the original question wasn't "Do I need this" It was more along the lines of is this original & what does it do? Well.... It is original.... And it doesn't do much....



[davek]

And its PITA is get off when your under the dash



[Dutchrebuild]

Learn something new everyday



[A70Runner]

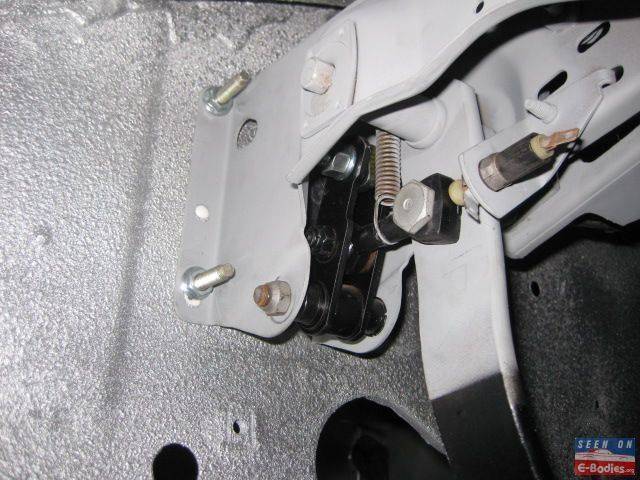

View attachment 1615375 View attachment 1615378

Interesting…. Thank You!!
