73 charger domelight

[CHR73]

Hi
Anybody knows domelight wiring route (yellow/pink wire) is it
Goes down near to B-pillar or A-pillar. I know i can see that other wiring where that wire goes but i dont have other right now.



[Badvert65]

I don't recall exactly which is which, but (typically) the dome lite has power all the time and one of the leads goes to ground via the door jamb switch.



[Mopar-Charger]

Hi
Anybody knows domelight wiring route (yellow/pink wire) is it
Goes down near to B-pillar or A-pillar. I know i can see that other wiring where that wire goes but i dont have other right now.

YOu should find a female and male connector under the dash close to the parking brake area. I'll have to recheck under mine, but If I remember right it was in that general location.



[Nacho-RT74]

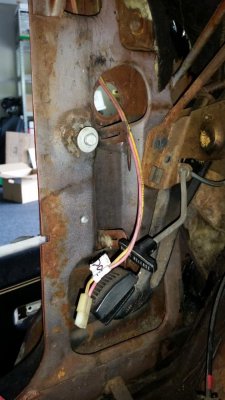

Driver side A Pillar post... up to kick panel. Plug is part of underdash harness but exactly on back of kick panel area, at a side of the rear lighting harness plug.



[nstyle73]

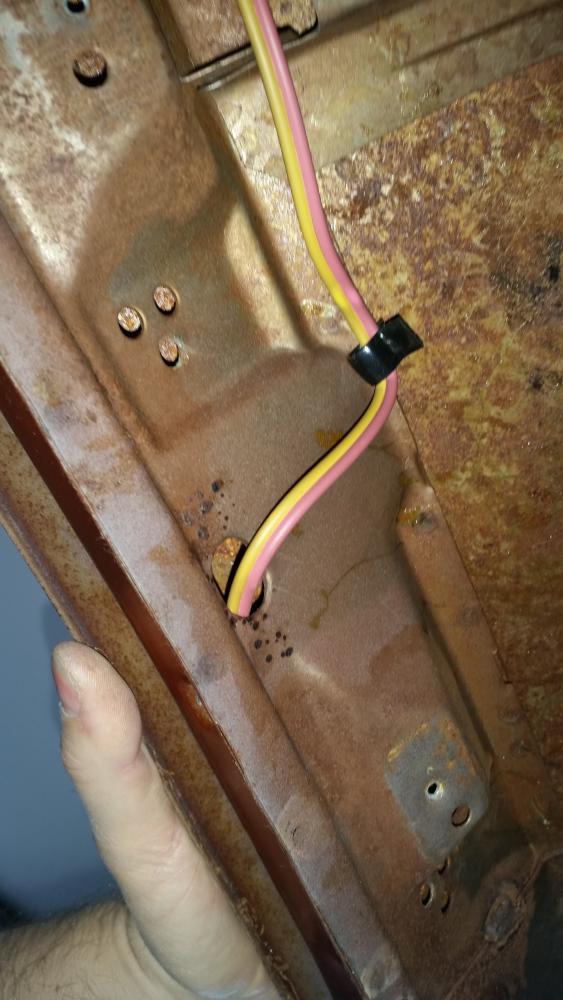

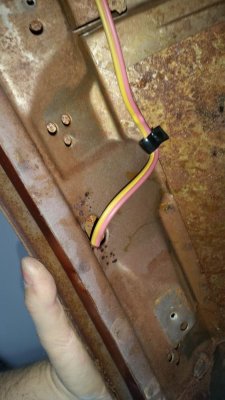

There is a an opening in the channel right above the driver's door that goes down the A-pillar.



[Chargerjase]

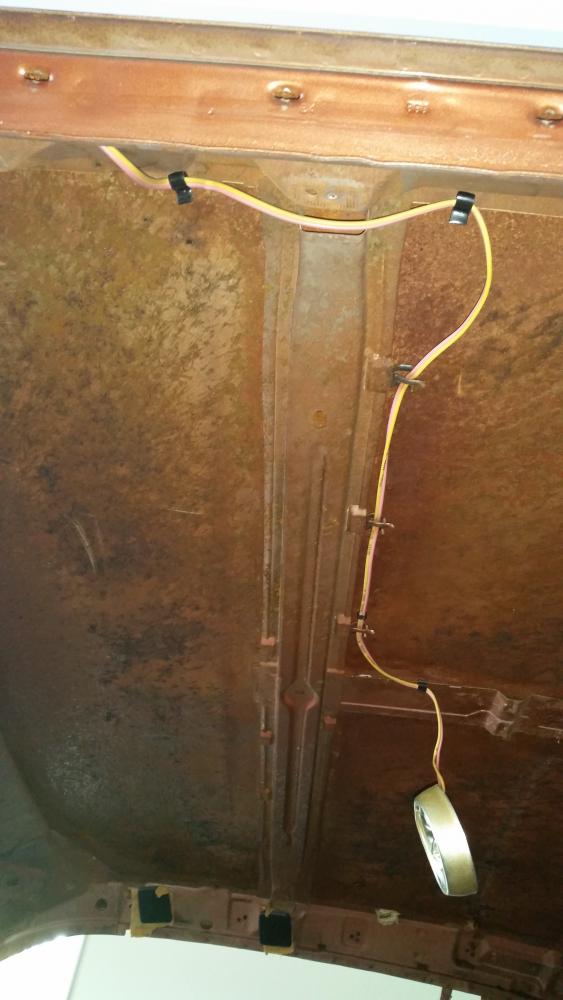

This should help



[CHR73]

Thank you all .good photos that help a lot.
