    Just going to throw this out to the group to discuss.

    I see a lot of custom fabbed K frames and all use good thick steel but a lot of new cars are using a lot of aluminium in structural components such as the rio bar and front & rear K frames. There's obvious benefits in weight, but how realistic is it to be able to fabricate something that can handle the loads of the K frame out of aluminium? What are the main forces that the K fram is going to see in this aged body?

    I honestly feel like it is entirely viable using the correct thickness for a coil over application but I wonder if a K-frame that uses the stock style suspension such as the Q-a1 K, would be achievable?

    Would you need steel sleeves for the lower control arm pivots? Maybe captured bearings? I would think that heim joint / hinged and dampened strut rods (such as PST's) would be necessary. But the lower control arm pivots remains point of concern for me.

    Yeah I am contemplating building one, but its more long term for the moment. I'm mulling over improvements for 'Stage 2'.... And I enjoy fabricating & design challenges.

  2. HEMI-ITIS

    HEMI-ITIS STREETER on LI FBBO Gold Member

    Messages:
    11,881
    Likes Received:
    14220
    Joined:
    Dec 14, 2008
    Location:
    Long Island,New York
    Local Time:
    4:23 AM

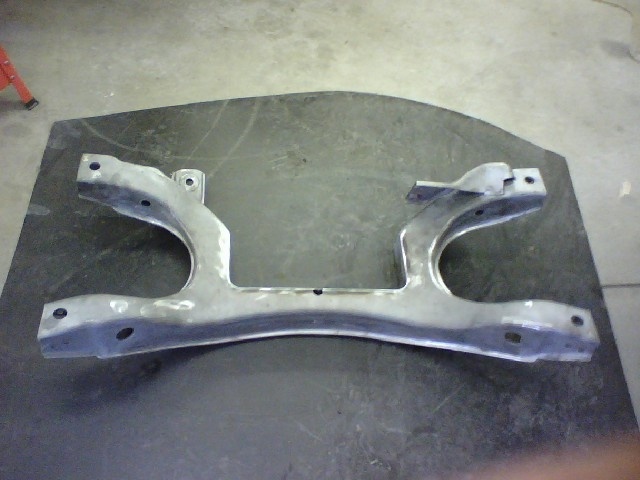

    If you slice and dice the stock "K",the weight diff would be mininal.

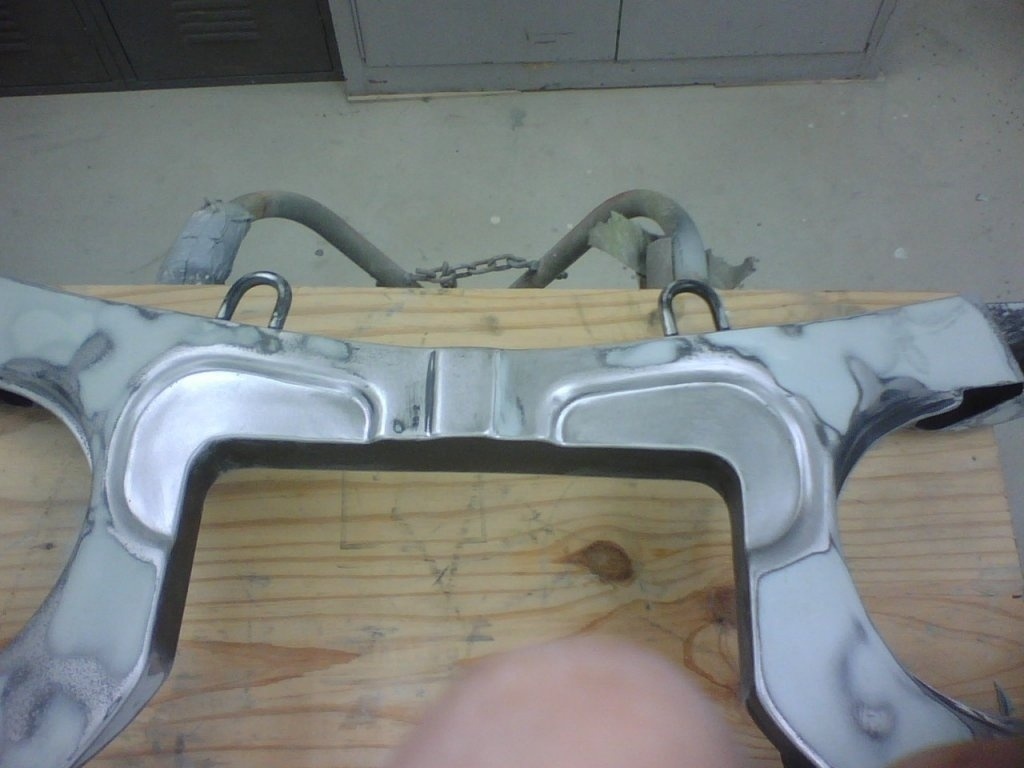

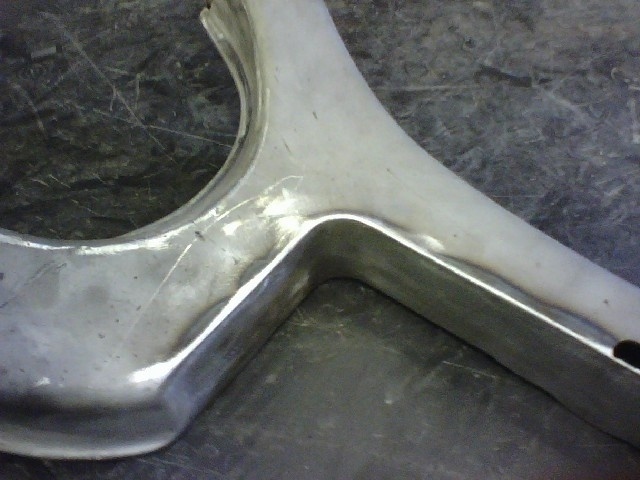

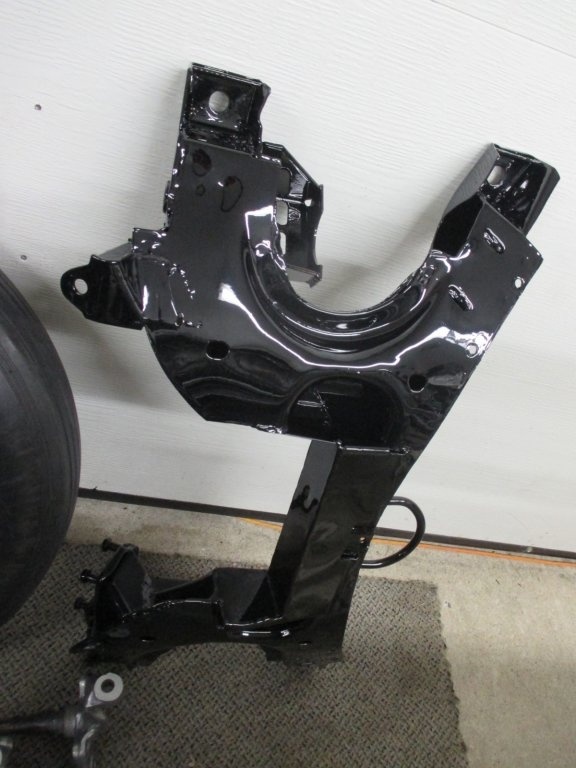

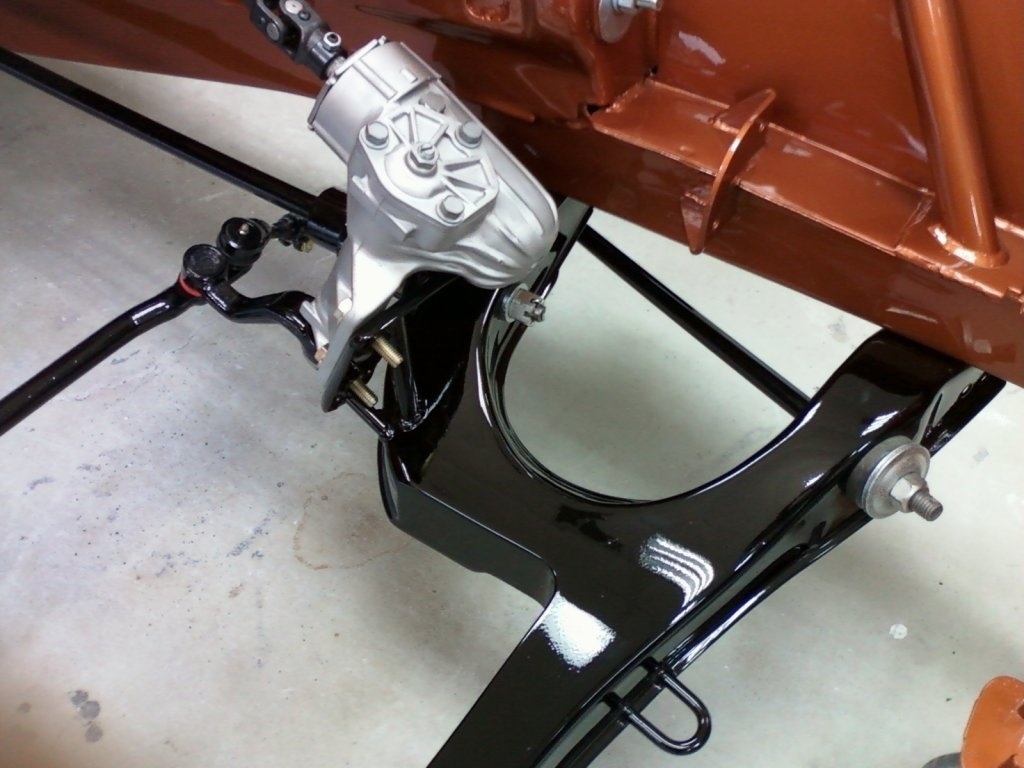

    2.25.17 012.jpg o5xrsw.jpg S31.jpg S34.jpg S36.jpg S40.jpg

    • Like Like x 6
    • Kern Dog

      Kern Dog FBBO Gold Member FBBO Gold Member

      Messages:
      16,470
      Likes Received:
      38184
      Joined:
      Apr 13, 2012
      Location:
      Granite Bay CA
      Local Time:
      1:23 AM
      XV Motorsports offered an aluminum K member with one of their front end packages. I don't know of anyone that bought one though.

    • dieseldazzle

      dieseldazzle Well-Known Member

      Messages:
      2,665
      Likes Received:
      1919
      Joined:
      Aug 31, 2014
      Location:
      California
      Local Time:
      3:23 AM

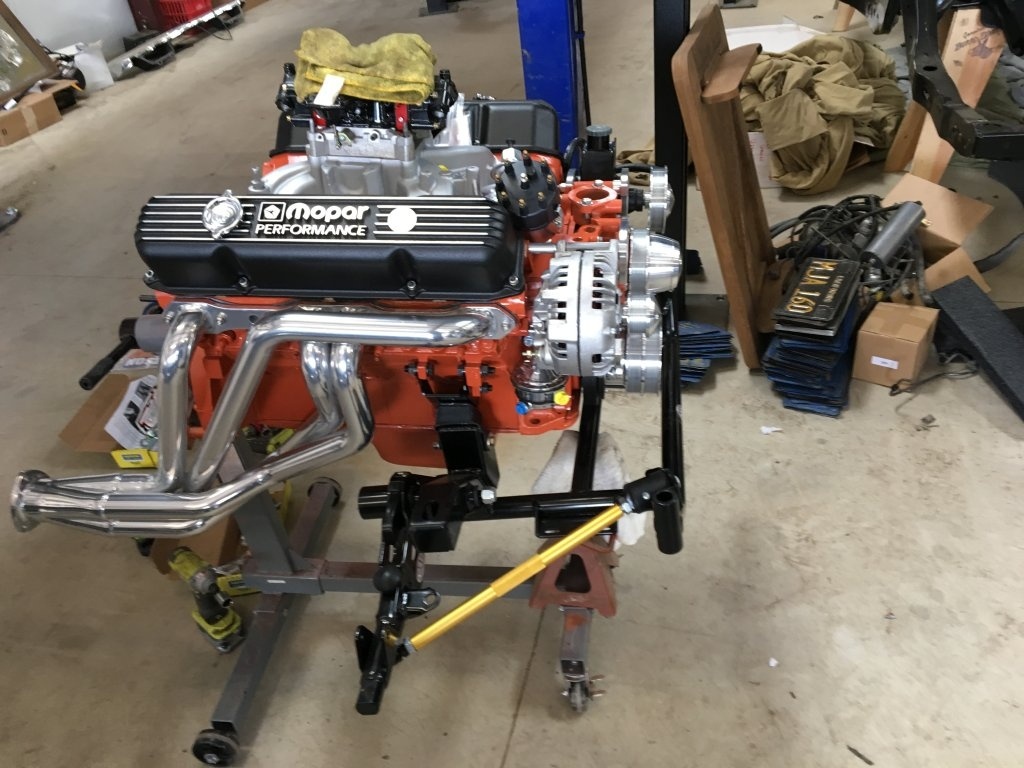

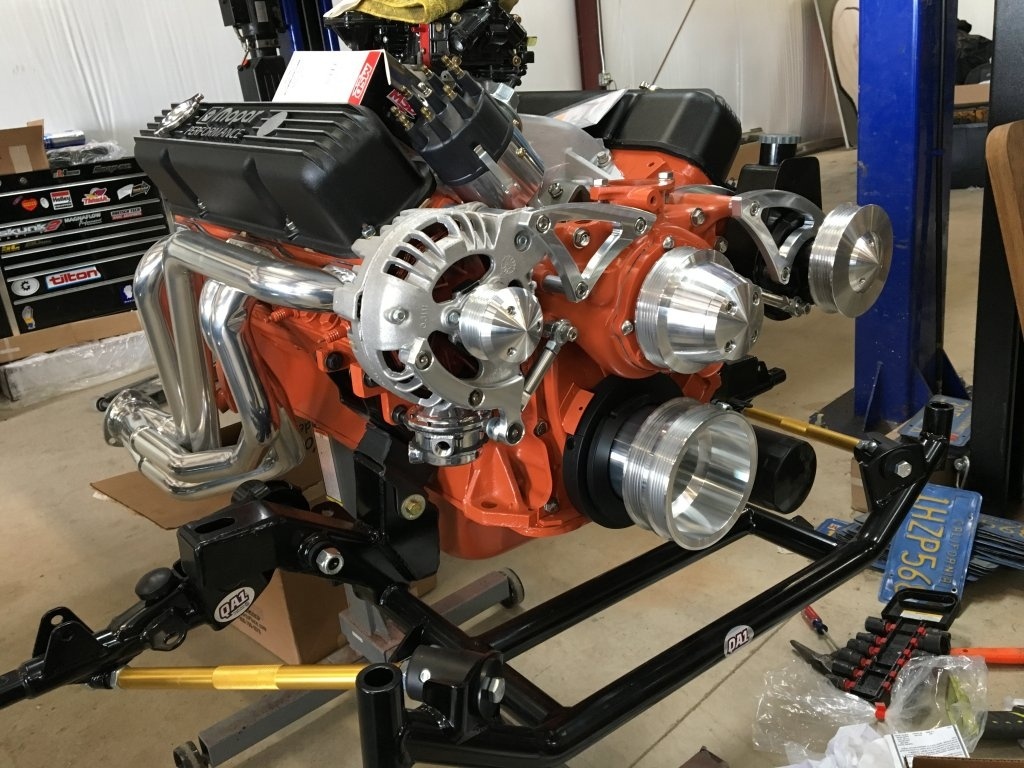

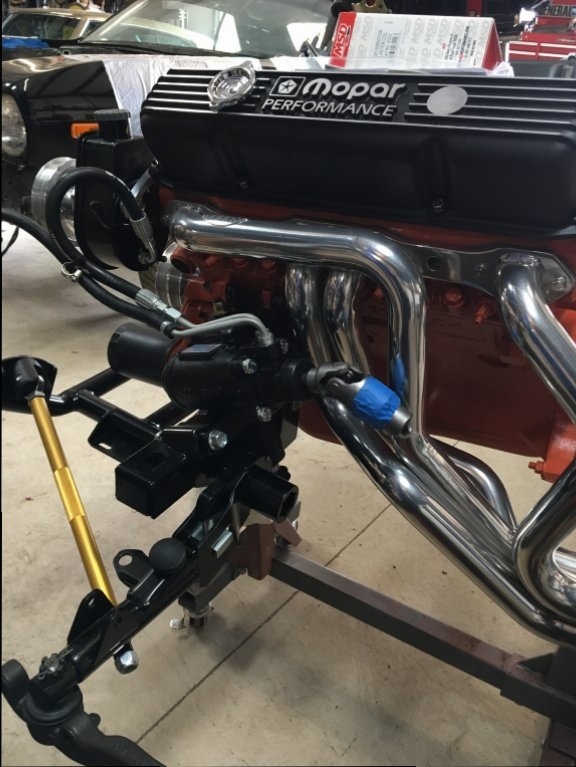

      This ones pretty light

      IMG_0095.JPG IMG_0096.JPG IMG_0097.JPG

      • Like Like x 6
      • Thanks! Thanks! x 1
      • Malicious

        Malicious Well-Known Member

        Messages:
        782
        Likes Received:
        193
        Joined:
        Feb 12, 2012
        Location:
        Melbourne
        Local Time:
        6:23 PM
        • Agree Agree x 1
        • Malicious

          Malicious Well-Known Member

          Messages:
          782
          Likes Received:
          193
          Joined:
          Feb 12, 2012
          Location:
          Melbourne
          Local Time:
          6:23 PM
          Yeah the Qa1 is nice, but I have a nice swaybar that I don't think works with that set up. I have their upper control arms, pretty good quality stuff.

        • Torkmnstr

          Torkmnstr Well-Known Member

          Messages:
          811
          Likes Received:
          631
          Joined:
          Jul 22, 2011
          Location:
          San Jose
          Local Time:
          3:23 AM
          I talked to a guy who got all the xv stuff and he said his alum setup was all out of whack. Had to cut it all up and reengineer. I like the idea of have a little beef up from with steel for the fact that it handles a lot of work and alum is overall pretty soft...

        • HEMI-ITIS

          HEMI-ITIS STREETER on LI FBBO Gold Member

          Messages:
          11,881
          Likes Received:
          14220
          Joined:
          Dec 14, 2008
          Location:
          Long Island,New York
          Local Time:
          4:23 AM
          Some of those front end kit are very nice.But then your changing to a rack and coilovers.By the time your done there is 6 to 7 grand missing outta yer wallet!


          • Agree Agree x 6
          • Like Like x 1
          • 69 GTX

            69 GTX FBBO Gold Member FBBO Gold Member

            Messages:
            6,450
            Likes Received:
            6003
            Joined:
            Apr 6, 2013
            Location:
            Milo, Iowa
            Local Time:
            3:23 AM
            In my mind there are better place to lose weight than the K member. I wouldn't even consider it with out a front & rear engine plate. Just me. In this case more HP may be cheaper than less weight.

            • Agree Agree x 2
            • Stanton

              Stanton Well-Known Member

              Messages:
              2,445
              Likes Received:
              2210
              Joined:
              Aug 8, 2012
              Location:
              ON
              Local Time:
              4:23 AM
              Modern vehicle aluminum K frames are designed in conjunction with the rest of the car using CAD CAM programs. Other portions of the car would be strengthened to compliment the K frame and maintain strength. Designing an aluminum K frame for an older car without CAD CAM would likely yield an inferior piece. Using CAD CAM you'd likely have to add support elsewhere in the car and there likely wouldn't be any overall weight savings. FWIW, you don't see anyone cranking out aluminum Mustang II front ends - probably for a very good reason.

              • Like Like x 2
              • Agree Agree x 1
              • BobJ

                BobJ Well-Known Member

                Messages:
                50
                Likes Received:
                46
                Joined:
                Dec 7, 2016
                Location:
                Colorado Springs
                Local Time:
                2:23 AM
                Hell I made my K frame heaver when I welded all the seams and installed Firm Feels bracing kit with skid plate. I wanted to take out as much flex possible.

                • Agree Agree x 2
                • HEMI-ITIS

                  HEMI-ITIS STREETER on LI FBBO Gold Member

                  Messages:
                  11,881
                  Likes Received:
                  14220
                  Joined:
                  Dec 14, 2008
                  Location:
                  Long Island,New York
                  Local Time:
                  4:23 AM

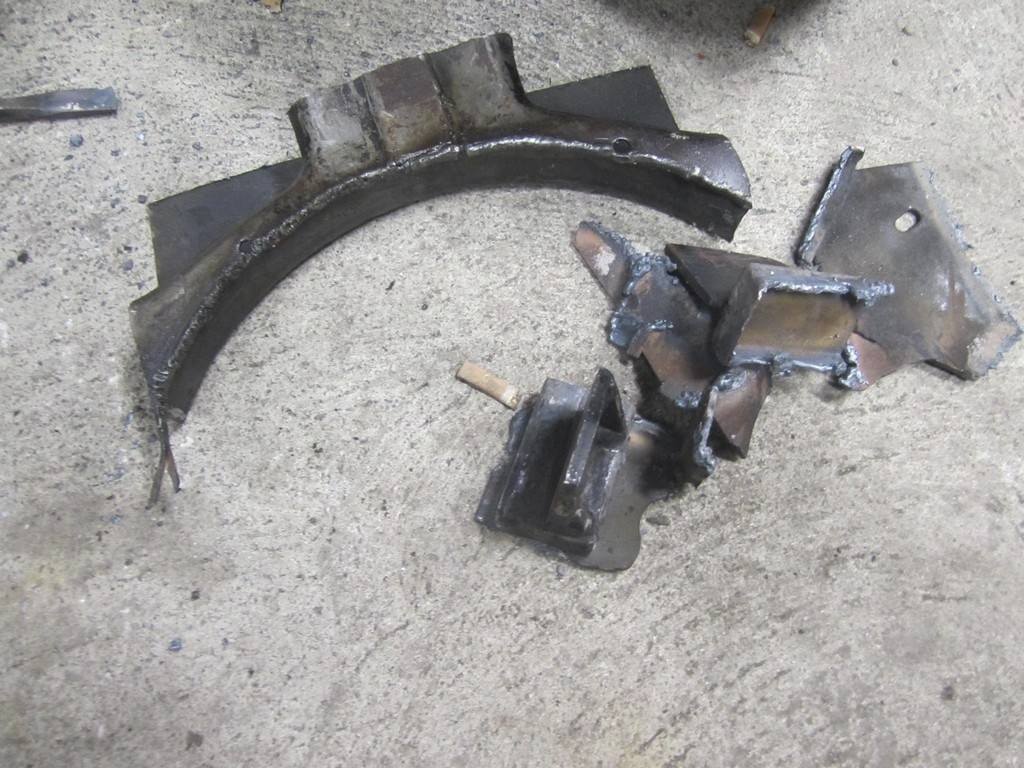

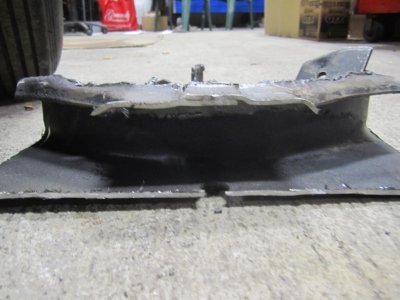

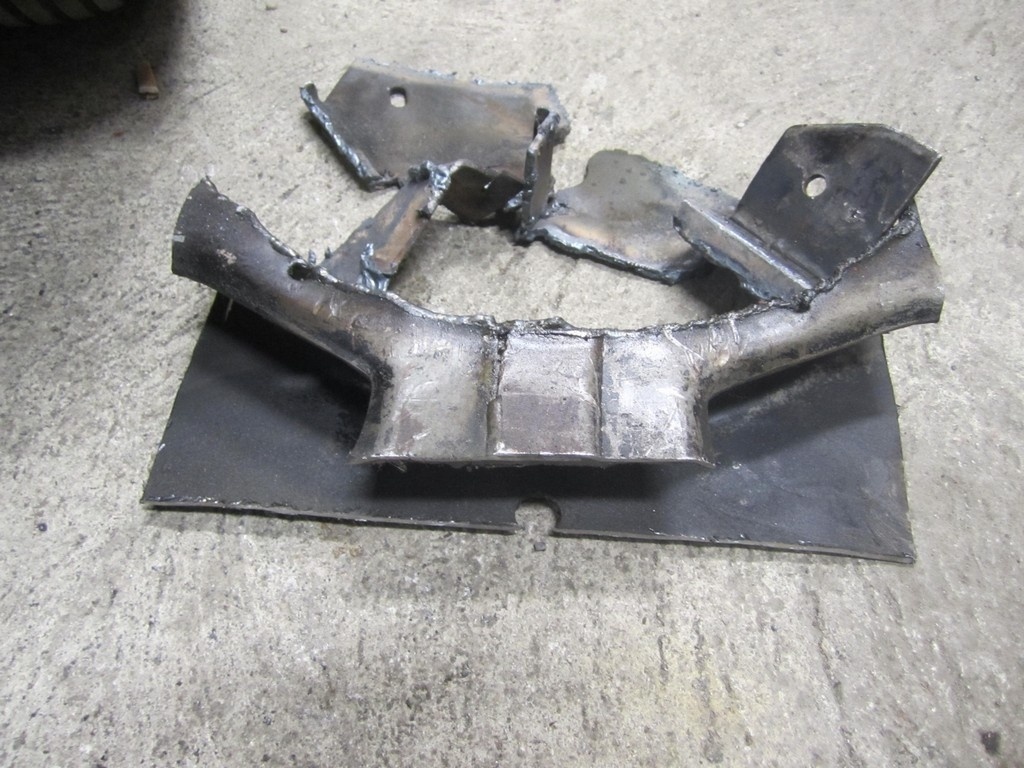

                  The stock "K" is not all that heavy,this notch might weigh 3 or 4 lbs

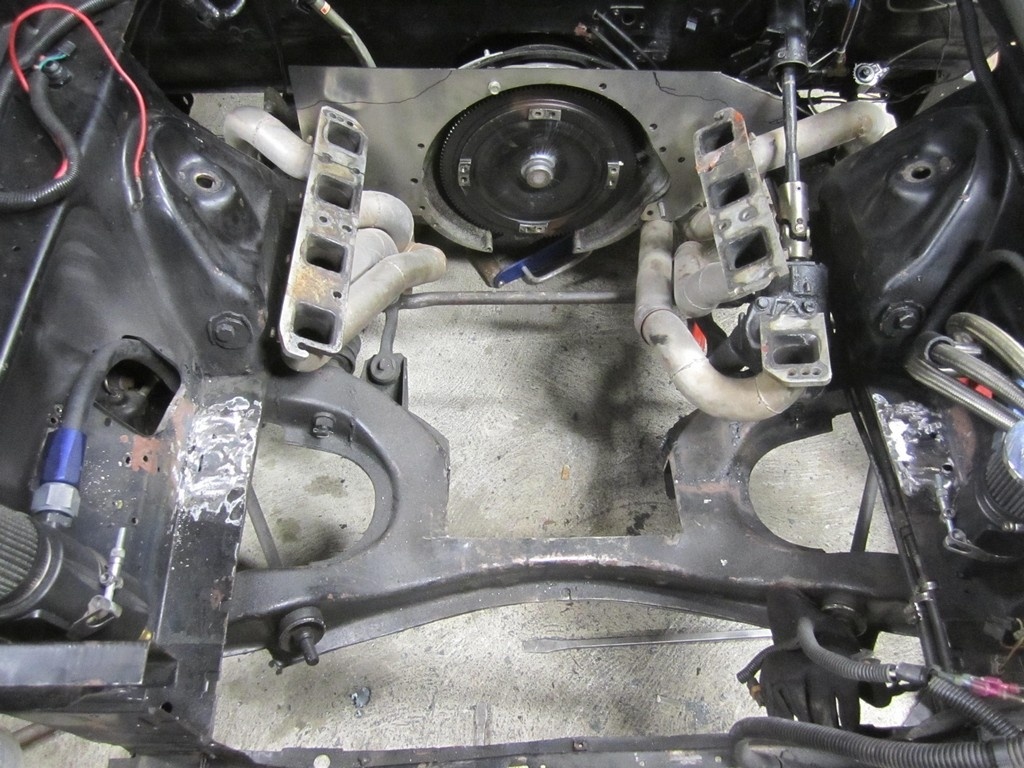

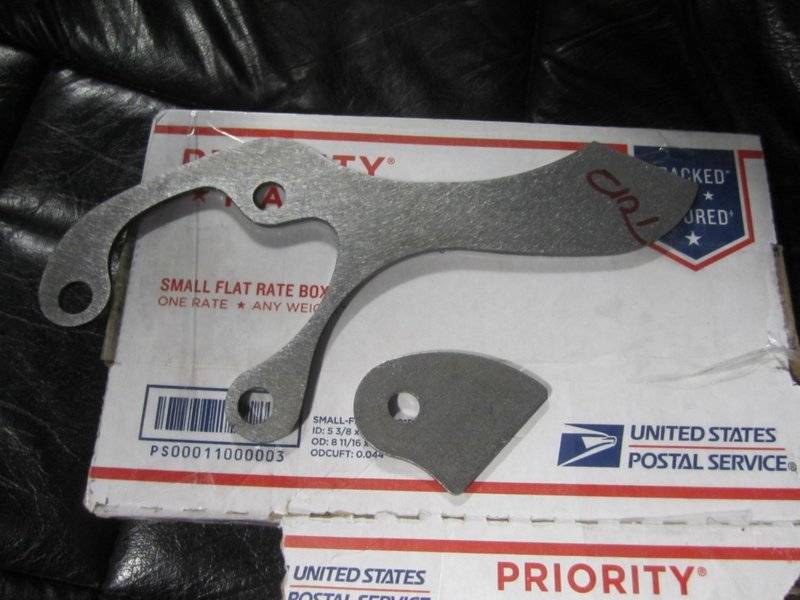

                  3.18.17 001.jpg 3.18.17 010.jpg 3.18.17 014.jpg 3.18.17 015.jpg

                  • Like Like x 2
                  • Kern Dog

                    Kern Dog FBBO Gold Member FBBO Gold Member

                    Messages:
                    16,470
                    Likes Received:
                    38184
                    Joined:
                    Apr 13, 2012
                    Location:
                    Granite Bay CA
                    Local Time:
                    1:23 AM
                    I think when the Sales department/Ad department writes ads for these aftermarket setups, their "math" for weight savings is based on a power steering stock setup versus theirs with a NON power rack to make the weight difference seem greater.

                    • Agree Agree x 2
                    • Like Like x 1
                    • Thanks! Thanks! x 1
                    • streetwedg

                      streetwedg Well-Known Member

                      Messages:
                      343
                      Likes Received:
                      387
                      Joined:
                      Nov 2, 2011
                      Location:
                      ohio
                      Local Time:
                      4:23 AM
                      I have seen factory aluminum k frames before. Not sure but I think they came on the altered wheelbase cars. I have a friend with a 64 Hemi car and he's always looking at rare SS parts. K member couldn't have weighted more than 5 or 6 pounds.

                      • Agree Agree x 1
                      • Mike67

                        Mike67 Well-Known Member

                        Messages:
                        5,453
                        Likes Received:
                        8419
                        Joined:
                        Nov 23, 2014
                        Location:
                        Woodlands Tx
                        Local Time:
                        3:23 AM
                        I agree with Stanton, those are all engineered as an integral piece of the whole car.
                        My other thought is how many modern cars are running cast iron big blocks that even come close to the stock torque output of a big block.
                        I would think you would have to have some really thick aluminum to make it reliable for a driver. May even be the same weight as a stock k by the time you engineered it for durability...

                        • Agree Agree x 2
                        • glassman

                          glassman Well-Known Member

                          Messages:
                          975
                          Likes Received:
                          347
                          Joined:
                          Jan 6, 2010
                          Location:
                          U.S.A.
                          Local Time:
                          4:23 AM
                          The light weight k members that Mopar built were Magnesium and they cracked and were deemed unsafe. I run "John Holt Racecars" light weight k members in 3 of my cars. He modifies the stock unit and after he is done, it is half the weight. A lot of the SS/AH cars on the circuit today use his k members.

                          • Thanks! Thanks! x 1
                          • Badvert65

                            Badvert65 Well-Known Member

                            Messages:
                            890
                            Likes Received:
                            546
                            Joined:
                            Oct 11, 2013
                            Location:
                            Brightwood, Virginia
                            Local Time:
                            4:23 AM
                            Any chance you have pics of one of these K frames? I checked his website but they weren't mentioned.
                            The k frame on my 65 Belvedere started out at 43 lbs, when I finished cleaning and modifying it, it was down to 35 lbs. Was a heck of a lot of work for 8 pounds.

                            • Agree Agree x 1
                            • biomedtechguy

                              biomedtechguy Accelerati Rapidus Maximus FBBO Gold Member

                              Messages:
                              21,710
                              Likes Received:
                              30043
                              Joined:
                              Mar 28, 2014
                              Location:
                              South Louisiana
                              Local Time:
                              3:23 AM
                              I haven't lifted my stock K-member, but I lifted my new QA1 K-member and it's seems light...and...pretty! :D

                              • Like Like x 2
                              • glassman

                                glassman Well-Known Member

                                Messages:
                                975
                                Likes Received:
                                347
                                Joined:
                                Jan 6, 2010
                                Location:
                                U.S.A.
                                Local Time:
                                4:23 AM
                                Sorry, cars are put away for winter. He uses chrome molly round tubing and there is no part of the original k member left in the center and all of the 5/8" tab around the edge is gone and then welded. stock steering box still mounts to k frame. Hold downs and tow strap mountings are optional. $750

                              • HEMI-ITIS

                                HEMI-ITIS STREETER on LI FBBO Gold Member

                                Messages:
                                11,881
                                Likes Received:
                                14220
                                Joined:
                                Dec 14, 2008
                                Location:
                                Long Island,New York
                                Local Time:
                                4:23 AM
                                I do not know if this has changed,but several guys I know that went to a rack lost considerable turning radius............

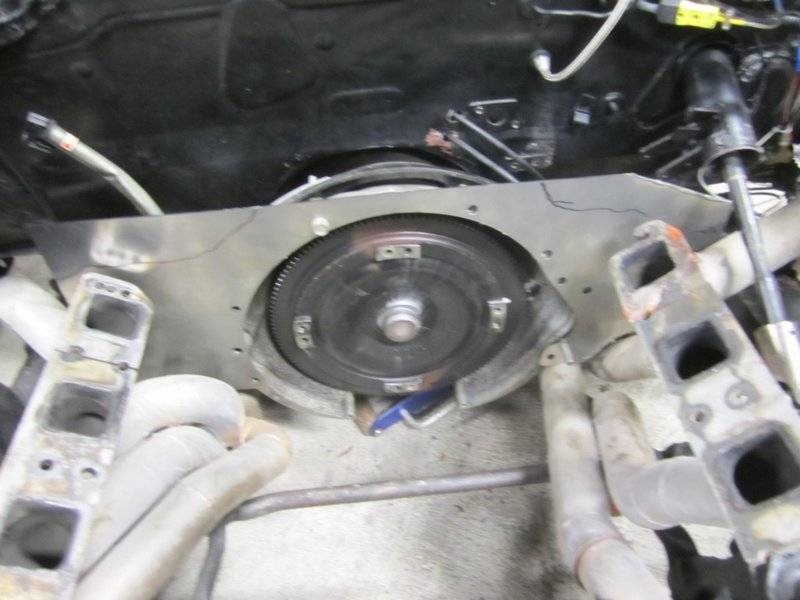

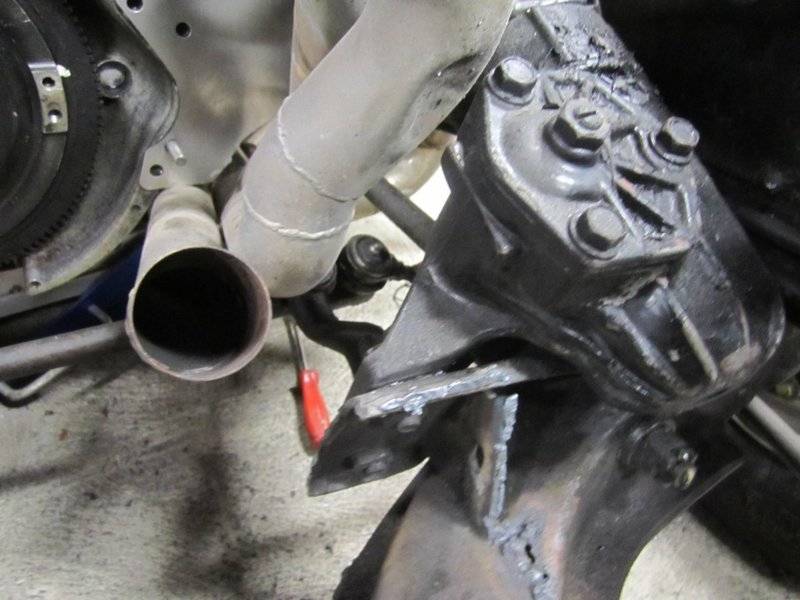

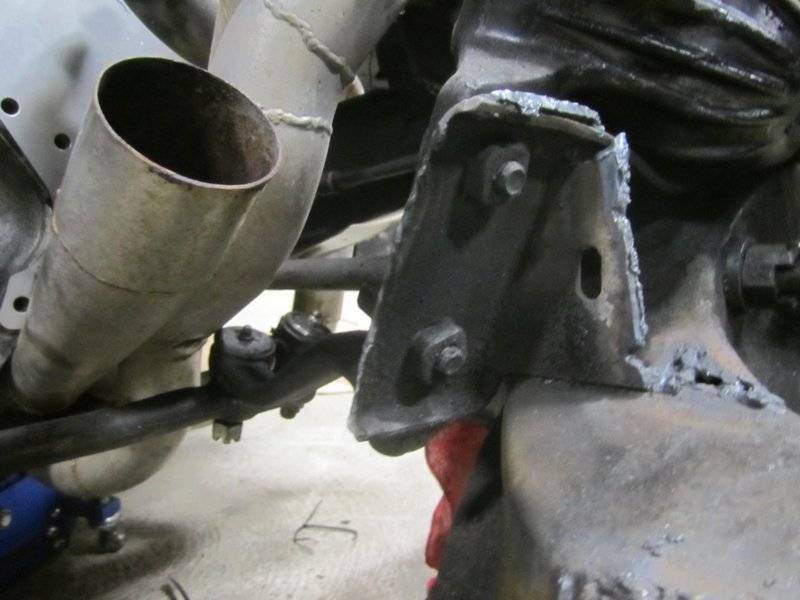

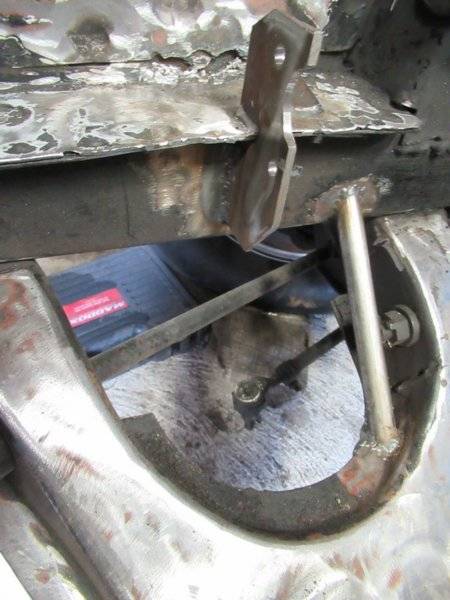

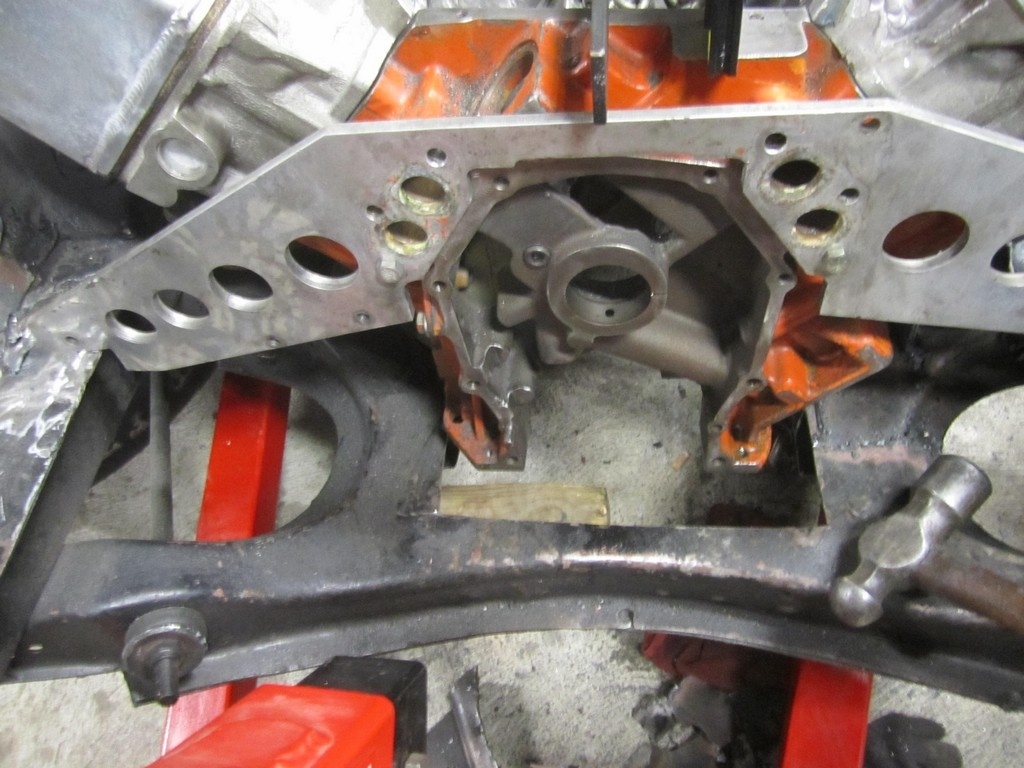

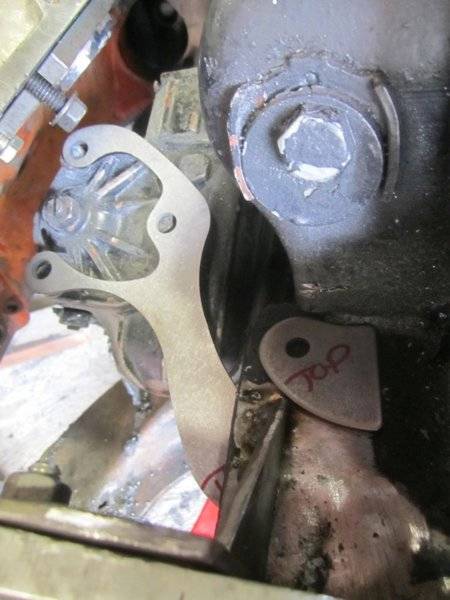

                                I have a steering box brace because the motor mount was totally removed as I have a front engine plate and a mid plate.Also ran braces to both sides of the modified "K"
                                Also added "J" bars to stiffen the front chassis.

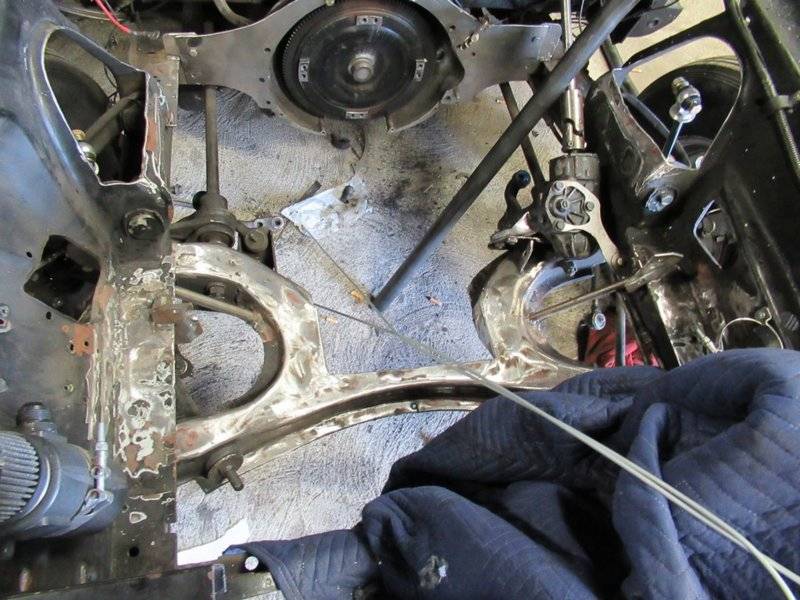

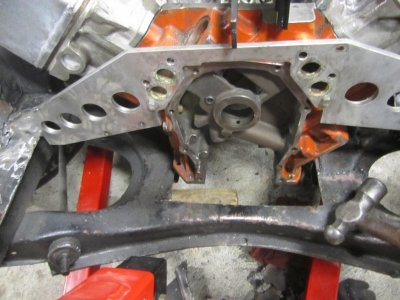

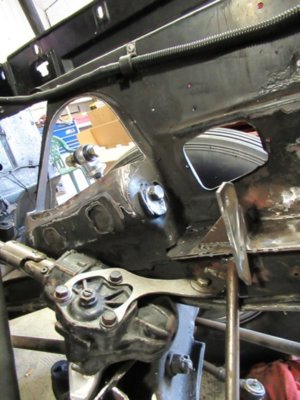

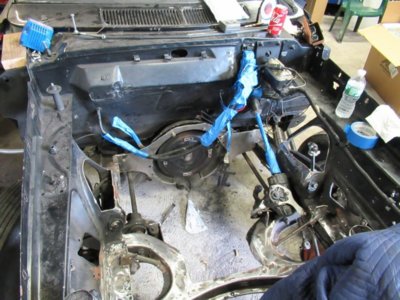

                                2.19.17 031.jpg 2.19.17 032.jpg 2.19.17 033.jpg 2.19.17 038.jpg 2.25.17 012.jpg 3.18.17 003.jpg 3.18.17 028.jpg 3.18.17 029.jpg 4.11.17 008.jpg 4.13.17 013.jpg

                                • Like Like x 1
