Bell housing alignment questions

Engine, Trans & Driveline

  1. joe smith

    joe smith Well-Known Member

    Messages:
    767
    Likes Received:
    931
    Joined:
    Jan 4, 2018
    Location:
    Florida
    Local Time:
    12:11 PM
    When doing this with a dial indicator, doesn't the dial indicator have to be perfectly centered to the bellhousing opening?? How do you do this??

    And after you install offset dowels, how do you get the bolts back in??

  2. Stanton

    Stanton Well-Known Member

    Messages:
    2,692
    Likes Received:
    2545
    Joined:
    Aug 8, 2012
    Location:
    ON
    Local Time:
    12:11 PM
    Wherever you attach the indicator, when you rotate the crank it will turn in a perfect circle. However far it is from dead center will be consistent all the way around. The dial indicator is reading runout. Set it at zero anywhere in the hole, rotate the crank and it will indicate the variance from your starting point. Make sure it has some preload in it so that it can move both ways to show + and -.

    The bolt holes are oversize enough to allow the slight movement required. In fact, you want bolts in place but not tight when you're dialing it it. Make sure the dowel holes are very clean as well as the dowels. Use proper mopar dowels so they fit the holes and lube them before putting them in. This way you can make adjustments without having to remove the bellhousing every time.

    And its wise to start with stock, zero offset dowels.

    • Agree Agree x 2
    • Stanton

      Stanton Well-Known Member

      Messages:
      2,692
      Likes Received:
      2545
      Joined:
      Aug 8, 2012
      Location:
      ON
      Local Time:
      12:11 PM
      And should you need them, I have sets of .014 and .021 offset dowels you can have for $20 plus postage. These are Mopar dowels from the P4120383 set.

    • Daves69

      Daves69 Well-Known Member

      Messages:
      1,767
      Likes Received:
      1540
      Joined:
      Jan 24, 2014
      Location:
      ChiWest
      Local Time:
      11:11 AM

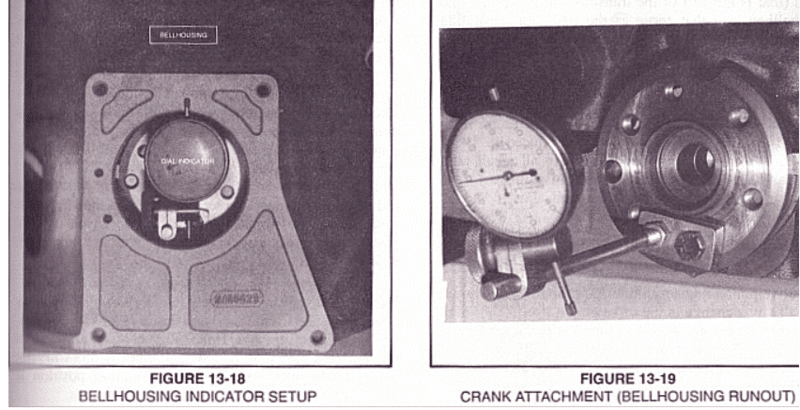

      If it helps, notice in this MP picture, the size of this indicator requires it being setup on an angle.

    • dvw

      dvw Well-Known Member

      Messages:
      5,356
      Likes Received:
      7609
      Joined:
      Feb 16, 2010
      Location:
      waterford mi
      Local Time:
      12:11 PM
      Be careful .500" dowels are too large. Mopar uses .496". A .500" will pound in. But very difficult to remove.
      Doug

      • Agree Agree x 2
      • Stanton

        Stanton Well-Known Member

        Messages:
        2,692
        Likes Received:
        2545
        Joined:
        Aug 8, 2012
        Location:
        ON
        Local Time:
        12:11 PM
        DON'T EVEN TRY THIS. If need be you can buy 2" .496 pin gauges from McMaster Carr for under $5..

        • Agree Agree x 1
        • zyzzyx

          zyzzyx FBBO Gold Member FBBO Gold Member

          Messages:
          1,605
          Likes Received:
          1763
          Joined:
          Aug 5, 2011
          Location:
          Lisle, Illinois
          Local Time:
          11:11 AM
          At the risk of making this sound harder, (it's not) If you can affix the indicator stand like
          Daves69 has it pictured you will have very good rigidity. Mag bases are handy, but there
          isn't a large enough flat surface to attach it to! Next thing is try to use an indicator that
          isn't too big and clunky. It will be hard to position. De-burr the block face and the bell
          housing before starting, and use ALL of the bolts just finger tight. Make sure you "Sweep"
          the bore two or three time to make sure your readings repeat. after you figure out what
          bushing you need and install it, Sweep the face of the bell housing where the trans bolts
          on to see if it has to be machined! This is just as important as the radial numbers. If it has
          to be machined, you'll need to re check the radial numbers again. once you start indicating
          it, you'll start to see how easy it is. Good luck!

        • dvw

          dvw Well-Known Member

          Messages:
          5,356
          Likes Received:
          7609
          Joined:
          Feb 16, 2010
          Location:
          waterford mi
          Local Time:
          12:11 PM
          Agreed. Standard dowels can be made from the shank of 1/2" bolts. Measure a few, they vary slightly.
          Doug

        • Stanton

          Stanton Well-Known Member

          Messages:
          2,692
          Likes Received:
          2545
          Joined:
          Aug 8, 2012
          Location:
          ON
          Local Time:
          12:11 PM
          Bolt the flywheel to the crank. get a piece of 1/4" x 2" flat bar cut long enough to bolt across the flywheel using the pressure plte bolt holes. This now gives you the flat surface to clamp the mag base to.

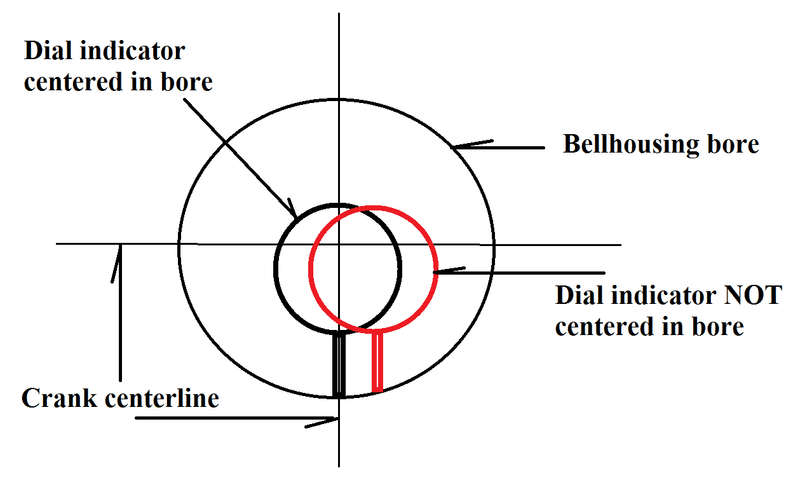

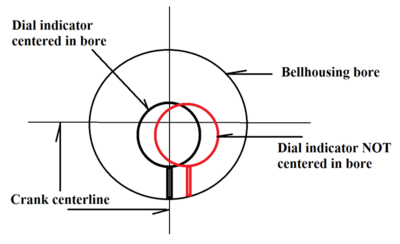

          Re-reading the original post, you do want the indicator centered in the hole but it doesn't have to be centered on the crank centerlin. See my cruse illustration below.


          • Thanks! Thanks! x 1
          • Fran Blacker

            Fran Blacker FBBO Gold Member FBBO Gold Member

            Messages:
            8,851
            Likes Received:
            8462
            Joined:
            Sep 23, 2016
            Location:
            Connecticut
            Local Time:
            12:11 PM

            • Agree Agree x 1
            • monte

              monte Member

              Messages:
              24
              Likes Received:
              12
              Joined:
              Apr 19, 2018
              Location:
              sf bay area
              Local Time:
              9:11 AM
              you can also just remove one of the flywheel bolts to create a flat service for magnetic base.

            • 493 Mike

              493 Mike FBBO Gold Member FBBO Gold Member

              Messages:
              2,922
              Likes Received:
              3143
              Joined:
              Dec 25, 2011
              Location:
              White Cloud, MI
              Local Time:
              12:11 PM
              • Agree Agree x 2
              • Like Like x 1
              • Jeremiah

                Jeremiah FBBO Gold Member FBBO Gold Member

                Messages:
                1,228
                Likes Received:
                397
                Joined:
                Feb 7, 2012
                Location:
                Rogue River, OR
                Local Time:
                9:11 AM
                The Rob MC dowels are what you want to use. Nothing finer in my opinion.

                • Agree Agree x 1
                • Stanton

                  Stanton Well-Known Member

                  Messages:
                  2,692
                  Likes Received:
                  2545
                  Joined:
                  Aug 8, 2012
                  Location:
                  ON
                  Local Time:
                  12:11 PM
                  Seriously, what makes them so great? List 5 benefits over a standard piece.

                • cryplydog

                  cryplydog FBBO Gold Member FBBO Gold Member

                  Messages:
                  1,515
                  Likes Received:
                  1258
                  Joined:
                  Apr 13, 2013
                  Location:
                  NE, MO.,
                  Local Time:
                  11:11 AM

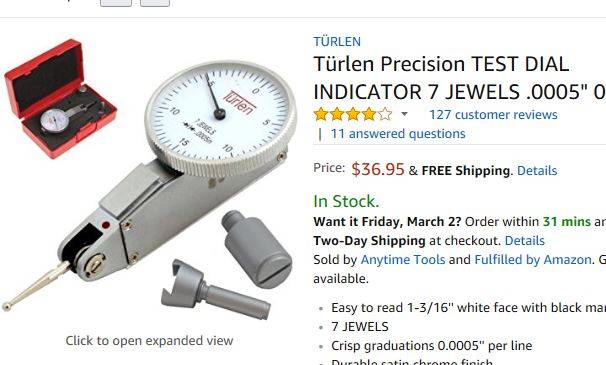

                  I use a small diameter starrett indicator like a last word type. Do all prep work as stated above. You can carefully drill through the bell housing and into the block flange with a 1/4" high speed drill to about a 3/8" depth and drive in a hardened roll pin in two places about 1/3rd. and 2/3rd. of the bolt circle. this way saves time for me when I disassemble for whatever reason. But, when you change block or bellhousing you have to indicate them again.

                • vintage chromoly

                  vintage chromoly Well-Known Member

                  Messages:
                  1,919
                  Likes Received:
                  3397
                  Joined:
                  Nov 13, 2010
                  Location:
                  ohio
                  Local Time:
                  11:11 AM
                  I used the Robbmc offset dowels.
                  They are nice. You can index them to where you need them, and then, lock them down.
                  The one thing I noted, was that one could probably put too much torque on the locking set screw, and maybe foul up the block with a crack. I’m not sure you could put enough ass into one, to crack the block, but I noted to myself, to not use Gorilla strength.

                  • Like Like x 1
                  • 493 Mike

                    493 Mike FBBO Gold Member FBBO Gold Member

                    Messages:
                    2,922
                    Likes Received:
                    3143
                    Joined:
                    Dec 25, 2011
                    Location:
                    White Cloud, MI
                    Local Time:
                    12:11 PM
                    And, remember, the dowels are for alignment. The bolts do the work of fastening/clamping the bell to the block.
                    Mike

                    • Agree Agree x 1
                    • Jeremiah

                      Jeremiah FBBO Gold Member FBBO Gold Member

                      Messages:
                      1,228
                      Likes Received:
                      397
                      Joined:
                      Feb 7, 2012
                      Location:
                      Rogue River, OR
                      Local Time:
                      9:11 AM
                      Damn...5? Is there a minimum word count?

                    • Jeremiah

                      Jeremiah FBBO Gold Member FBBO Gold Member

                      Messages:
                      1,228
                      Likes Received:
                      397
                      Joined:
                      Feb 7, 2012
                      Location:
                      Rogue River, OR
                      Local Time:
                      9:11 AM
                      1) they are readily available in 2021
                      2) you don't need a dowel puller to remove then
                      3) they are the correct size (not .500)
                      4) they are easily indexed
                      5) they are guaranteed to be made in the USA

                      : D

                      • Like Like x 2
                      • Stanton

                        Stanton Well-Known Member

                        Messages:
                        2,692
                        Likes Received:
                        2545
                        Joined:
                        Aug 8, 2012
                        Location:
                        ON
                        Local Time:
                        12:11 PM
                        This is the only valid benefit over Mopar pieces.
