Caliper rubbing rotor

Demonic

Well-Known Member
Local time
7:37 PM
Joined
Jun 5, 2017
Messages
1,622
Reaction score
1,422
Location
Maryland
If bending the top tabs does not work, I would suspect mis-matched parts.


pnora

FBBO Gold Member
FBBO Gold Member
Local time
7:37 PM
Joined
Apr 21, 2020
Messages
2,296
Reaction score
2,471
Location
Ishpeming, Mi.
This is from the factory service manual. Anyone doing brake work should know this. The pad should fit tight with zero movement.

(1) Slide new outboard shoe and lining assembly in
recess of caliper. CAUTION: No free play between
brake shoe flanges and caliper fingers (Fig. 10)
should exist (which might cause brake shoe rattle). If
free play is evident by vertical shoe movement after
installation, remove shoe from caliper and bend
flanges (Fig. 11) to create slight interference fit to
eliminate all vertical free play when shoe is installed.
Install shoe after above modification, if necessary, by
snapping shoe into place with fingers or with light
"C" clamp, protect new lining from damage or contamination
by using old pads over new lining and
across caliper fingers (Fig. 12).


aussiewannabee69

Well-Known Member
Local time
7:37 AM
Joined
Dec 26, 2016
Messages
314
Reaction score
127
Location
Australia

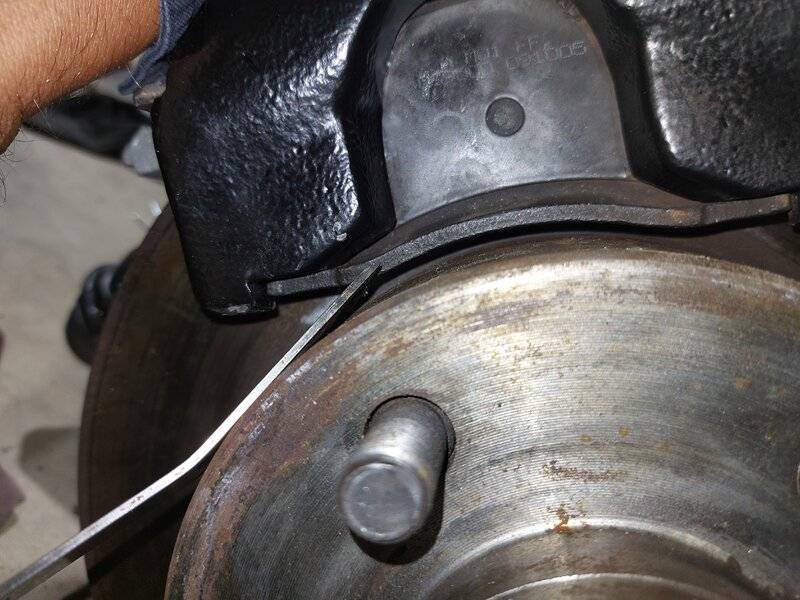

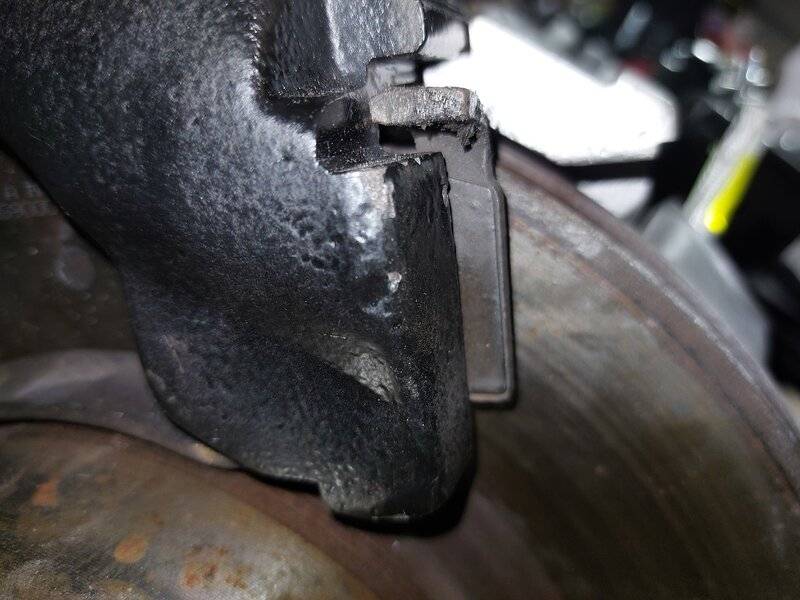

Its the pad its to loose and dropping down. Bend the tabs and it will pull the pad up. The fix is plain as day. Blow the picture up. The green circles show how much of a gap there is. That end the pad is shown sitting higher. The tab still needs to be bent to keep the pad up. The opposite end the tab is hitting but the pad is hanging down. That is allowing the pad to rub the rotor. I always bend the tabs so the pad needs to be lightly tapped into the caliper for proper seating. Both people have the same problem. Parts are correct. I could have both fixed in less time than it took me to type this. Blow up the pictures and you can clearly see the problems.
Yes this was the problem. I wasn't aware that the tabs had to be bent. You can see how much gap I have if the tab is bent correctly. Awesome. Thanks very much.

20211229_051659.jpg 20211229_051731.jpg


MIKESPOLARA

Well-Known Member
Local time
4:37 PM
Joined
Jun 16, 2021
Messages
706
Reaction score
732
Location
CALIF
Glad it worked out for you. Simple fix.


Loose pad also causes noisy brakes. The squeal you hear at times is the metal back of the pad rubbing against the caliper body.
Chevy disc brakes from the 60's/70's have the same style "fingers" that need to be bent down for a snug pad fitment


aussiewannabee69

Well-Known Member
Local time
7:37 AM
Joined
Dec 26, 2016
Messages
314
Reaction score
127
Location
Australia
MoparLeo has a good eye. I am not an expert on this, but there is a common brake conversion done on these cars to convert to 1973+ brake rotors, 73+ A-body spindles. Some of the conversions are done using Cordoba rotors and caliper brackets. "Maybe" the previous owner started to do one of those conversions and got mixed up on exactly which parts to use? Or they simply got the wrong parts and put them on?

As I mentioned, I'm not an expert on this, but I did one of those swaps on my 1970 car and your rotors kinda look like my 73+ rotors. So....maybe check for any numbers you can find on the calipers, rotors, caliper brackets and spindles and let us know. (larger pictures would help too). There are many number experts on here that can figure this out for you. Maybe also check the other side and see which parts are different?

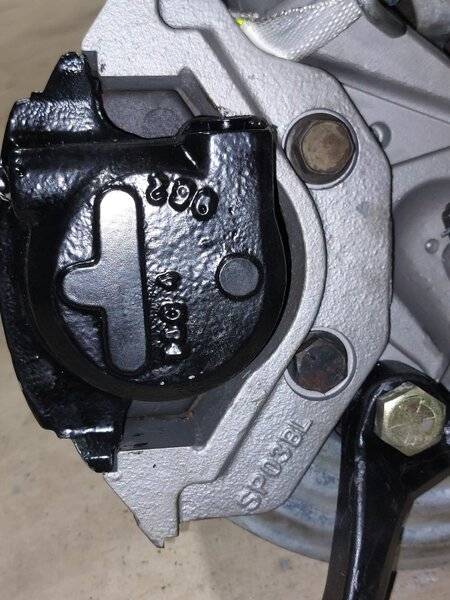

Seems like all the parts are on the correct side. The caliper mount are SPL03L on the left. And r on the right.



MoparLeo

NRA BENEFACTOR LEVEL LIFE MEMBER
FBBO Gold Member
Local time
4:37 PM
Joined
Nov 24, 2015
Messages
1,913
Reaction score
1,787
Location
Moreno Valley, So California
The bracket does not indicate front or rear mount only left or right. It could be mounted to the front or rear and still be the left side.
The factory mounted the calipers to the front side of the knuckle/spindle. They can be relocated to the rear if needed for sway bar clearance on some years. A different brake hose is required when you change the mount location as the length will be different.
