Can someone help me with some measurements? (68 Charger)

Exterior Body, Paint, Trim, Chrome

  1. RT68440

    RT68440 Well-Known Member

    Messages:
    397
    Likes Received:
    411
    Joined:
    Mar 8, 2016
    Location:
    Akron, Ohio
    Local Time:
    2:17 PM
    Hey guys, I installed new floor pans on my 68 Charger and I need to know the locations of a couple of things. First off, I need a measurement for the location of the speedometer cable bracket. The second thing that I need is the location of the holes for the gas pedal mounting studs. My original floor was rusted and hacked up in this area so I could not make reference marks on the new pans. Thanks!

  2. CHARGERSTEVEN

    CHARGERSTEVEN Well-Known Member

    Messages:
    964
    Likes Received:
    527
    Joined:
    Feb 19, 2013
    Location:
    ontario
    Local Time:
    1:17 PM
    These holes are in the firewall not the floor pan?

  3. RT68440

    RT68440 Well-Known Member

    Messages:
    397
    Likes Received:
    411
    Joined:
    Mar 8, 2016
    Location:
    Akron, Ohio
    Local Time:
    2:17 PM
    The studs that are on the bottom of the gas pedal pad go through the floor pan. They are in the same general vicinity of the bracket for the speedometer cable.

  4. CHARGERSTEVEN

    CHARGERSTEVEN Well-Known Member

    Messages:
    964
    Likes Received:
    527
    Joined:
    Feb 19, 2013
    Location:
    ontario
    Local Time:
    1:17 PM

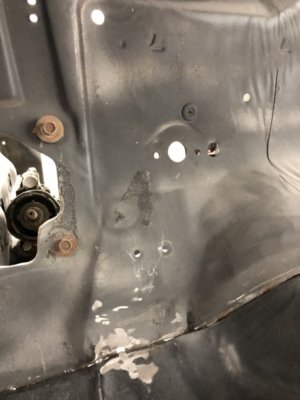

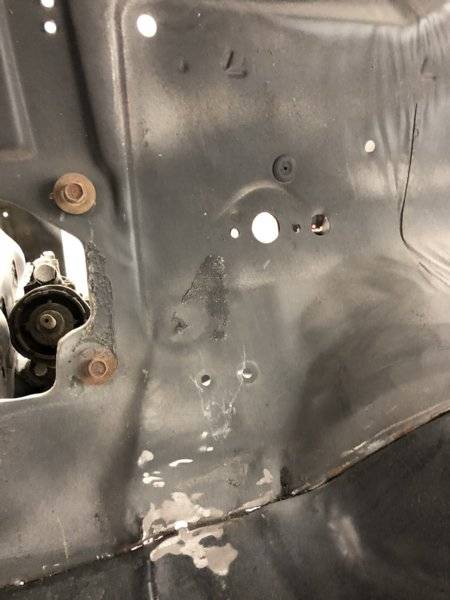

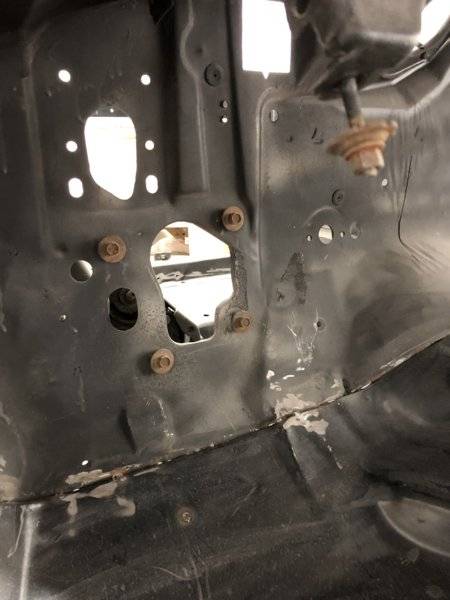

    Heres a couple pics I hope this helps,these are from a 69

    IMG_0796.JPG IMG_0795.JPG

  5. dadsbee

    dadsbee FBBO Gold Member FBBO Gold Member

    Messages:
    8,954
    Likes Received:
    21058
    Joined:
    Jan 29, 2018
    Location:
    Ontario, Canada
    Local Time:
    2:17 PM

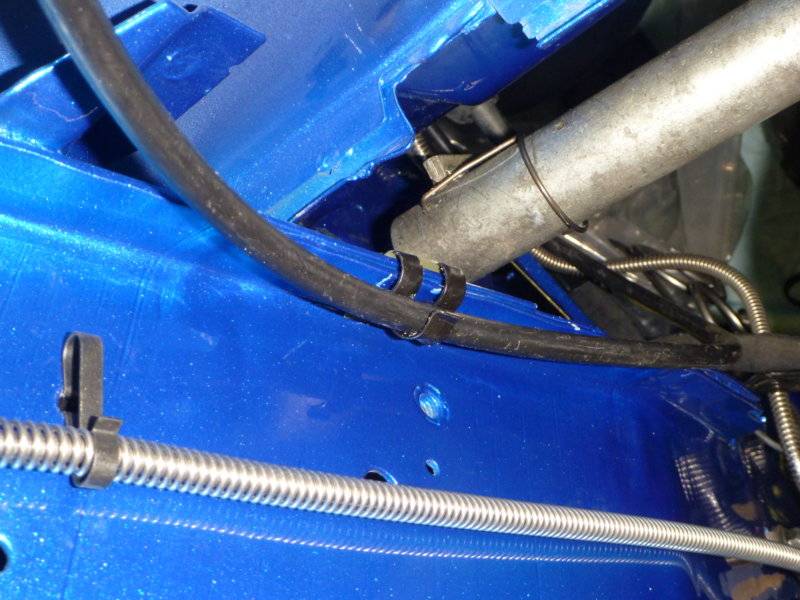

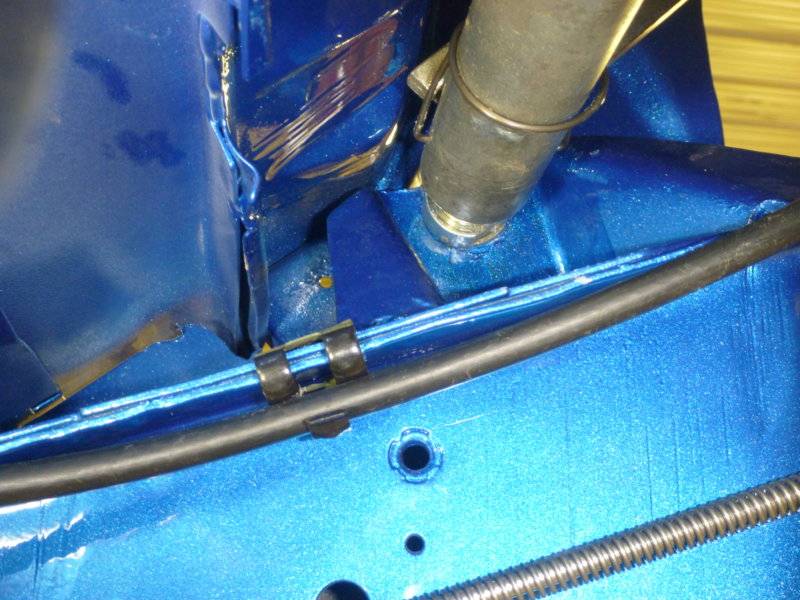

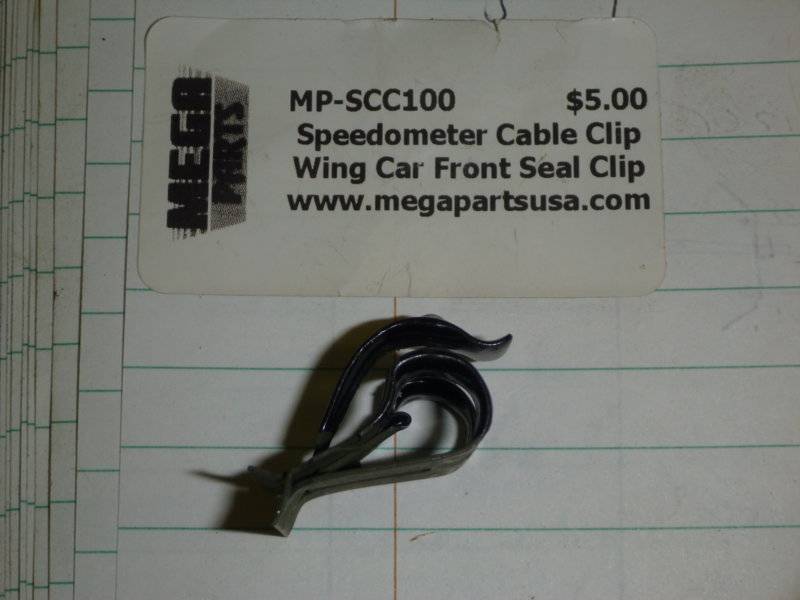

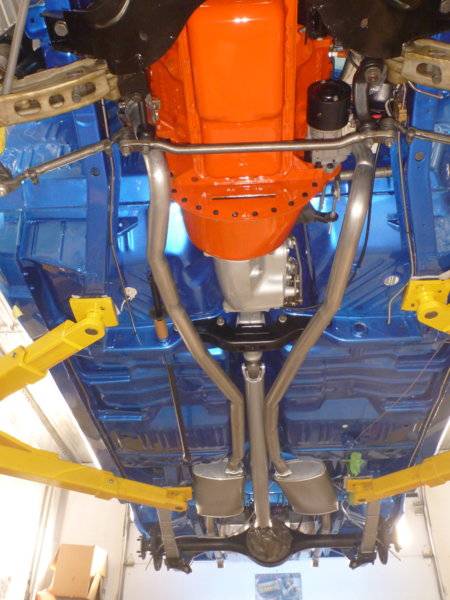

    I have a picture with measurements somewhere for the speedo cable holder, but can't find it. This one will get you close enough, you can see it beside the exhaust pipe! Also don't forget / be aware that there was also a clip on the frame rail ! There are also pedal bolt measurements in a restoration thread here somewhere.. wanna say The Rebels, posted by @moparnation74
    beerestoration2018 526.JPG beerestoration2018 545.JPG beerestoration2018 547.JPG beerestoration2018 549.JPG

    • Like Like x 2
    • Thanks! Thanks! x 1
    • Ironbuilt

      Ironbuilt FBBO Gold Member FBBO Gold Member

      Messages:
      15,471
      Likes Received:
      33252
      Joined:
      Jul 1, 2017
      Location:
      North Carolina
      Local Time:
      2:17 PM
      Looking at pictures of your restoration are an inspiration!!! Between you and Justin...DAMN!!!

      • Thanks! Thanks! x 1
      • Agree Agree x 1
      • dadsbee

        dadsbee FBBO Gold Member FBBO Gold Member

        Messages:
        8,954
        Likes Received:
        21058
        Joined:
        Jan 29, 2018
        Location:
        Ontario, Canada
        Local Time:
        2:17 PM
        It's come a LONG way since it's intended "scuff and paint" ! :realcrazy:

        • Like Like x 1
        • roadrunner69440

          roadrunner69440 Well-Known Member

          Messages:
          466
          Likes Received:
          452
          Joined:
          Jul 14, 2014
          Location:
          Pa
          Local Time:
          2:17 PM
          looks nice. Do you have a thread for this car?

        • moparnation74

          moparnation74 Well-Known Member

          Messages:
          10,506
          Likes Received:
          18000
          Joined:
          Mar 27, 2014
          Location:
          OHIO
          Local Time:
          1:17 PM
          I don’t recall that thread but you may be right Wayne....

          I have those pics on my laptop and will try to post tonight....

          • Like Like x 1
          • mopar4don

            mopar4don Well-Known Member

            Messages:
            897
            Likes Received:
            800
            Joined:
            Feb 4, 2012
            Location:
            Michigan
            Local Time:
            2:17 PM
            It sure would be nice if there was a book that would list all the hardware needed to restore a b-body!
            Maybe one of Dave Wise's books?

          • moparnation74

            moparnation74 Well-Known Member

            Messages:
            10,506
            Likes Received:
            18000
            Joined:
            Mar 27, 2014
            Location:
            OHIO
            Local Time:
            1:17 PM
            I spent a lot of time showing and comparing hardware in my build thread....DW book shows a fair amount as well....thing is there is no money for anyone to get book together...

            Just think how many people actually would spend the money for DW books? IMHO it is money well spent no matter what type of build people are doing. They are not 100% correct but there is a plethora of good information in his books........

            • Agree Agree x 2
            • RT68440

              RT68440 Well-Known Member

              Messages:
              397
              Likes Received:
              411
              Joined:
              Mar 8, 2016
              Location:
              Akron, Ohio
              Local Time:
              2:17 PM
              Thanks for the replies guys. I know that the holes are right next to the cable bracket but I'm unsure of the measurement. I even have a picture that I saved of a car on the rotisserie with that area in the pic, but I have no measurement. I may be able to reference the ribs in the floor pan and come up with a measurement that way

            • moparnation74

              moparnation74 Well-Known Member

              Messages:
              10,506
              Likes Received:
              18000
              Joined:
              Mar 27, 2014
              Location:
              OHIO
              Local Time:
              1:17 PM
              I have pics with measurements but I can’t access them now. They are on my laptop at home......

              Those same pics are on a thread here I posted for another member. I just can’t recall which one....

              Have you tried to search for that thread here?

            • RT68440

              RT68440 Well-Known Member

              Messages:
              397
              Likes Received:
              411
              Joined:
              Mar 8, 2016
              Location:
              Akron, Ohio
              Local Time:
              2:17 PM
              I have not, but now that I know there is a thread with the measurements I will search for it. Thanks Justin

              Chris

            • dadsbee

              dadsbee FBBO Gold Member FBBO Gold Member

              Messages:
              8,954
              Likes Received:
              21058
              Joined:
              Jan 29, 2018
              Location:
              Ontario, Canada
              Local Time:
              2:17 PM
              I'm still amazed, after a year plus of being here, as to how many don't use the "new posts" to browse here or browse through the members restorations section for ideas. It was the first thing I did after joining and what I do on any forum using the "new posts" icon with each visit, then you miss nothing! Of course you never get off the computer.. but.. :popcorn:

              https://www.forbbodiesonly.com/moparforum/threads/1969-dodge-super-bee-coupe-restoration.145777/

              ..but the first 35 pages start here.... so grab a beer first !

              http://www.dodgecharger.com/forum/index.php/topic,121731.0.html

            • roadrunner69440

              roadrunner69440 Well-Known Member

              Messages:
              466
              Likes Received:
              452
              Joined:
              Jul 14, 2014
              Location:
              Pa
              Local Time:
              2:17 PM
              Sorry for the inconvenience,but thanks

            • dadsbee

              dadsbee FBBO Gold Member FBBO Gold Member

              Messages:
              8,954
              Likes Received:
              21058
              Joined:
              Jan 29, 2018
              Location:
              Ontario, Canada
              Local Time:
              2:17 PM
              No inconvenience RR69440... maybe I typed it wrong, I'm just amazed how many don't see the entire forum.

            • roadrunner69440

              roadrunner69440 Well-Known Member

              Messages:
              466
              Likes Received:
              452
              Joined:
              Jul 14, 2014
              Location:
              Pa
              Local Time:
              2:17 PM
              No worries lol. Personally I am self described as a little ADD and all the stuff in this site, I could look at it 8 hrs a day for a year and still not see it all or keep up lmao

              • Like Like x 1
              • moparnation74

                moparnation74 Well-Known Member

                Messages:
                10,506
                Likes Received:
                18000
                Joined:
                Mar 27, 2014
                Location:
                OHIO
                Local Time:
                1:17 PM
                But you didn’t find the thread yet?:D

              • dadsbee

                dadsbee FBBO Gold Member FBBO Gold Member

                Messages:
                8,954
                Likes Received:
                21058
                Joined:
                Jan 29, 2018
                Location:
                Ontario, Canada
                Local Time:
                2:17 PM
                LOL, I wasn't looking for it! I was looking for my speedo location picture with dimensions! Guess if I went out to the shop I could just take a picture of my printed out picture I gave my metal man.. if it's still there. Same deal with your gas pedal location pics... lol
