Can someone please tell me how to install the rocker panel moldings?

1968 -1970 Mopars

  1. themechanic

    themechanic Oklahoma is OK FBBO Gold Member

    Messages:
    7,773
    Likes Received:
    8192
    Joined:
    Nov 11, 2012
    Location:
    Moore, Oklahoma
    Local Time:
    1:09 AM
    I have the old clips still on the car (see photo) and bought a new set since some were missing. The top and bottom of the clips are right up against the body. So, it looks like I need to slide something thin behind the top and bottom of the clips one at a time to get them to clip into the aluminum molding.


  2. zyzzyx

    zyzzyx FBBO Gold Member FBBO Gold Member

    Messages:
    1,096
    Likes Received:
    1026
    Joined:
    Aug 5, 2011
    Location:
    Lisle, Illinois
    Local Time:
    1:09 AM
    Well, If ya feel lucky, when the cars were new and rocker moldings were $25.00 for the pair
    we put them over the clips and made sure they were lined up. Use your flat palm and tap it on all
    the way down! Dat's it! Now, if the new moldings are made of thinner, less stiff material, then you
    may have a slight problem. But, That's the way it's done. Be Careful!

    • Thanks! Thanks! x 1
    • themechanic

      themechanic Oklahoma is OK FBBO Gold Member

      Messages:
      7,773
      Likes Received:
      8192
      Joined:
      Nov 11, 2012
      Location:
      Moore, Oklahoma
      Local Time:
      1:09 AM
      That would work fine but the problem is the tiny part on the top and bottom that locks into the molding is flush against the rocker panel. If it were sticking out a bit your method would certainly work just fine.

    • zyzzyx

      zyzzyx FBBO Gold Member FBBO Gold Member

      Messages:
      1,096
      Likes Received:
      1026
      Joined:
      Aug 5, 2011
      Location:
      Lisle, Illinois
      Local Time:
      1:09 AM
      Once the molding lip gets past "center", it will click on. Oh, and I forgot to say,
      put one complete side on the clip right up against the rocker panel first, then
      you only have to work on one side. It takes two people. It's all coming back to
      me now! (I Hope!) I've read a lot of posts that say that the new clips don't hold
      onto the moldings like the stock ones, so use as many of the old ones that you
      can.

      • Thanks! Thanks! x 1
      • Andew Sury

        Andew Sury FBBO Gold Member FBBO Gold Member

        Messages:
        216
        Likes Received:
        443
        Joined:
        Apr 18, 2019
        Location:
        West Palm Beach
        Local Time:
        2:09 AM
        I dis a set of repops on a 69 a few years ago. First, the repops suck. Thin.
        I took a thin wedge trim remover tool and put two thin pieces of cardboard under the bottom of the clips to male them stick out a hair. Leave a few inches on the bottom so I could get them out. Have an extra set of eyes and hands. Put the trim on the bottom of the clips, pull up, and with as gentle pressure snap them over the top. When your done, just pull the cardboard out the bottom.

        Patience, grasshopper. Patience makes it work.

        • Like Like x 1
        • Thanks! Thanks! x 1
        • Agree Agree x 1
        • moparnation74

          moparnation74 FBBO Gold Member FBBO Gold Member

          Messages:
          10,230
          Likes Received:
          17247
          Joined:
          Mar 27, 2014
          Location:
          OHIO
          Local Time:
          1:09 AM
          The post above explains it well...it is no easy task and something one would think would take ten minutes can take hours and stressful.....

          I went through the similar hassle with the side molding on my X.......

          • Thanks! Thanks! x 1
          • brad 66

            brad 66 Well-Known Member

            Messages:
            252
            Likes Received:
            221
            Joined:
            Mar 24, 2016
            Location:
            london ontario
            Local Time:
            1:09 AM
            on my 66 i cut up a milk jug and put little pieces of plastic under the clips

            • Like Like x 1
            • Thanks! Thanks! x 1
            • themechanic

              themechanic Oklahoma is OK FBBO Gold Member

              Messages:
              7,773
              Likes Received:
              8192
              Joined:
              Nov 11, 2012
              Location:
              Moore, Oklahoma
              Local Time:
              1:09 AM
              Thanks for the input, guys. I'll get some help and try the cardboard/plastic trick.

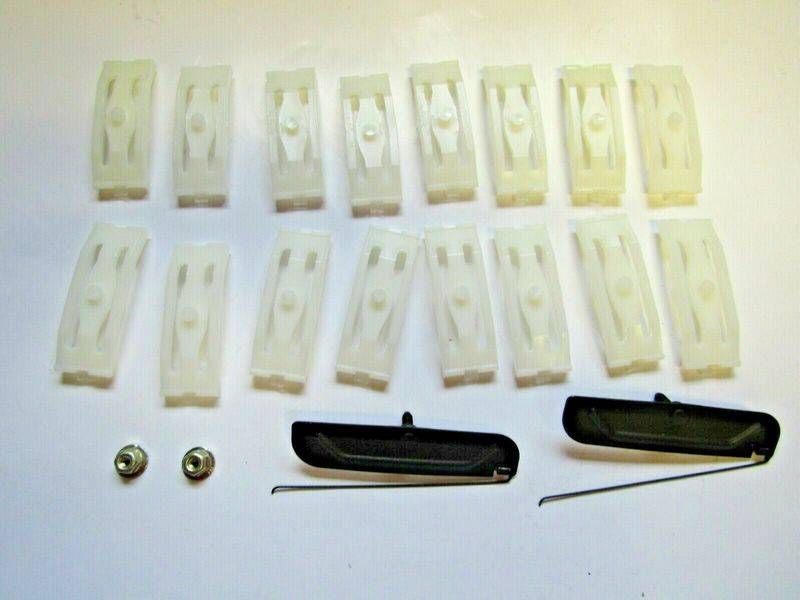

              BTW, these have a bolt at the front on each side. I assume that goes on first to hold the molding on until the clips get seated.



              Last edited: Oct 28, 2019
            • themechanic

              themechanic Oklahoma is OK FBBO Gold Member

              Messages:
              7,773
              Likes Received:
              8192
              Joined:
              Nov 11, 2012
              Location:
              Moore, Oklahoma
              Local Time:
              1:09 AM

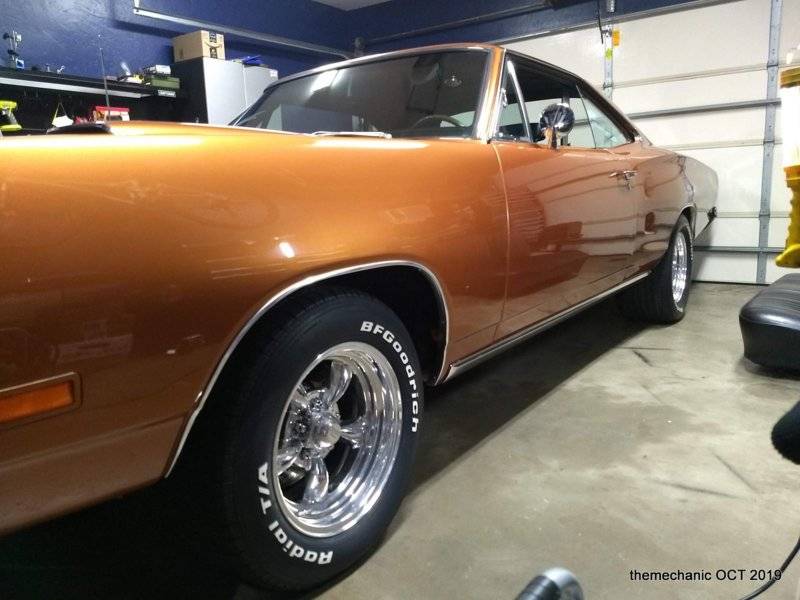

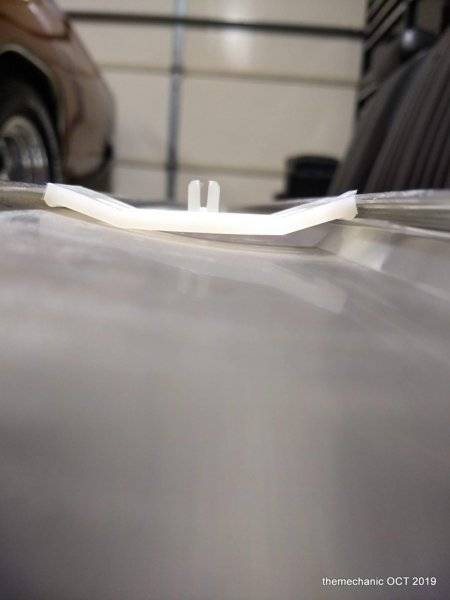

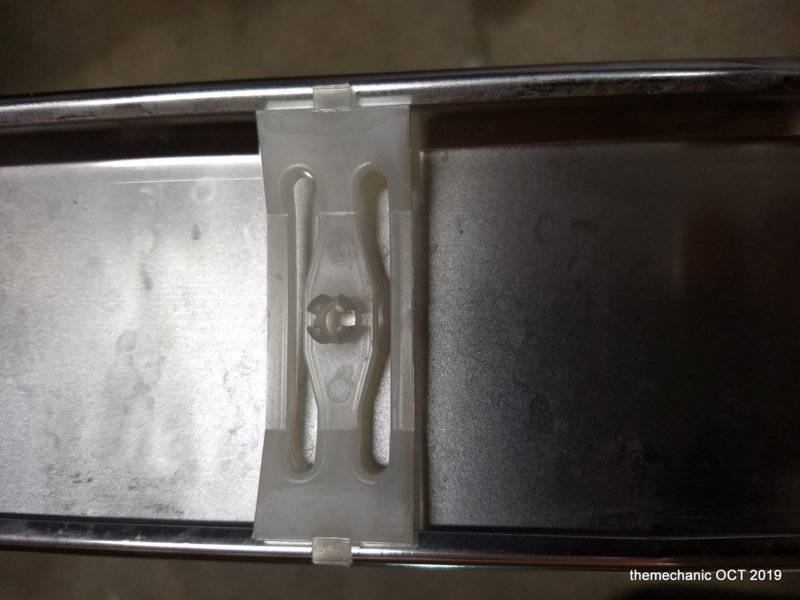

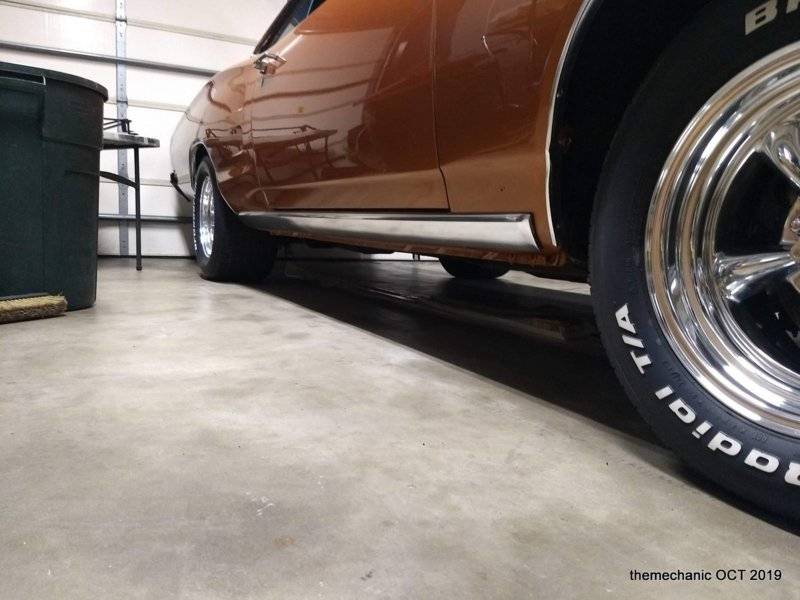

              Well, I could not determine how the black clips with the nuts go on so I just used an extra white clip. Apparently, I was overthinking it a bit. The thin tabs on the top and bottom I was concerned about clicking in don't actually hold anything. They are there to protect the paint and barely show, if at all, after the molding snaps into place. I got both sides on in about 30 minutes taking my time and taping things off, working by myself. I just started at the front, attached the bottom to the clip then smacked the top of the molding onto the top of the clip with my palm. I then went right down the line like that with the rest.

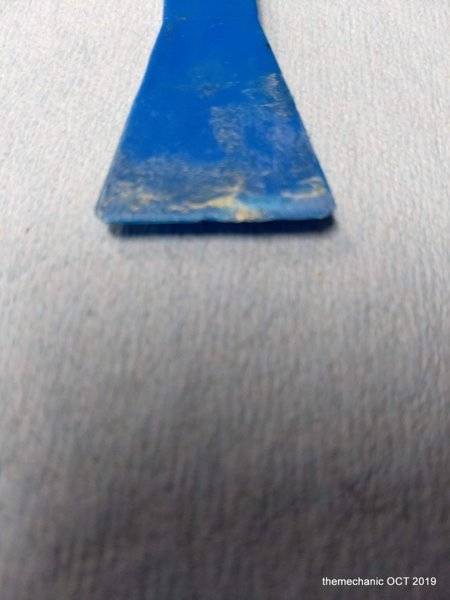

              I had a few that were stubborn and needed help snapping all the way in. So, I used a small plastic trim tool and pried behind the part of the clip that was not cooperating then gave the molding another smack with the hand and Bob's your uncle.

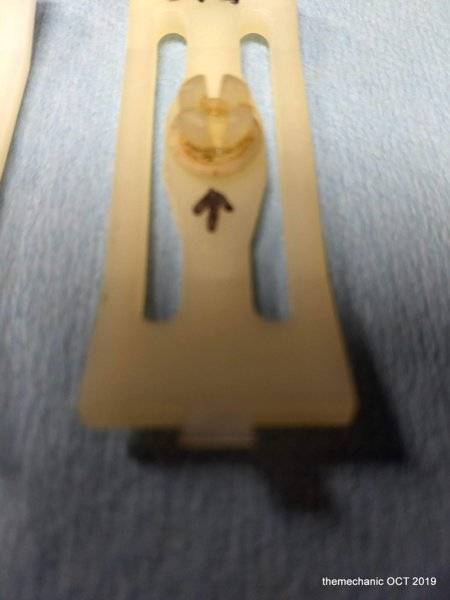

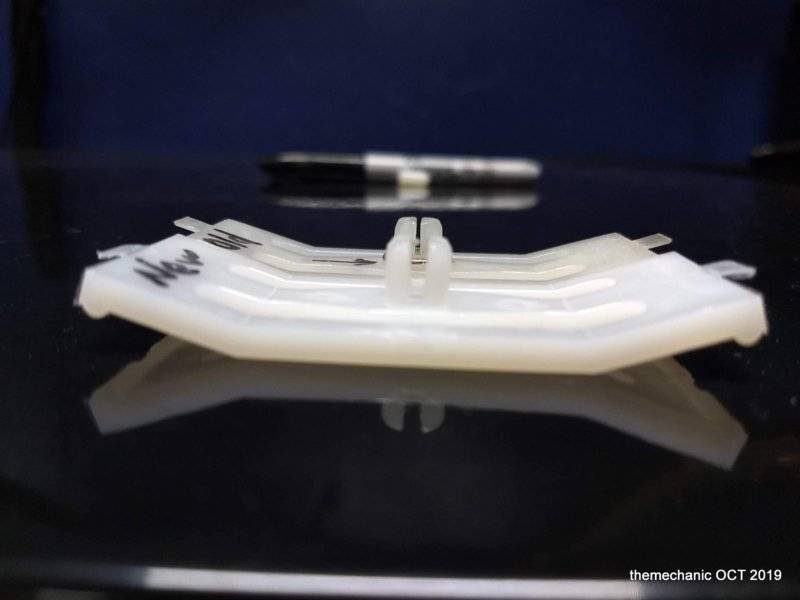

              The "old clips" that were on there when I bought the car were older repops and not original. However, they are different than the set I bought. The photos show a small rubber O-ring on the "old clips" and none on the newest ones.

              Thanks for all the suggestions.

              IMG_20191029_144154055.jpg IMG_20191029_144229654.jpg IMG_20191029_144558631.jpg IMG_20191029_144616009.jpg IMG_20191029_145054233.jpg IMG_20191029_145115425.jpg IMG_20191029_145214970.jpg IMG_20191029_150453471_BURST000_COVER_TOP.jpg IMG_20191029_150814453.jpg IMG_20191029_151028142.jpg

              • Like Like x 1
              • themechanic

                themechanic Oklahoma is OK FBBO Gold Member

                Messages:
                7,773
                Likes Received:
                8192
                Joined:
                Nov 11, 2012
                Location:
                Moore, Oklahoma
                Local Time:
                1:09 AM

                • Like Like x 3
                • Kevin Bisgrove

                  Kevin Bisgrove Well-Known Member

                  Messages:
                  52
                  Likes Received:
                  6
                  Joined:
                  Sep 22, 2018
                  Location:
                  Victoria, BC
                  Local Time:
                  11:09 PM
                  So how do they best come off the car in the first place?

                • themechanic

                  themechanic Oklahoma is OK FBBO Gold Member

                  Messages:
                  7,773
                  Likes Received:
                  8192
                  Joined:
                  Nov 11, 2012
                  Location:
                  Moore, Oklahoma
                  Local Time:
                  1:09 AM
                  Very carefully. Seriously, it's been over 2 years and (IIRC) I think I just pried them off with a plastic trim tool.
