Charlie’s oil pan capacity

Racers Hangout

  1. Dartari

    Dartari Well-Known Member

    Messages:
    88
    Likes Received:
    61
    Joined:
    Nov 18, 2012
    Location:
    New Jersey
    Local Time:
    3:50 AM

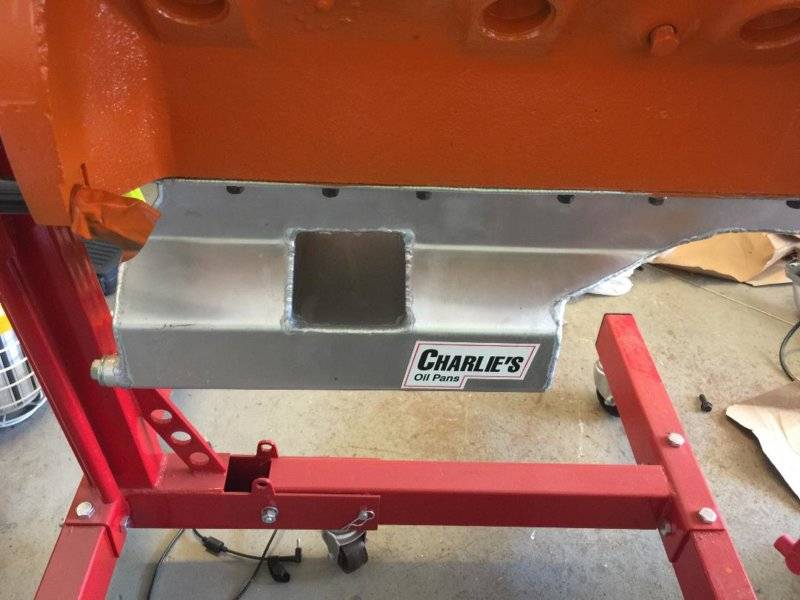

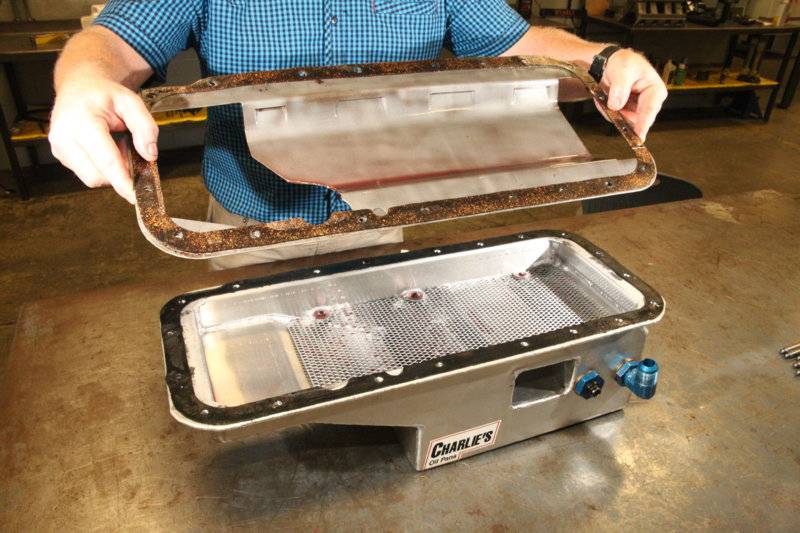

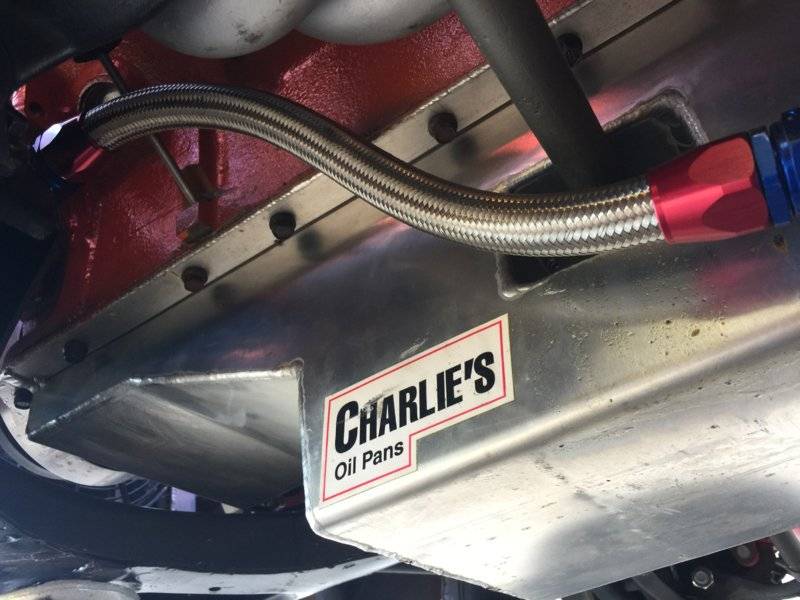

    3BC12E71-870B-4E5E-8E16-9F8392C6FB94.jpeg 2552C198-AA07-49DF-84B2-6832EB21F049.jpeg Happy New year to all I’m hoping someone knows the capacity of this particular Charlie’s oil pan thanks

    • Thanks! Thanks! x 1
    • AndersonTommy

      AndersonTommy Well-Known Member

      Messages:
      198
      Likes Received:
      141
      Joined:
      Jun 18, 2019
      Location:
      New York
      Local Time:
      3:50 AM
      I got the same oil pans.
      3 of them to be exact

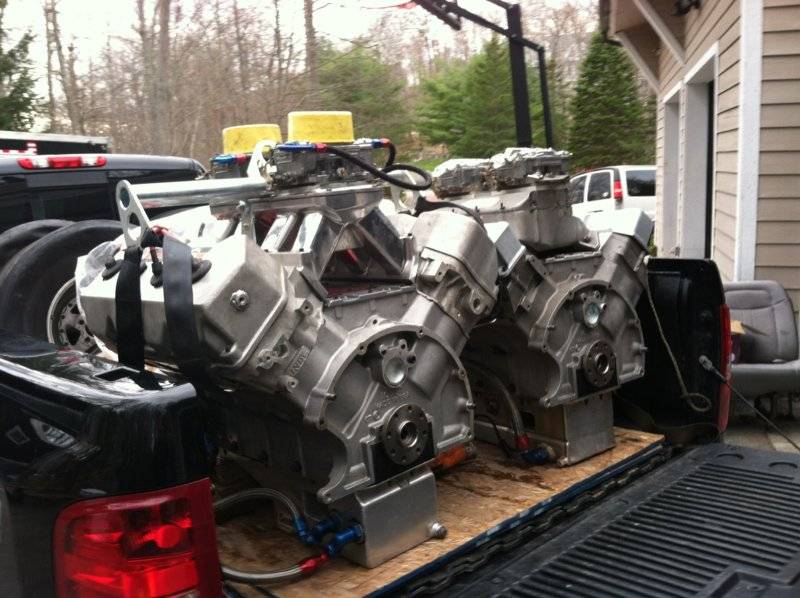

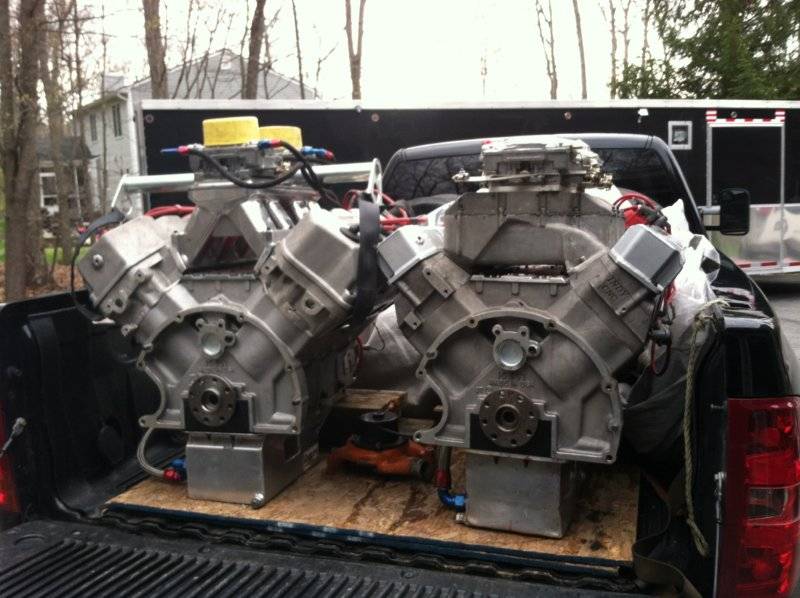

      IMG_0942.JPG IMG_0941.JPG

    • Dartari

      Dartari Well-Known Member

      Messages:
      88
      Likes Received:
      61
      Joined:
      Nov 18, 2012
      Location:
      New Jersey
      Local Time:
      3:50 AM
      Yours is slightly different mine has a side kick out

    • AndersonTommy

      AndersonTommy Well-Known Member

      Messages:
      198
      Likes Received:
      141
      Joined:
      Jun 18, 2019
      Location:
      New York
      Local Time:
      3:50 AM
      Yours is 10 quart.
      You can run as little as 9 quarts with no issues

    • Dartari

      Dartari Well-Known Member

      Messages:
      88
      Likes Received:
      61
      Joined:
      Nov 18, 2012
      Location:
      New Jersey
      Local Time:
      3:50 AM
      Thanks

    • 68 HEMI GTS

      68 HEMI GTS Well-Known Member

      Messages:
      1,776
      Likes Received:
      2422
      Joined:
      Oct 12, 2011
      Location:
      michigan
      Local Time:
      3:50 AM
      I run 9-10 in both mine as well.

    • dvw

      dvw Well-Known Member

      Messages:
      4,521
      Likes Received:
      6223
      Joined:
      Feb 16, 2010
      Location:
      waterford mi
      Local Time:
      3:50 AM
      I have the same pan. It has a calibrated dipstick added to the kick out. With a single line Indy pump I run 7 qts (measured in the pan) with zero issue. At 6 1/2 qts I see the pressure gauge drop to 40 on hard shut down.
      Doug

      Last edited: Jan 15, 2020
      • Like Like x 2
      • AndersonTommy

        AndersonTommy Well-Known Member

        Messages:
        198
        Likes Received:
        141
        Joined:
        Jun 18, 2019
        Location:
        New York
        Local Time:
        3:50 AM
        I'm not sure how that would work with 7 quarts especially if its wider at the bottom giving you less oil to cover the swinging pickup. Hard decel will definitely uncover the pickup
        I guess only other option would be to use a 3 quart accusing for added protection.

        • Disagree Disagree x 1
        • Endangered Species

          Endangered Species Well-Known Member

          Messages:
          1,540
          Likes Received:
          901
          Joined:
          Jul 6, 2010
          Location:
          NW Pa.
          Local Time:
          3:50 AM
          Dartari,

          how deep does the pan measure?
          Mine is 6 3/4 inches deep with the same kick out including one in the rear and 9 quarts was the max I would put in it.. you can include a quart for the filter so 10.

          If you can, pull the pan and count how many quarts of water it takes.

        • dvw

          dvw Well-Known Member

          Messages:
          4,521
          Likes Received:
          6223
          Joined:
          Feb 16, 2010
          Location:
          waterford mi
          Local Time:
          3:50 AM

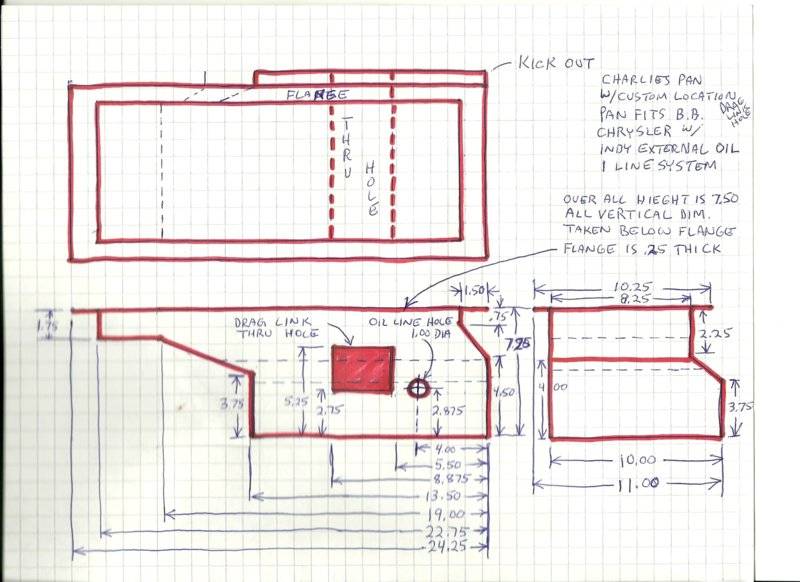

          Pan dimensions. Been running 7 qts. It has never hurt a bearing. 630 passses and counting.
          Doug oilpan design.jpg

          • Like Like x 1
          • stage3

            stage3 Well-Known Member

            Messages:
            437
            Likes Received:
            580
            Joined:
            Mar 3, 2016
            Location:
            california
            Local Time:
            12:50 AM
            the 1 i have came from indy and was advertised as 8qts in my '63,,is yours going in the car in your avatar? they have 1 thats specifically for the 63-65 cars that the drag link hole is farther back that the later pans..i went back and forth with indy when i bought it to be sure it was the right 1. the latter wont fit.

          • Dartari

            Dartari Well-Known Member

            Messages:
            88
            Likes Received:
            61
            Joined:
            Nov 18, 2012
            Location:
            New Jersey
            Local Time:
            3:50 AM
            Yes it’s in my 63 Savoy the engine sits further back than stock on a motor plate


          • actionange1

            actionange1 Well-Known Member

            Messages:
            717
            Likes Received:
            371
            Joined:
            Nov 30, 2010
            Location:
            home
            Local Time:
            3:50 AM
            I've the same Charlie's pan. Been using it for years with a swinging pickup. I use 8 quarts in it without any issues.

          • AndersonTommy

            AndersonTommy Well-Known Member

            Messages:
            198
            Likes Received:
            141
            Joined:
            Jun 18, 2019
            Location:
            New York
            Local Time:
            3:50 AM
            Like I said before. Goodwin recommends 10 quarts in that specific oil pan.
            I've run 8 quarts in mine and mine has a smaller footprint.
            I didnt like my oil pressure going to 0 on decel
            I added 1 quart at 9 and no issues.
            I now run a 3 quart accusump.
            I'm still at 9 quarts.
            Izzy you're not a NHRA racer who's squeezing every once of hp out of your engine.
            Be smart and run 9 quarts to be safe.

          • mopar blood

            mopar blood Well-Known Member

            Messages:
            130
            Likes Received:
            83
            Joined:
            Dec 24, 2014
            Location:
            n.y.
            Local Time:
            2:50 AM
            Dvw, whats a calibrated dipstick? i have the same pan, engine didn't have dipstick.

          • dvw

            dvw Well-Known Member

            Messages:
            4,521
            Likes Received:
            6223
            Joined:
            Feb 16, 2010
            Location:
            waterford mi
            Local Time:
            3:50 AM
            We welded a boss into the kick out area. Then added a factory tube bent to fit. Filled the pan with 6,7,8,9 qts adding one at a time and marked the stick accordingly. With the stock stick location the stick wont even touch the oil level until you have about 8 1/2 qts in the pan. Also the stock stick hits the bottom of the pan. Then it folds across to the passenger side giving a false reading.
            Doug

          • mopar blood

            mopar blood Well-Known Member

            Messages:
            130
            Likes Received:
            83
            Joined:
            Dec 24, 2014
            Location:
            n.y.
            Local Time:
            2:50 AM
            thanks Doug, will have to try that!

          • cudatom

            cudatom Well-Known Member

            Messages:
            148
            Likes Received:
            147
            Joined:
            Sep 11, 2013
            Location:
            Massillon , Oh
            Local Time:
            2:50 AM
            Just sold one of those pans. I ran 8-9 qts.
