Chrysler 8 3/4 Axle bearing and Seal R&R...A How To

Engine, Trans & Driveline

  1. threewood

    threewood FBBO Gold Member FBBO Gold Member

    Messages:
    4,987
    Likes Received:
    6486
    Joined:
    May 30, 2014
    Location:
    Yuma, AZ
    Local Time:
    10:22 PM
    I'm in the process of getting my rear end cleaned up and installing new seals and bearings so I figured I would take some time and document my process. A press is almost a must have and my HF 12 ton has paid for itself and then some. Well worth the money imho.

    1. Here is the old assembly (L and R are same procedure, only difference is the adjuster)

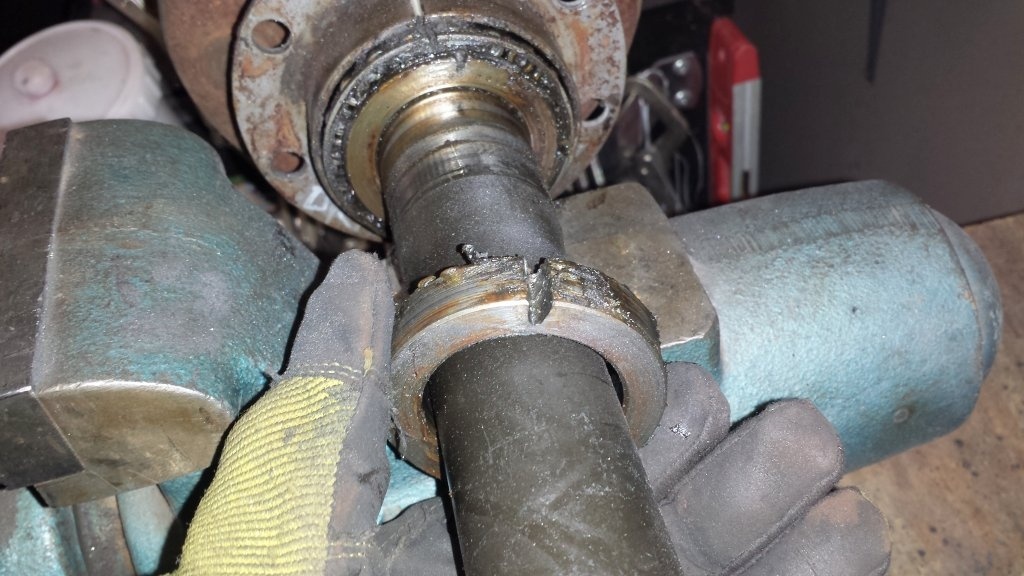

    2. Get a cutoff tool and cut a slit in the collar. You will also cut into the bearing, no biggie as it is being replaced. The collar and bearing have to come off to replace the outer seal.

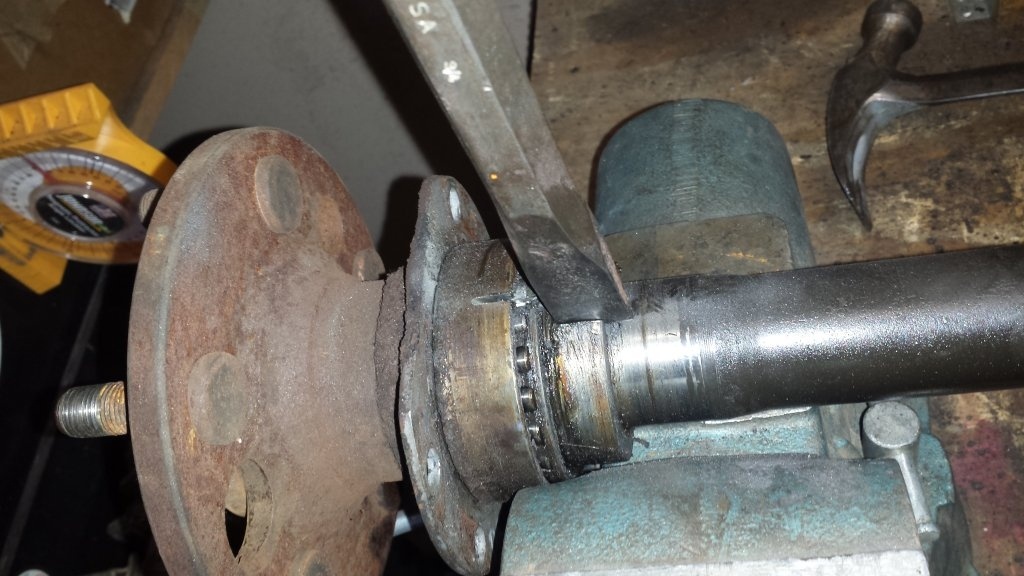

    3. Get a cold chisel, gloves and eye pro and start chiseling into the slit. Obviously use a vise or anvil under it. It doesn't take hulk like hammering. The collar will stretch and slide off. You do not need to cut all the way through.
    20161001_105418.jpg 20161001_105506.jpg

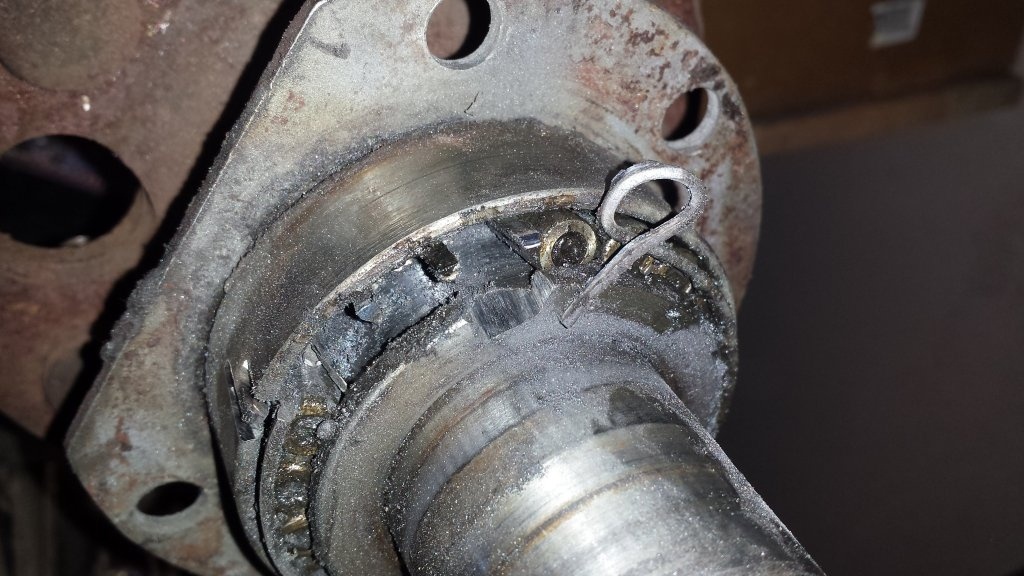

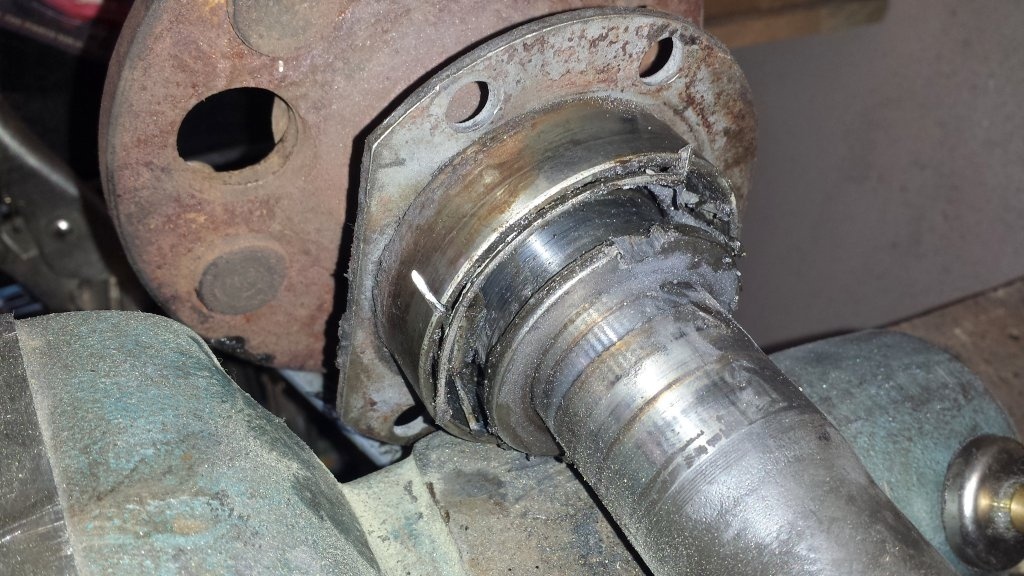

    4. Now, what I do is cut a groove in the bearing shoulder and cut off as much of the cage as I can. With the groove I can pull the bearings out with a magnet. When all the bearings are out I pull out and snip the cage in half and remove.

    20161001_110216.jpg 20161001_110309.jpg 20161001_110412.jpg 20161001_110806.jpg 20161001_110910.jpg 20161001_111011.jpg

    • Like Like x 4
    • Thanks! Thanks! x 4
    • HEMI-ITIS

      HEMI-ITIS STREETER on LI FBBO Gold Member

      Messages:
      12,263
      Likes Received:
      14987
      Joined:
      Dec 14, 2008
      Location:
      Long Island,New York
      Local Time:
      1:22 AM
      You will Have to press on the new ones.

      • Agree Agree x 1
      • threewood

        threewood FBBO Gold Member FBBO Gold Member

        Messages:
        4,987
        Likes Received:
        6486
        Joined:
        May 30, 2014
        Location:
        Yuma, AZ
        Local Time:
        10:22 PM

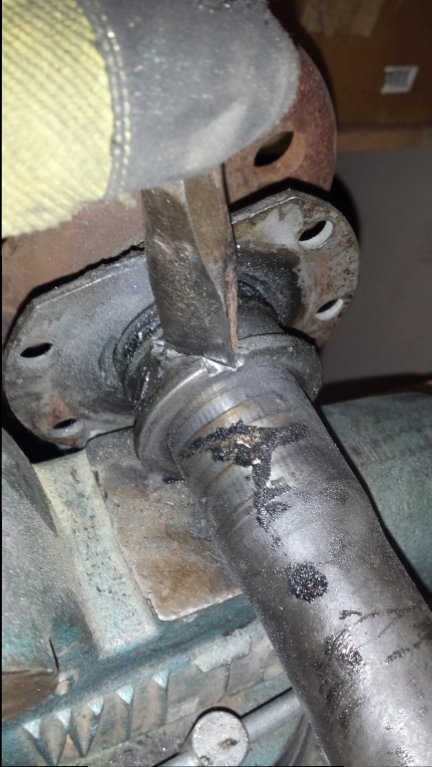

        5. Now we have access to the inner race. Cut a groove in it as well. An angle keeps you from cutting through the retainer. It doesn't need to be super deep. Once it is cut, use the cold chisel and hammer on it until it starts to spin. It is now split. You do not need to wail on this either, just plenty of medium taps will crack it as it is pretty hard steel. Wear eye pro at a minimum.
        20161001_111246.jpg 20161001_111345.jpg

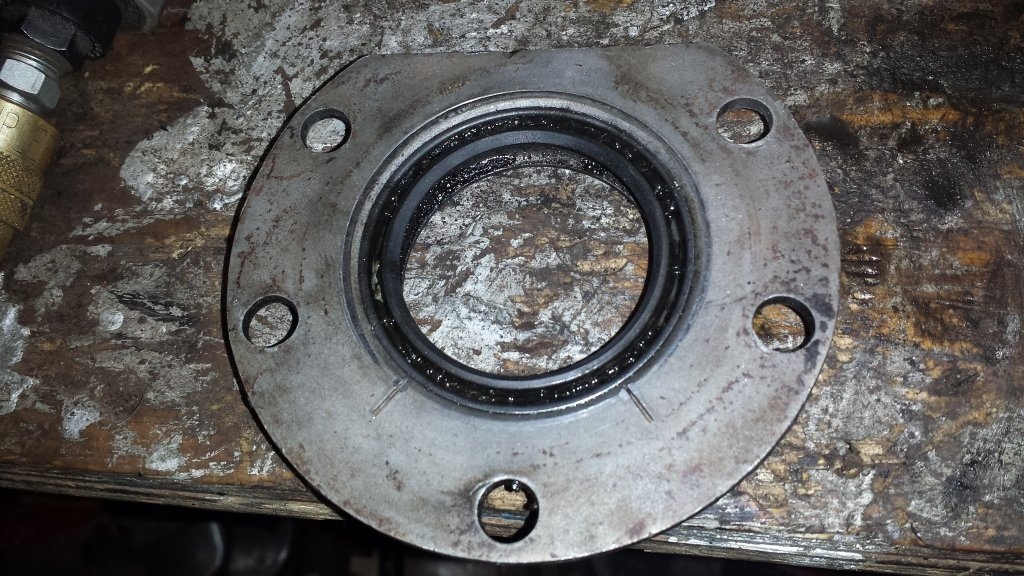

        6. Clean everything up and make sure the seal contact surface is clean and not grooved too bad. You can clean them up with scotchbrite pads or very very fine sandpaper. Replace the outer seal in the retainer. I use a seal tool set from HF which has all the correct sizes.
        20161001_112035.jpg 20161001_112144.jpg 20161001_112943.jpg 20161001_113537.jpg

        7. Now is the perfect time to replace any wheel studs. These are the only leftys left on the car so I am going to swap them over to righty. I press them out with a bronze bushing so they aren't damaged as someone may still have a use for them.
        20161001_113553.jpg 20161001_120038.jpg 20161001_123158.jpg

        • Like Like x 5
        • Thanks! Thanks! x 4
        • threewood

          threewood FBBO Gold Member FBBO Gold Member

          Messages:
          4,987
          Likes Received:
          6486
          Joined:
          May 30, 2014
          Location:
          Yuma, AZ
          Local Time:
          10:22 PM
          Hey man, don't give away the ending! :)

          • Agree Agree x 4
          • threewood

            threewood FBBO Gold Member FBBO Gold Member

            Messages:
            4,987
            Likes Received:
            6486
            Joined:
            May 30, 2014
            Location:
            Yuma, AZ
            Local Time:
            10:22 PM

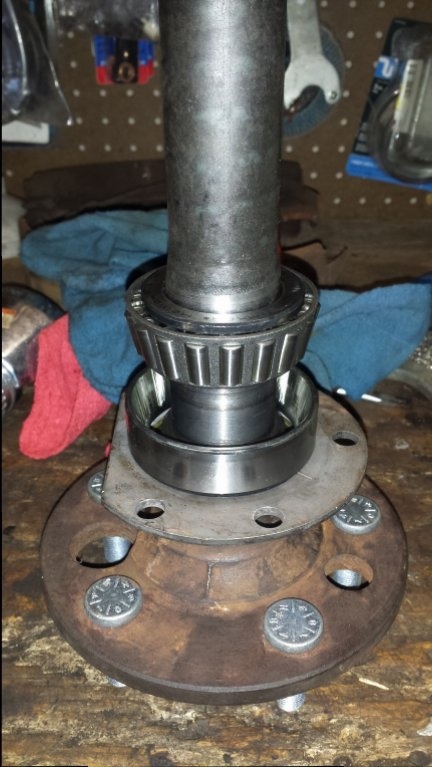

            8. Lets get it back together. Retainer goes on first!!!!!! Don't forget this and make sure it is in the correct orientation. Then we drop the new bearing in place and press it home.
            20161001_123603.jpg 20161001_123710.jpg 20161001_123852.jpg 20161001_123930.jpg

            9. Once the bearing is seated against the shoulder, pull the axle out and drop the collar on the shaft and press it home as well.

            10. All done. I'll probably update this as I get everything else together.

            • Like Like x 5
            • Thanks! Thanks! x 5
            • 69a100

              69a100 Well-Known Member

              Messages:
              9,300
              Likes Received:
              13084
              Joined:
              Aug 22, 2012
              Location:
              The Real World
              Local Time:
              10:22 PM
              Nice write up! To bad people can't wait till the end before they make comments.

            • SgtLee511

              SgtLee511 Well-Known Member

              Messages:
              438
              Likes Received:
              239
              Joined:
              Jun 14, 2014
              Location:
              NE TEXAS
              Local Time:
              12:22 AM
              It was very informative, I liked it, I had to figure that out all by my self last month, you don't get that in a service manual, Ma Mopar didn't give you many pics either. Great compilation.

              • Agree Agree x 1
              • 69b3rt

                69b3rt Well-Known Member

                Messages:
                503
                Likes Received:
                453
                Joined:
                Oct 28, 2015
                Location:
                Fargo, ND
                Local Time:
                12:22 AM
                Please let us know your procedure for packing the bearings with grease also.

                • Agree Agree x 1
                • HEMI-ITIS

                  HEMI-ITIS STREETER on LI FBBO Gold Member

                  Messages:
                  12,263
                  Likes Received:
                  14987
                  Joined:
                  Dec 14, 2008
                  Location:
                  Long Island,New York
                  Local Time:
                  1:22 AM
                  Why didn't you "press" off the old one??

                  • Agree Agree x 2
                  • threewood

                    threewood FBBO Gold Member FBBO Gold Member

                    Messages:
                    4,987
                    Likes Received:
                    6486
                    Joined:
                    May 30, 2014
                    Location:
                    Yuma, AZ
                    Local Time:
                    10:22 PM
                    Could have packed them with a grease cone before install but didn't think of it. I have a grease needle that works well to fill all the cavities. Just squeeze it in one end till it comes out the other.

                  • threewood

                    threewood FBBO Gold Member FBBO Gold Member

                    Messages:
                    4,987
                    Likes Received:
                    6486
                    Joined:
                    May 30, 2014
                    Location:
                    Yuma, AZ
                    Local Time:
                    10:22 PM
                    If you look in the service manual, it requires a specialized tool I don't have and isn't necessary when using the cut and split technique. There is little to no room to get anything behind the bearing to press or pull and they are on there tight.

                    • Like Like x 2
                    • Thanks! Thanks! x 1
                    • Agree Agree x 1
                    • khryslerkid

                      khryslerkid FBBO Gold Member FBBO Gold Member

                      Messages:
                      24,220
                      Likes Received:
                      37894
                      Joined:
                      Mar 10, 2010
                      Location:
                      Hanover, Pennslyvania
                      Local Time:
                      1:22 AM
                      Threewood, what axle housing do you have in your '62 or isn't that from that car?

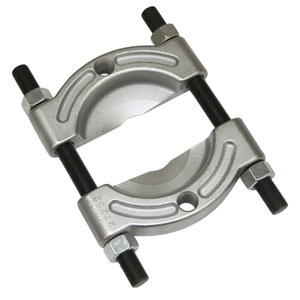

                      One of these can work in a press for bearing removal. You still have to be careful not to damage the retainer plate.
