Correct dimensions for a max wedge scoop?

[Montclaire]

What are the right dimensions for a correct max wedge scoop? I have one but I have no idea who made it, it came with the car. If it's close, I'll use it. Thanks

- - - Updated - - -

24 wide by 26 long sound right? What do the AAR units measure?



[ply64post]

What are the right dimensions for a correct max wedge scoop? I have one but I have no idea who made it, it came with the car. If it's close, I'll use it. Thanks

- - - Updated - - -

24 wide by 26 long sound right? What do the AAR units measure?

Vintage Dodge Plymouth Chrysler Mopar Fiberglass Hood Scoop Info

The below listed Direct Connection - Mopar Performance fiberglass Hood Scoop part numbers are no longer available, but we are leaving this historical data on our website to help those that may find them for sale elsewhere, want restoration info on them, need dimensions, etc.

These where the legendary Dodge Six Pack, Max Wedge, Hemi A body Barracuda and Hemi Dart, as well as the Challenger T/A style hood scoops.



Dodge Plymouth Mopar Universal Fiberglass Hood Scoop Models

Part Number Type, Size (L x W x H) and Notes
p5249753 Mopar six-pack hood scoop 26" x 27.5" x 3.25"
p5249755 Mopar 1963-64 max wedge hood scoop 35" x 27.5" x 3"
p5249754 Dodge Plymouth 1968 hemi "A" body Barracuda and Dart Hood Scoop 23" x 34" x 4.5"
p5249756 Dodge Challenger T/A Trans Am Hood scoop 1970-74 E-body 34" x 24" x 3.75"


Montclaire

I will get you pictures and dimensions off the real deal, original aluminum scoop off a 63 Max Wedge car this afternoon.


Hope this will help.

Jeff



[Montclaire]

Thanks



[ply64post]

Thanks

Montclaire

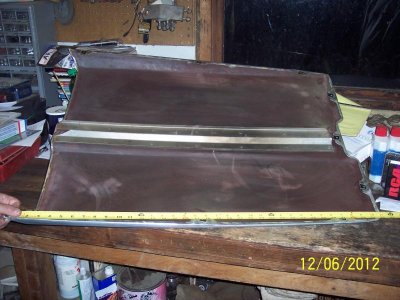

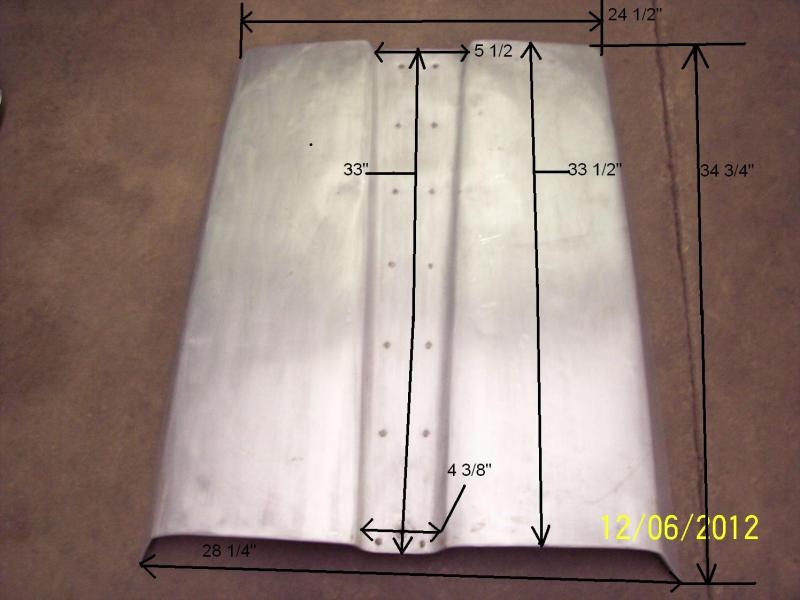

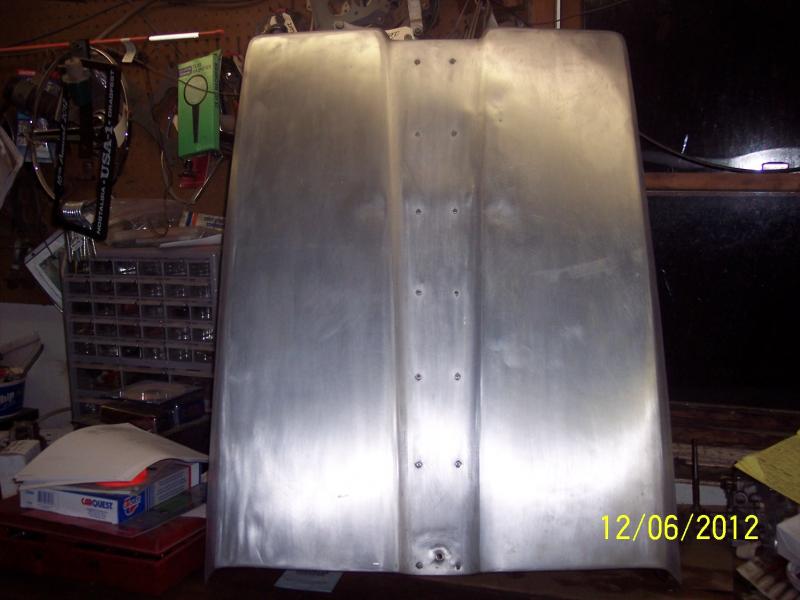

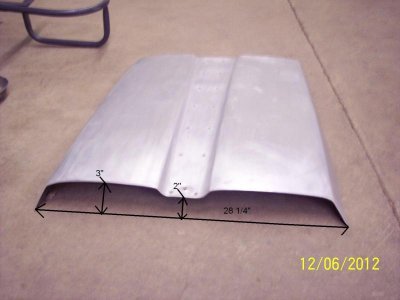

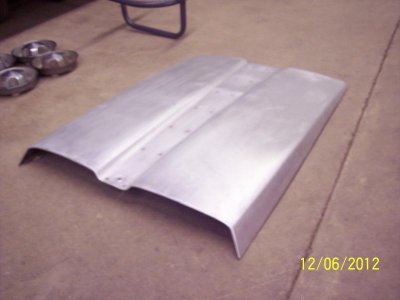

Sorry it got late so here are the pictures of an original aluminum 63 Max Plymouth scoop.

Jeff


View attachment 92253View attachment 92254View attachment 92255View attachment 92256View attachment 92257



[Montclaire]

That's perfect, thank you!



[383man]

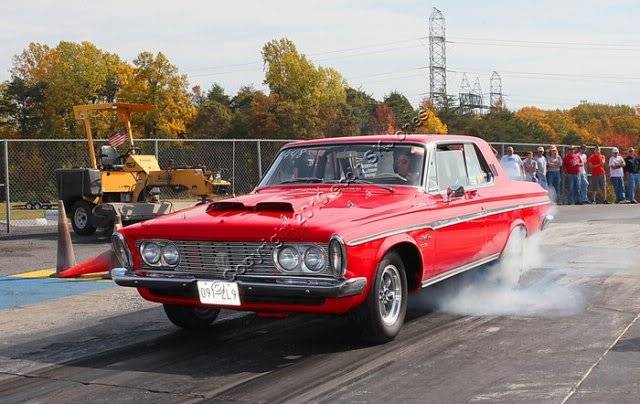

I love the Max Wedge scoops on the 63 and 64 Mopars. I also like the original size best as I am not as crazy about how the new taller ones look. Ron



[ply64post]

Max Wedge Scoop

Greg
Here are the pictures that I think they were.
63 Original Max Wedge scoop.
Jeff




Quote Originally Posted by Greg_1963 - 03-22-2015 11:00 PM
Was doing some research on the max wedge hood scoops and came across an old thread.

http://www.forbbodiesonly.com/moparf...963+hood+scoop

The pictures in post 4 are not working. Do you still have the pictures and is there a way you could either repost them or send them to me?

It is my intention to try and fabricate one but there are so many variations I would like to use an original as the foundation instead of all the aftermarket reproductions.

Thanks in advance!
Greg




QUOTE=ply64post;909816627]Montclaire

Sorry it got late so here are the pictures of an original aluminum 63 Max Plymouth scoop.

Jeff


View attachment 92253View attachment 92254View attachment 92255View attachment 92256View attachment 92257[/QUOTE]



[Greg_1963]

PERFECT!!! Thank you



[super-bee_ski]

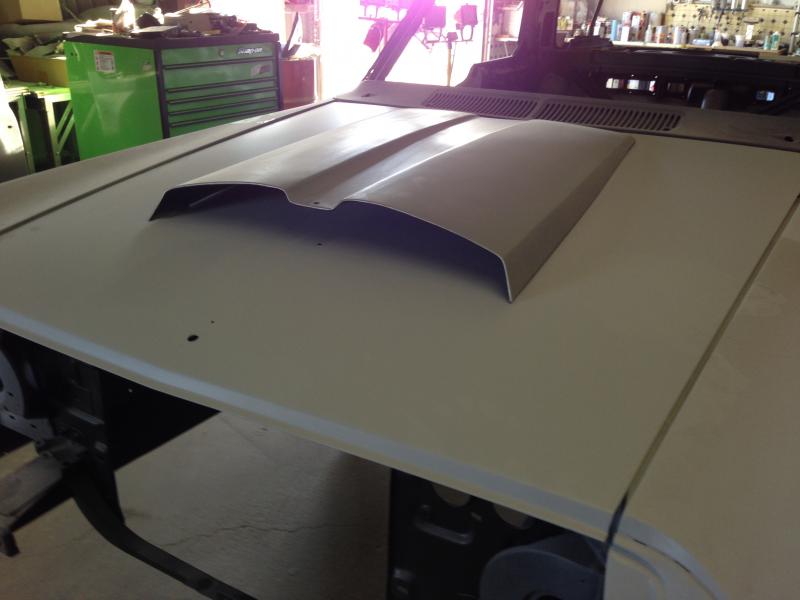

Here is mine
Purchased in 2008 from the Tyn Man
NOTE: I also purchased the correct "Template" to make the holes on the hood.



[Dodge 330]

What is the thickness of the original scoop?



[ply64post]

scoop thickness

What is the thickness of the original scoop?

330

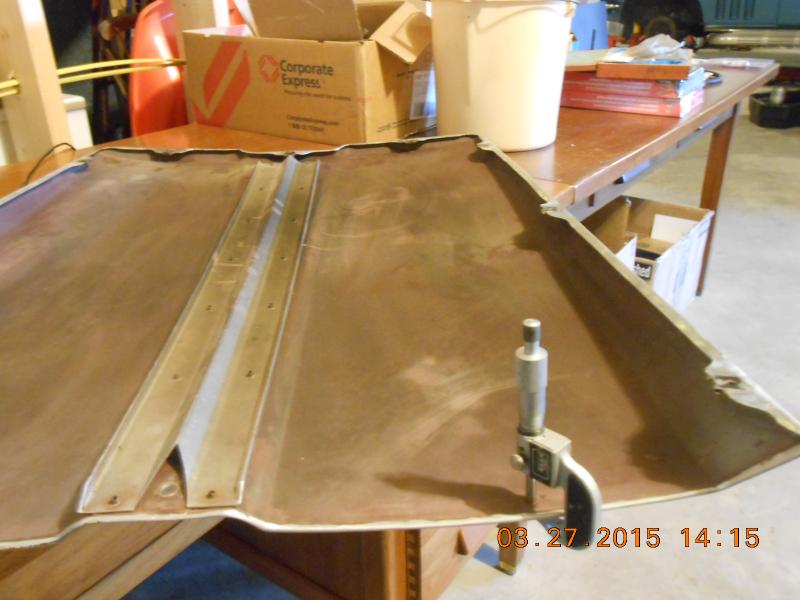

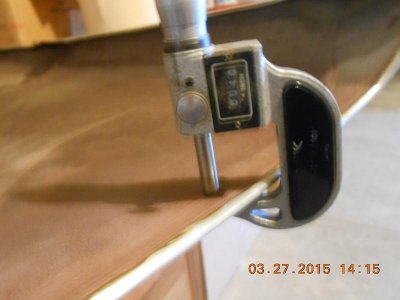

Sorry it took so long,I got the thickness for you.
The thickness is .040 and it is an original Max Wedge scoop.

Jeff



[Dodge 330]

Thank you!



[mwn]

64 metal Hemi scoop

This thread is exactly the type info I need to build a 64 Hemi steel Scoop! Last step to make my Savoy NHRA legal! Any help would be great! Thanks, Mark



[glassman]

greg
here are the pictures that i think they were.
63 original max wedge scoop.
Jeff

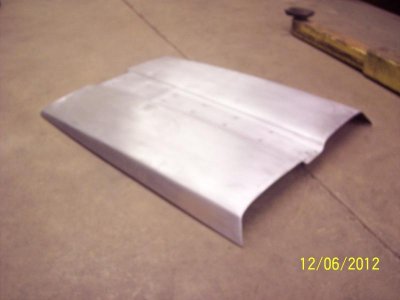

hmmmm! Never seen a max wedge scoop with a brace down the middle, and all my original scoops on my aluminum front ends are only 2.25" -2.5" high in the front, and my scoops are bolted to the original holes that mopar put in their aluminum hoods. On all three of my original scoops, they all have an aluminum washer welded on the underside of the center opening for the stud.


View attachment 247304View attachment 247305View attachment 247306View attachment 247307View attachment 247308View attachment 247309

quote originally posted by greg_1963 - 03-22-2015 11:00 pm
was doing some research on the max wedge hood scoops and came across an old thread.

http://www.forbbodiesonly.com/moparf...963+hood+scoop

the pictures in post 4 are not working. Do you still have the pictures and is there a way you could either repost them or send them to me?

It is my intention to try and fabricate one but there are so many variations i would like to use an original as the foundation instead of all the aftermarket reproductions.

Thanks in advance!
Greg




quote=ply64post;909816627]montclaire

sorry it got late so here are the pictures of an original aluminum 63 max plymouth scoop.

Jeff


View attachment 92253View attachment 92254View attachment 92255View attachment 92256View attachment 92257

[/quote]



[Homstead]

Great looking scoop!



[jabird]

Ive been staring at these cheap looking fiberglass repop hood scoops for a long time, and yes I own one and have it on my car, but it seems to me that it wouldn't be that hard to build a buck or a polymer mold of some sort, or a solid aluminum mold for that matter, and reproduce a decent metal scoop



[VANDAN]

I know this is an old thread, but does anyone have an accurate dimension where the scoop is mounted, in relation to the rear edge of the hood ? Getting ready to put mine on my '63 330. Thanks



[miller]

I remember seeing a thread on that same subject.



[Glenwood]

I think @Steve009 put one on his 64 plymouth last year. He may have the dimensions.



[Steve009]

I know this is an old thread, but does anyone have an accurate dimension where the scoop is mounted, in relation to the rear edge of the hood ? Getting ready to put mine on my '63 330. Thanks

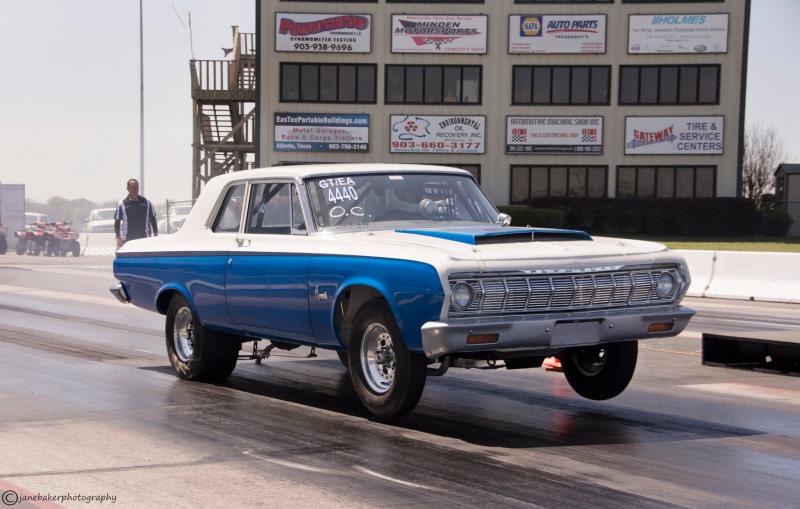

From everything I’ve researched it’s about 1/4” to 1/2” from the back of the hood. That’s what I did and it turned out looking pretty sweet.
