Disc Brake conversion - can’t get pedal pressure

65_Satellite

Well-Known Member
Local time
3:27 AM
Joined
Jan 10, 2021
Messages
113
Reaction score
132
Location
01543
Just throwing out my experience bleeding systems over the years, they suggest bench bleeding for a reason. The brake pedal won't bottom out the piston in the master cylinder like it will when doing it out of the car. If the piston wasn't bottomed out when bench bleeding there still could be air trapped. (You might have done this) Sometimes on rare occurrences air can find it's way out over a couple of days.

The 15/16" bore master cylinder creates more pressure at the caliper and wheel cylinders than the 1" bore. The thing is you'll have a bit more pedal travel with the 15/16" bore. Maybe up to an inch more than the 1". Using a synthetic fluid like Dot 5 will create even more pedal travel. (That's why I asked what you were using).

The way I check for a bad master cylinder (internal leakage/bypass) is to pump up the pedal till it's hard and hold the pedal firmly. As you're doing this, slightly release pressure and feel if the pedal starts creaping down. If you experience this then it could be leaking internally.

Of course peaking under the boot at the rear of the master cylinder and inspecting it for fluid leaking is a sign of a bad one also but in this case the master cylinder could be operating properly.

Another I have to ask...You do have the front brake line hooked to the large reservoir? (Not easy to do with most master cylinders having two different size fittings but you never know).

The brake pedal rod needs a little play just enough that it's not applying pressure on the piston not allowing it to return to it's most rearward position. That's another thing to check.
These are all great points. I didn’t realize that about the brake rod not fully depressing the MC when in the car. I guess I’ll just pull it out and start over. As for the brake rod, I’m using my original from the single reservoir that came with the car simply because it has the protrusion that hits the brake switch. When the pedal is fully released, it is pretty tight and I can’t really move it. Maybe that is causing the master not to fully release? I guess I can try using the adjustable one and if that makes a difference then I’ll install an inline pressure brake switch under the hood


hunt2elk

FBBO Gold Member
FBBO Gold Member
Local time
2:27 AM
Joined
Jul 15, 2009
Messages
9,515
Reaction score
9,623
Location
WI
And would that be an issue? Here are the two ports

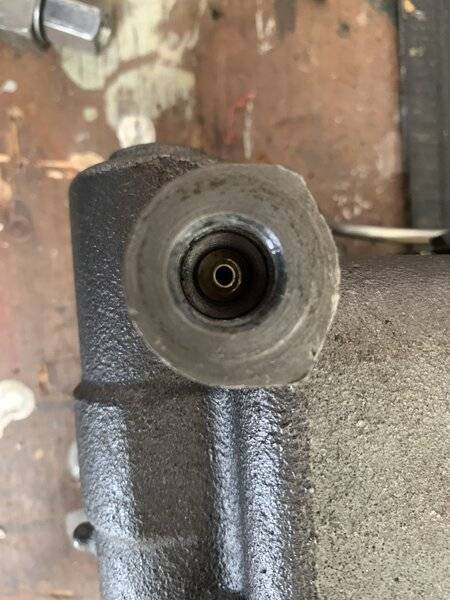

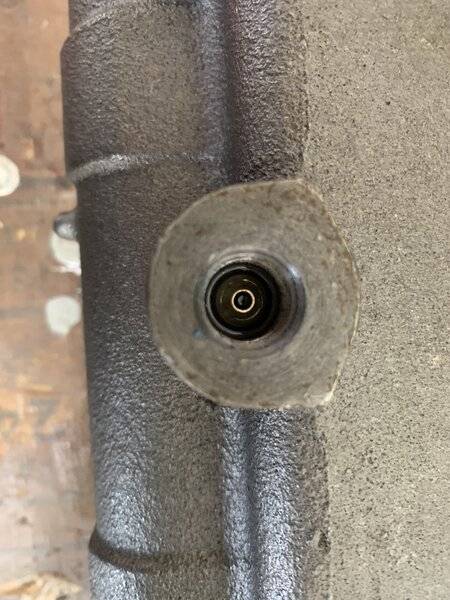

View attachment 1105127 View attachment 1105128
I really don't think it matters. You can pull it out by turning in a sheetrock screw and then pry it out. I went through this several years ago with a mc I bought from Pirate Jack's who sourced them from Wayne the Ram Man. I got to deal with him because PJ had no idea what was going on. Of course Wayne was adamant there was no problem because of how arrogant he is. After a couple days he called me back saying I was right. The whole current batch of mc's he had, it was like 200 units, had bad residual valves. He had to replace them in everything he had as well as get ahold of the people he already sold them to. After that fiasco 7 years ago, I buy all my brake stuff from Cass. I'll pay a bit more for his customer service and technical help.
I have a sneaky suspicion that your issue is inside you master. Either it is leaking internally, or like stated above by KK, I think you didn't get all the air out by bleeding it in the car. It's that last little bit at the very end of the stroke that will get the last of the air out. Don't know if that is always possible when hooked up to your pedal assembly.


khryslerkid

FBBO Gold Member
FBBO Gold Member
Local time
3:27 AM
Joined
Mar 10, 2010
Messages
27,604
Reaction score
45,522
Location
Hanover, Pennslyvania
I agree and I usually do that but for some reason ended up mounting this and after squeezing under dash to tighten the nuts I realized I didn’t but I didn’t want to remove it at that time

This more than likely is your problem. Good luck!


4mulas

Well-Known Member
Local time
1:27 AM
Joined
Mar 16, 2017
Messages
1,693
Reaction score
1,794
Location
Just North of Montana
I had same problem with entirety purchased from Dr Diff. 15/16 master, rear brake cylinders etc... Cass said I needed to cut my rear brake line and install, I believe a 2lb, residual valve. This requires a flaring tool to do. I had brake shop do it. That was with a new Dr diff master cylinder and new rear brake cylinders.

@diesel_lv , Did it cure your problem?

Last edited:

4mulas

Well-Known Member
Local time
1:27 AM
Joined
Mar 16, 2017
Messages
1,693
Reaction score
1,794
Location
Just North of Montana
I’m aware of the newer wheel cylinders having residual valves but I didn’t see any mention of the OP installing new ones.

Newer Wheel cylinders don’t have residual pressure valves built into them, they are supposed to have cup expanders though (a springs which forces the cup out against the bore of the cylinder) which are supposed to eliminate the need for the residual pressure valve on the rear circuit of a disc/drum set up using an newer style master that has no residual pressure valve built into it.


diesel_lv

Well-Known Member
Local time
1:27 AM
Joined
Dec 17, 2018
Messages
1,837
Reaction score
2,201
Location
Arizona
@diesel_lv , Did it cure your problem?
No it did not. I am still battling it. More lazy than anything else in this heat. Thinking it's somehow getting air in the master cylinder. Has brake shop bleed whole system. I still have to pump brakes to get them firm, then all of a sudden I'll go to apply and they are firm at the very top. They'll stay that way awhile and then all of a sudden I have to pump them again. Totally stumped.


4mulas

Well-Known Member
Local time
1:27 AM
Joined
Mar 16, 2017
Messages
1,693
Reaction score
1,794
Location
Just North of Montana
No it did not. I am still battling it. More lazy than anything else in this heat. Thinking it's somehow getting air in the master cylinder. Has brake shop bleed whole system. I still have to pump brakes to get them firm, then all of a sudden I'll go to apply and they are firm at the very top. They'll stay that way awhile and then all of a sudden I have to pump them again. Totally stumped.

Hmmm..... did your shop install a 10psi residual or 2 psi residual like you said?


bc3j

Well-Known Member
Local time
3:27 AM
Joined
Jul 15, 2015
Messages
55
Reaction score
32
Location
NE Ohio
No it did not. I am still battling it. More lazy than anything else in this heat. Thinking it's somehow getting air in the master cylinder. Has brake shop bleed whole system. I still have to pump brakes to get them firm, then all of a sudden I'll go to apply and they are firm at the very top. They'll stay that way awhile and then all of a sudden I have to pump them again. Totally stumped.

FWIW Another possible cause is the master cylinder bore size is too small for system requirements. I ended up going from 15/16” to 1 1/32”.


4mulas

Well-Known Member
Local time
1:27 AM
Joined
Mar 16, 2017
Messages
1,693
Reaction score
1,794
Location
Just North of Montana
2 psi which was the recommended one from Cass.

I just spoke with him 2 days ago and he said 2 psi is for front and 10 psi is rear. (The 2 psi valve is mostly for hot rods where the master is below the floor and the inlets of the caliper lines.) You may want to email and ask or phone and ask him again.. see the link for some facts and clarification...

https://www.ecihotrodbrakes.com/brake_facts.html


4mulas

Well-Known Member
Local time
1:27 AM
Joined
Mar 16, 2017
Messages
1,693
Reaction score
1,794
Location
Just North of Montana
FWIW Another possible cause is the master cylinder bore size is too small for system requirements. I ended up going from 15/16” to 1 1/32”.

15/16 isn’t too small for the system at all. Yes 15/16” has a slightly softer pedal but actually has MORE clamping force than the 1 1/32” or 1 1/16”. The larger bore masters have Less clamping force but a harder pedal.


bc3j

Well-Known Member
Local time
3:27 AM
Joined
Jul 15, 2015
Messages
55
Reaction score
32
Location
NE Ohio
15/16 isn’t too small for the system at all. Yes 15/16” has a slightly softer pedal but actually has MORE clamping force than the 1 1/32” or 1 1/16”. The larger bore masters have Less clamping force but a harder pedal.
I think we’re talking about the same thing. I look for the master and my brake system to develop 1200psi at the front calipers. Both can do it as I’ve used both in my car. The 15/16” pedal travel to achieve it is too long for my comfort level and the pedal effort does increase when I really push on the pedal to get to 1200psi. The 1 1/32” has half the travel and slightly more effort. It’s fine for me, but pedal feel is entirely personal for each driver. Just thought this might be helpful for someone.


diesel_lv

Well-Known Member
Local time
1:27 AM
Joined
Dec 17, 2018
Messages
1,837
Reaction score
2,201
Location
Arizona
I just spoke with him 2 days ago and he said 2 psi is for front and 10 psi is rear. (The 2 psi valve is mostly for hot rods where the master is below the floor and the inlets of the caliper lines.) You may want to email and ask or phone and ask him again.. see the link for some facts and clarification...

https://www.ecihotrodbrakes.com/brake_facts.html
You are correct in the 10lb. I just went through my emails w him. So that is what is in my car. I purchased online the next day and had my brake shop install. For some reason I thought it was 2lb.


Red63440

FBBO Gold Member
FBBO Gold Member
Local time
3:27 AM
Joined
Feb 5, 2011
Messages
3,731
Reaction score
2,974
Location
NY

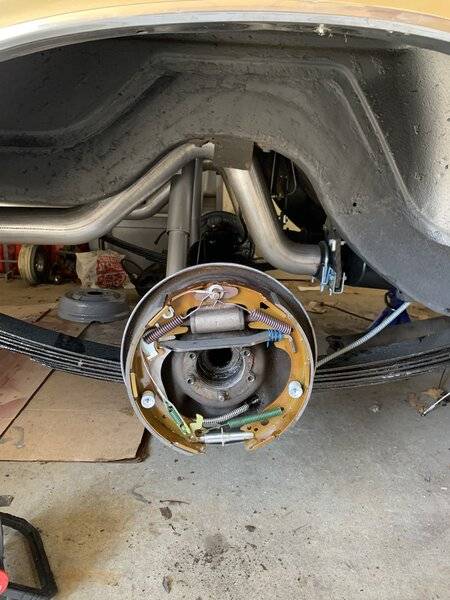

Look at the pawl for his self adjuster…was that just a temporary thing?


Fran Blacker

1 of 27
FBBO Gold Member
Local time
3:27 AM
Joined
Sep 23, 2016
Messages
13,208
Reaction score
13,570
Location
Connecticut
There are problems with self adjusters. but why is the BP cocked. This thread died with no resolution I guess?


Mike67

Well-Known Member
Local time
2:27 AM
Joined
Nov 23, 2014
Messages
7,504
Reaction score
11,981
Location
Woodlands Tx
Yes residual valves are only needed when the mc is lower or at the same level as the caliper. With the mc on the fire wall there is always some "head " pressure on the lines.


1STMP

Well-Known Member
Local time
1:27 AM
Joined
Feb 22, 2021
Messages
1,571
Reaction score
2,753
Location
Roswell, New Mexico
Yes residual valves are only needed when the mc is lower or at the same level as the caliper. With the mc on the fire wall there is always some "head " pressure on the lines.
Not in every case.
When the front pistons retract the fluid in the
front lines is directed back to the MC. A 2lb
residual check valve IS required in the front
circuit to keep this from occurring. A test
for their requirement is if you have to step
on the pedal twice to build pedal pressure.
On a 4 disc system a 2lb is required for each
circuit.
I have installed such on the brake system of
my truck with an incorporated proportioning
valve. The system works as it should.


Mike67

Well-Known Member
Local time
2:27 AM
Joined
Nov 23, 2014
Messages
7,504
Reaction score
11,981
Location
Woodlands Tx
Not in every case.
When the front pistons retract the fluid in the
front lines is directed back to the MC. A 2lb
residual check valve IS required in the front
circuit to keep this from occurring. A test
for their requirement is if you have to step
on the pedal twice to build pedal pressure.
On a 4 disc system a 2lb is required for each
circuit.
I have installed such on the brake system of
my truck with an incorporated proportioning
valve. The system works as it should.

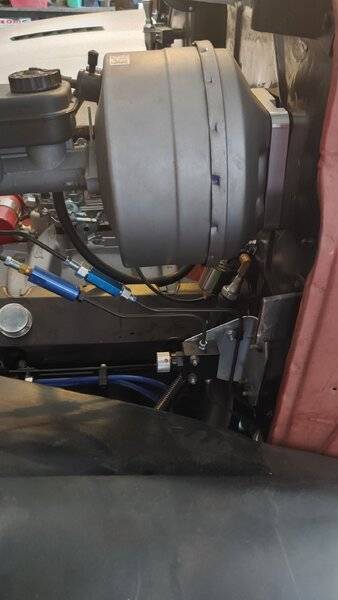

View attachment 1225272
Im not saying it will hurt anything and i stalled them on my wifes car hoping it would correct some issues, it didnt. Everyone's directions that I've read state that they are for a MC that is at/below the calipers. I think Stranges site mention the 2lb with drums.
