    Nice Car Richard! What are you running for rubber?

  2. Richard Cranium

    Richard Cranium FBBO Gold Member FBBO Gold Member

    Messages:
    28,152
    Likes Received:
    66705
    Joined:
    Feb 20, 2012
    Local Time:
    5:39 PM

    275-60R15 on 8" rims in the rear & 235-70R15 on 7" rims in the front.

    • Like Like x 2
    • Thanks! Thanks! x 1
    • Gentleman

      Gentleman Active Member

      Messages:
      27
      Likes Received:
      11
      Joined:
      Jul 24, 2019
      Location:
      Hamburg / Germany
      Local Time:
      12:39 AM
      Your car looks beautiful! Those pictures gave me a big push do forward my restauration! I need a ton of detailed pictures... But first of all I need a couple pictures of the engine itself (specialy the intake manifold and carburetor) and engine bay like mountings for the A/C on the fenders, so I know where the original holes are and where the "self drilled" holes have to leave. Firewall would also be nice. Is your car "factory restored"?

      Does anybody have a book about all the bolts and nuts? I know there is one a avaiable but dont know where.

    • Macdon221

      Macdon221 Well-Known Member

      Messages:
      267
      Likes Received:
      94
      Joined:
      Jun 3, 2019
      Location:
      Winnipeg, MB
      Local Time:
      5:39 PM
      Gentleman,

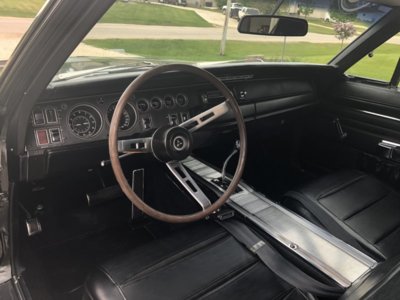

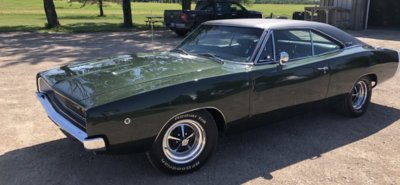

      My GG1 RT.

      It’s not perfect as per factory under the hood, but close. Working on the small details.

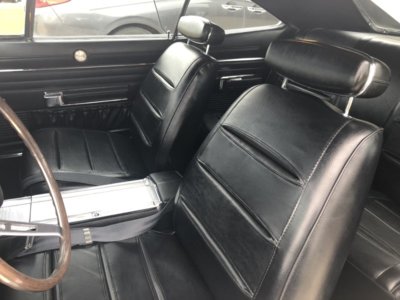

      5982B42D-D915-4FE4-BEEC-8AD22DAB5D02.jpeg FEA52190-D777-4C4C-9E55-EE8B429B057D.jpeg 83905BC5-ABDF-44CA-BCFF-5D0A55B43069.jpeg

      • Like Like x 7
      • Richard Cranium

        Richard Cranium FBBO Gold Member FBBO Gold Member

        Messages:
        28,152
        Likes Received:
        66705
        Joined:
        Feb 20, 2012
        Local Time:
        5:39 PM

        The car was painted when I bought it, but I did a whole bunch of detail work to make it factory appearing as best as I could. I'll take some pictures this weekend and post them up.

        • Like Like x 1
        • Richard Cranium

          Richard Cranium FBBO Gold Member FBBO Gold Member

          Messages:
          28,152
          Likes Received:
          66705
          Joined:
          Feb 20, 2012
          Local Time:
          5:39 PM

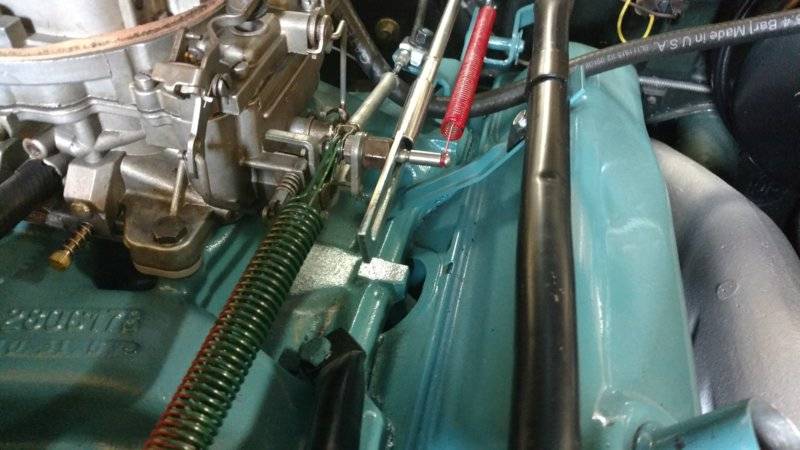

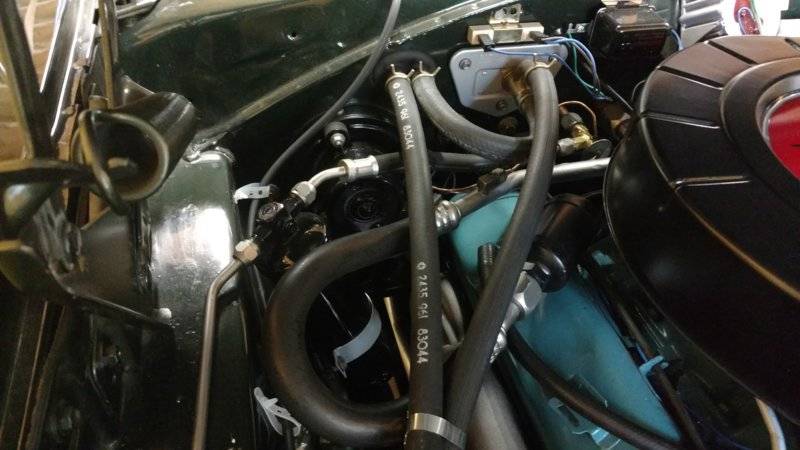

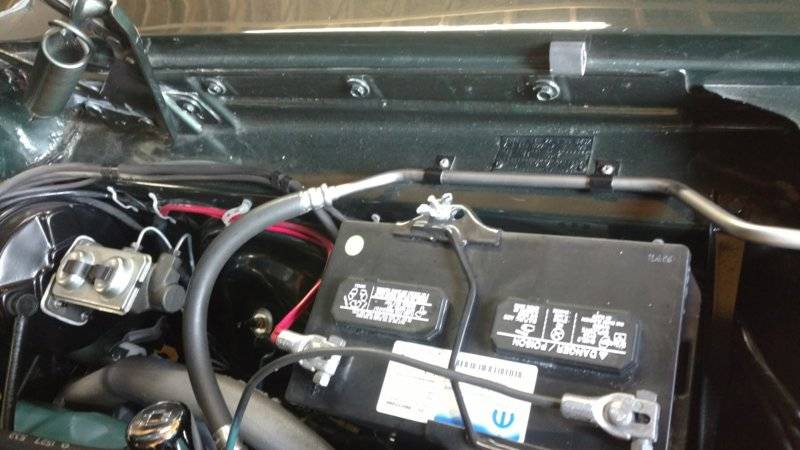

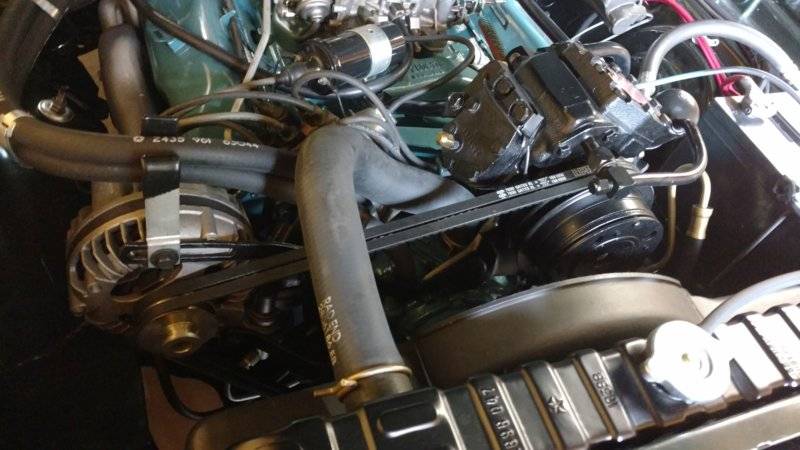

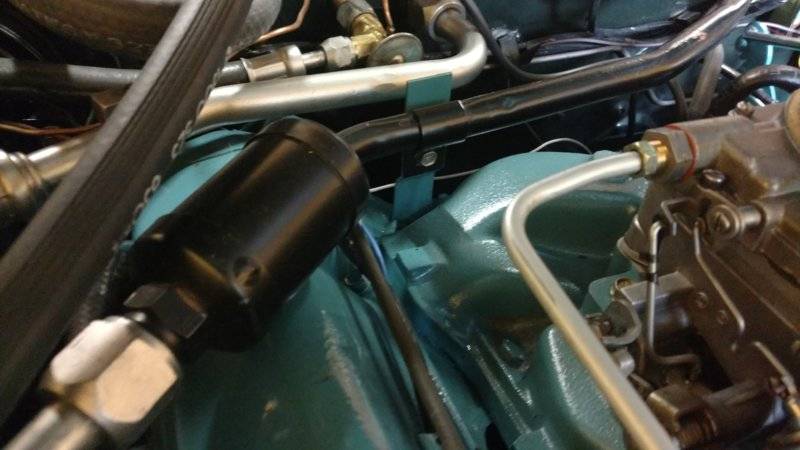

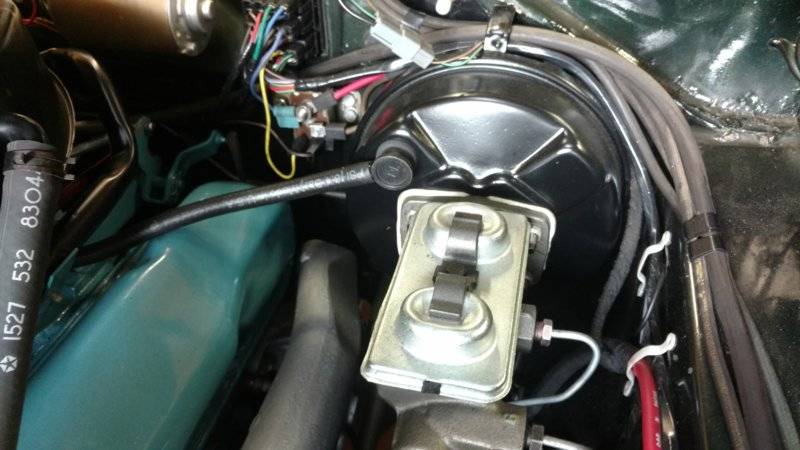

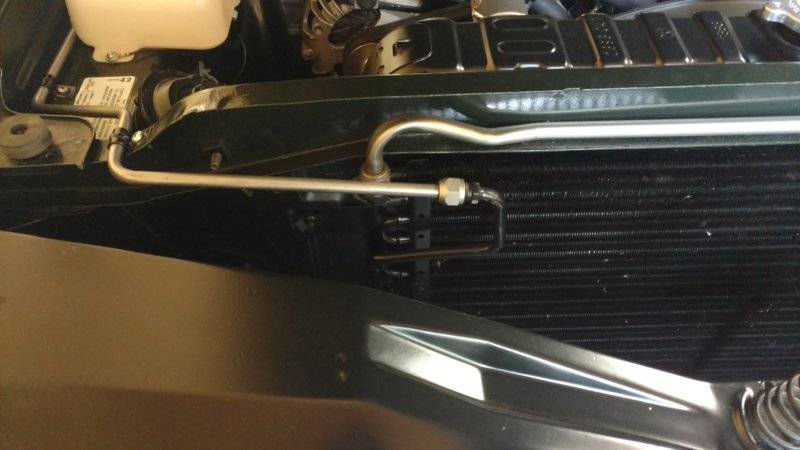

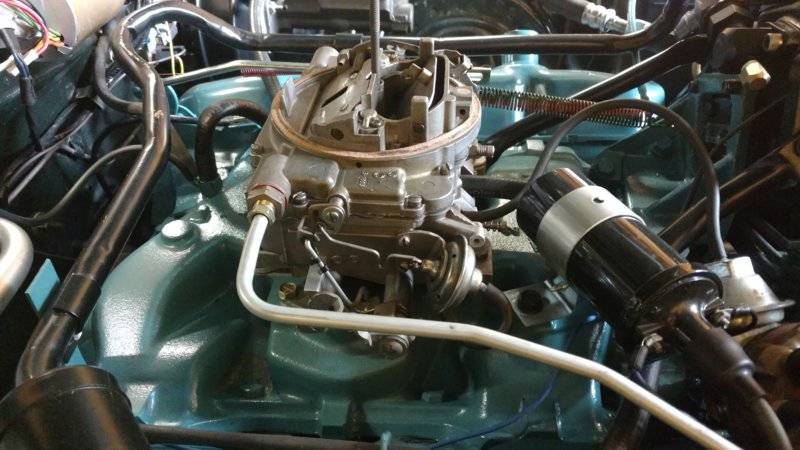

          Here you go....






          • Like Like x 2
          • Richard Cranium

            Richard Cranium FBBO Gold Member FBBO Gold Member

            Messages:
            28,152
            Likes Received:
            66705
            Joined:
            Feb 20, 2012
            Local Time:
            5:39 PM





            • Like Like x 2
            • Thanks! Thanks! x 1
            • Richard Cranium

              Richard Cranium FBBO Gold Member FBBO Gold Member

              Messages:
              28,152
              Likes Received:
              66705
              Joined:
              Feb 20, 2012
              Local Time:
              5:39 PM



              • Like Like x 3
              • Thanks! Thanks! x 1
              • Richard Cranium

                Richard Cranium FBBO Gold Member FBBO Gold Member

                Messages:
                28,152
                Likes Received:
                66705
                Joined:
                Feb 20, 2012
                Local Time:
                5:39 PM

                • Like Like x 4
                • Gentleman

                  Gentleman Active Member

                  Messages:
                  27
                  Likes Received:
                  11
                  Joined:
                  Jul 24, 2019
                  Location:
                  Hamburg / Germany
                  Local Time:
                  12:39 AM
                  Oh man, this is awesome! Ok... the voltage regulator is upside down... I was going crazy over that thing... my wiring harness is original and I mounted the VR on the firewall "correct way" but the wiring harness was not very happy with crossing GND and ING... so I turned it up side down and see... fits perfectly... So this problem is solved... 2nd... I bought the wrong screws for the carb... (They were listed for 68 charger) I got the allen screws and nuts... 3rd... I NEED ALL THE A/C PARTS... damn... 4th... I love your car!

                  Do you have front disk brakes?


                • Gentleman

                  Gentleman Active Member

                  Messages:
                  27
                  Likes Received:
                  11
                  Joined:
                  Jul 24, 2019
                  Location:
                  Hamburg / Germany
                  Local Time:
                  12:39 AM
                  So...
                  I am getting closer to finish my engine. I stumbled over the insulation for the intake manifold.

                  http://www.performancecargraphics.com/Manifold_Insulation.htm

                  On this picture there is only one intake manifold insulation shield (front), but i found some information about a second one (back)

                  Some say that the insulation were only installed at A/C cars 383/440. but not on HP.

                  My question is, does a 68 Charger with a 440 HP engine has the insulation under the intake manifold and if so, just the front shield or front and back shield?

                  Could not find any on your engine.


                  I am a little bit confused, maybe you guys can help me out. Thank you

                • Richard Cranium

                  Richard Cranium FBBO Gold Member FBBO Gold Member

                  Messages:
                  28,152
                  Likes Received:
                  66705
                  Joined:
                  Feb 20, 2012
                  Local Time:
                  5:39 PM
                  I do not believe that the hi-po 440's came with that pad, only the luxo 440s.

                • Gentleman

                  Gentleman Active Member

                  Messages:
                  27
                  Likes Received:
                  11
                  Joined:
                  Jul 24, 2019
                  Location:
                  Hamburg / Germany
                  Local Time:
                  12:39 AM

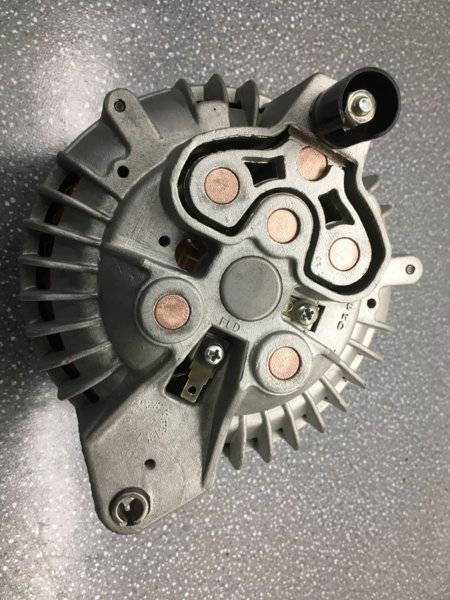

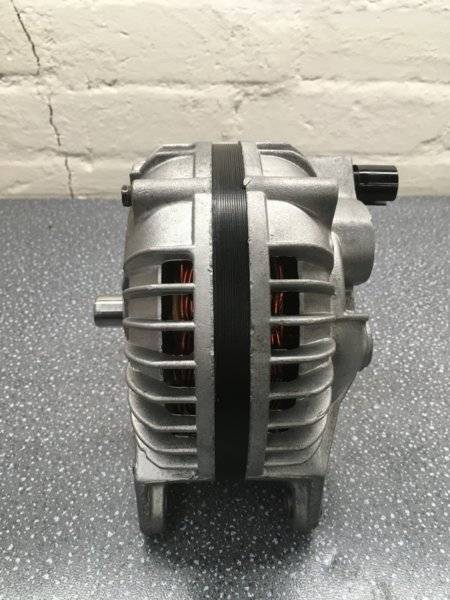

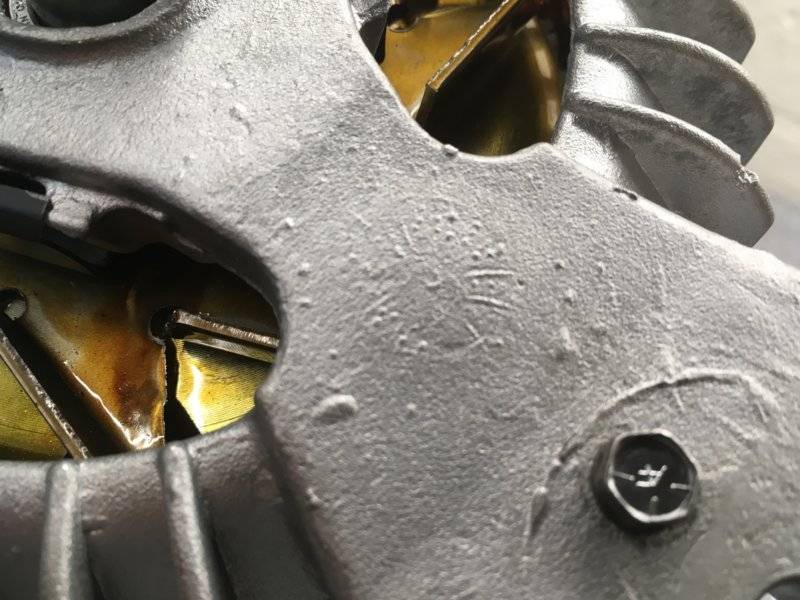

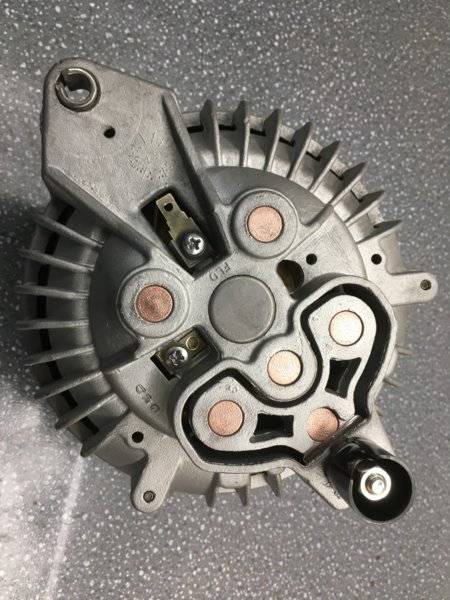

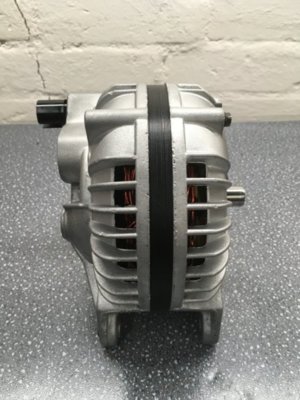

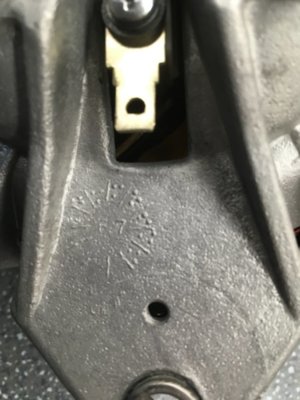

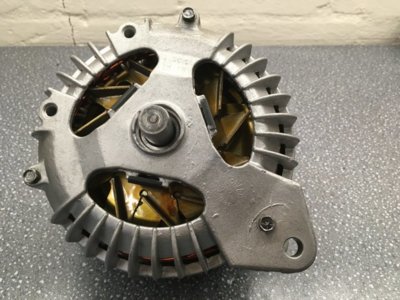

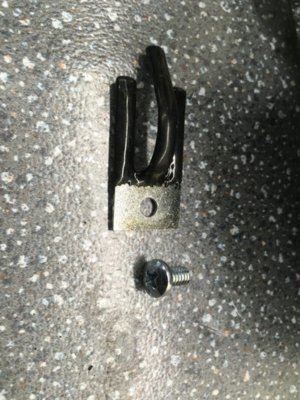

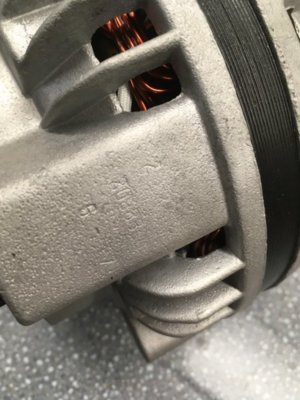

                  Small update, I found an late 67 alternator that will fit my early 68 Charger. I cleaned the alternator and changed the inside of the alternator. The old was very rusty and wasn’t running. So I took it apart. The results are shown on the pictures. I also ordered an alternator battery cable insulation (already installed) and an alternator wiring retainer clip, but I have no idea where this one is mounted. Any advise?

                  Thanks!

                  623F8054-1711-44EA-9E48-61CEF8296162.jpeg 3A412646-FF4A-4CED-BDAF-FD9DC8025BE8.jpeg A6528A1B-A47B-4FA1-87D0-BCD96210D63A.jpeg F532E4E1-2C9C-446C-8F96-DB65901FDDD9.jpeg 1B1A9F6F-7877-4CC8-9457-A43F7C0483FB.jpeg 7E615A8A-F5F3-40F6-8A69-66604F12975E.jpeg 328605D7-F13F-4B9F-84A2-37568473E4F5.jpeg 6A6275AB-1C5A-40AF-BB9F-910CC4377D40.jpeg ADFB49A4-837E-4300-B761-2039A429E006.jpeg

                  • Like Like x 1
                  • dadsbee

                    dadsbee FBBO Gold Member FBBO Gold Member

                    Messages:
                    5,838
                    Likes Received:
                    12513
                    Joined:
                    Jan 29, 2018
                    Location:
                    Ontario, Canada
                    Local Time:
                    6:39 PM

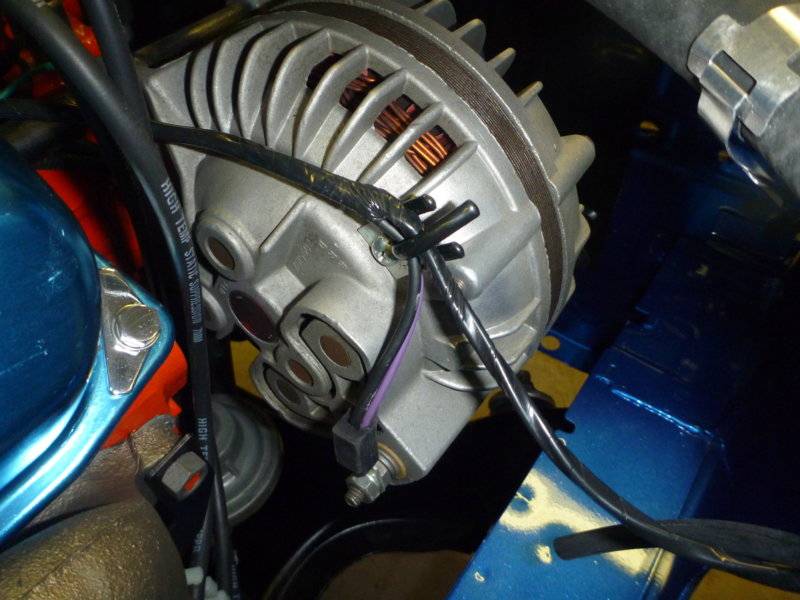

                    beerestoration2018 1675.JPG

                    • Like Like x 2
                    • Gentleman

                      Gentleman Active Member

                      Messages:
                      27
                      Likes Received:
                      11
                      Joined:
                      Jul 24, 2019
                      Location:
                      Hamburg / Germany
                      Local Time:
                      12:39 AM
                      Awesome! Thank you! There is no on thread on my alternator, so I was a little bit confused.

                    • HeavyFuel

                      HeavyFuel New Member

                      Messages:
                      4
                      Likes Received:
                      0
                      Joined:
                      Dec 21, 2012
                      Location:
                      ND
                      Local Time:
                      5:39 PM
                      My HP 440 w/A/C had the foil insulation pad. I remember distinctly, cause I was like, "What is this pad of foil doing under the intake?"

                      Like a dummy, I threw it away during the engine restoration decades ago.

                    • 1 Wild R/T

                      1 Wild R/T Well-Known Member

                      Messages:
                      1,993
                      Likes Received:
                      3237
                      Joined:
                      Jul 9, 2019
                      Location:
                      California
                      Local Time:
                      3:39 PM
                      Well if you have heavy duty tin foil and fiberglass insulation they aren't hard to reproduce..

                    • HeavyFuel

                      HeavyFuel New Member

                      Messages:
                      4
                      Likes Received:
                      0
                      Joined:
                      Dec 21, 2012
                      Location:
                      ND
                      Local Time:
                      5:39 PM
                      Yeah, but there's something very satisfying about having original components. Even if they aren't reused, at least to have as a reference.

                      Tin foil and insulation, huh? Thanks for the tip.

                    • Gentleman

                      Gentleman Active Member

                      Messages:
                      27
                      Likes Received:
                      11
                      Joined:
                      Jul 24, 2019
                      Location:
                      Hamburg / Germany
                      Local Time:
                      12:39 AM

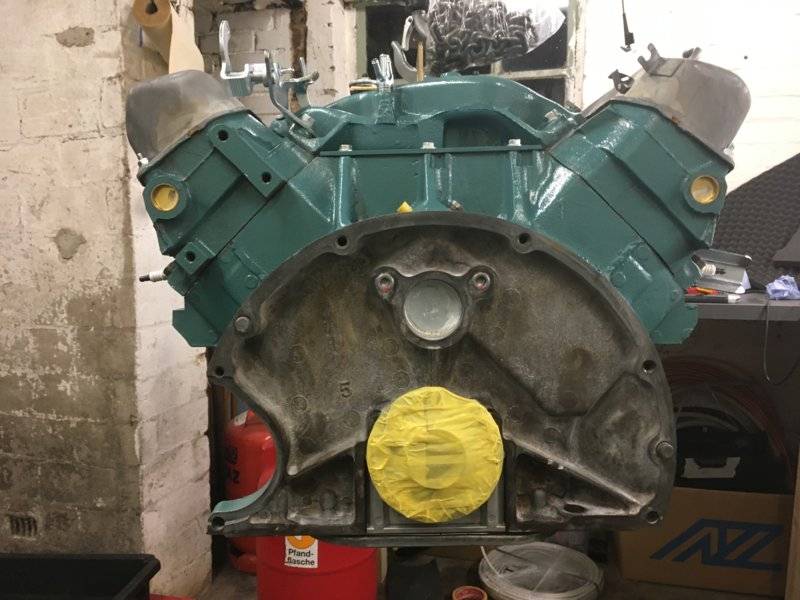

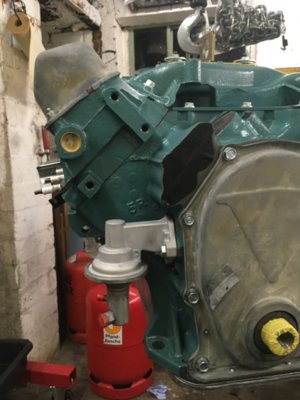

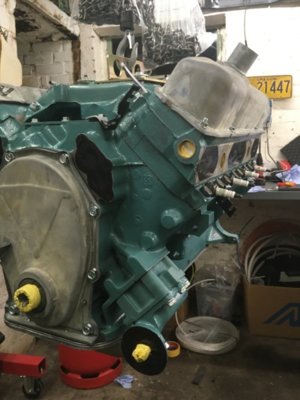

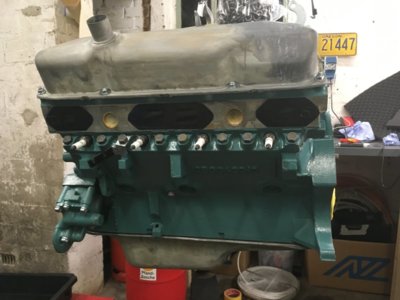

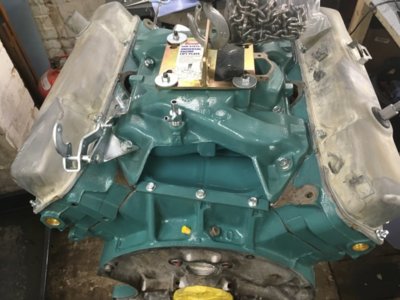

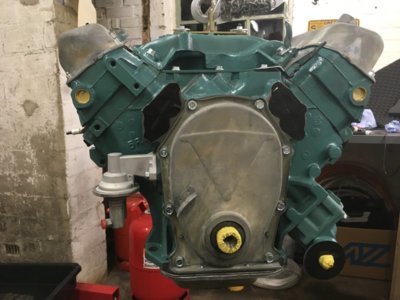

                      I’m still working on my engine, almost done.

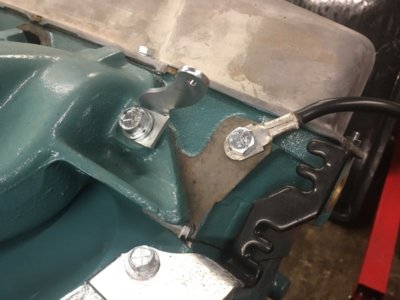

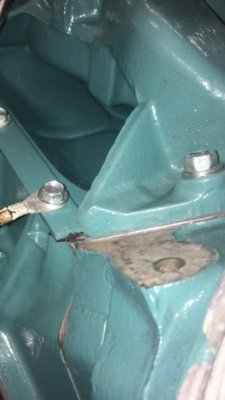

                      but I need some information about the location of the negative cable from battery and also for the negativ cable to firewall.
                      The cable to battery ist normally connected to the first intake screw, but I got an A/C car (A/C not mounted jet, will be added later) so where does it go? Is it on the picture correct?
                      I also attached a picture of the cable to firewall, maybe it’s wrong... maybe you guys know how to mount it correctly to the block. I couldn’t find an answer for that.

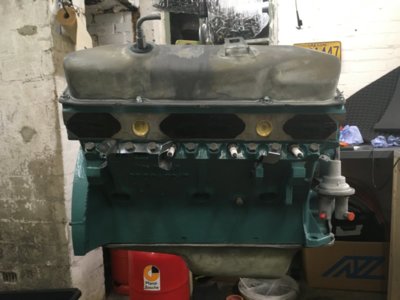

                      and some picture of the engine. If anything is wrong write it down.

                      The paint job is a little bit strange... my first engine builder had a different vision how to paint the engine. The engine will be painted next week like shown. Dismounted parts will be painted separately. Like water pump, etc

                      7898A5E8-A2E0-4499-8A35-15FBBAC3E9F5.jpeg 44EAA66E-3390-49CB-AF0C-6EAB8F8949A9.jpeg 408E9C7C-8EF8-45C6-A990-2E94F496EBE1.jpeg 59B162F3-30B8-438E-AE17-C2D388578D03.jpeg AFEC223A-0A9D-4F28-9B93-CB50CAC88F27.jpeg C5BED8CF-3874-47F3-B369-18BFF6C6C94E.jpeg C8B30373-75D0-41FC-A1B6-3483874AC6C2.jpeg 844F4788-C4B8-476D-AB14-3931EBC4B77E.jpeg 7F1C5597-CF0B-4E75-9DEE-38E54619C353.jpeg

                      • Like Like x 1
                      • Daves69

                        Daves69 Well-Known Member

                        Messages:
                        1,640
                        Likes Received:
                        1436
                        Joined:
                        Jan 24, 2014
                        Location:
                        ChiWest
                        Local Time:
                        5:39 PM
                        • Agree Agree x 1
