Does anyone have the vent window frame bracket slot dimensions for 69 B Body

[Sedbld]

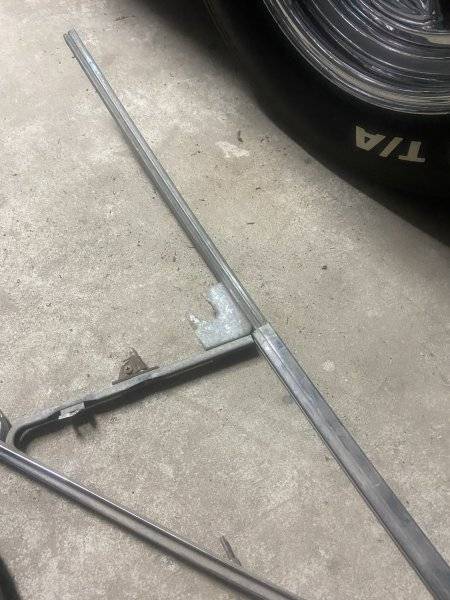

Hi all, Can anyone give me the dimensions of the slot size and location in the vent window frame lower corner bracket on a 69 B body. It is the slot that goes over the hidden allen head bolt. I’m working on one that someone completely butchered the lower part of the bracket so I welded a small piece in to cut a new slot. Thought I had one to trace off of but the only ones I have are from a 67 and they are different. I want to cut the slot before I start working on the dreaded Mylar strip. Here is a pic of what I am working on. Thanks in advance!



[Charles Cook]

Kinda weird how it’s cut. Ill try and help you.



[Charles Cook]

If this doesn’t help, send me your contact info by PM and I’ll send you a template.



[dadsbee]

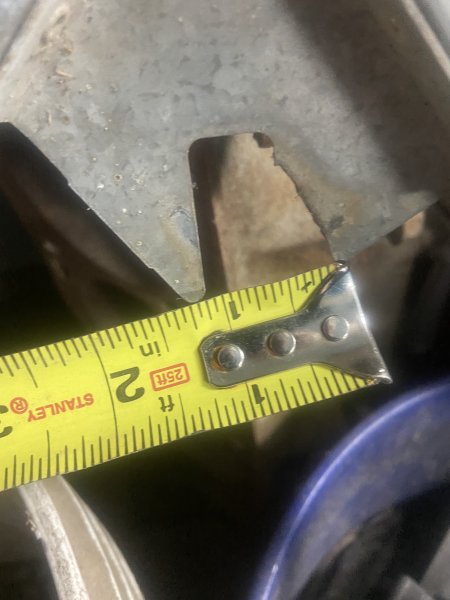

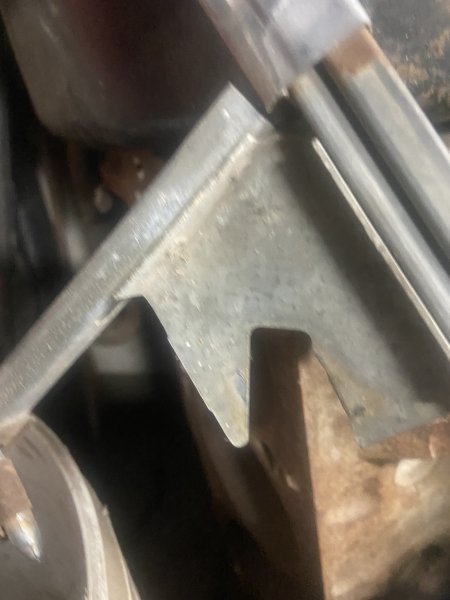

Someone cut that one as well Mike to make it easier to get into place..



[dadsbee]



[Charles Cook]

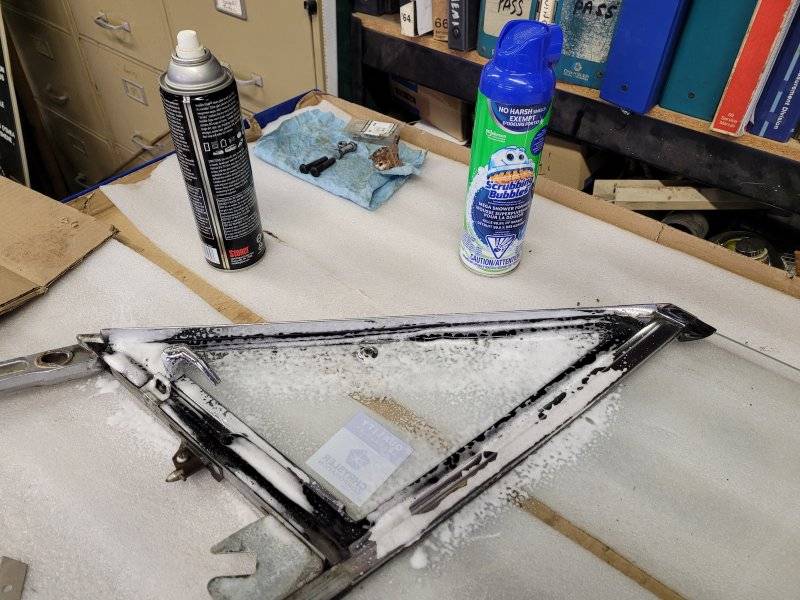

View attachment 1647288

Yep, I thought so. I can dig up another tomorrow if need be. Thanks Bud.



[MWbirdLOVER70]

If this doesn’t help, send me your contact info by PM and I’ll send you a template.

That’a boy!!! Always count on you for the win brother



[Sedbld]

Thank you both very much! That’s exactly what I needed. I will take your measurements and dadsbee’s pic and I can kinda get it close. Again thank you!
