Does anyone make BB equal length headers?

Mopar Exhaust Systems

  1. Backpacker

    Backpacker Member

    Messages:
    18
    Likes Received:
    13
    Joined:
    May 17, 2019
    Location:
    Arlington Heights, Illinois
    Local Time:
    1:00 PM
    I'm confused... is this old school thinking? Isn't it far better to have all the tubes equal length to get the most out of your system? Or is this a race only item that has shown no benefit on the street?

    I am finally rebuilding my 70 4spd RR and it will have a 440 stroker instead of the NOM cast crank 383 that was in it. I was considering headers, but haven't decided if they are worth the trouble over HP manifolds. The RR will see street duty only.

    Last edited: Aug 26, 2019
    • Like Like x 1
    • Jerry Hall

      Jerry Hall Well-Known Member

      Messages:
      2,011
      Likes Received:
      2802
      Joined:
      Mar 26, 2018
      Location:
      Alabama
      Local Time:
      1:00 PM
      My opinion and mine only is don't cause yourself problems. Stock HP Manifolds for street use is by far the best way to go. Header leaks are a pain. I am fighting a header leak on my 68 Hemi Dart. No friggin way to get enough clearance to replace the gasket. My racing buddy tells me it wasn't meant to be capped up.

      • Agree Agree x 4
      • Like Like x 1
      • biomedtechguy

        biomedtechguy Accelerati Rapidus Maximus FBBO Gold Member

        Messages:
        18,432
        Likes Received:
        24975
        Joined:
        Mar 28, 2014
        Location:
        South Louisiana
        Local Time:
        1:00 PM
        I got a pair of 1&7/8" ceramic coated polished TTi headers for the 440 6bbl in my 70 Roadrunner. It already had a purple stripe cam, and I've changed the lifters springs locks and retainers, ignition system, and had the Holley carbs modded by Promax. Doug's electronic cutouts really add to the initial impression when I roll into a monthly cruise in or car show.
        Not a whisper of a leak in 3 years, whereas I had to change the stock manifold gaskets about every year. There is about 30-40 horsepower to be had with a good set of headers. The exhaust ports flange on the TTi headers is mega thick and sturdy. I would not consider ANY other brand! Best headers I have ever seen, bar none!

        • Like Like x 4
        • Agree Agree x 4
        • moparnation74

          moparnation74 FBBO Gold Member FBBO Gold Member

          Messages:
          10,508
          Likes Received:
          17934
          Joined:
          Mar 27, 2014
          Location:
          OHIO
          Local Time:
          1:00 PM
          I never had stock HP manifolds leak.....every set I have checked and surfaced.......

          • Agree Agree x 3
          • Like Like x 2
          • 68Moparmaniac

            68Moparmaniac Well-Known Member

            Messages:
            771
            Likes Received:
            1225
            Joined:
            Jan 18, 2019
            Location:
            Utah
            Local Time:
            12:00 PM
            That my friend is the question of the ages. I agree with biomedtechguy, TTI's are sweet and it has been proven that long tube headers breathe better than stock manifolds thus making more HP. (Oh boy here it comes:popcorn2: there will be opinions galore after this thread takes hold..)
            Seriously, B bodies have enough room to work on the system if the need arises. On the other hand if you were like Jerry contending with the elephant in the room it would be less of a hassle to deal with stock HP manifolds in such a tight envelope ( A body compartment). IMO

            • Agree Agree x 1
            • Jerry Hall

              Jerry Hall Well-Known Member

              Messages:
              2,011
              Likes Received:
              2802
              Joined:
              Mar 26, 2018
              Location:
              Alabama
              Local Time:
              1:00 PM
              When I pulled the engine in my 70 Superbird I removed the original HP manifolds and there were no gaskets from the factory. I had a stock rebuild done, but no surfacing done anywhere. When I put the exhaust manifolds back on I used no gaskets. They don't leak and as far as I know, have never leaked.

              • Like Like x 4
              • Agree Agree x 2
              • moparnation74

                moparnation74 FBBO Gold Member FBBO Gold Member

                Messages:
                10,508
                Likes Received:
                17934
                Joined:
                Mar 27, 2014
                Location:
                OHIO
                Local Time:
                1:00 PM
                They originally did not use gaskets......even stated in the service manual....

                I just haven’t worked enough nerve to take that gamble......they way around it is to trim the gaskets and it looks as there is no gasket.......

                • Thanks! Thanks! x 1
                • Agree Agree x 1
                • Jerry Hall

                  Jerry Hall Well-Known Member

                  Messages:
                  2,011
                  Likes Received:
                  2802
                  Joined:
                  Mar 26, 2018
                  Location:
                  Alabama
                  Local Time:
                  1:00 PM
                  I will vouch that it works. I wouldn't try it on anything that didn't have the original manifolds in place or that had been rebuilt previously and gaskets used. Glad you related that you found it in the service manual. One up on me, I haven't looked for that.

                  • Like Like x 2
                  • moparnation74

                    moparnation74 FBBO Gold Member FBBO Gold Member

                    Messages:
                    10,508
                    Likes Received:
                    17934
                    Joined:
                    Mar 27, 2014
                    Location:
                    OHIO
                    Local Time:
                    1:00 PM
                    Ohh I have heard from others but I just can’t make that jump......Especially, when some of us OE guys found another way that elicits the same look...

                    Thanks for the added confirmation it works...

                    • Like Like x 1
                    • Thanks! Thanks! x 1
                    • Backpacker

                      Backpacker Member

                      Messages:
                      18
                      Likes Received:
                      13
                      Joined:
                      May 17, 2019
                      Location:
                      Arlington Heights, Illinois
                      Local Time:
                      1:00 PM
                      I agree that the TTI's and Doug's are well made, but they both appear to be unequal length headers. 20+ years ago I remember a place in Minnesota (Headers by ???) that sold equal length headers. The headers fit with the stock starter and all accessories, however, I couldn't afford them at the time.

                      Are the current headers being sold better than the equal length headers or just easier and cheaper to mass produce?

                    • steve340

                      steve340 Well-Known Member

                      Messages:
                      429
                      Likes Received:
                      338
                      Joined:
                      Jul 7, 2018
                      Location:
                      New Zealand
                      Local Time:
                      8:00 AM
                      After some research it appears equal length headers are better but unequal lengths makes only tiny difference. The chances of getting an equal length header for a car with inner fenders etc would be next to impossible. Short answer equal length is not really necessary.
                      However fitting a header is a cheap and effective way to gain more torque and horsepower.
                      If you get a quality header and gaskets leaks have not been an issue for me. Fitting must be done carefully and fasteners tightened evenly and rechecked a few times.
                      If you have iron heads and manifolds I have used high temp silicone with no problems at all.
                      If the heads are aluminium you need to use a gasket. I only use FelPro gaskets.
                      We have a local gasket making company here and I get them to make the flange to exhaust system gaskets for me. I bought some TTI gaskets and frankly they were shit - blew out in one drive.

                      • Like Like x 1
                      • odcics2

                        odcics2 Well-Known Member

                        Messages:
                        784
                        Likes Received:
                        602
                        Joined:
                        Jul 25, 2013
                        Location:
                        MoTown
                        Local Time:
                        2:00 PM
                        Can't go wrong with Hooker Headers. Equal length = more HP, torque, and even MPGs when just cruising.
                        I never had one leak either from a blown gasket.

                        Something to be said for experience. They have been around for MANY decades!!

                        p.s. - no issues getting them to fit.

                        And no, I am not a paid commenter! lol!

                        • Like Like x 2
                        • HEMI-ITIS

                          HEMI-ITIS STREETER on LI FBBO Gold Member

                          Messages:
                          11,057
                          Likes Received:
                          12821
                          Joined:
                          Dec 14, 2008
                          Location:
                          Long Island,New York
                          Local Time:
                          2:00 PM
                          ====================================================================================================
                          If you have aftermarket wheels,Valve covers,air filter or custom anything TTI headers would most likely be your best choice.
                          BUT,if you are factory APPEARING then ther are ways to port the intake manifolds,exhaust manifolds and many other tricks to make lotsa power.I have many friends that race in the stock appearing races that go several seconds faster looking STOCK.

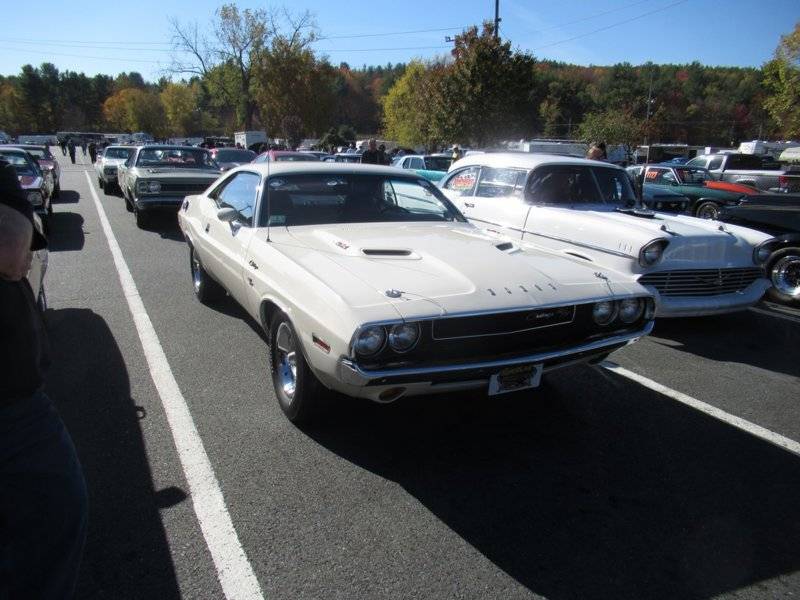

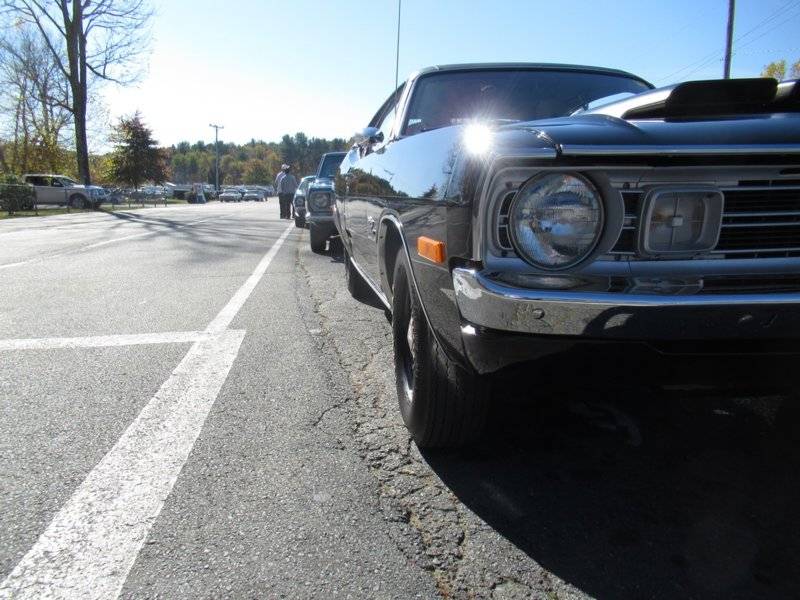

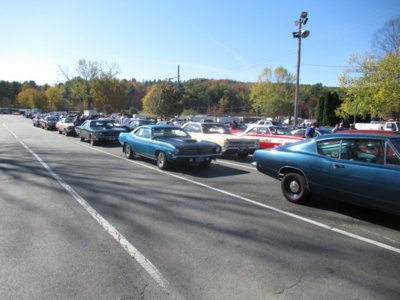

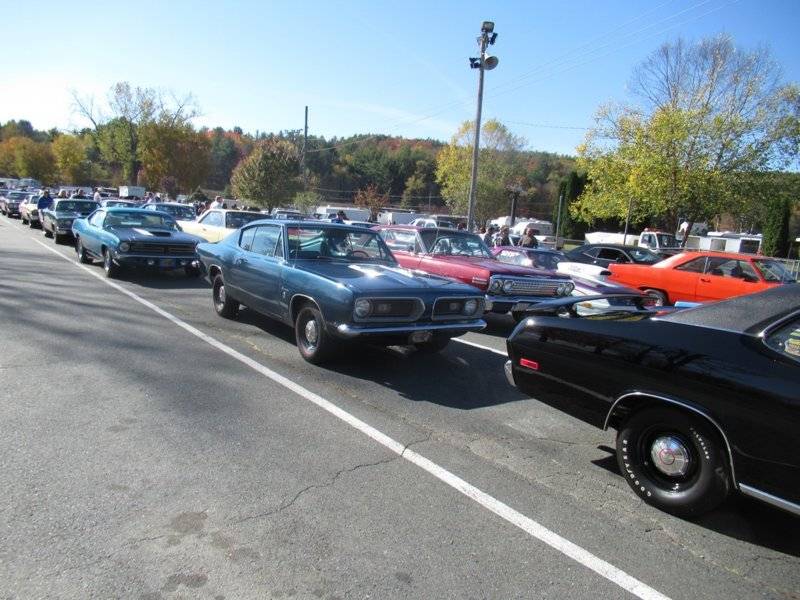

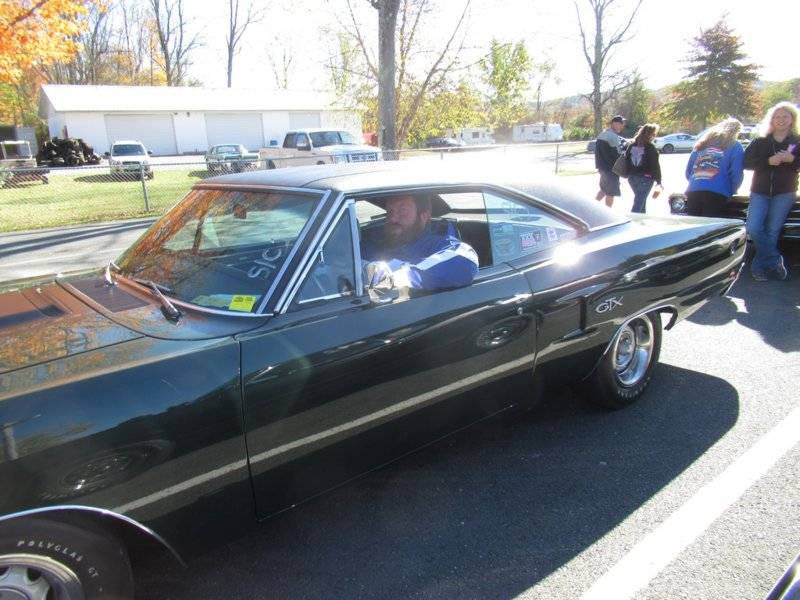

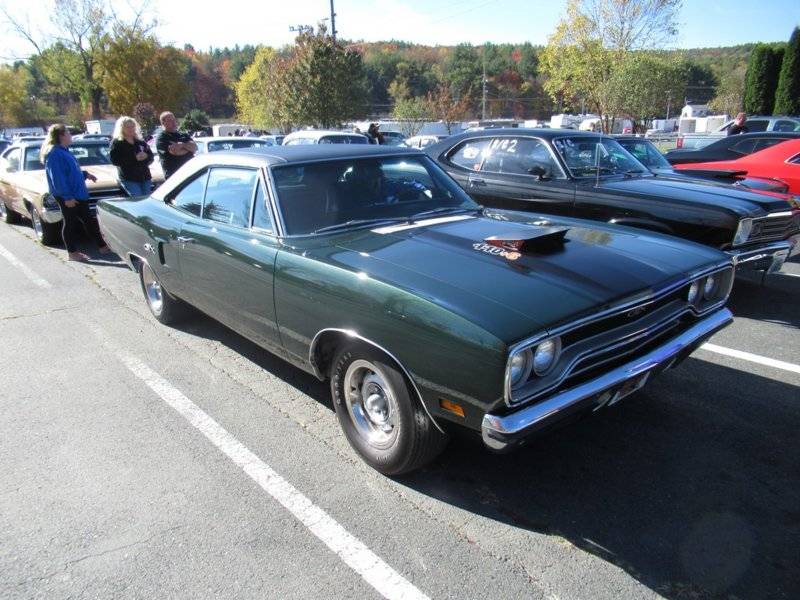

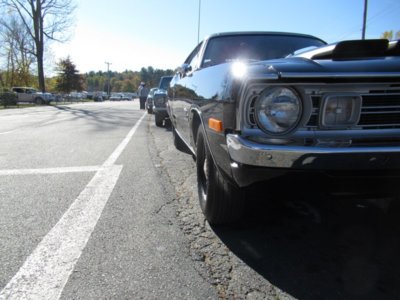

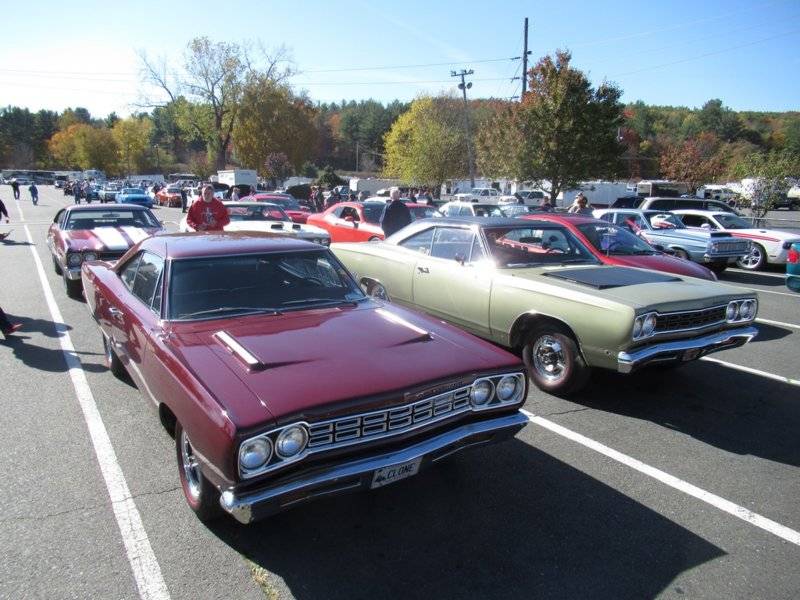

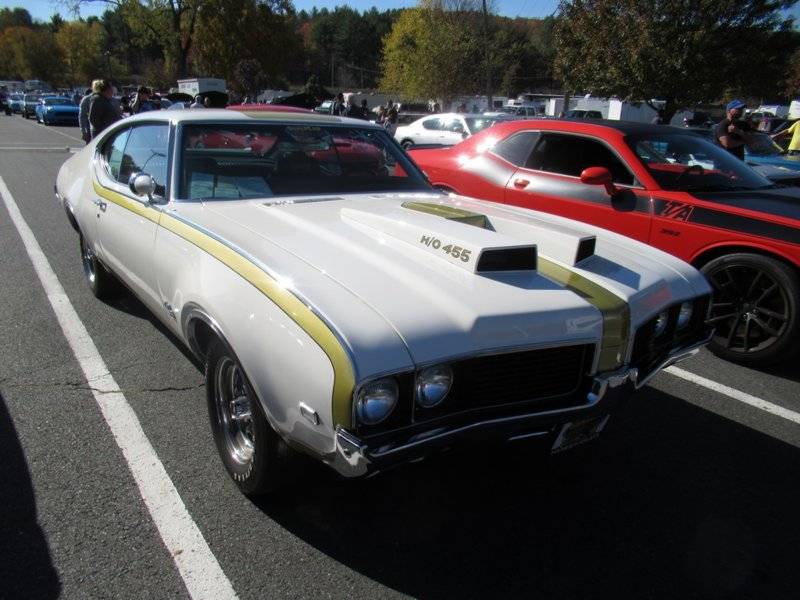

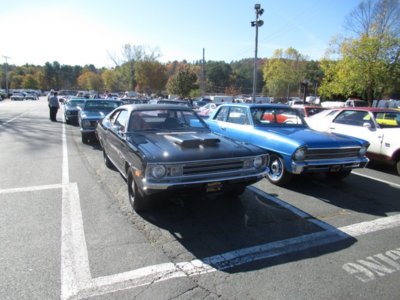

                          10.22.17 012.jpg 10.22.17 013.jpg 10.22.17 015.jpg 10.22.17 017.jpg 10.22.17 026.jpg 10.22.17 027.jpg 10.22.17 028.jpg 10.22.17 031.jpg 10.22.17 032.jpg

                          • Like Like x 3
                          • Agree Agree x 2
                          • kowalski

                            kowalski Well-Known Member

                            Messages:
                            200
                            Likes Received:
                            125
                            Joined:
                            Jul 17, 2008
                            Location:
                            Milan,Indiana
                            Local Time:
                            2:00 PM
                            It was Headers by ED..he's retired now, but afaik still has a very educational web site and still sells design services, kits, and parts. No actual header sets anymore, unless they are leftovers.

                            • Thanks! Thanks! x 2
                            • bolson6333

                              bolson6333 FBBO Gold Member FBBO Gold Member

                              Messages:
                              98
                              Likes Received:
                              121
                              Joined:
                              Feb 15, 2016
                              Location:
                              lewistown,mt.
                              Local Time:
                              12:00 PM
                              My TTI tubes started cracking within 3 years, my old hookers still going strong after 15 years and they were used when I got them.

                              Last edited: Aug 26, 2019
                              • Like Like x 2
                              • Thanks! Thanks! x 1
                              • odcics2

                                odcics2 Well-Known Member

                                Messages:
                                784
                                Likes Received:
                                602
                                Joined:
                                Jul 25, 2013
                                Location:
                                MoTown
                                Local Time:
                                2:00 PM
                                How can one argue with that?

                              • Darter6

                                Darter6 FBBO Gold Member FBBO Gold Member

                                Messages:
                                3,614
                                Likes Received:
                                3599
                                Joined:
                                Dec 29, 2009
                                Location:
                                Nevada
                                Local Time:
                                1:00 PM
                                bolson6333 Call TTI and talk to Mike. I'm sure he will refer you to Sam the owner. I'm sure they will want to know about any problems. I've been buying from them for 20 years.I hope they will make it right for you.

                                • Agree Agree x 2
                                • Darter6

                                  Darter6 FBBO Gold Member FBBO Gold Member

                                  Messages:
                                  3,614
                                  Likes Received:
                                  3599
                                  Joined:
                                  Dec 29, 2009
                                  Location:
                                  Nevada
                                  Local Time:
                                  1:00 PM
                                  Also try Remflex gaskets. I had a cheap set of Jegs Headers that would not seal even with the soft copper gaskets.Went with Remflex gaskets and problem solved.

                                  • Agree Agree x 2
                                  • snakeyes

                                    snakeyes FBBO Gold Member FBBO Gold Member

                                    Messages:
                                    26,344
                                    Likes Received:
                                    25247
                                    Joined:
                                    May 5, 2011
                                    Location:
                                    ohio
                                    Local Time:
                                    2:00 PM
                                    Hooker comps never had a problem of course ran open on the street never had a problem

                                    • Like Like x 2
                                    • Darter6

                                      Darter6 FBBO Gold Member FBBO Gold Member

                                      Messages:
                                      3,614
                                      Likes Received:
                                      3599
                                      Joined:
                                      Dec 29, 2009
                                      Location:
                                      Nevada
                                      Local Time:
                                      1:00 PM
                                      We don't need no stinkin' mufflers !
