    Intro
    Howdy Mopar enthusiasts! I am sharing my journey swapping a 5.7 Hemi and A727 into to my 1969 Satellite. I bought the car 18 months ago after the car had been sitting for 10+ years. My Satellite came from the factory with a 318/904, column shift and 741 case 8 ¾ rear end. It’s an AC car with the 26” radiator core support, but I removed all the AC components. The frame is in good shape and the body panels and floor pan have the usual rust issues that were reasonably addressed 15 years ago along with a serviceable paint job. Long ago, the right front passenger corner was wrecked, and someone replaced the front clip with a 69 Coronet front end. I happen to like the Coronet front end better than the Satellite, but it confuses a lot of folks at the car meets. The car has an awful bumble bee stripe that is wrong for the car – and it’s not even correct for a Super Bee. The paint is in great shape, so I am not going to paint over it. I'm going to do some kind of wrap to cover it. Anyway, I felt all these factors made it a great candidate for a hemi swap.

    Hemi 1.jpg
    Pre-Build Research
    It was challenging trying to decide on which combination of engine, transmission, controller and wiring harness to use. It was also a challenge to decide on swapping used parts versus buying everything new. Ultimately, I decided to use ALL new parts, so I could minimize the potential for mismatched parts and limit the “startup” troubleshooting that so many folks have. Rather than source a used engine, I chose the Mopar Performance 5.7 Crate Engine with the factory controller and wiring. I had to replace my 904 transmission anyway, so I chose a new A727 TCI transmission.

    Early on, I decided to use the Holley B Body Gen 3 Hemi Swap components because they make just about everything. Everything they provided fits great. The engine and transmission fit without conflict of any kind and the headers and exhaust fit exactly as you would hope without fabrication or denting.

    The other extremely valuable resource was Bouchillon Performance Engineering. Bouchillon makes those hard-to-find components which let the 50 year old parts talk to the new parts. Randy Bouchillon probably knows more about swapping Gen 3’s than anybody – including Holley and he will gladly provide advice if you call him. He makes some crucial products for my build and the quality is outstanding.

    The project took 5 months because I was building this project during Covid. I waited for months for so many parts. Could have been done in 4 weeks if all the parts were available.

    Here are some of the resources I used:
    https://www.holley.com/products/eng...74_mopar_b-body_gen_iii_hemi_swap_components/
    https://www.diyhemi.com/
    https://bouchillonperformance.com/
    https://board.moparts.org/ubbthread...7339/let-the-hemi-swap-begin.html#Post1577339
    https://www.motortrend.com/how-to/will-gen-iii-hemi-fit-project-measured/
    https://www.allpar.com/threads/modern-mopar-chrysler-dodge-5-7-hemi-magnum-v8-engines.230003/
    https://www.dodgegarage.com/news/ar...hemi-engine-quick-reference-guide-part-i.html

    About this Build List
    I’ve included every part component used in the build, with the exception of misc. fasteners, tech screws, nuts and bolts. Where possible, I have identified part numbers and the general reason the part was needed. All labor, backyard engineering and fabrication was performed by David Gibson of Gibson Engine Development in ATX.

    Parts List and Cost (Not including Labor)
    Swap List 0.jpg Swap List 1.jpg Swap List 2.jpg Swap List 3.jpg

    Engine Swap Notes
    I considered using a used 5.7 from a salvage yard, but we don’t have many reputable sources in ATX. At a minimum, I wanted a newly salvaged engine rather than something that was sitting on a shelf for years.

    I also looked at Cleveland Performance and MARS LS Swap because they put together a really good swap package. They set it up so you can see it run before they send it to you. The low mile swap kits they sell are pretty close in price to the Mopar Performance crate engine so I didn’t want to gamble on a used motor.

    The Mopar Performance crate engine kit is available from many vendors, so shop around to get the best price. I got mine from the salesman “Frog” at moparproshop.com. Only bummer was $450 to drop ship to the house.

    Once installed the engine fired right up and all components worked as expected. We located the ECM under the dash rather than in the engine bay. I have a new Dakota Digital Gauge Cluster and the ECM communicates great with the cluster. You do need the Dakota Digital BIM-01-2 OBD-II/CAN module in order for the gauge to receive the tachometer and the oil pressure signal. I’m told this has something to do with the Mopar’s desire to discourage aftermarket tuning.

    The crate engine comes with oil, but you have to swap the oil pan so if you can’t capture the oil, you will need 7 more quarts.

    I adapted engine covers from the 6.4 and I deleted the AC and got a blanking plate from Vintage Air to clean up the engine bay.

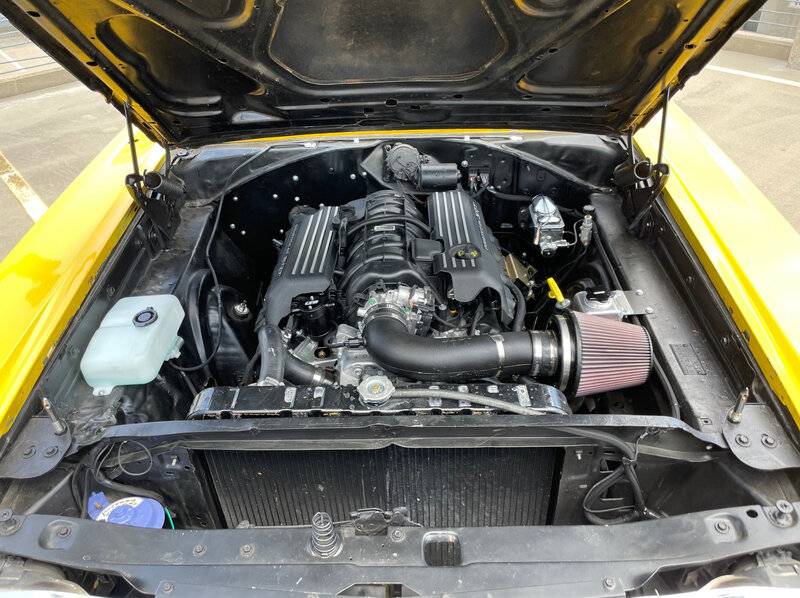

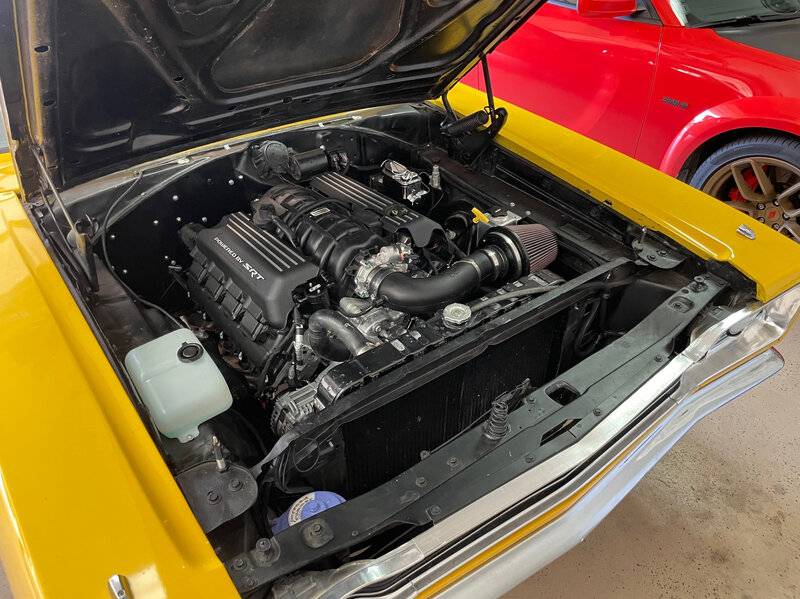

    Hemi 2.jpg

    Transmission/Driveline Components

    Because I was swapping from a 904 to a 727, my swap was a little more complicated. I had to get a new column shifter cable and I could only find one vendor (ididit) who made one. You will also need the something for kickdown. Bouchillon solved the problem perfectly with a well-engineered throttle pressure system assembly, but it is pricey.

    Happy Swapping!

    Hemi 4.jpg

    Last edited: Sep 15, 2021
    • Thanks! Thanks! x 3
    • Like Like x 2
    • chtampa

      chtampa FBBO Gold Member FBBO Gold Member

      Messages:
      2,462
      Likes Received:
      3138
      Joined:
      Nov 24, 2013
      Location:
      Tampa, FL
      Local Time:
      4:34 PM
      I spent about 7k on mine, but I used mostly factory parts.

    • Kern Dog

      Kern Dog FBBO Gold Member FBBO Gold Member

      Messages:
      22,163
      Likes Received:
      60304
      Joined:
      Apr 13, 2012
      Location:
      Granite Bay CA
      Local Time:
      1:34 PM
      I see a transmission adapter listed. I thought the bell bolt pattern was the same. Why the adapter? Is the crank flange different?

    • 5.7 hemi

      5.7 hemi FBBO Gold Member FBBO Gold Member

      Messages:
      14,924
      Likes Received:
      13697
      Joined:
      Dec 21, 2008
      Location:
      ca
      Local Time:
      3:34 PM
      It’s for distance to the starter/flex plate. Any small block Mopar trans will bolt up to the Gen 3 Hemi’s. The bolt hole isn’t used on the trans/bell housing. Hell, some don’t use the 1/8 thick spacer at all.

    • ATX B Body

      ATX B Body Active Member

      Messages:
      37
      Likes Received:
      20
      Joined:
      Dec 26, 2019
      Location:
      Austin, TX
      Local Time:
      3:34 PM
      The adapter is related to the Holley transmission mount kit. They have a universal bracket for all transmission options and specific mount adapter for each transmission.

      • Thanks! Thanks! x 1
      • Greg Ducato

        Greg Ducato Workin' on it... FBBO Gold Member

        Messages:
        1,351
        Likes Received:
        947
        Joined:
        Mar 28, 2012
        Location:
        Weatherford Texas
        Local Time:
        3:34 PM
        That is a great looking conversion and well laid out. Thanks for posting this list and info!

      • chtampa

        chtampa FBBO Gold Member FBBO Gold Member

        Messages:
        2,462
        Likes Received:
        3138
        Joined:
        Nov 24, 2013
        Location:
        Tampa, FL
        Local Time:
        4:34 PM
        The trans adapter is just a flex plate.

      • Kern Dog

        Kern Dog FBBO Gold Member FBBO Gold Member

        Messages:
        22,163
        Likes Received:
        60304
        Joined:
        Apr 13, 2012
        Location:
        Granite Bay CA
        Local Time:
        1:34 PM
        This is the 3rd different explanation....

        I don't understand the "bolt hole" reference.
        So what is the adapter? What does it look like?

      • 5.7 hemi

        5.7 hemi FBBO Gold Member FBBO Gold Member

        Messages:
        14,924
        Likes Received:
        13697
        Joined:
        Dec 21, 2008
        Location:
        ca
        Local Time:
        3:34 PM
        Small blocks have 3 holes across the top where the trans bolts to. On Gen 3 Hemi transmissions, there is only 2.

        • Thanks! Thanks! x 1
        • 5.7 hemi

          5.7 hemi FBBO Gold Member FBBO Gold Member

          Messages:
          14,924
          Likes Received:
          13697
          Joined:
          Dec 21, 2008
          Location:
          ca
          Local Time:
          3:34 PM

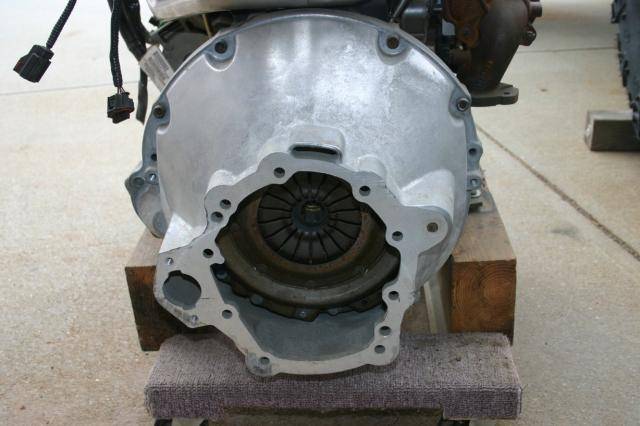

          See the missing top bolt hole? This is a Gen 3 Hemi trans.

          • Thanks! Thanks! x 1
          • 5.7 hemi

            5.7 hemi FBBO Gold Member FBBO Gold Member

            Messages:
            14,924
            Likes Received:
            13697
            Joined:
            Dec 21, 2008
            Location:
            ca
            Local Time:
            3:34 PM

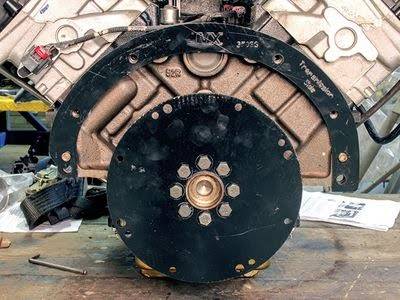

            The black pieces are the spacer and the tc adapter.

          • chtampa

            chtampa FBBO Gold Member FBBO Gold Member

            Messages:
            2,462
            Likes Received:
            3138
            Joined:
            Nov 24, 2013
            Location:
            Tampa, FL
            Local Time:
            4:34 PM

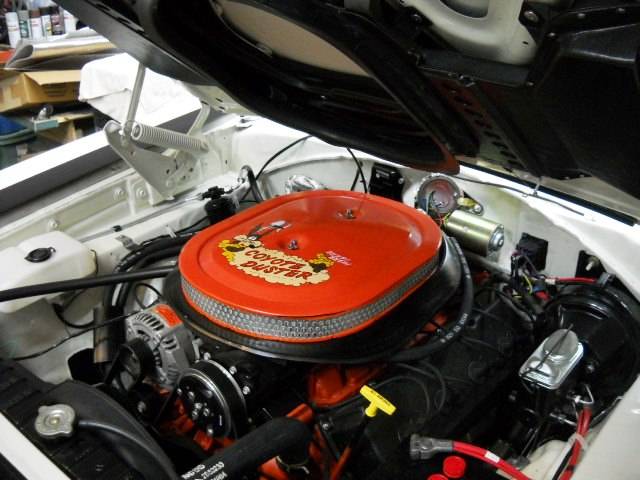

            69 RR Convertible
            5.7
            SB B-Body 727 - No speedo cable issues or shifter issues or kickdown issues
            ATI Flexplate https://www.jegs.com/i/ATI/085/915685/10002/-1#
            Hemi 8 bolt hardware and torque convertor bolts

            I fabricated my own dust shield and used a mini starter mounted on the drivers side.

            When I started my swap I found a cheat sheet done by Herb McCandless. I have bolt in exhaust manifolds with heat shields. If you didn't know that the 5.7 wasn't available in 1969 my car could pass an OE inspection. I have this engine detailed like a production line install. I love it when people ask me how I got a serpentine on a Gen II Hemi. Most never realize.


            Last edited: Sep 15, 2021
            • Like Like x 3
            • Kern Dog

              Kern Dog FBBO Gold Member FBBO Gold Member

              Messages:
              22,163
              Likes Received:
              60304
              Joined:
              Apr 13, 2012
              Location:
              Granite Bay CA
              Local Time:
              1:34 PM
              I have only seen that top bolt hole in manual bell housings. All the 727s and 904s have no hole at the 12:00 position.

            • 451Mopar

              451Mopar Well-Known Member

              Messages:
              2,643
              Likes Received:
              1953
              Joined:
              Oct 25, 2011
              Location:
              Aurora, CO
              Local Time:
              2:34 PM
              Pretty expensive flexplate bolts 4 & 22.97 each? total $91.88
              Is that a pack of 4 for 22.97?
              Good information. I might do this some day with a 2008 6.1L Gen III I bought for a swap, but want to use a modern transmission.
              My engine came with the NAG1. I think Holley is nor making the computers that can operate the engine and trans?

            • chtampa

              chtampa FBBO Gold Member FBBO Gold Member

              Messages:
              2,462
              Likes Received:
              3138
              Joined:
              Nov 24, 2013
              Location:
              Tampa, FL
              Local Time:
              4:34 PM
              With an 2008 motor you should just need the MSD Hemi 6

            • 5.7 hemi

              5.7 hemi FBBO Gold Member FBBO Gold Member

              Messages:
              14,924
              Likes Received:
              13697
              Joined:
              Dec 21, 2008
              Location:
              ca
              Local Time:
              3:34 PM
              Didn’t know that Kern, never had a 904 or 727.

              • Like Like x 1
              • 70chall440

                70chall440 Well-Known Member

                Messages:
                2,969
                Likes Received:
                4328
                Joined:
                Feb 11, 2018
                Location:
                Yelm, Washington
                Local Time:
                1:34 PM
                What valve covers and intake are you using?
