Gonna replace transmission pan gasket but have some questions..

Thrashingcows

Well-Known Member
Local time
6:22 PM
Joined
Apr 24, 2020
Messages
811
Reaction score
1,278
Location
Northern BC
Yup you got it...just put it into gear, hold your foot on the brake pedal, then shift through each gear allowing it to run in that gear for 5-10 seconds. Then in neutral and check you fluid again, top up if needed then go for a drive to get it up to operating temperature. Once back again put in neutral and check fluid level.

Local time
9:22 PM
Joined
Jul 6, 2020
Messages
12
Reaction score
3
Location
USA
These work well with no sealers:

Mopar 4295875AC Transmission Pan Gasket​

Mopar 02464324AC Transmission Pan Gasket​

Available from the dealer, Amazon, and eBay.

The Mr. Gasket transmission pan gaskets also look good but I have not used them myself. Mr. Gasket: 51C01MRG & 51C02MRG.

Mr. Gasket Ultra-Seal intake gaskets 5841 are a no leak product but they are 0.060" thick so check bolt alignment.


Marco Perez

Well-Known Member
Local time
6:22 PM
Joined
May 16, 2022
Messages
102
Reaction score
18
Location
Central California

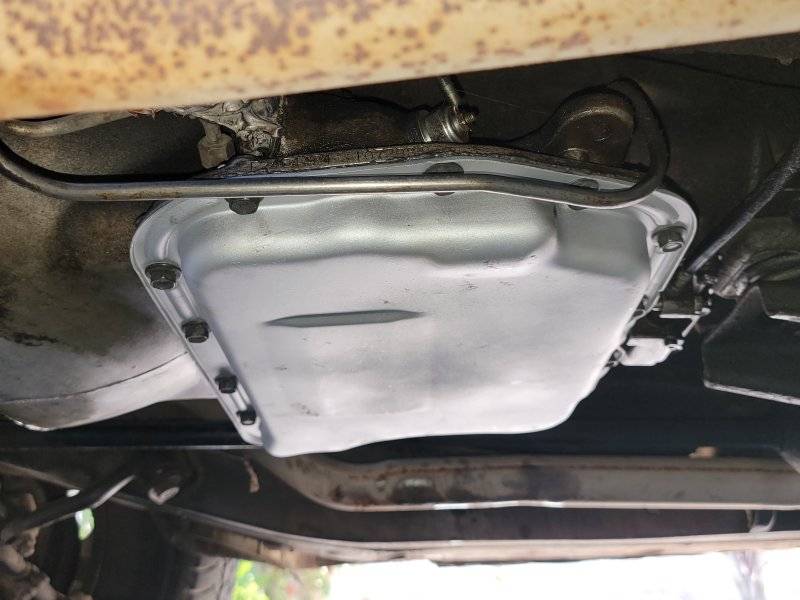

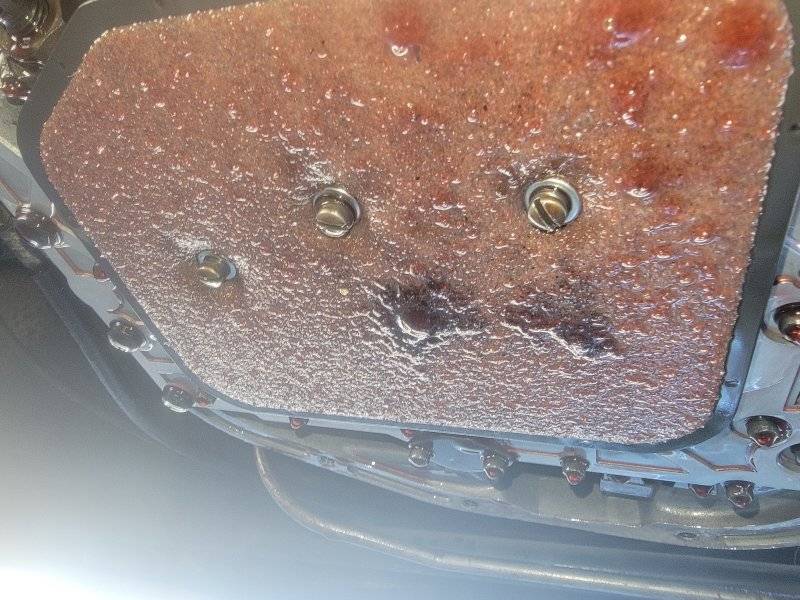

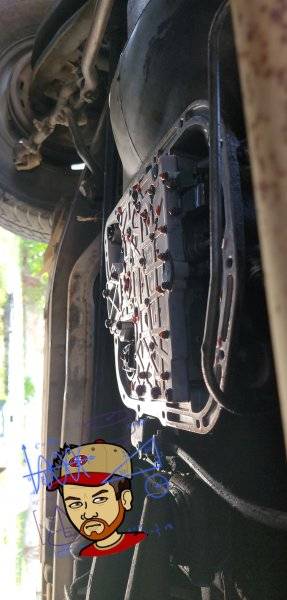

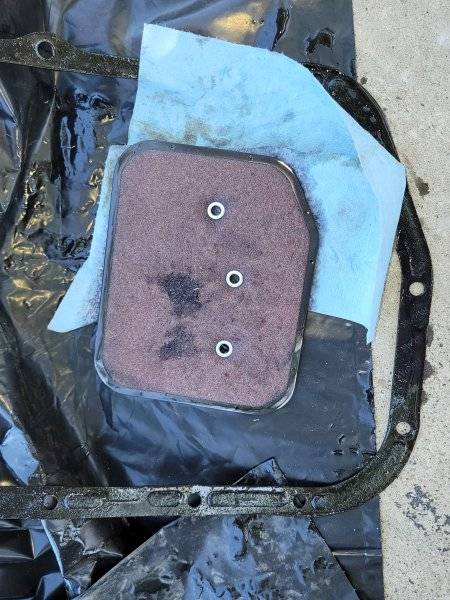

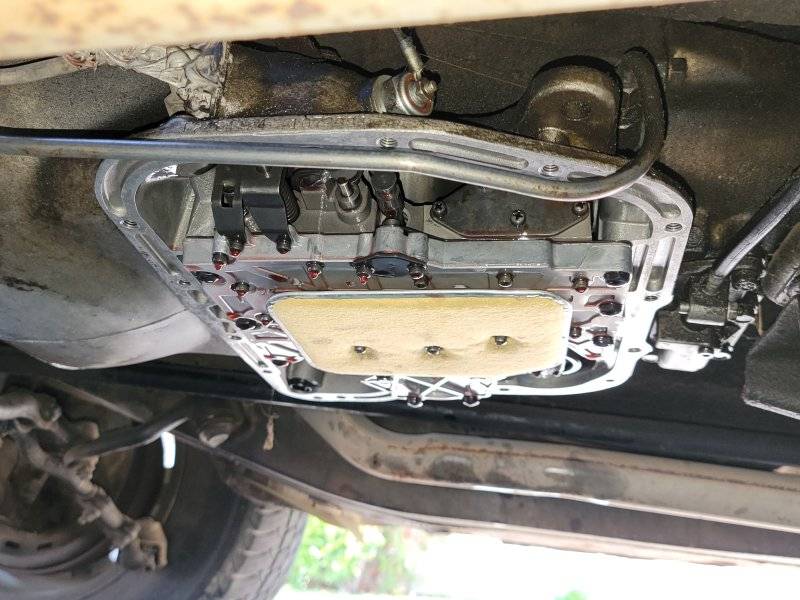

So here are some pictures of my project I did this morning / afternoon

I'm waiting a lil while to let it set good before refilling which I'm probably going to do here shortly. .

Was pretty simple project, atleast I thought so thanks for everyone's help and tips.

















AR67GTX

FBBO Gold Member
FBBO Gold Member
Local time
8:22 PM
Joined
Jan 28, 2012
Messages
3,801
Reaction score
2,881
Location
Arkansas
Is that a new pan or did you spray paint it with something? Looks very natural.

Good job.


Marco Perez

Well-Known Member
Local time
6:22 PM
Joined
May 16, 2022
Messages
102
Reaction score
18
Location
Central California
Is that a new pan or did you spray paint it with something? Looks very natural.

Good job.

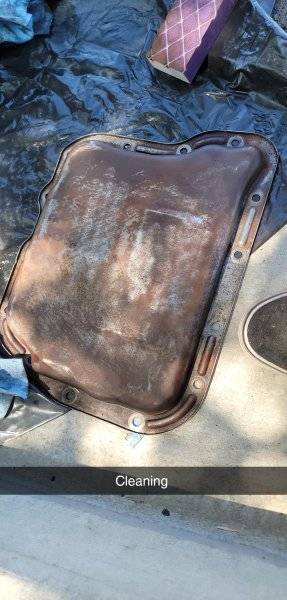

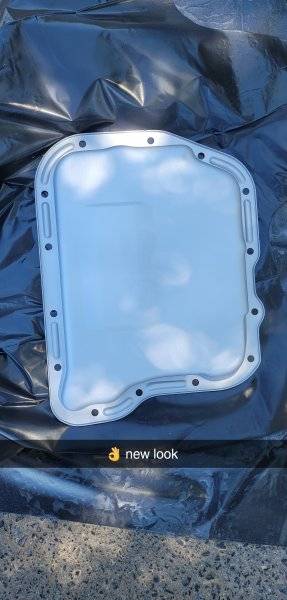

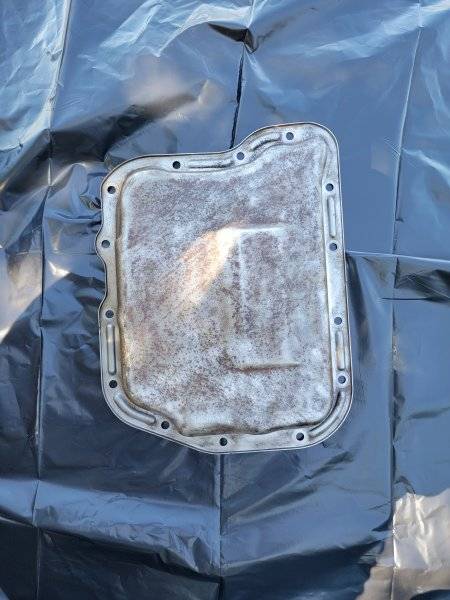

It's the original pan I used a wire brush on a drill to clean it up and used a 220 sand paper to clean it up as much as I could. Than I used a very high temperature paint and gave it 2 coats.

Thanks


64BEL

FBBO Gold Member
FBBO Gold Member
Local time
8:22 PM
Joined
Feb 25, 2010
Messages
5,051
Reaction score
7,163
Location
Wisconsin
I like the later A-518 pan gasket from 2000 or so Ram pickup. It is neoprene with steel core and all the holes are o-ringed. Put it on dry and buy a set of the longer pan bolts.
And it's reusable! I've been reusing the same gasket that came with my 2001 Ram for 22 years, now. No sealants required, and I've never had a leak. I've serviced it probably 15 times.


AR67GTX

FBBO Gold Member
FBBO Gold Member
Local time
8:22 PM
Joined
Jan 28, 2012
Messages
3,801
Reaction score
2,881
Location
Arkansas
Serviced 15 times in 22 years! I can’t resist asking what’s up with that. Is this the highest mileage, running 2001 Ram in existence?


YY1

FBBO Gold Member
FBBO Gold Member
Local time
9:22 PM
Joined
Jun 26, 2010
Messages
22,211
Reaction score
15,807
Location
FL
I used the red ebay silicone gasket installed dry.

Hasn't leaked in over 5 years.

I did retorque the bolts after about 60 days.


64BEL

FBBO Gold Member
FBBO Gold Member
Local time
8:22 PM
Joined
Feb 25, 2010
Messages
5,051
Reaction score
7,163
Location
Wisconsin
Serviced 15 times in 22 years! I can’t resist asking what’s up with that. Is this the highest mileage, running 2001 Ram in existence?
I used to do a lot of towing and I wanted the trans to last, so I figured it was fairly cheap insurance. Probably overkill, but it still hasn't had to be rebuilt so far with 185,000 miles behind the Cummins. I've slowed down in my insanity as I've gotten older, though. :realcrazy:


Marco Perez

Well-Known Member
Local time
6:22 PM
Joined
May 16, 2022
Messages
102
Reaction score
18
Location
Central California

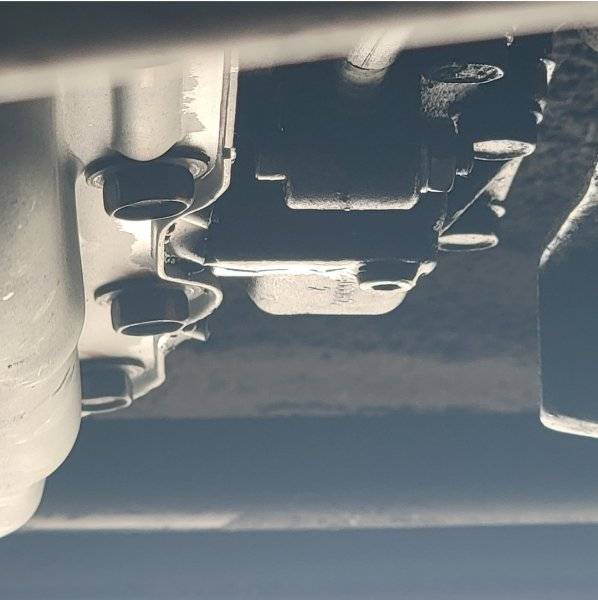

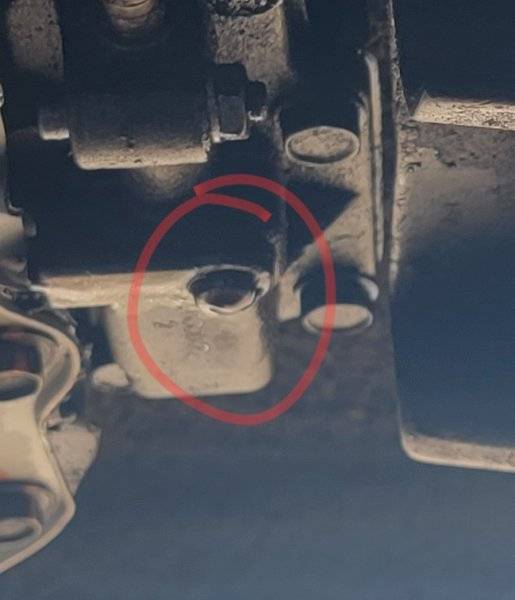

So the leak stopped but now I see it coming from this part right behind the pan does anyone know what is it or called ? Could just be a loose bolt or o ring ? Any Info would help

Thanks





Marco Perez

Well-Known Member
Local time
6:22 PM
Joined
May 16, 2022
Messages
102
Reaction score
18
Location
Central California

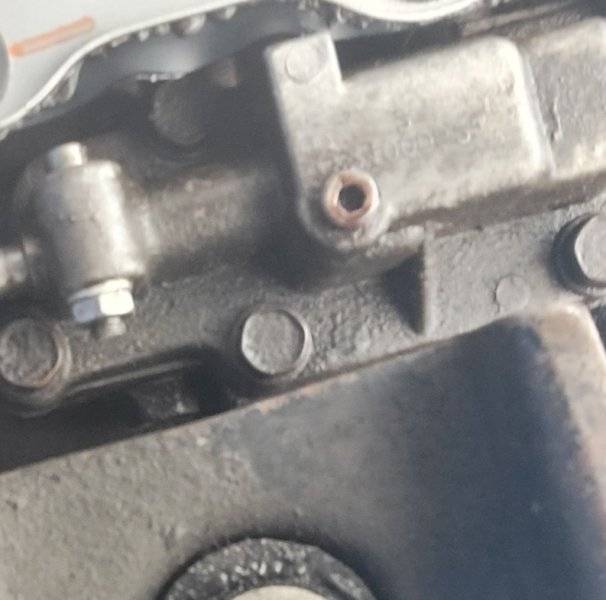

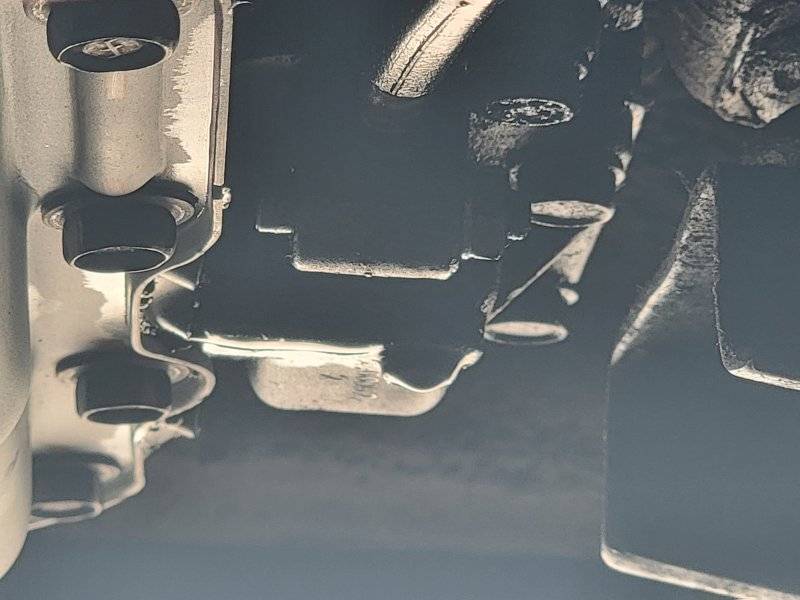

So the leak stopped but now I see it coming from this part right behind the pan does anyone know what is it or called ? Could just be a loose bolt or o ring ? Any Info would help

Thanks

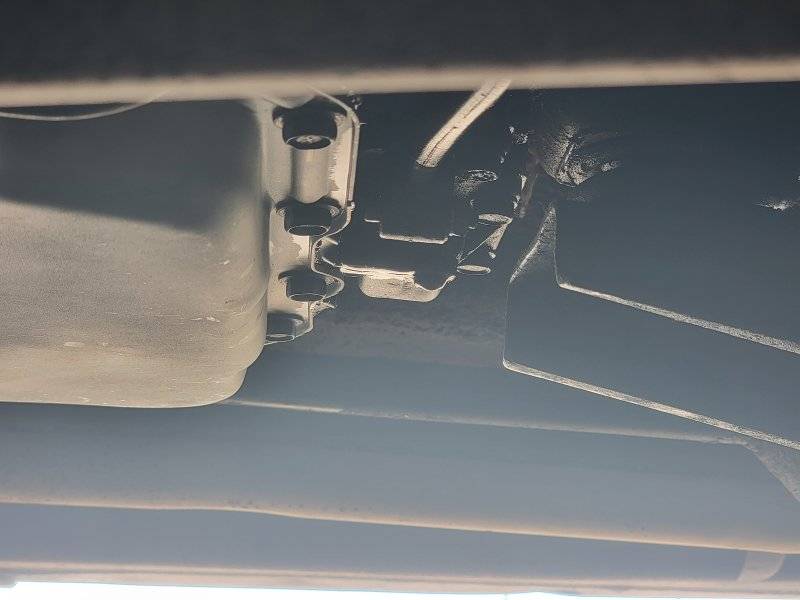

View attachment 1331769

View attachment 1331770
I actually just cleaned it saw it was a lil Allen so I just tightened it up some and cleaned it I'll go back to look at in a couple min. ..







HEMI-ITIS

STREETER on LI
Local time
9:22 PM
Joined
Dec 14, 2008
Messages
12,686
Reaction score
16,412
Location
Long Island,New York
That cable is for reverse.There is an "O"ring on the cable going into that housing. It is possible the allen plug was leaking if it were loose.


khryslerkid

FBBO Gold Member
FBBO Gold Member
Local time
9:22 PM
Joined
Mar 10, 2010
Messages
27,588
Reaction score
45,481
Location
Hanover, Pennslyvania
That cable is for reverse.There is an "O"ring on the cable going into that housing. It is possible the allen plug was leaking if it were loose.
I believe that allen plug is there to access the clip that holds the park cable. Push button trans.


Marco Perez

Well-Known Member
Local time
6:22 PM
Joined
May 16, 2022
Messages
102
Reaction score
18
Location
Central California
Anyone know if there's an o ring or something for that lil Allen screw ? And what the torque on that would be ?


khryslerkid

FBBO Gold Member
FBBO Gold Member
Local time
9:22 PM
Joined
Mar 10, 2010
Messages
27,588
Reaction score
45,481
Location
Hanover, Pennslyvania
Anyone know if there's an o ring or something for that lil Allen screw ? And what the torque on that would be ?

No O ring. You could put a little Teflon paste on it and screw it back in. Not a lot of torque because you could crack the housing.

You know these Mopars do leak on occasion. It's called Horsepower Sweat. :)
