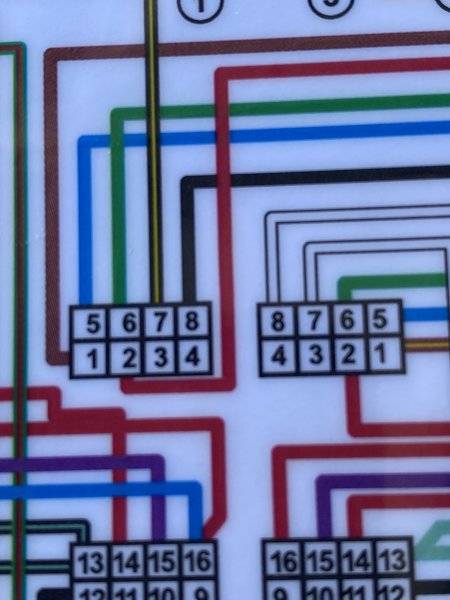

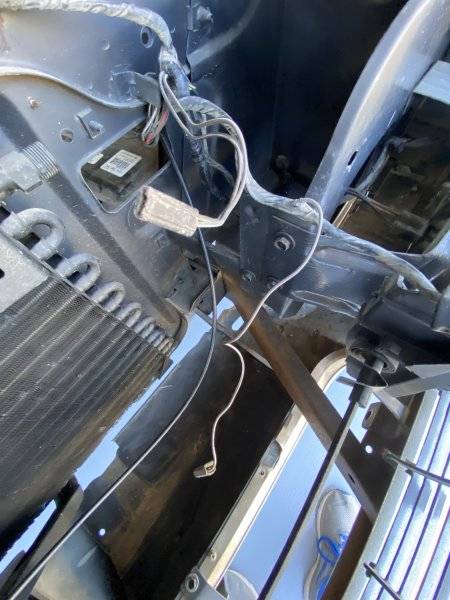

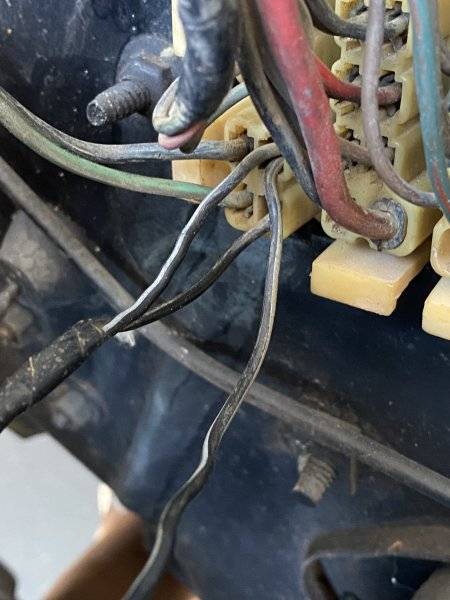

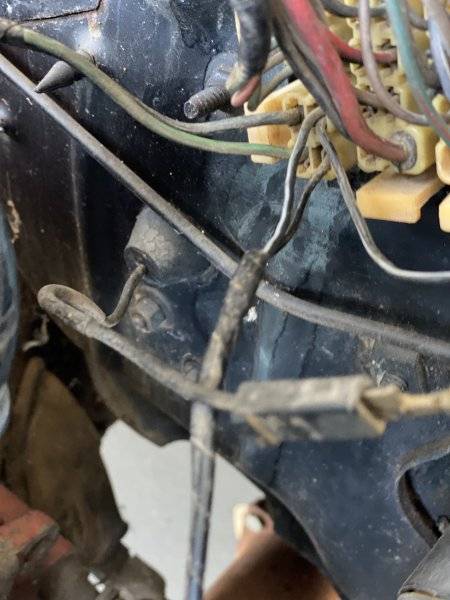

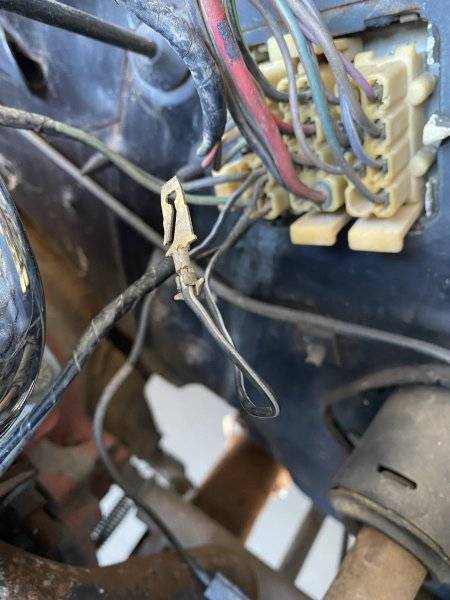

1971 383 Magnum. 4 Speed. OK spent money on the colored wiring diagram. All my wiring is factory!!! Slot 7 & 8 are for the reverse lights for the 4 Speed. So the problem is slot 7 has a wire coming out of this slot that is not on the wiring diagram. This wire is black with a white tracer. Also the other wire coming out of slot 7 is also black with white tracer. this wire according to the diagram is supposed to be Black with yellow tracer....go figure... Hey, it was 1971 LOL. So I have three questions. 1. Where does the extra wire coming out of slot 7 go??? 2. I have two connectors coming out of the front wiring harness. Both are brown with white tracers. Again not on the diagram. Where do these go??? 3. Does any body have a clip for the heater control valve they would be willing to sell??? Still learning the web site dont know how to PM.


Beekeeper

It’s a disease without a cure!
FBBO Gold Member
Local time
6:07 AM
Joined
Jul 4, 2012
Messages
4,553
Reaction score
4,608
Location
Rogersville,TN.
I’m not familiar with 71’ models but I think that extra wire goes to your dash reverse indicator And should go in an empty slot on one of the bulkhead connectors.


cinciaz

Active Member
Local time
5:07 AM
Joined
Aug 1, 2022
Messages
26
Reaction score
8
Location
Arizona
I do have a reverse light on the dash. But its not on the wiring diagram... Go figure


beanhead

Well-Known Member
Local time
4:07 AM
Joined
May 18, 2014
Messages
7,751
Reaction score
14,732
Location
Wackyfornia
Those wiring diagrams never seem to be 100% accurate. I have some old original factory hard-copies, and even then I find discrepancies from time to time.
If all else fails....physically trace and verify the wire(s) in question. You can do it without cutting open the harness wrap.


RemCharger

Well-Known Member
Local time
6:07 AM
Joined
Apr 5, 2014
Messages
3,894
Reaction score
3,633
Location
Sask

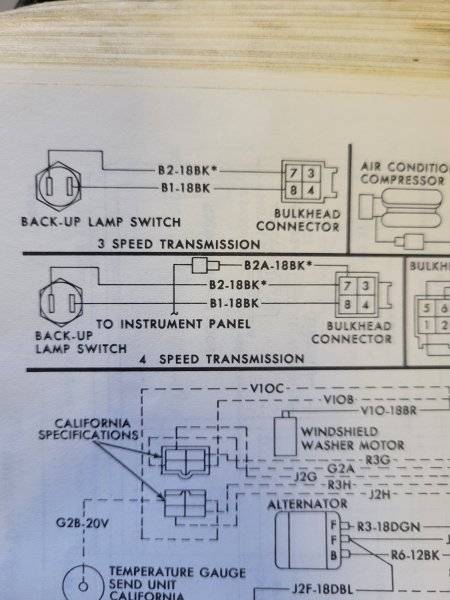

This should help. It's from a 72 book bit..


cinciaz

Active Member
Local time
5:07 AM
Joined
Aug 1, 2022
Messages
26
Reaction score
8
Location
Arizona
Just irritates the heck out of me you pay good money for a wiring diagram and its missing stuff. the A/C wiring is not on this thing either....


cinciaz

Active Member
Local time
5:07 AM
Joined
Aug 1, 2022
Messages
26
Reaction score
8
Location
Arizona

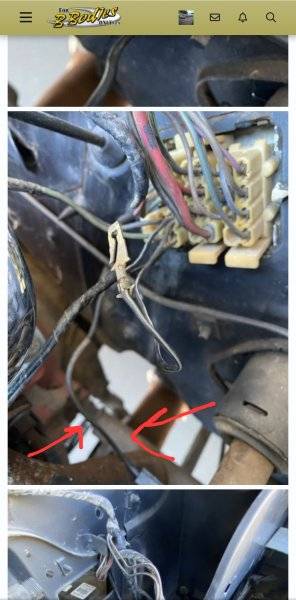

should ther be a wire coming out of the bulk head to connect that wire that is going to the revers light on the dash:BangHead:


beanhead

Well-Known Member
Local time
4:07 AM
Joined
May 18, 2014
Messages
7,751
Reaction score
14,732
Location
Wackyfornia
Just irritates the heck out of me you pay good money for a wiring diagram and its missing stuff. the A/C wiring is not on this thing either....
That's where having the full FSM can come in handy. There is an "accessory" schematic that usually fills in the blanks with things not shown on the other diagrams. Not sure what you have but those nice colored schematics typically only show the engine bay and/or instrument panel schematic pages.
You might go to "myMopar.com" and download the full service manual for your year/make/model.


cinciaz

Active Member
Local time
5:07 AM
Joined
Aug 1, 2022
Messages
26
Reaction score
8
Location
Arizona
I have the full service manual on CD couldnt find any thing there... That manual is so hard to find stuff I will look again. Thanks


RemCharger

Well-Known Member
Local time
6:07 AM
Joined
Apr 5, 2014
Messages
3,894
Reaction score
3,633
Location
Sask

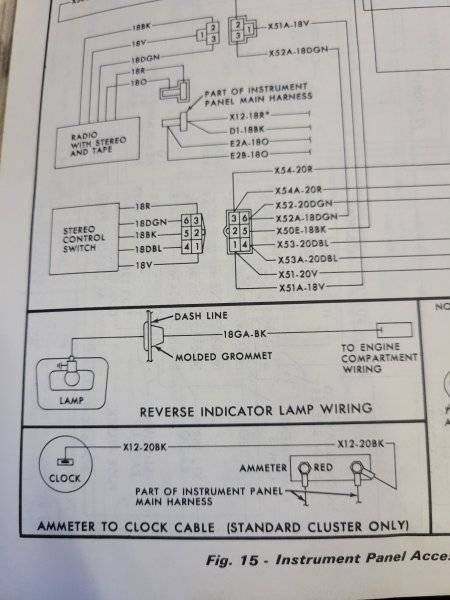

Should be a molded grommet coming out of the firewall from what I can tell


beanhead

Well-Known Member
Local time
4:07 AM
Joined
May 18, 2014
Messages
7,751
Reaction score
14,732
Location
Wackyfornia
I have the full service manual on CD couldnt find any thing there... That manual is so hard to find stuff I will look again. Thanks
Gotcha. Well..like I said before, sometimes you'll find stuff in your particular car that isn't on the schematic. Sometimes to be sure you just gotta scrunch under there and trace stuff out...I like to pop 3 or 4 Advils first if I'm gonna be working under the dash:D


hunt2elk

FBBO Gold Member
FBBO Gold Member
Local time
6:07 AM
Joined
Jul 15, 2009
Messages
9,520
Reaction score
9,632
Location
WI
I have the full service manual on CD couldnt find any thing there... That manual is so hard to find stuff I will look again. Thanks
The accessory schematics are usually a couple pages in back of the main harness schematic.


cinciaz

Active Member
Local time
5:07 AM
Joined
Aug 1, 2022
Messages
26
Reaction score
8
Location
Arizona
OK I found it thank you,,, it was hiding LOL. what page was that on i cant find that on my CD



cinciaz

Active Member
Local time
5:07 AM
Joined
Aug 1, 2022
Messages
26
Reaction score
8
Location
Arizona
You guys are great. feel like a reel idiot I should have saw that... now we can move foward to the frant harness lol


RemCharger

Well-Known Member
Local time
6:07 AM
Joined
Apr 5, 2014
Messages
3,894
Reaction score
3,633
Location
Sask
Are the front wires not possibly the horns? Put a test light in them and push horn button
